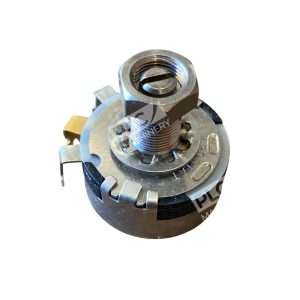

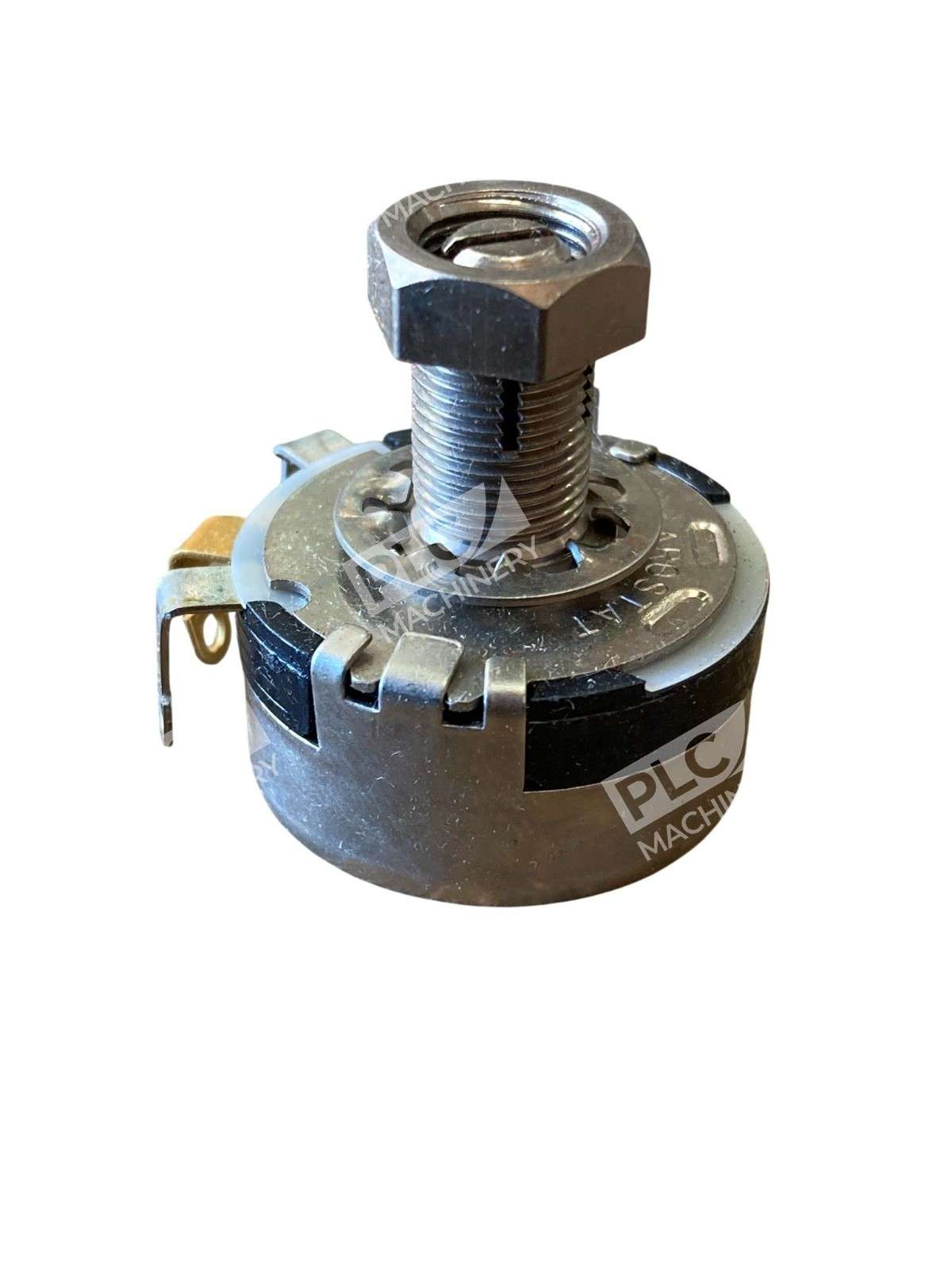

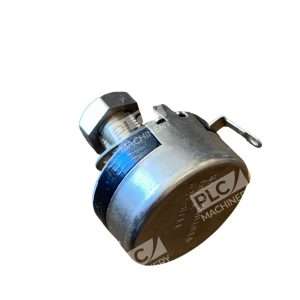

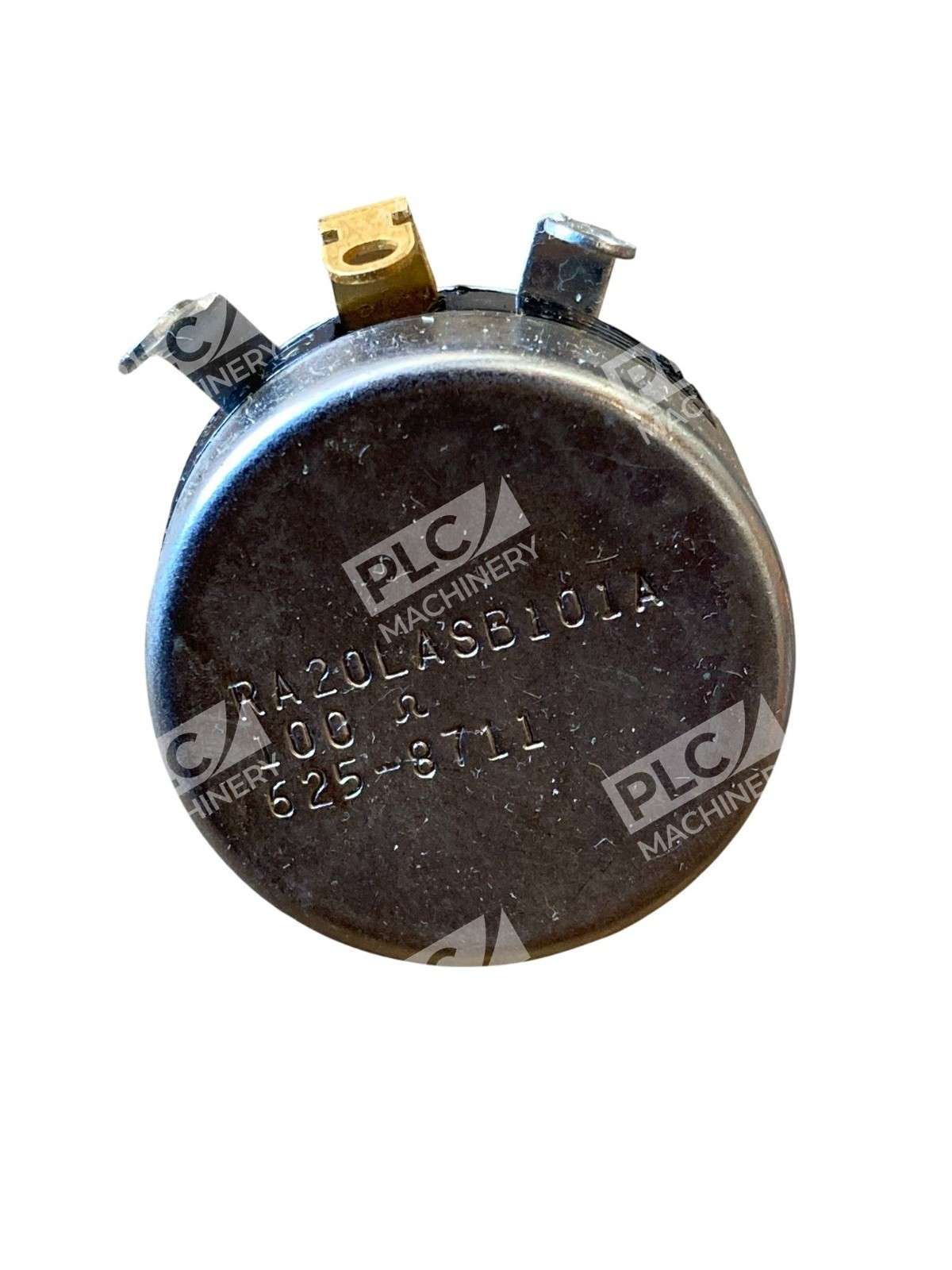

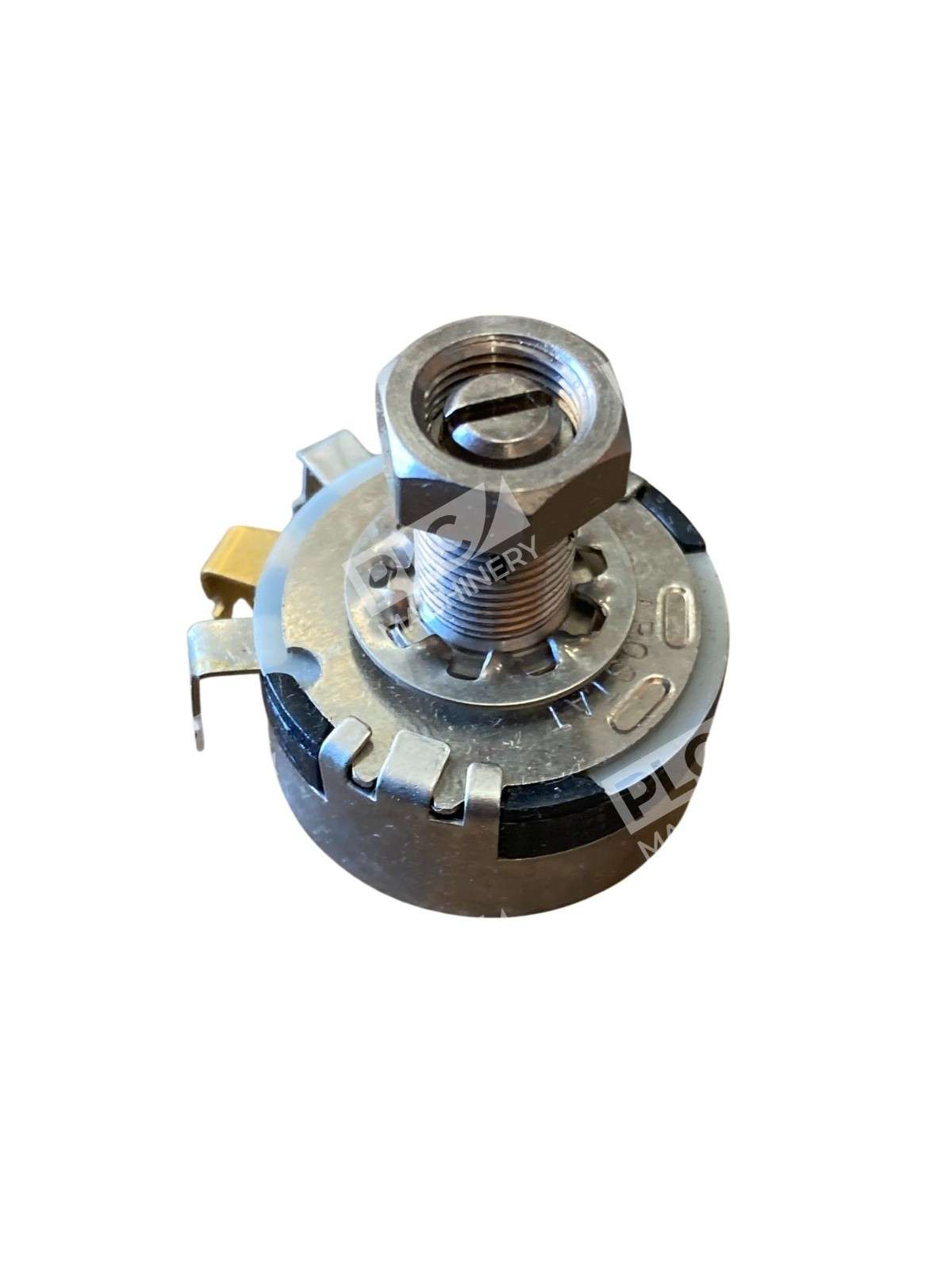

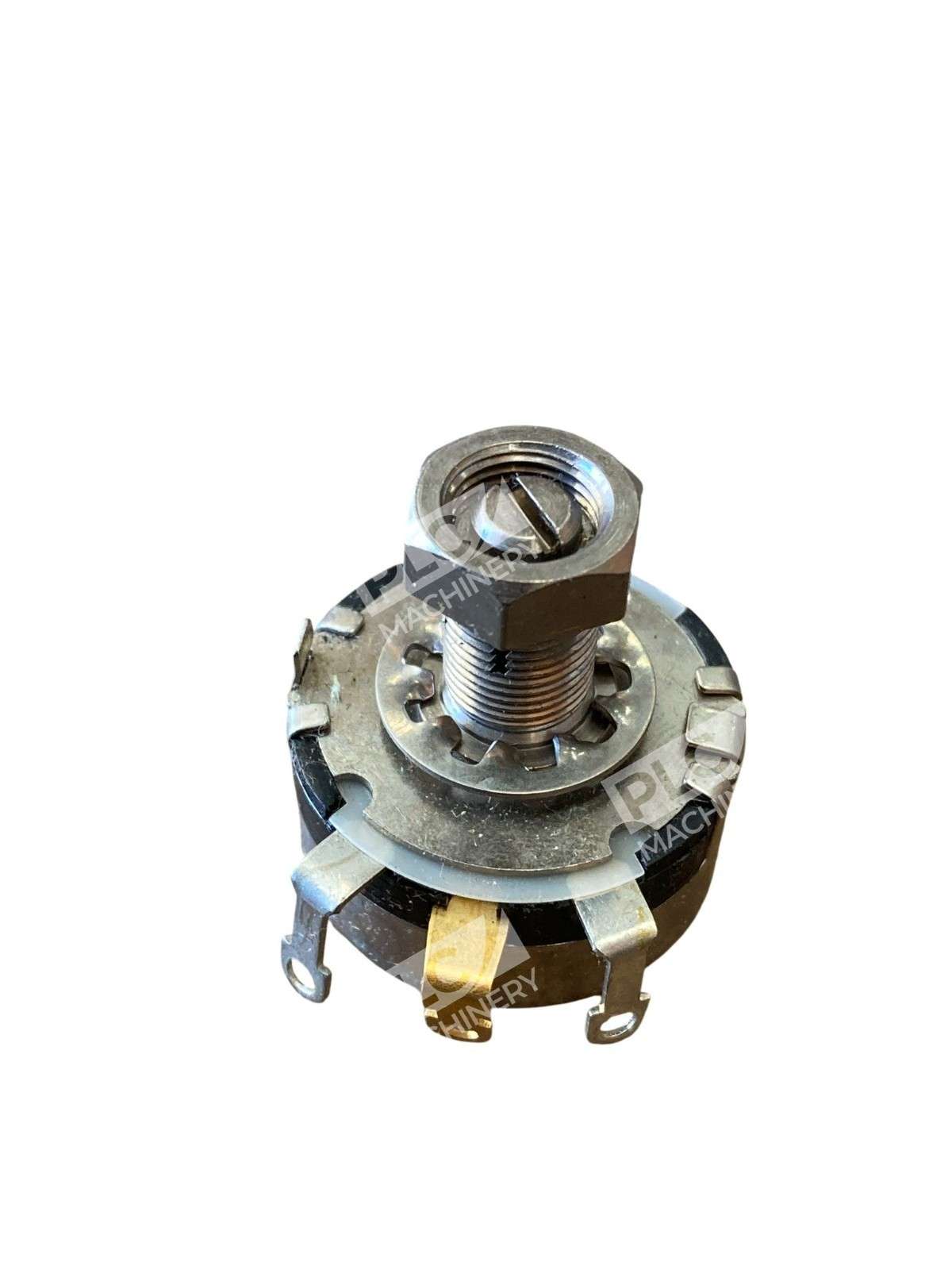

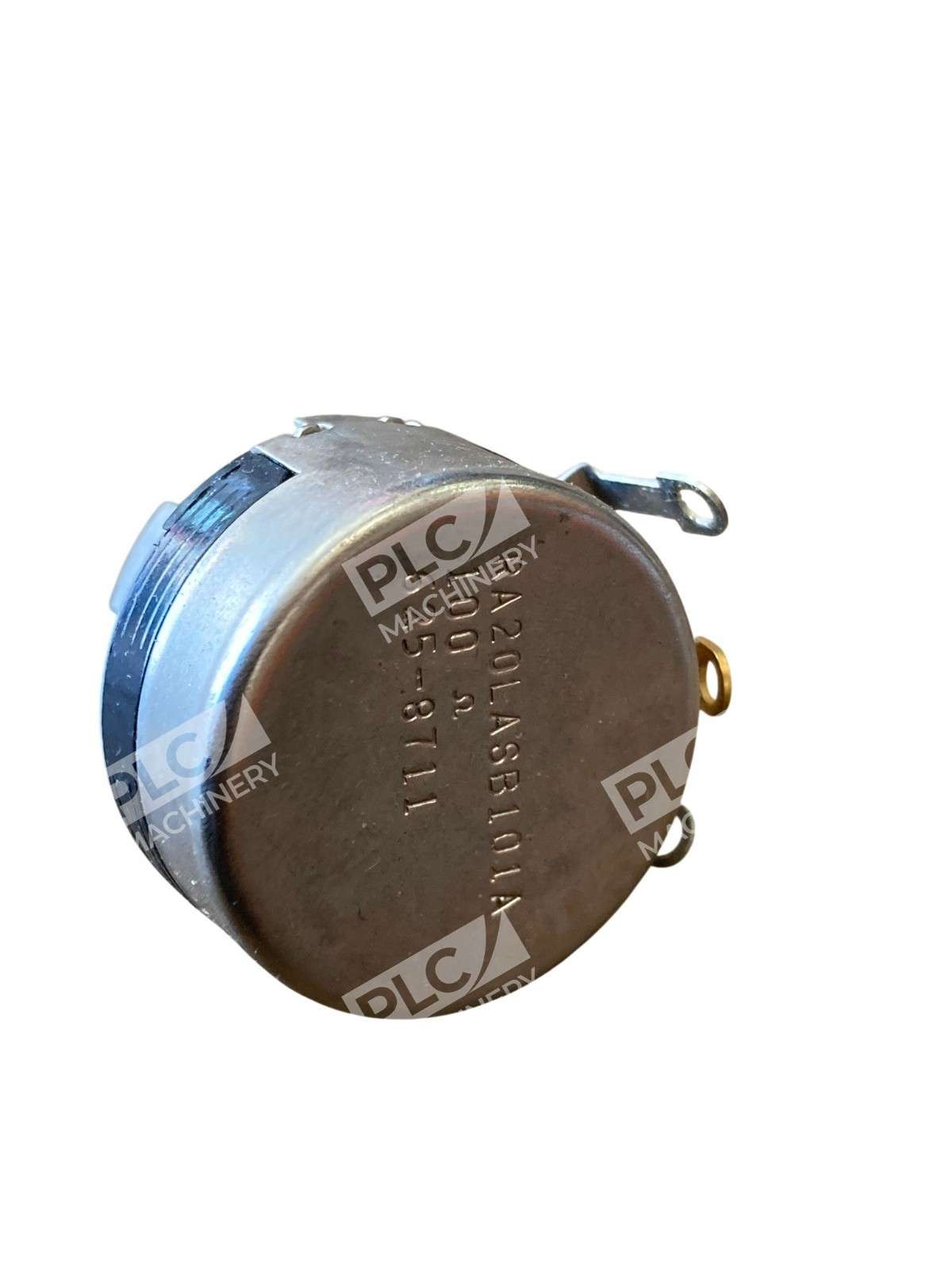

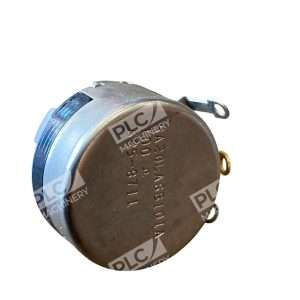

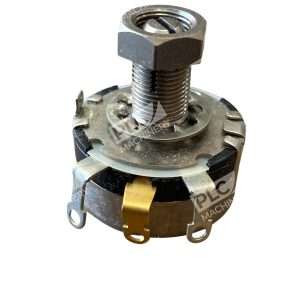

Clarostat RA20-LASB101A Potentiometer
The Clarostat RA20-LASB101A is a high-quality wirewound potentiometer designed for precision control in various electronic applications. As part of the RA20 series, it adheres to MIL-R-19 standards, ensuring reliability and durability in demanding environments.
Key Features
- Resistance Value: 100 Ohms
- Power Rating: 2 Watts
- Resistance Tolerance: ±10%
- Electrical Taper: Linear
- Rotational Life: 10,000 cycles
- Terminal Type: Solder lugs
- Bushing Type: Locking, standard
- Operating Temperature Range: -55°C to +105°C
Mechanical Specifications
- Mechanical Rotation: 300° ±5°
- Stop Torque: 8 lbs. in. maximum
- Torque Range: 0.5 to 6 oz. in.
- Locking Type Bushing Torque: 25 oz. in. minimum with jam nut tightened to 10 lb. in.
- Weight: Approximately 0.077 lb. without switch
The RA20-LASB101A potentiometer is ideal for applications requiring precise resistance adjustments and is built to withstand rigorous operational conditions, making it a reliable choice for both commercial and military-grade equipment.
