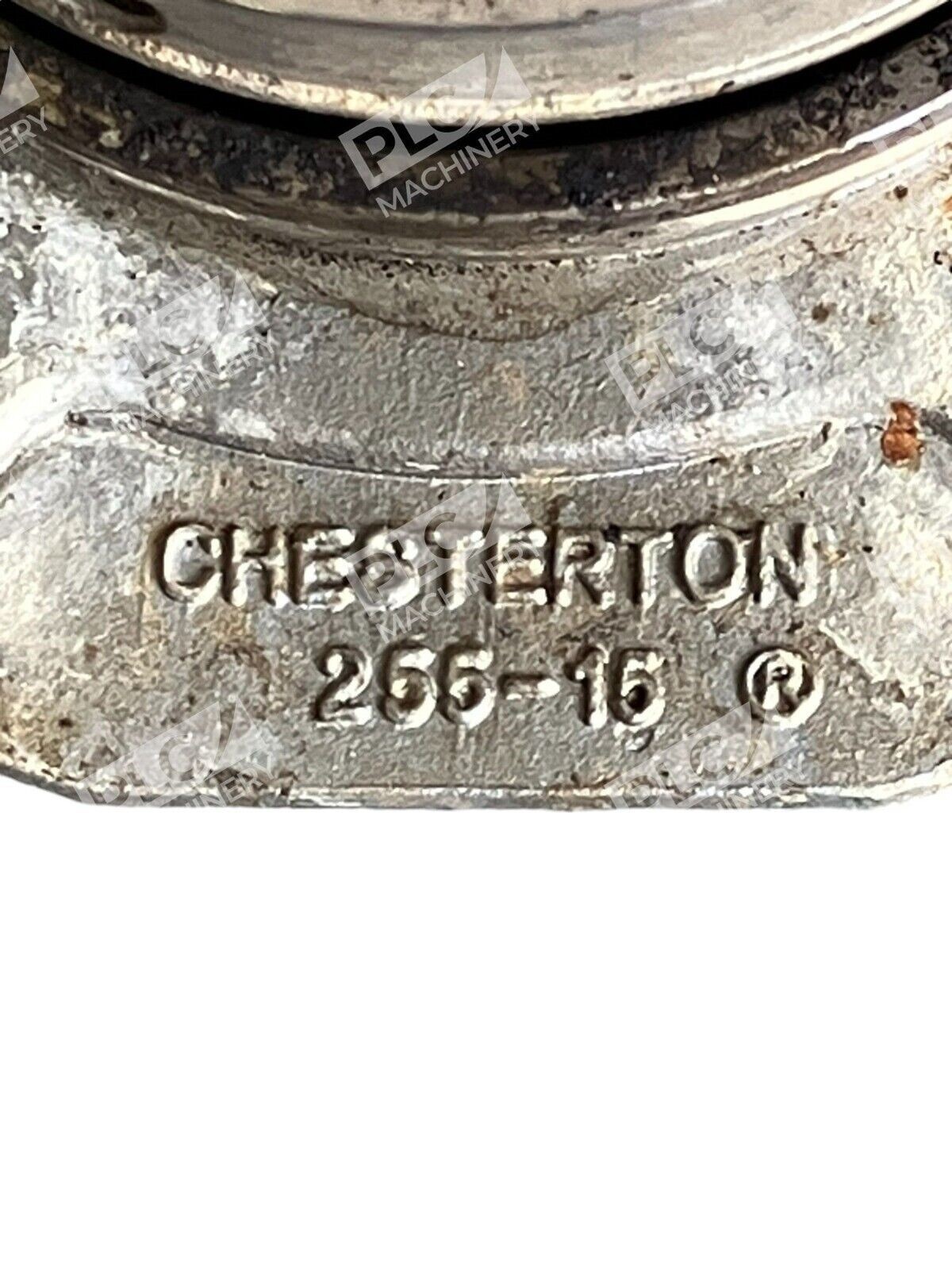

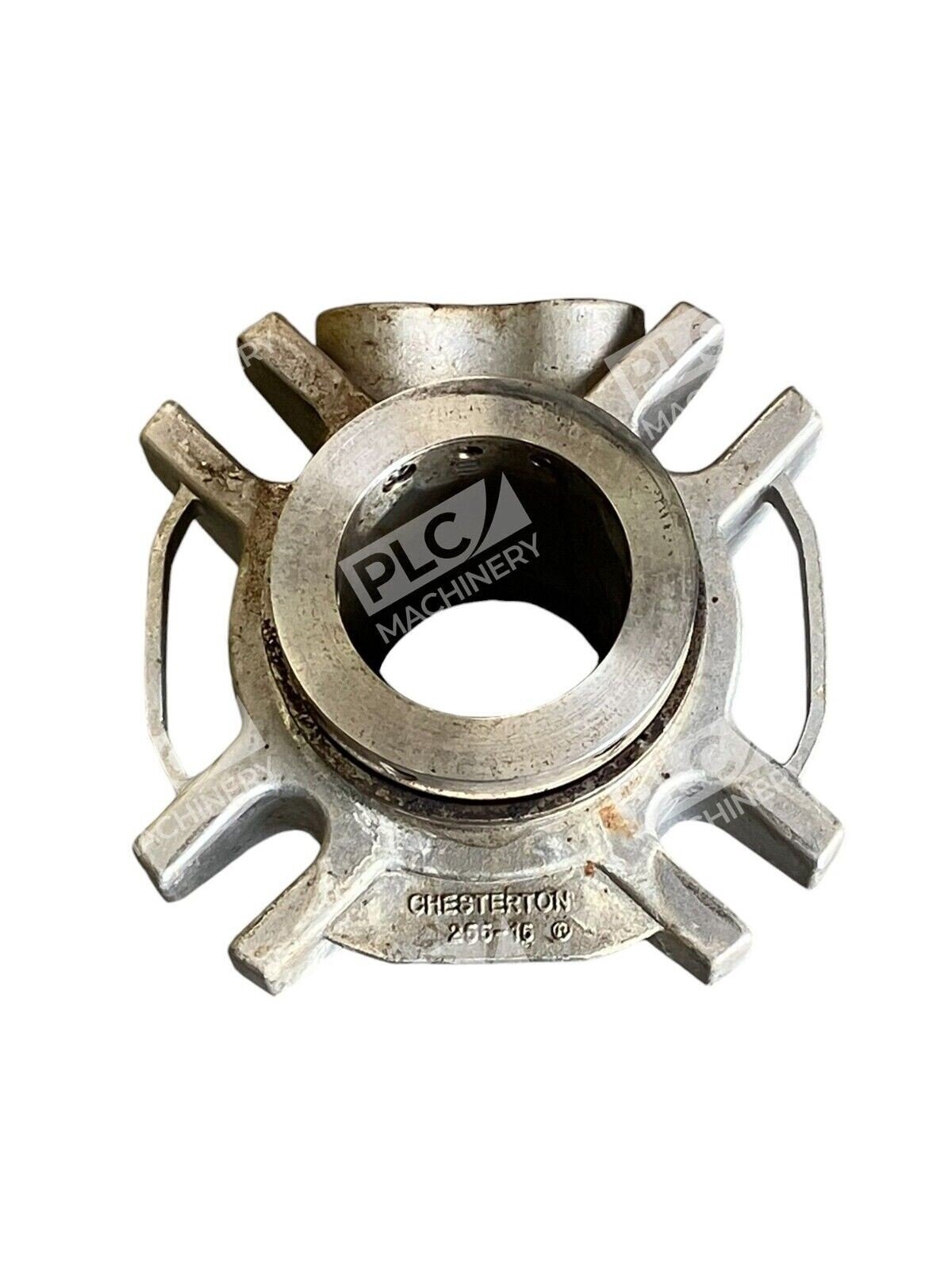

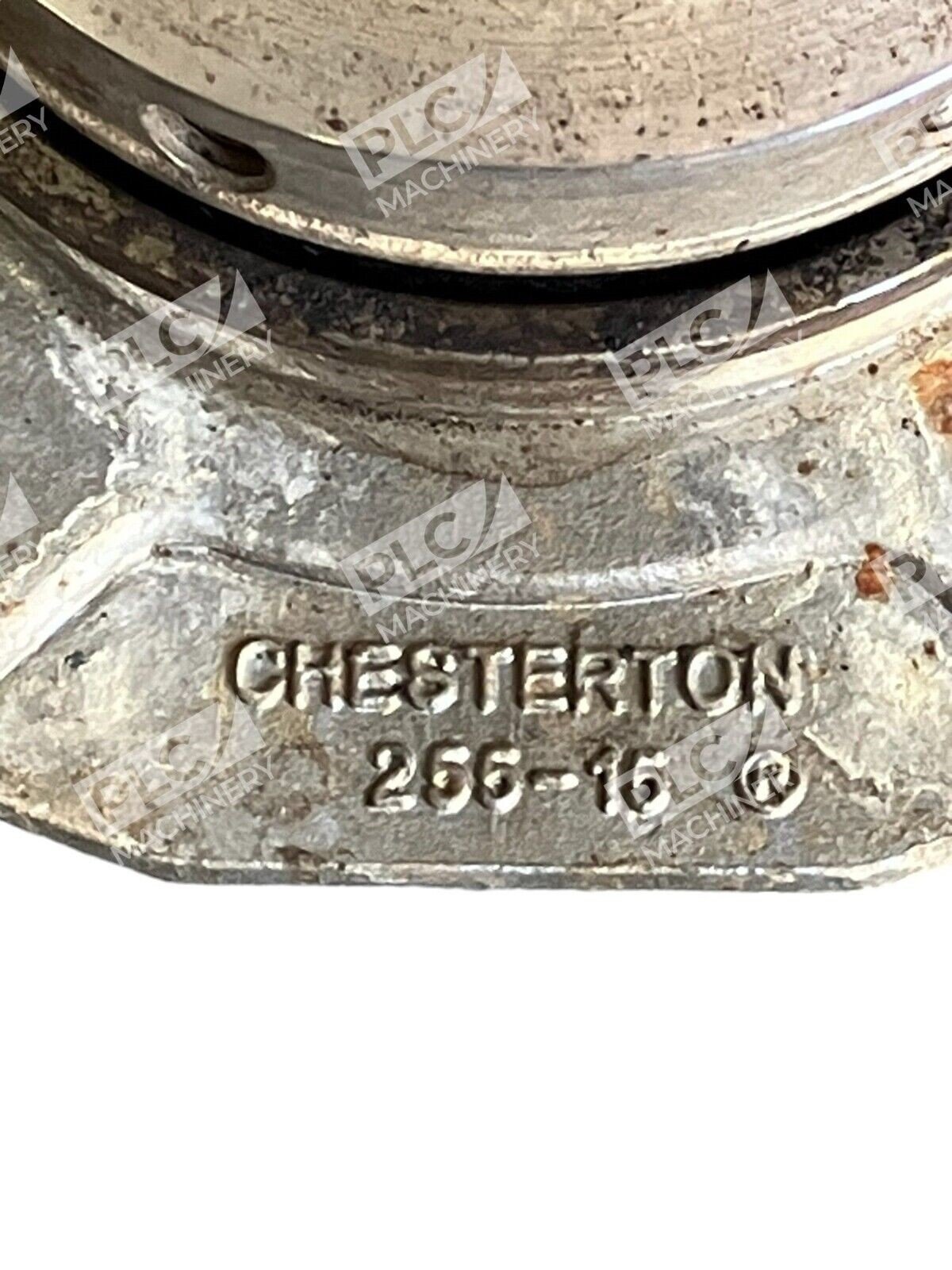

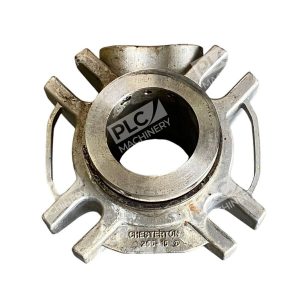

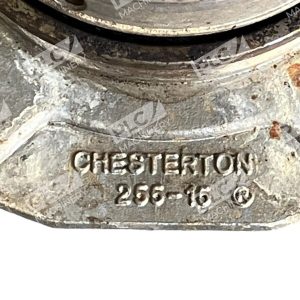

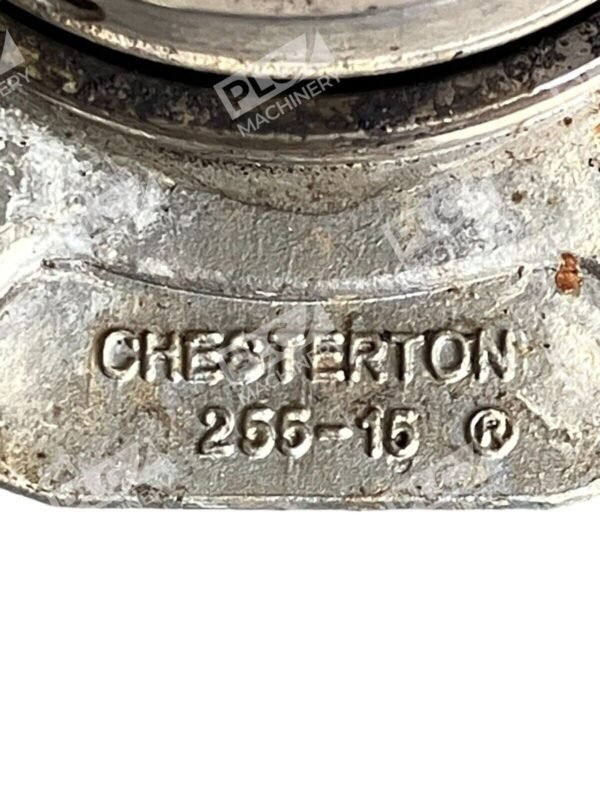

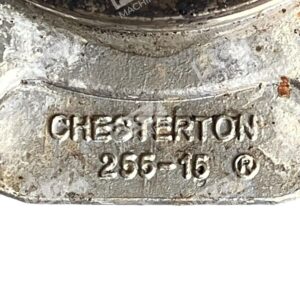

Chesterton Seal Cartridge Mount 255-15

Chesterton Seal Cartridge Mount 255-15

The Chesterton 255-15 is a standard double cartridge seal engineered to deliver reliable dual sealing capabilities across a broad spectrum of industrial applications. Its design ensures efficient performance, accommodating both static and dynamic misalignments, as well as shaft movements.

Key Features

• Enhanced Motion Handling: The seal’s improved motion capabilities effectively manage both static and dynamic misalignments, ensuring consistent performance.
• Geometric Double Balance: This design feature eliminates shifting O-rings, enhancing the seal’s stability and longevity.
• Integrated Pumping Ring: Facilitates increased barrier fluid flow, optimizing cooling and reliability.
• Universal Gland Design: Equipped with both flush port and quench and drain options, the seal offers versatility to meet diverse operational requirements.

Technical Specifications

• Size Range: 25 mm to 120 mm (1.000 inch to 4.750 inch)
• Applicable Standards: ISO-3069-S, ASME B73.1, ASME B73.2
• Materials:
  • Faces: Carbon (CB), Tungsten Carbide (TC), Silicon Carbide (SSC)
  • Elastomers: FKM, EPDM, FEPM, FFKM
  • Metals: EN 1.4401 (316 Stainless Steel); other metallurgies available upon request
  • Springs: EN 2.4819 (Alloy C-276)
• Operating Conditions:
  • Temperature: -55°C to 300°C (-67°F to 570°F)
  • Speed: Up to 25 m/s (5000 fpm)

The Chesterton 255-15 is a versatile and dependable solution for industries seeking a robust double cartridge seal capable of handling demanding conditions with ease.
