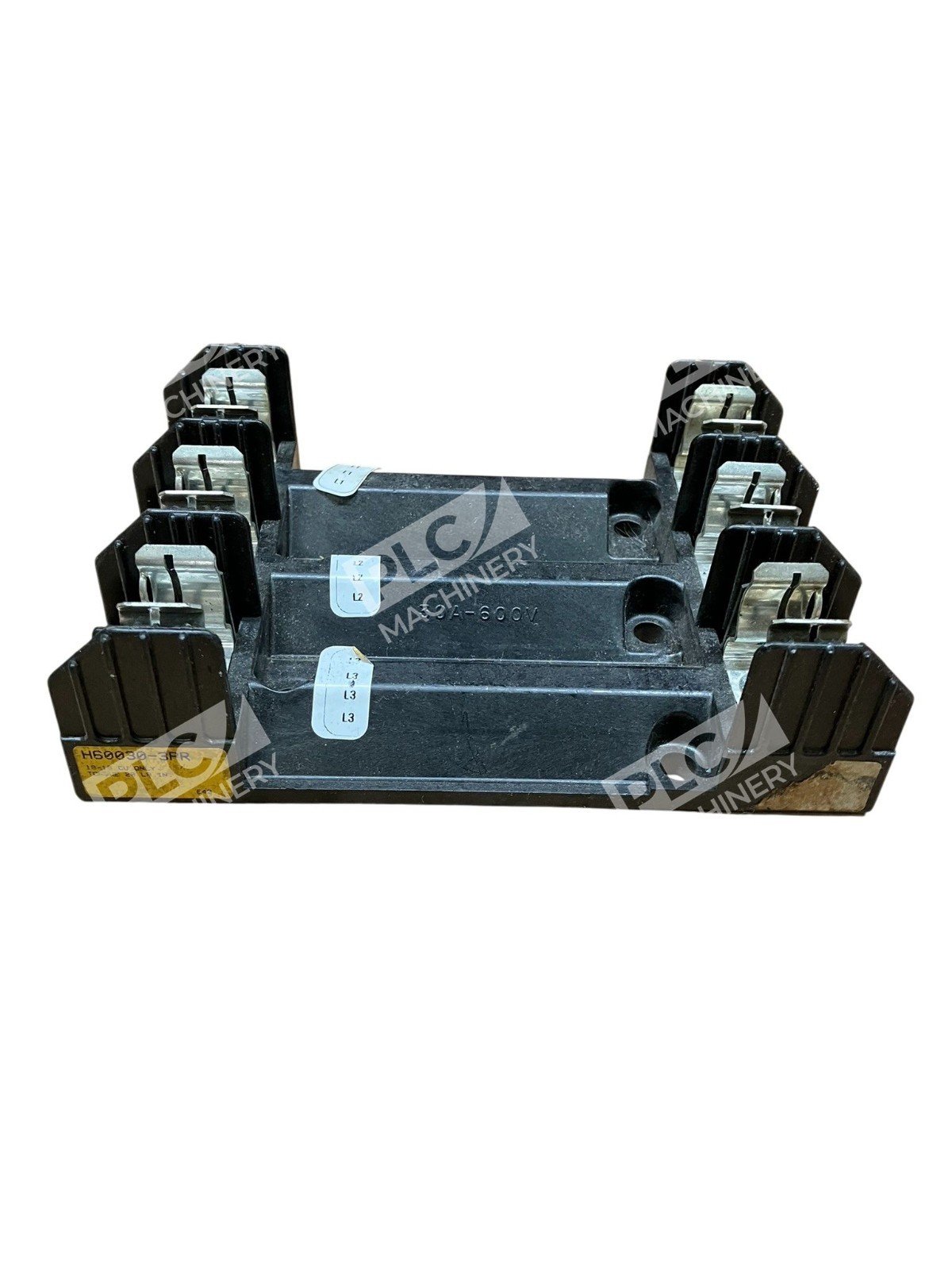

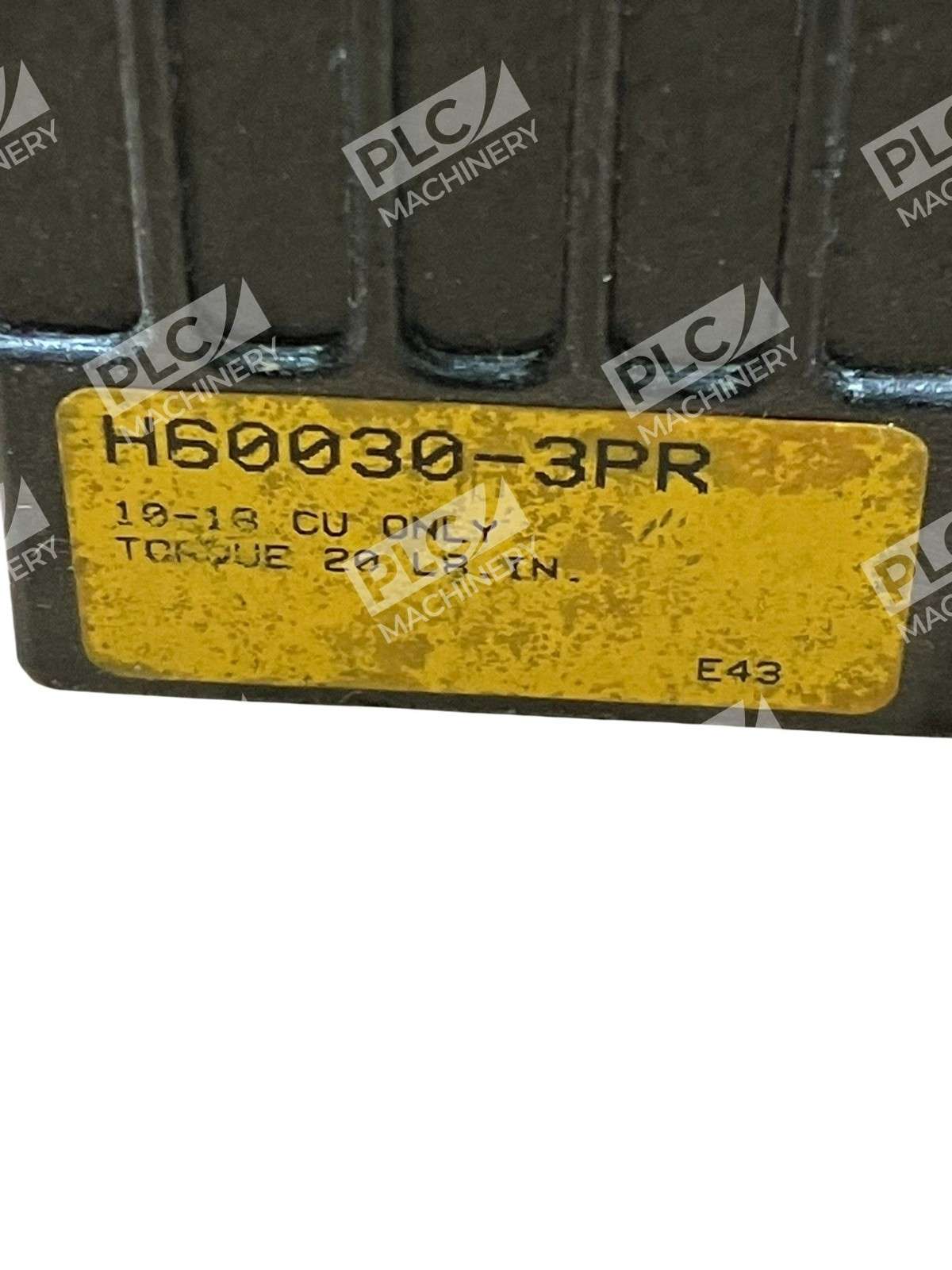

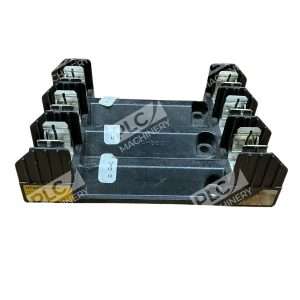

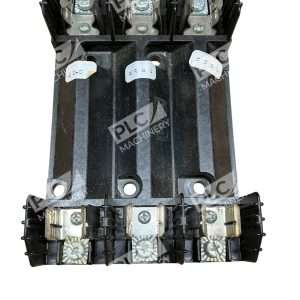

The Eaton Bussmann Series RM60030-3PR is a three-pole, Class R modular fuse block designed for industrial applications requiring reliable overcurrent protection.
Key Features
- Amperage Rating: 0 to 30 Amps

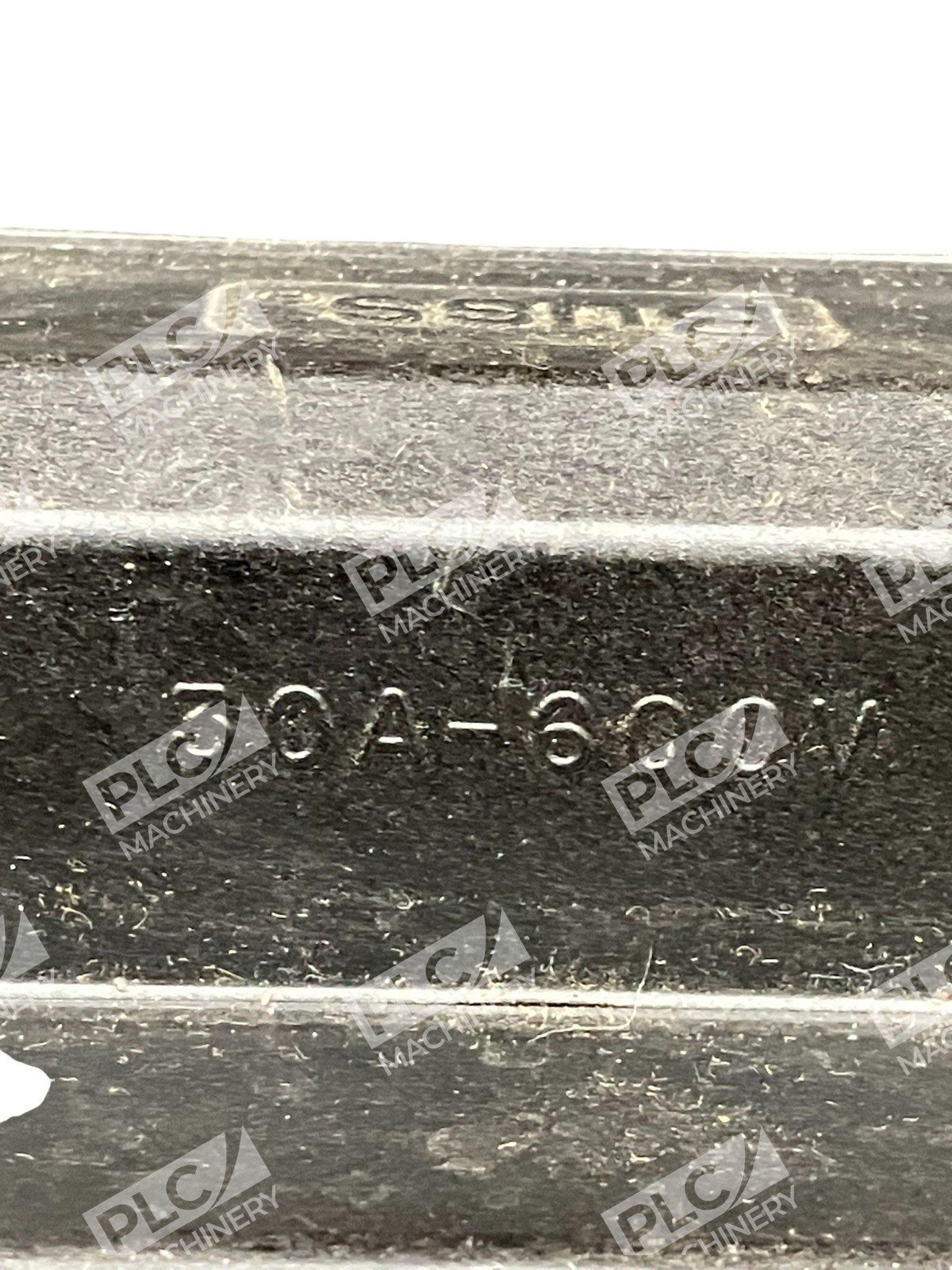

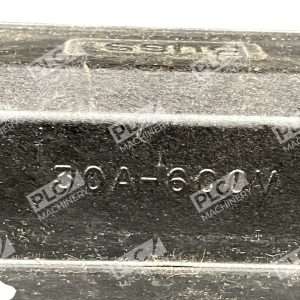

- Voltage Rating: 600V AC/DC
- Number of Poles: Three
- Fuse Compatibility: Compatible with Class R fuses, including LPS-RK, FRS-R, DLS-R, and KTS-R series
- Connector Type: Pressure plate terminals
- Mounting Options: DIN rail and panel mounting
- Body Material: Durable thermoplastic
- Short-Circuit Current Rating (SCCR): 200 kA RMS symmetrical
Design and Construction

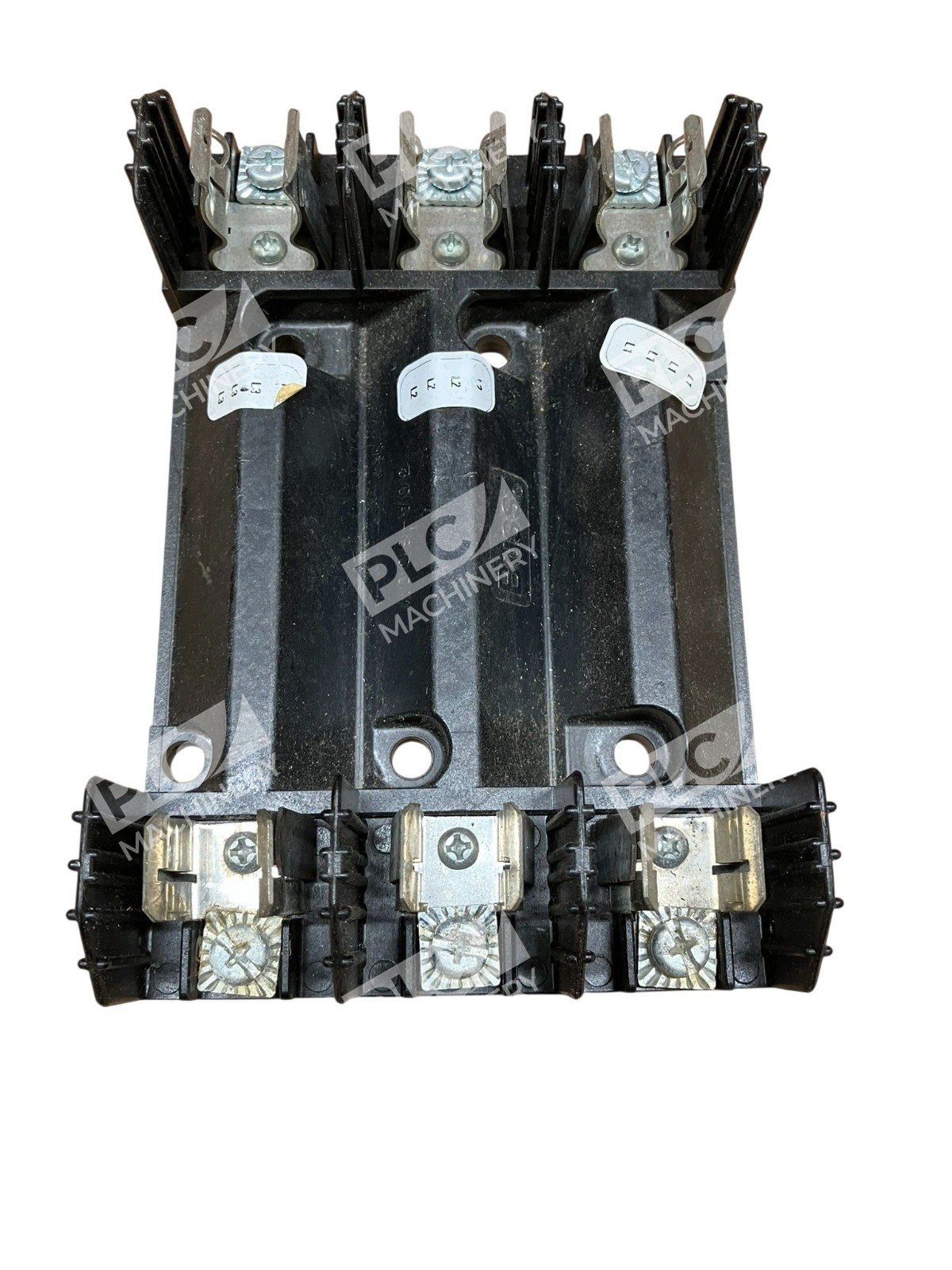

The RM60030-3PR features a modular design that simplifies panel layout and conserves space. Its thermoplastic body ensures durability and resistance to environmental factors. The pressure plate terminals provide secure connections, accommodating wire sizes from 18 AWG to 10 AWG. The fuse block is designed for easy installation on both DIN rails and panels, offering flexibility in various applications.
Applications
This fuse block is ideal for use in industrial control panels, machinery, and equipment requiring dependable overcurrent protection. Its high SCCR makes it suitable for systems with high fault currents, ensuring safety and compliance with industry standards.
Compliance and Certifications
- UL Listed: Ensures adherence to safety standards
- CSA Certified: Meets Canadian safety requirements
- RoHS Compliant: Indicates restriction of hazardous substances
- CE Marked: Conforms to European health, safety, and environmental protection standards
The Eaton Bussmann Series RM60030-3PR fuse block offers a reliable and efficient solution for protecting electrical circuits in demanding industrial environments.
