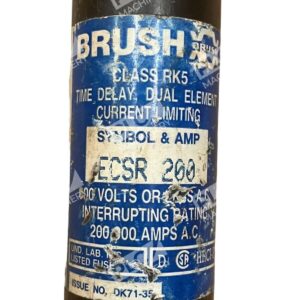

Brush ECSR200 600V 200A

Brush ECSR200 600V 200A Fuse

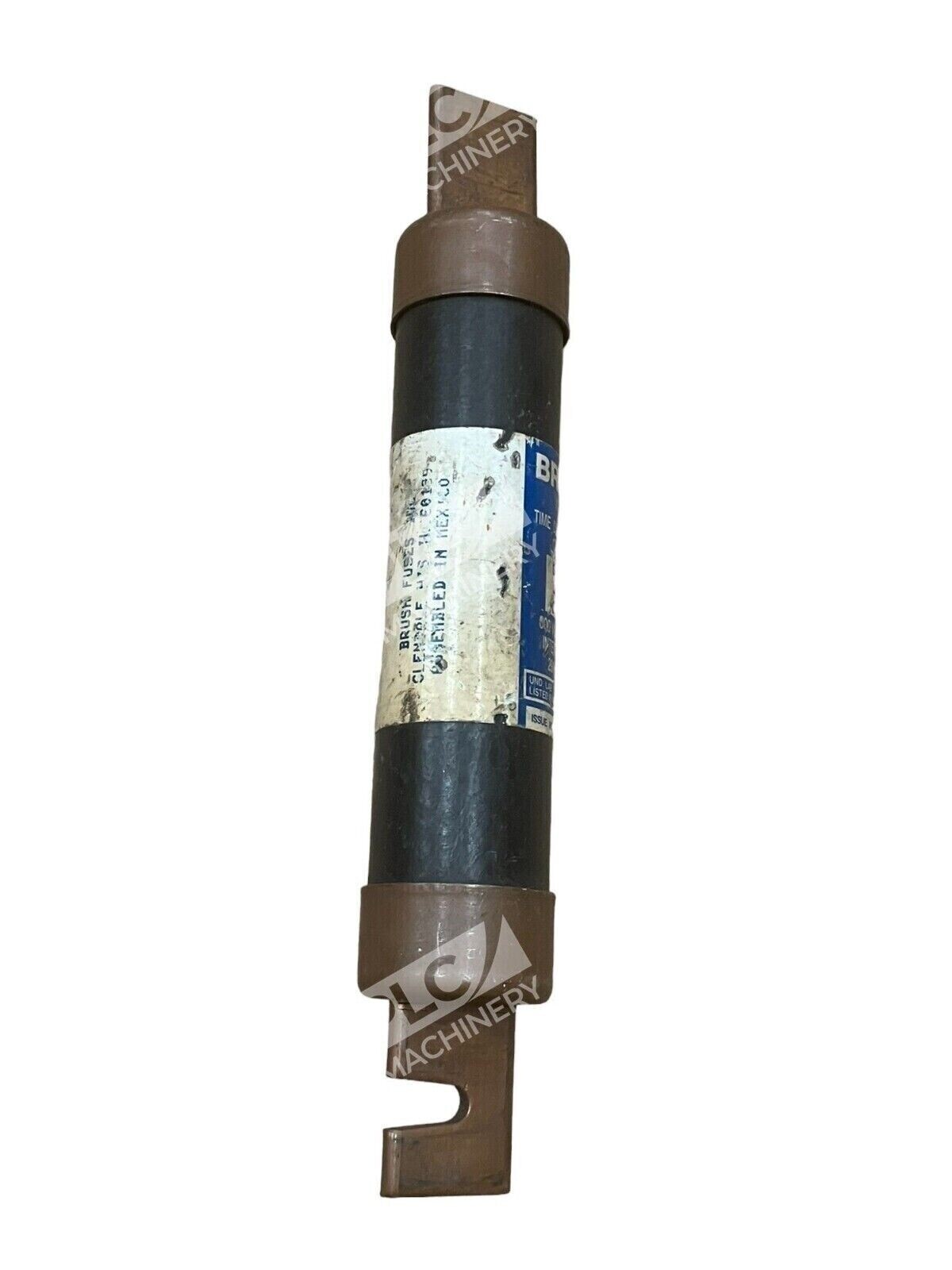

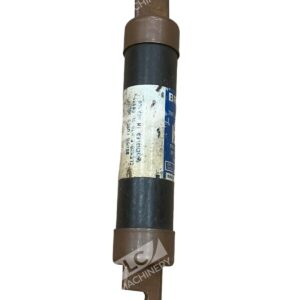

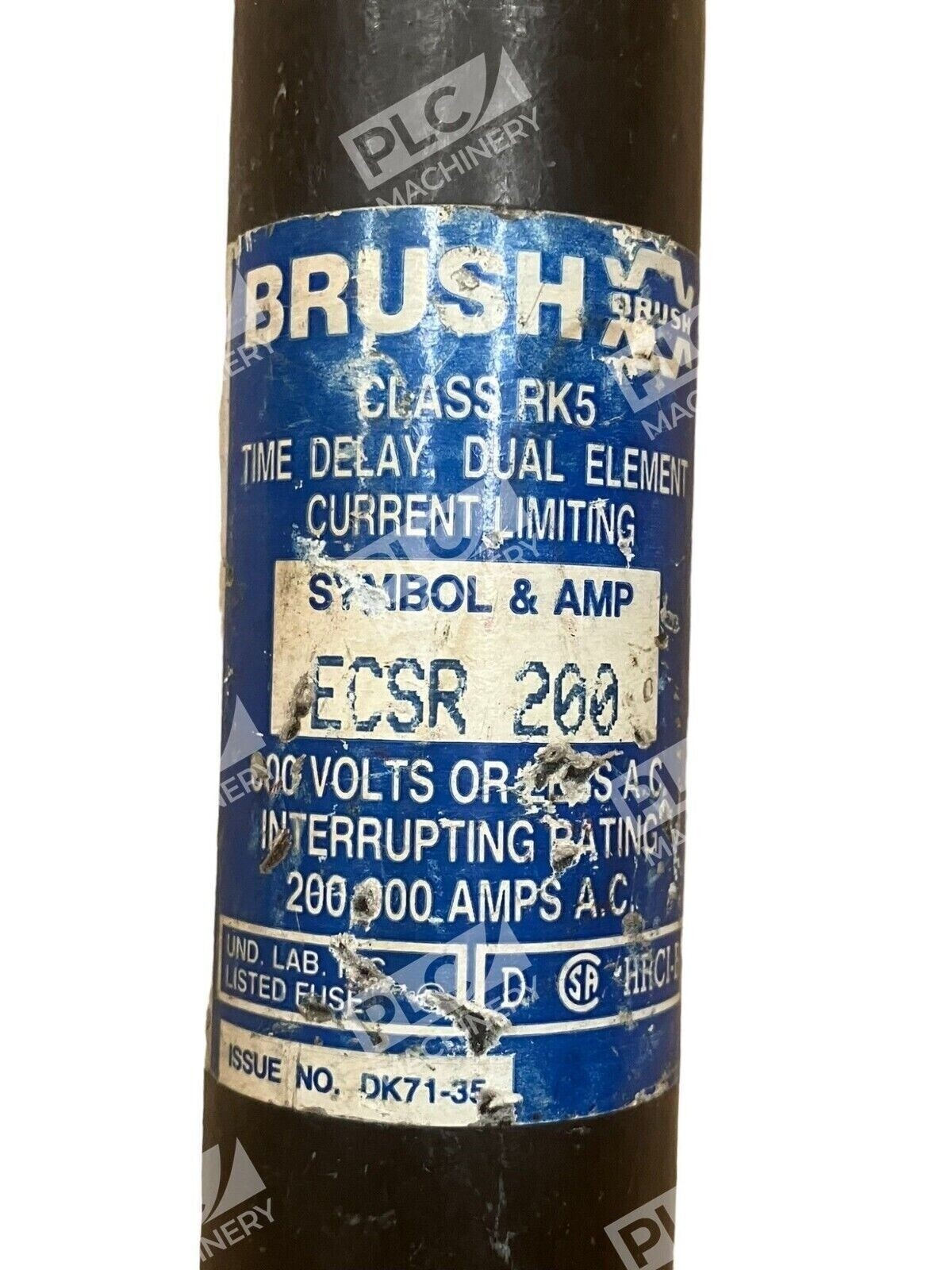

The Brush ECSR200 is a high-quality, dual-element, time-delay fuse designed to provide reliable overcurrent protection in electrical systems. With a current rating of 200 amperes and a voltage rating of 600 volts AC, this Class RK5 fuse is suitable for a wide range of industrial applications.

Key Features

• Dual-Element Construction: Allows for superior overload and short-circuit protection, accommodating temporary inrush currents without nuisance openings.
• Time-Delay Capability: Provides a minimum time-delay of 10 seconds at 500% of the fuse rating, making it ideal for motor and transformer protection.
• High Interrupting Rating: Capable of interrupting fault currents up to 200,000 amperes, ensuring safety in high fault current environments.

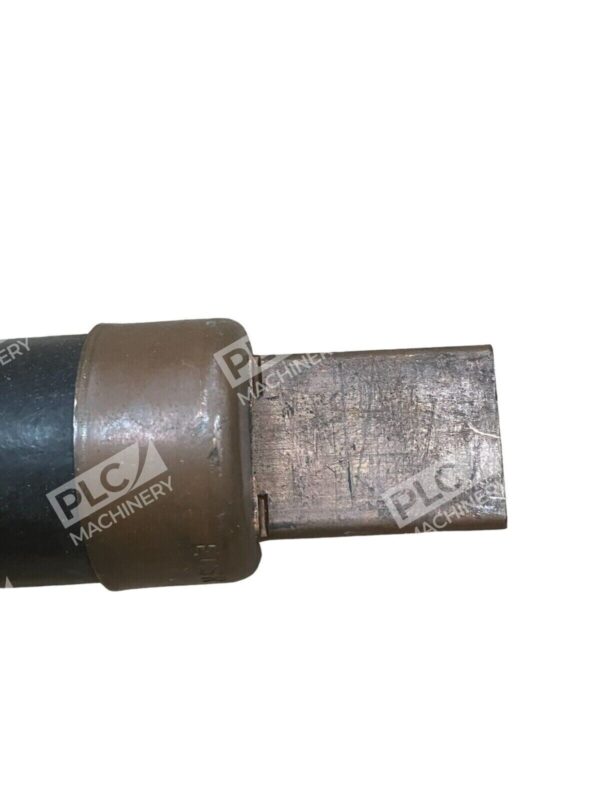

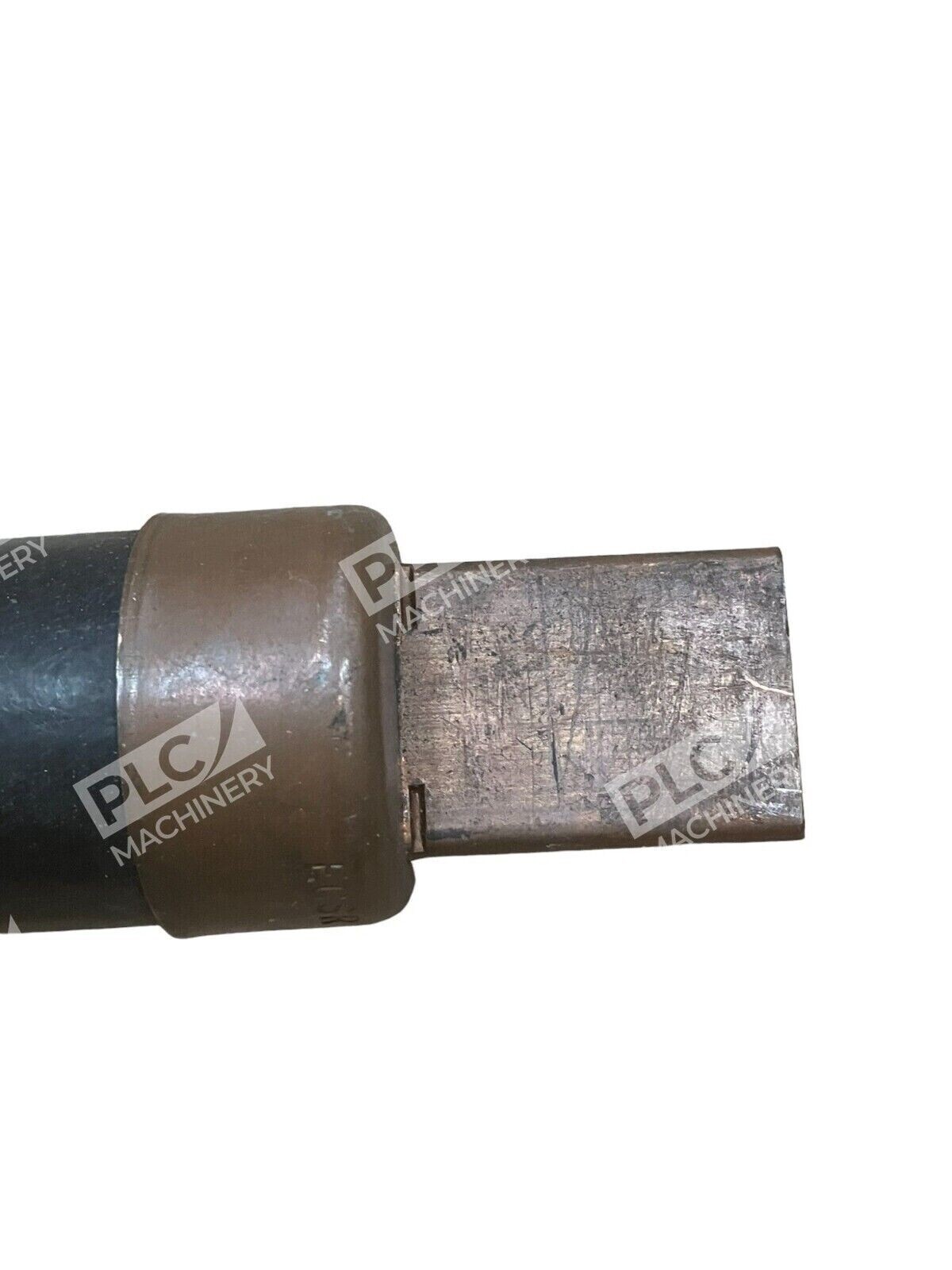

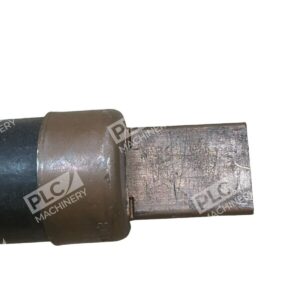

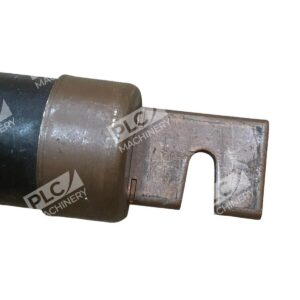

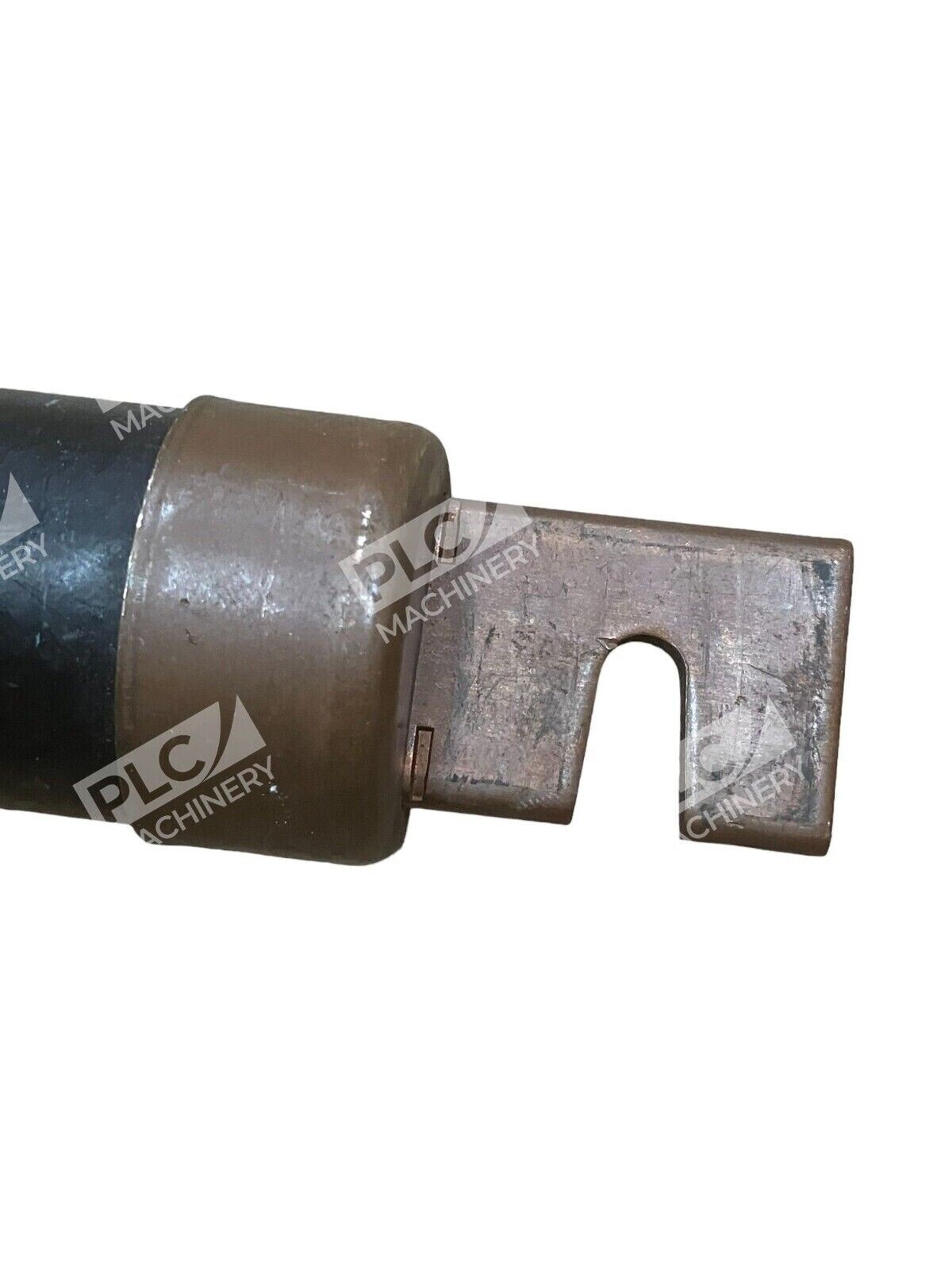

• Blade Terminal Design: Facilitates easy installation and secure connections within fuse holders.
• Compact Dimensions: Measures 1.61 inches in diameter and 9.63 inches in length, allowing for integration into various electrical panels and equipment.

Applications

The Brush ECSR200 fuse is recommended for use in:

• AC power distribution system mains, feeders, and branch circuits.
• Protection of motors and motor branch circuits.
• Protection of transformers and other inductive loads.
• General-purpose applications, including lighting, heating, and other non-inductive loads.

Specifications

• Current Rating: 200 A
• Voltage Rating: 600 V AC
• Interrupting Rating: 200 kA
• Fuse Class: RK5
• Response Time: 10 seconds at 500% of rated load
• Terminal Type: Blade
• Dimensions: 1.61 in diameter x 9.63 in length
• Weight: Approximately 1.22 lbs

Incorporating the Brush ECSR200 fuse into your electrical system ensures enhanced protection against overcurrent conditions, contributing to the safety and reliability of your operations.
