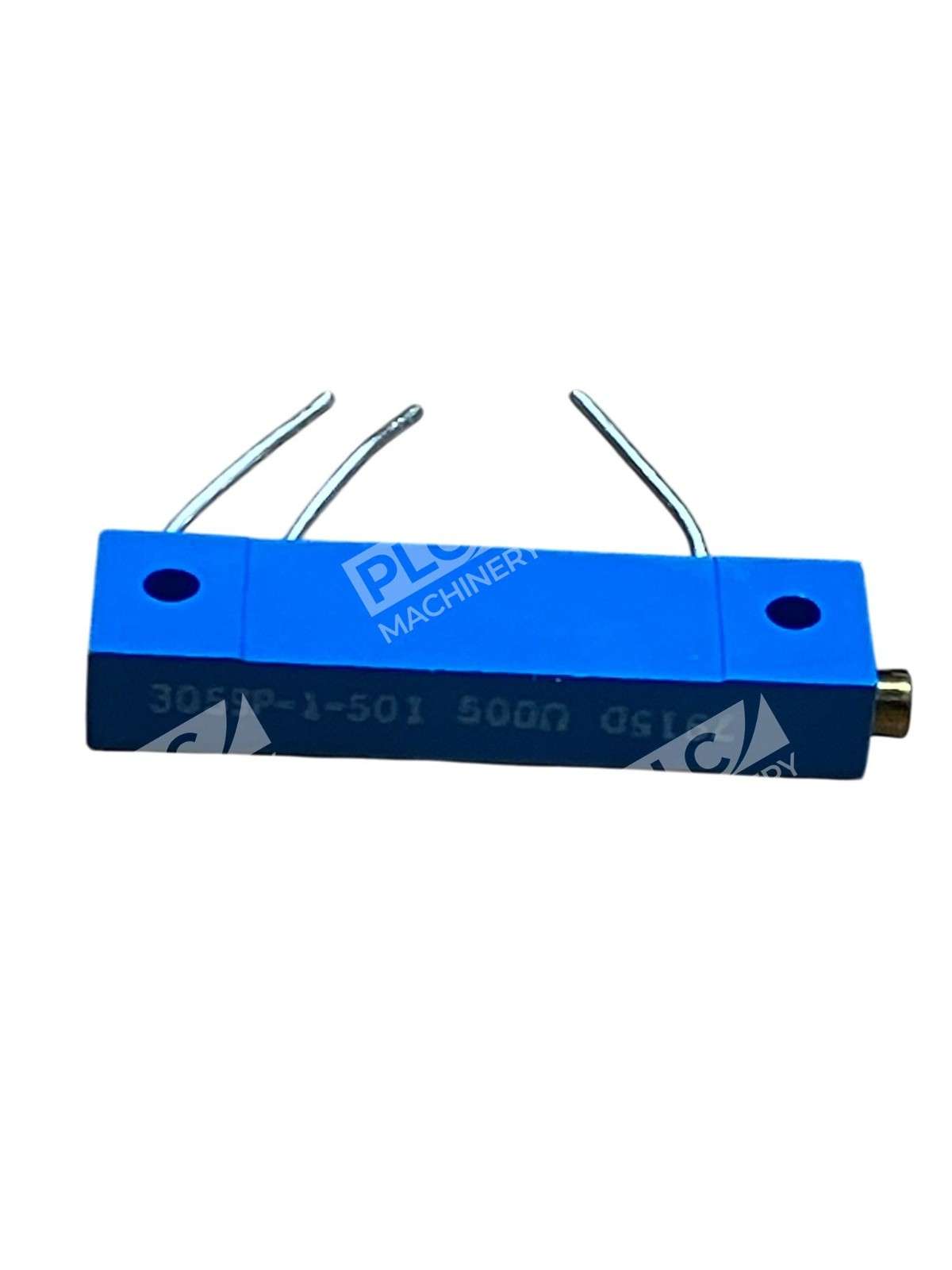

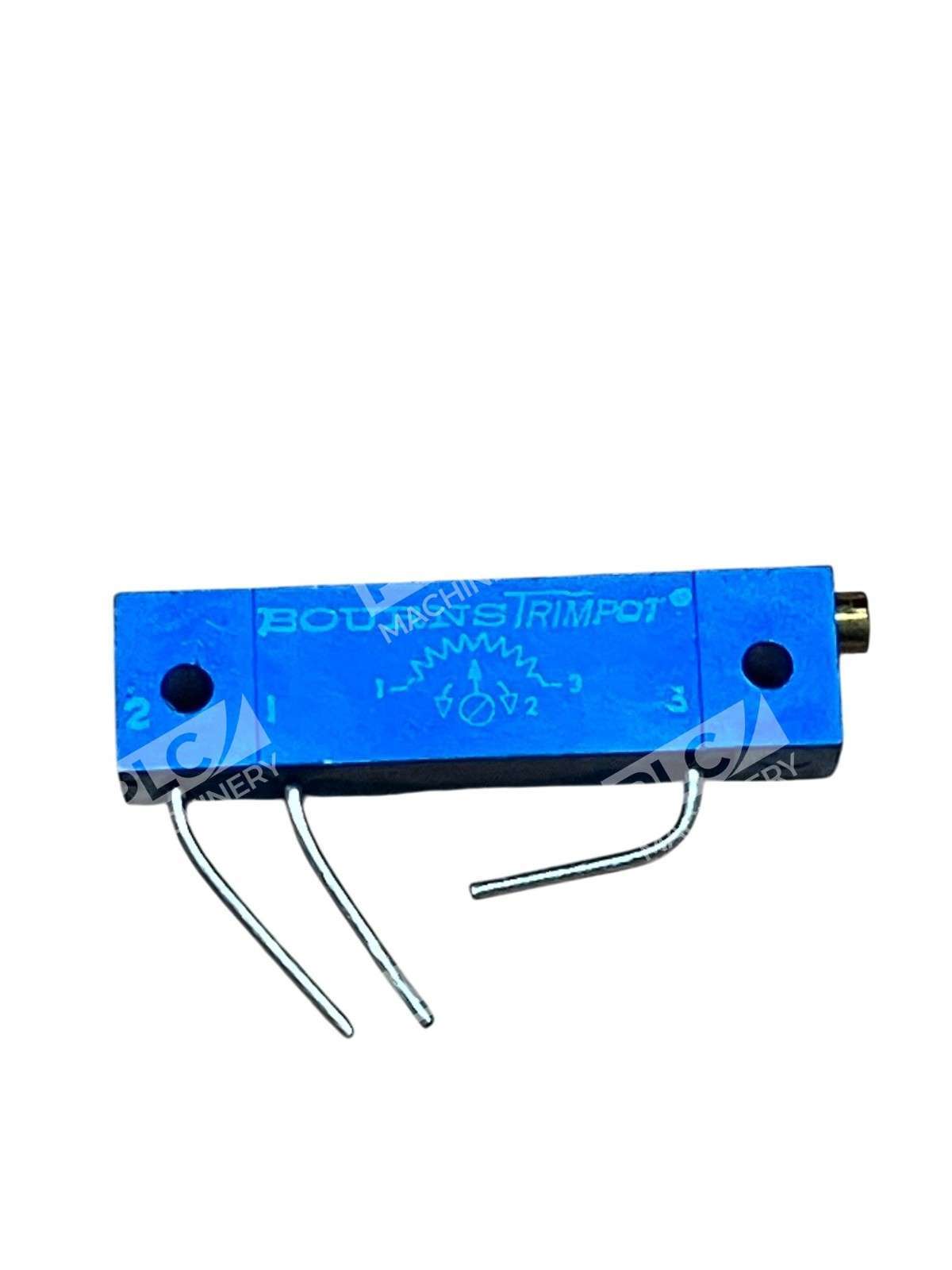

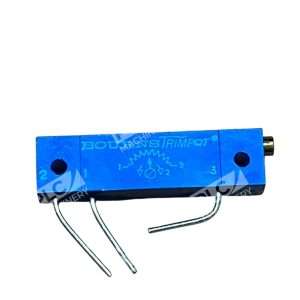

Bourns 3059P-1-501 500Ω 22-Turn Cermet Trimpot
The Bourns 3059P-1-501 is a high-precision, 22-turn cermet trimmer potentiometer designed for through-hole mounting. It offers a resistance of 500 ohms and is engineered to provide accurate and stable adjustments in electronic circuits.
Key Features
- Resistance Value: 500 ohms
- Number of Turns: 22, allowing for fine-tuned adjustments
- Power Rating: 1 watt
- Resistance Tolerance: ±10%
- Temperature Coefficient: ±100 ppm/°C
- Construction: Sealed cermet element for enhanced durability
- Mounting Type: Through-hole with PC pin side adjustment
- Rotational Life: 200 cycles
Applications
This trimpot is ideal for applications requiring precise resistance adjustments, such as calibration of instruments, setting reference voltages, and tuning circuits in industrial and consumer electronics.
Dimensions
- Length: 31.75 mm (1.25 inches)
- Width: 4.83 mm (0.190 inches)
- Height: 8.00 mm (0.315 inches)
The Bourns 3059P-1-501 trimpot combines reliability and precision, making it a suitable choice for engineers and designers seeking dependable performance in their electronic designs.
