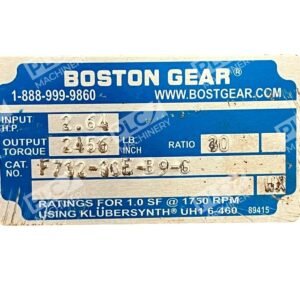

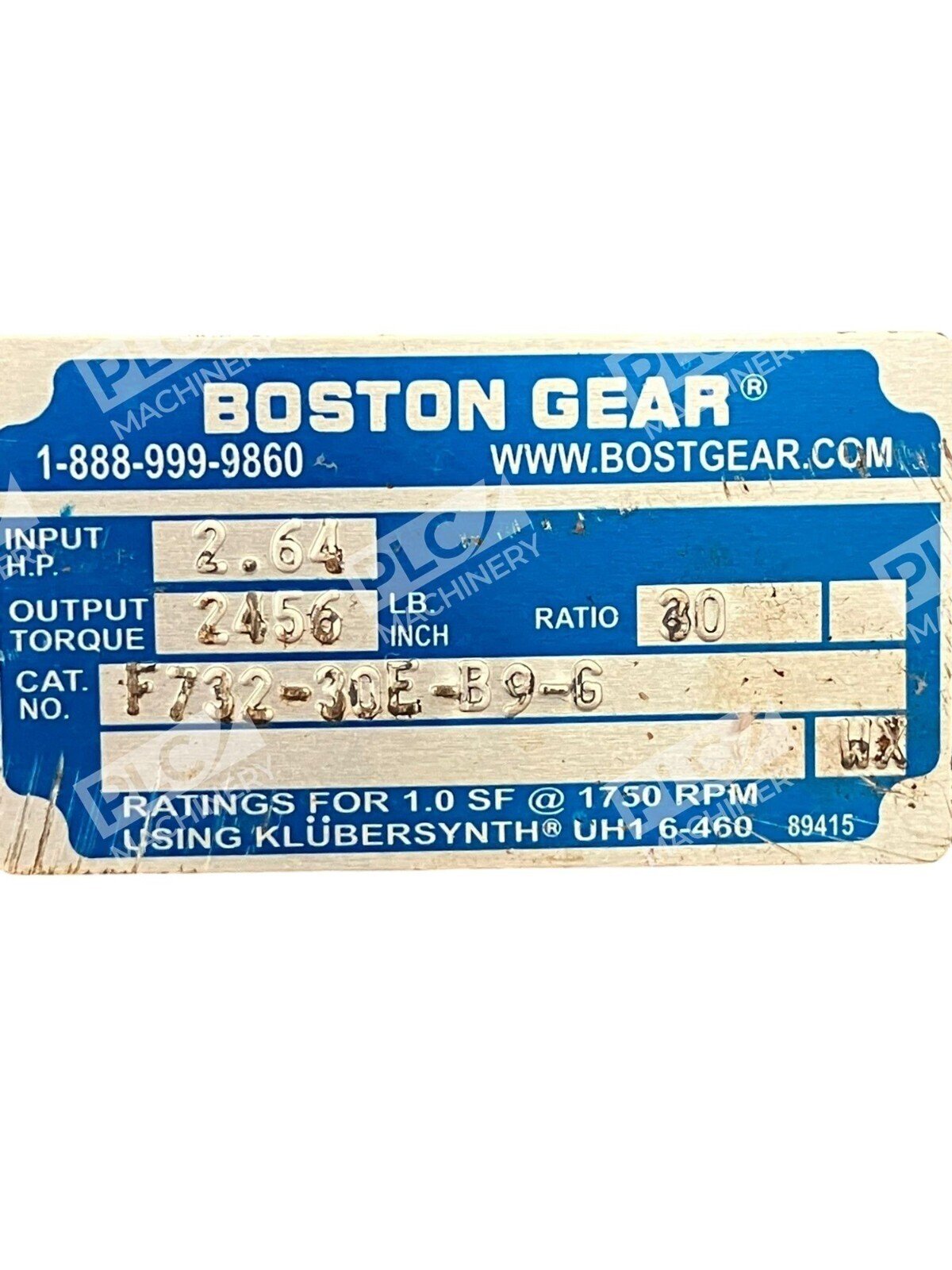

Boston Gear 2.64HP 2456LBINCH 30:1 Worm Speed Reducer F732-30E-B9-G

Boston Gear F732-30E-B9-G 30:1 Worm Speed Reducer

The Boston Gear F732-30E-B9-G is a robust and efficient worm speed reducer designed to deliver reliable performance in various industrial applications. This unit features a 30:1 single reduction ratio, making it suitable for operations requiring significant speed reduction and torque multiplication.

Key Specifications

• Ratio: 30:1 Single Reduction
• Center Distance: 3.2 inches
• Input Flange: 180TC
• Output Shaft Diameter: 1.375 inches
• Output Configuration: Left Side Solid Output Shaft
• Housing Material: Cast Iron
• Mounting Flexibility: Multi-position
• Lubrication: Klubersynth UH1 6-460
• Seal Type: Double Lip
• Bearings: Tapered Roller
• Gear Material: Hardened and Ground Steel
• Worm Gear Material: Bronze
• Finish: Powdered Epoxy Paint

Product Features

• Efficient Heat Dissipation: The large oil reservoir ensures effective heat dissipation and consistent lubrication, contributing to an extended operating life.
• Versatile Mounting Options: Designed for multi-position mounting, this speed reducer can be installed in virtually any orientation to suit diverse application requirements.
• Precision Engineering: Straddle-milled housings on both top and bottom surfaces provide precise alignment for horizontal and vertical bases, enhancing overall performance.
• Leak-Free Operation: Internal baffles are incorporated to ensure positive, leak-free venting, maintaining system integrity.
• Durable Construction: The housing is made from fine-grained, gear-quality cast iron, offering maximum strength and durability, as well as improved precision during worm and gear alignment.
• Enhanced Load Capacity: The high-strength bronze worm gear is straddle-mounted between heavy-duty tapered roller bearings, increasing thrust and overhung load capacities.
• High Torque Handling: The high-strength steel output shaft is designed to handle high torque and overhung loads effectively.
• Maintenance Convenience: Equipped with pipe plugs that allow easy filling, leveling, and draining in any mounting position.
• Extended Seal Life: Super-finished oil-seal diameters on both input and output shafts contribute to longer seal life.

The Boston Gear F732-30E-B9-G worm speed reducer combines durability, precision, and versatility, making it an excellent choice for applications requiring reliable speed reduction and torque transmission.
