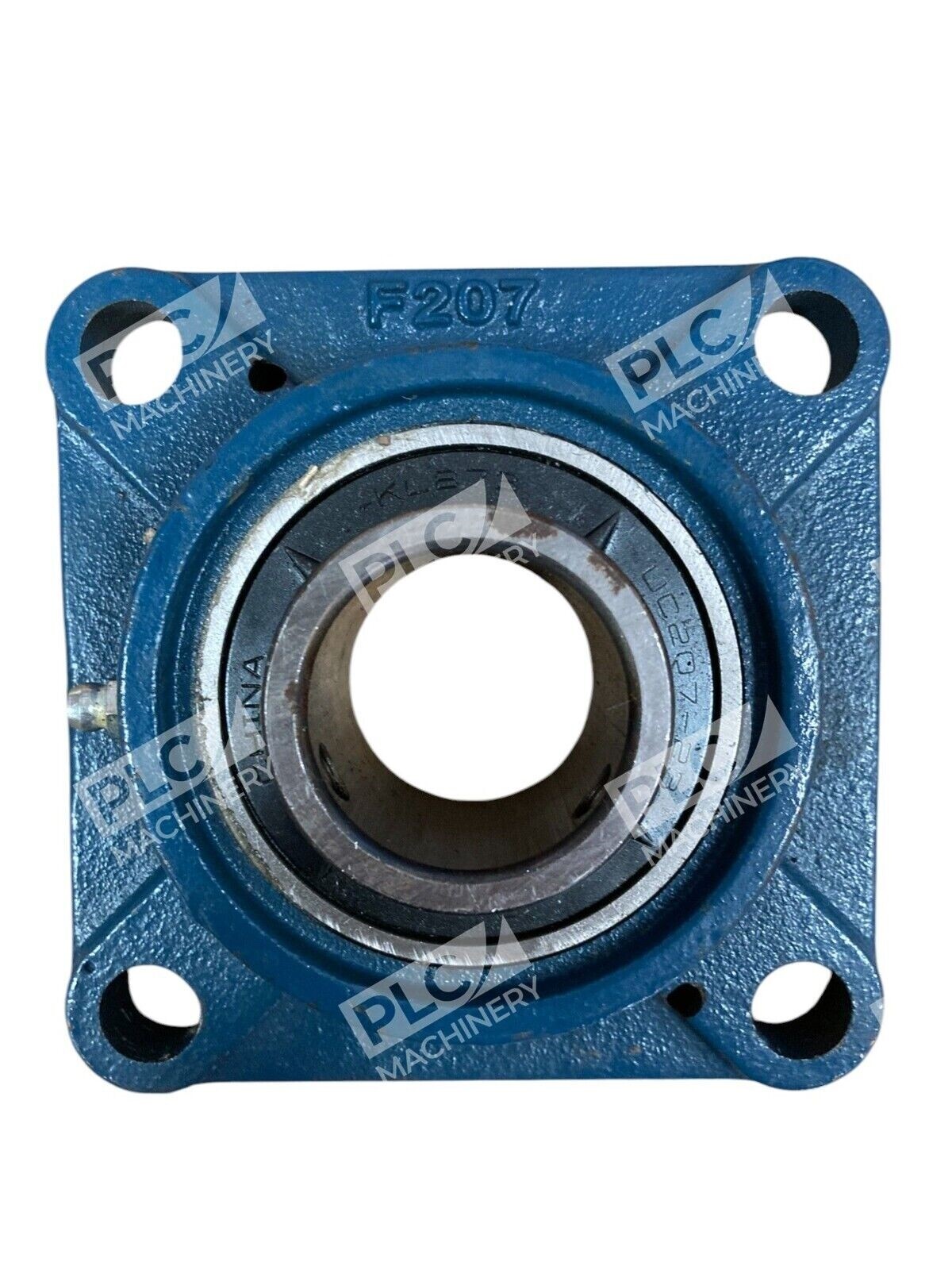

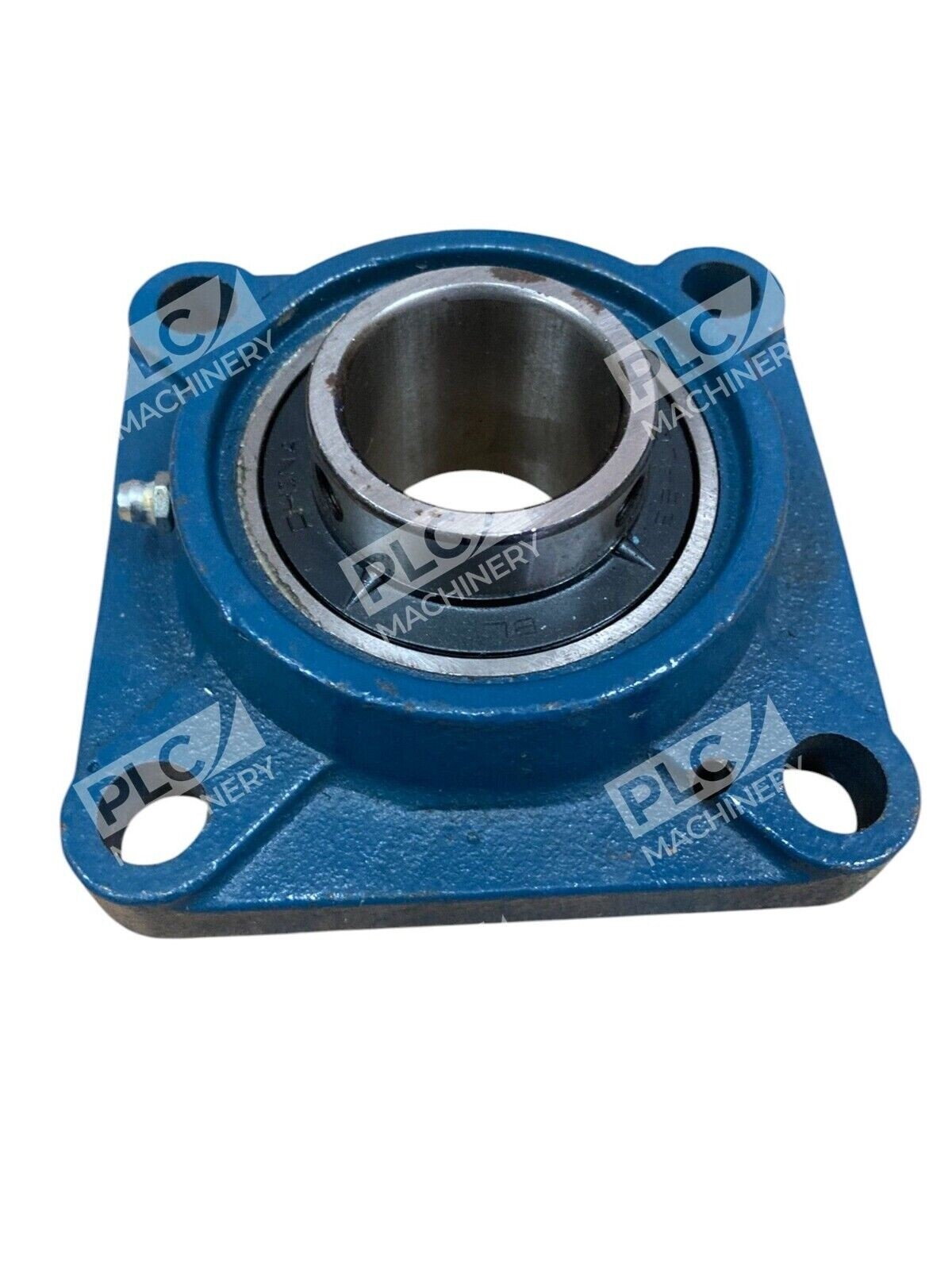

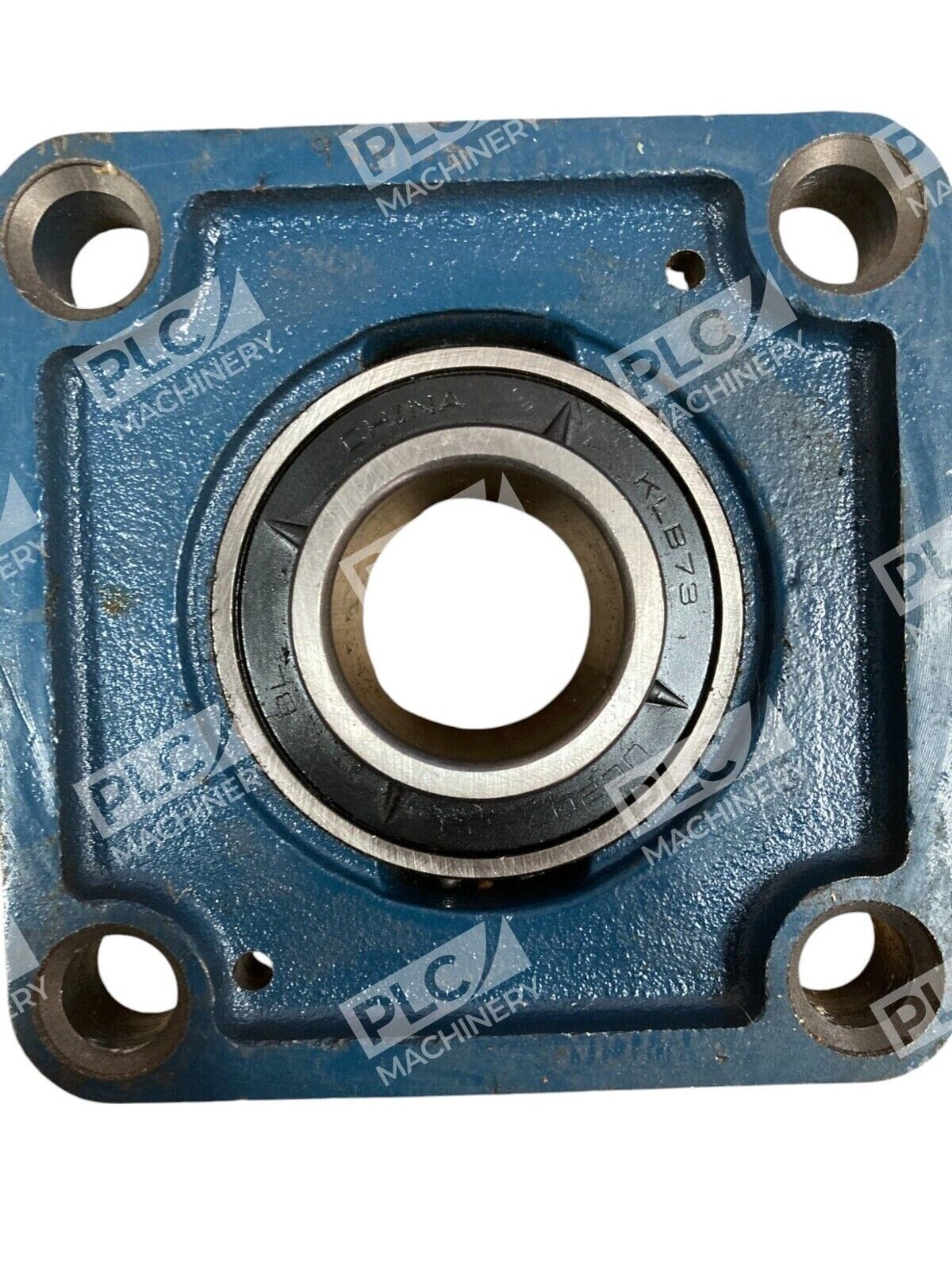

BL Precision Bearings C207-23 UCF207-23 F207 Flange Mount Bearing KLB73

The BL Precision Bearings C207-23 UCF207-23 F207 Flange Mount Bearing KLB73 is a robust and reliable bearing unit designed for various industrial applications.

Key Features

• Bore Diameter: 1-7/16 inches (36.513 mm)
• Housing Material: Durable cast iron
• Mounting Configuration: Four-bolt square flange for secure attachment
• Locking Mechanism: Set screw locking for firm shaft connection
• Relubrication Capability: Equipped with a grease fitting for easy maintenance
• Seal Type: Contact seal with flinger to protect against contaminants

Dimensions

• Bolt Hole Spacing (e): 3.625 inches (92 mm)
• Overall Length (a): 4.61 inches (117 mm)
• Flange Thickness (A1): 0.591 inches (15 mm)
• Inner Ring Width (Bi): 1.689 inches (42.9 mm)

Load Ratings

• Dynamic Load Rating: 5,778 lbf (25,700 N)
• Static Load Rating: 3,462 lbf (15,400 N)

Applications

This flange mount bearing is suitable for a wide range of applications, including:

• Conveyor systems
• Material handling equipment
• Agricultural machinery
• Construction equipment

Its sturdy construction and design ensure reliable performance in demanding environments.
