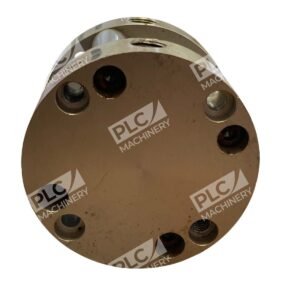

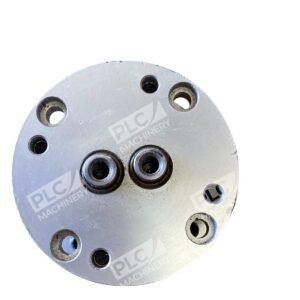

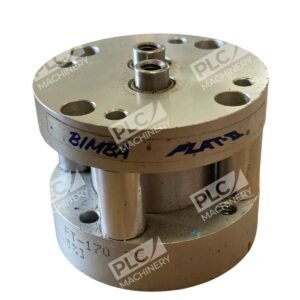

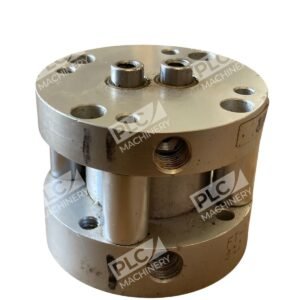

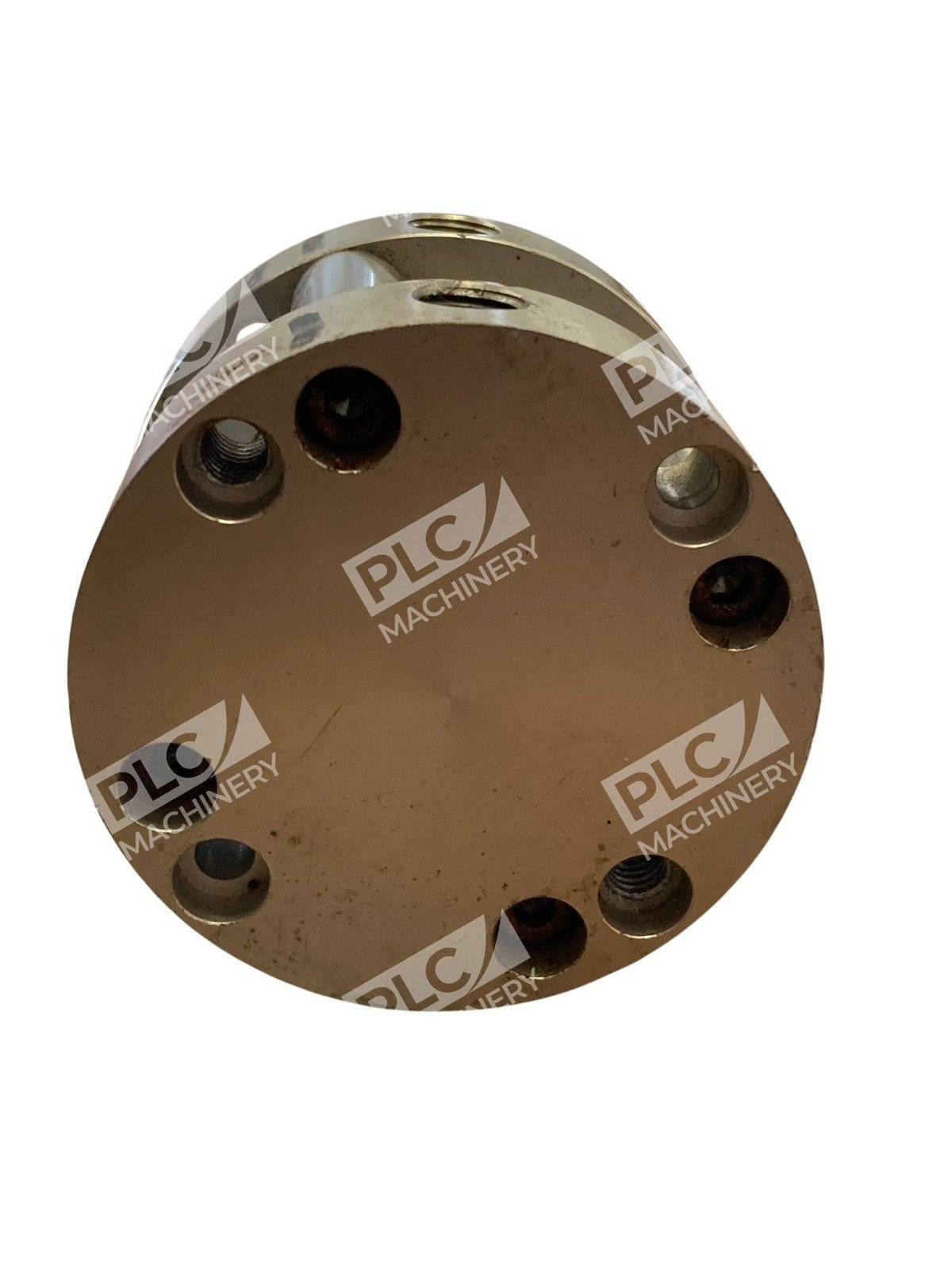

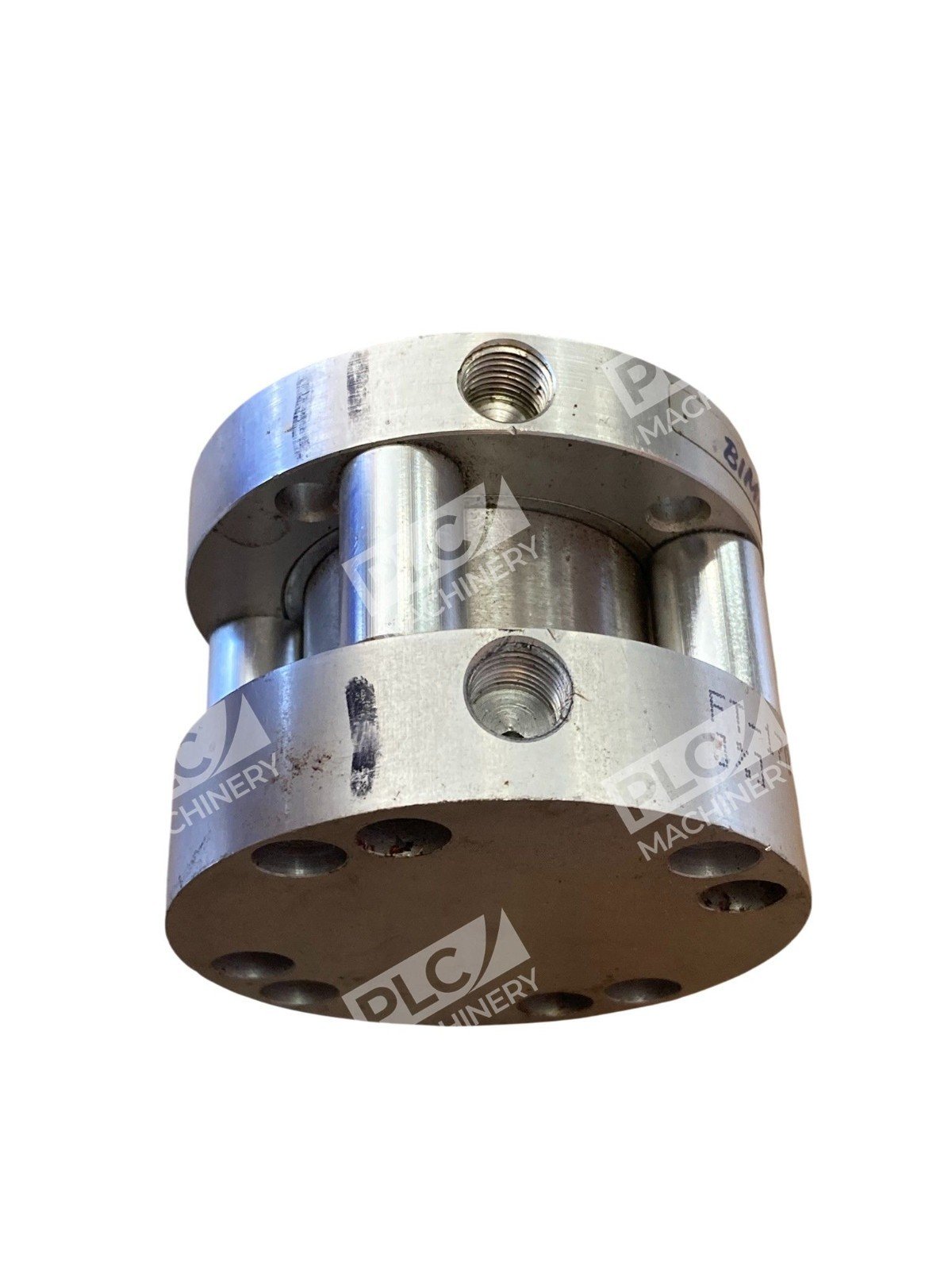

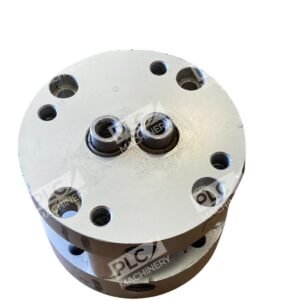

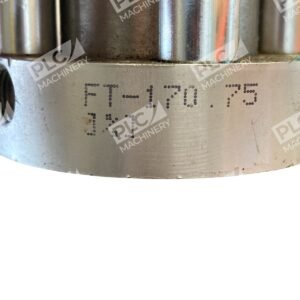

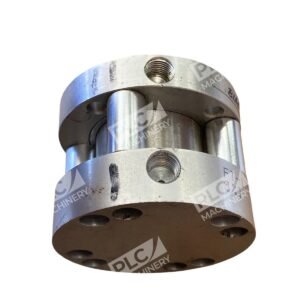

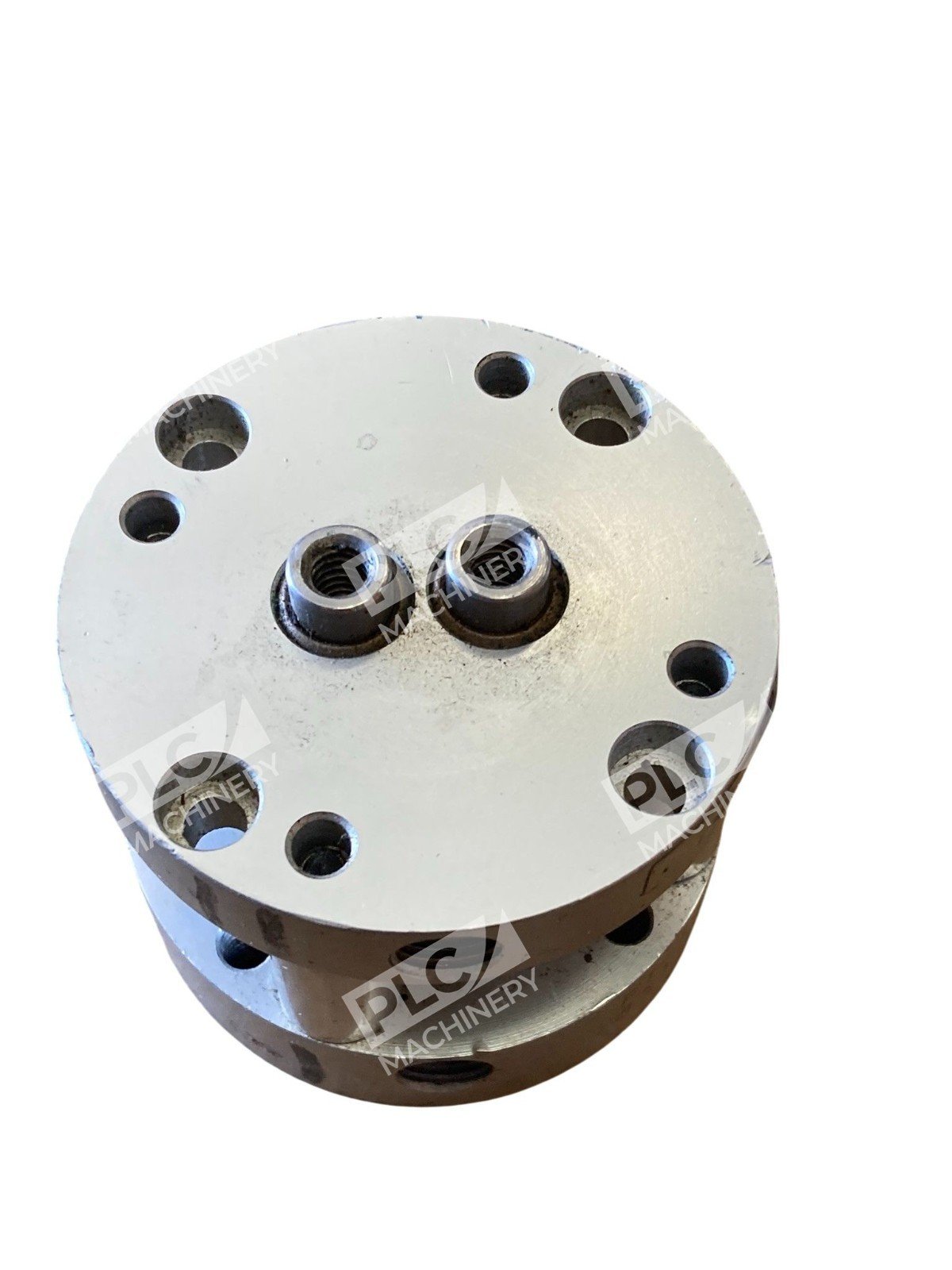

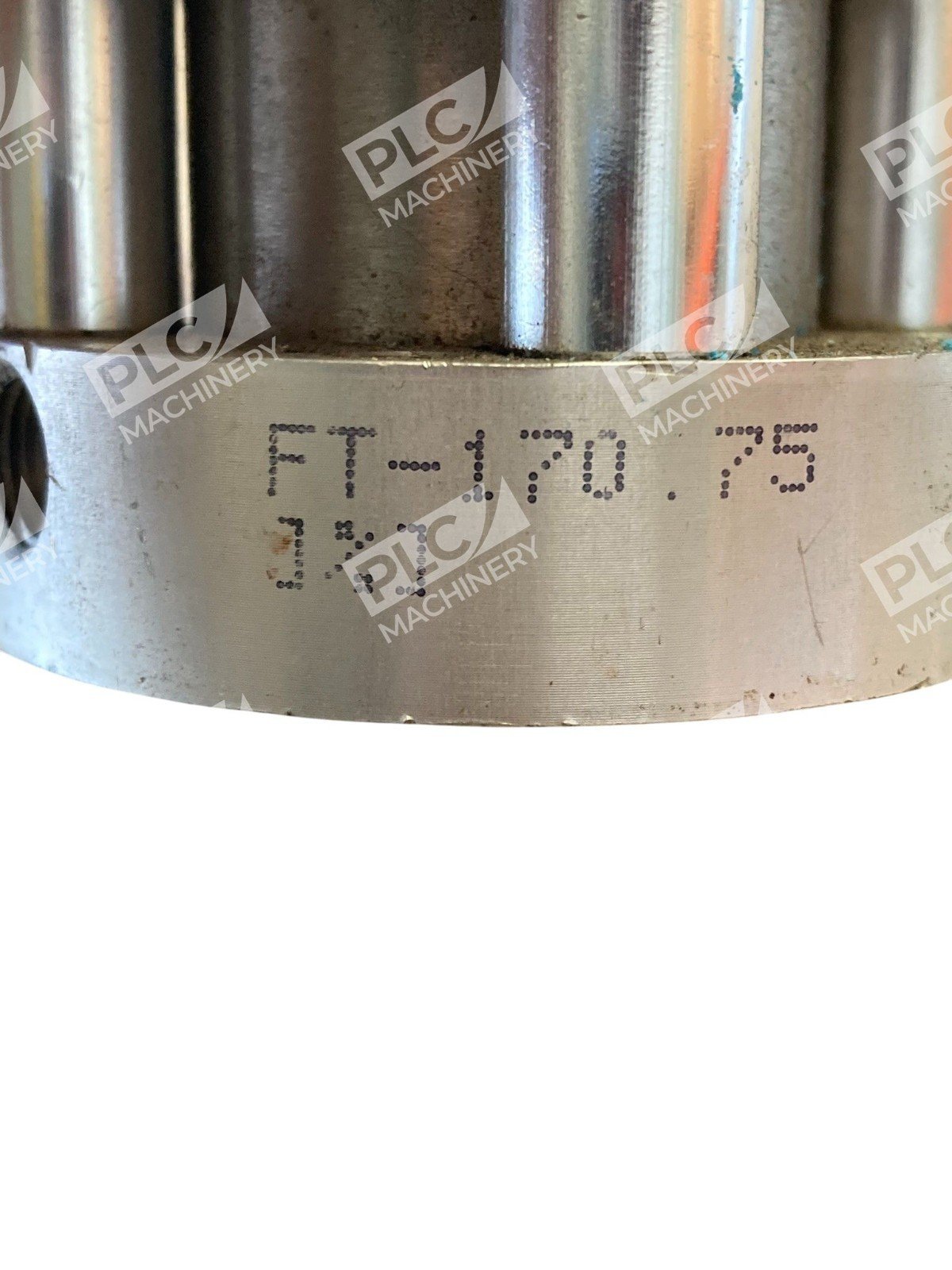

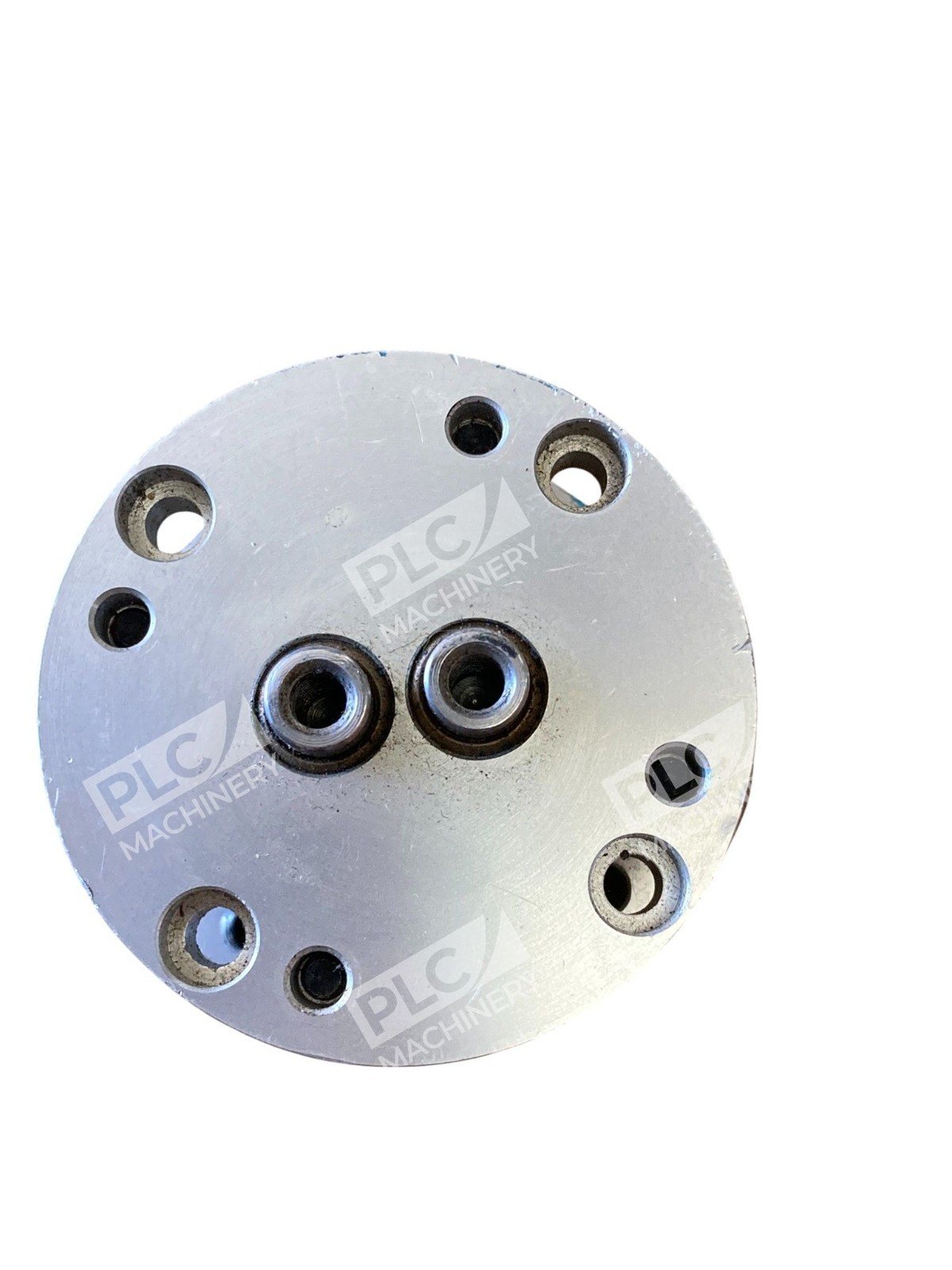

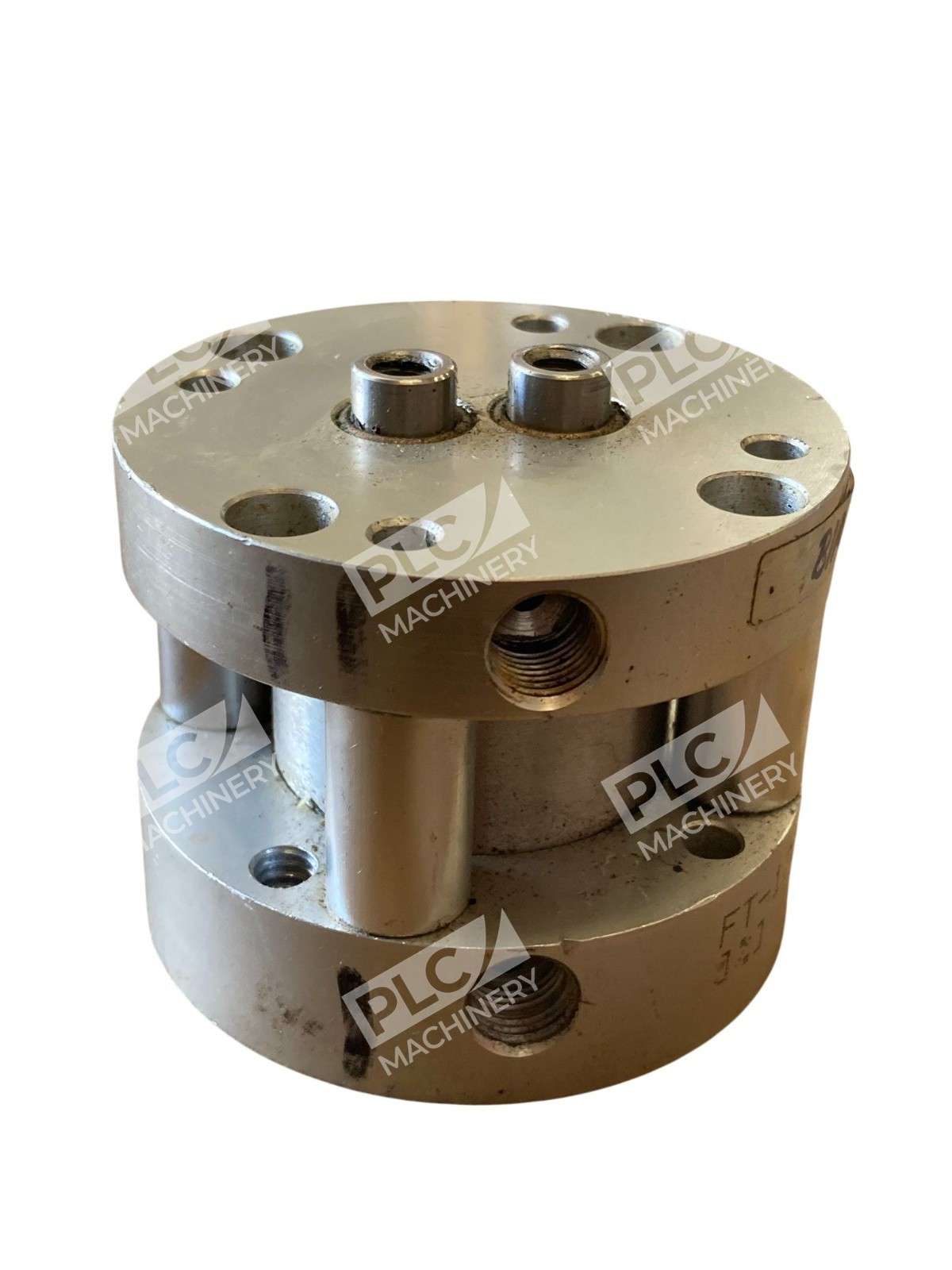

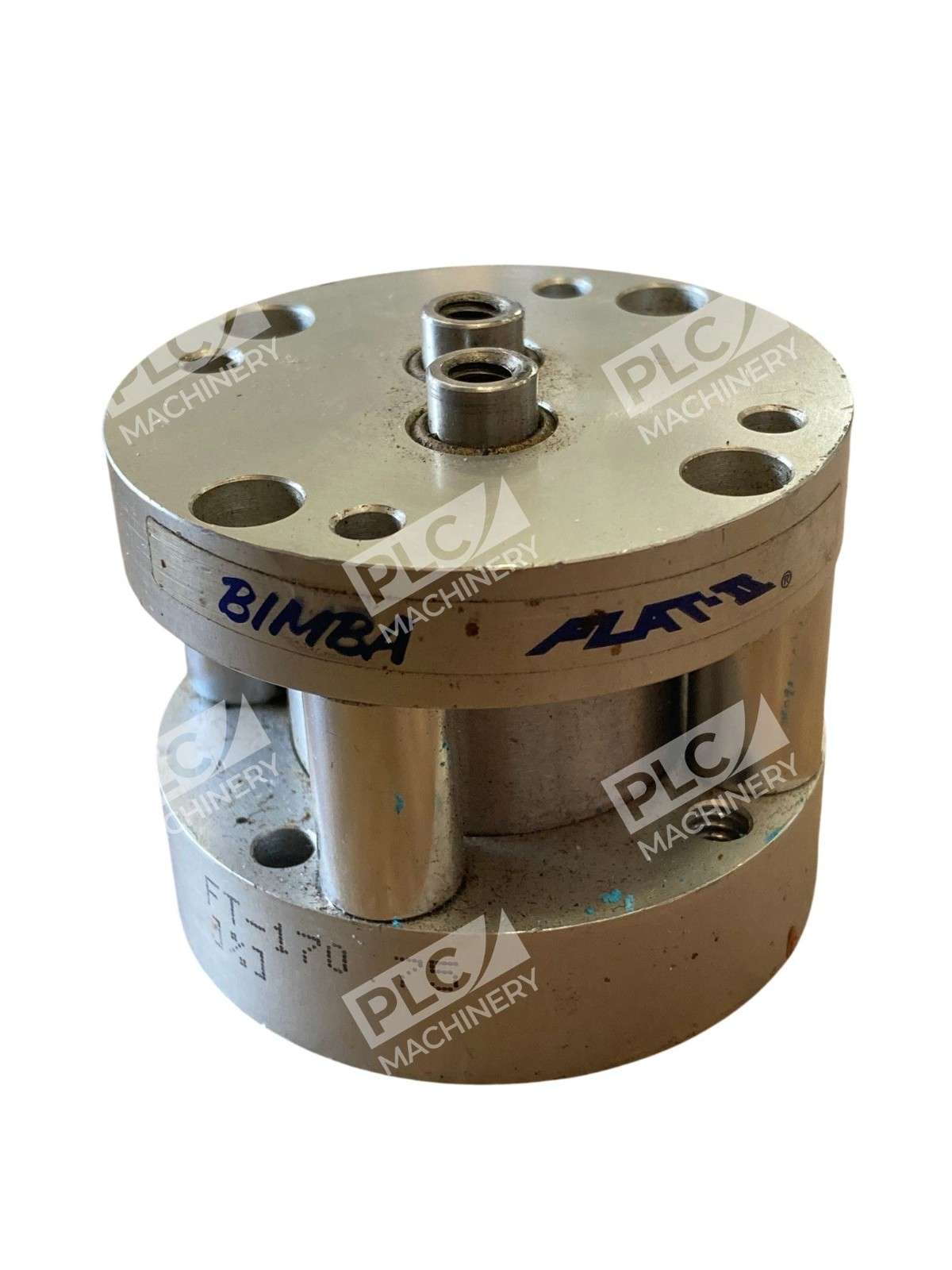

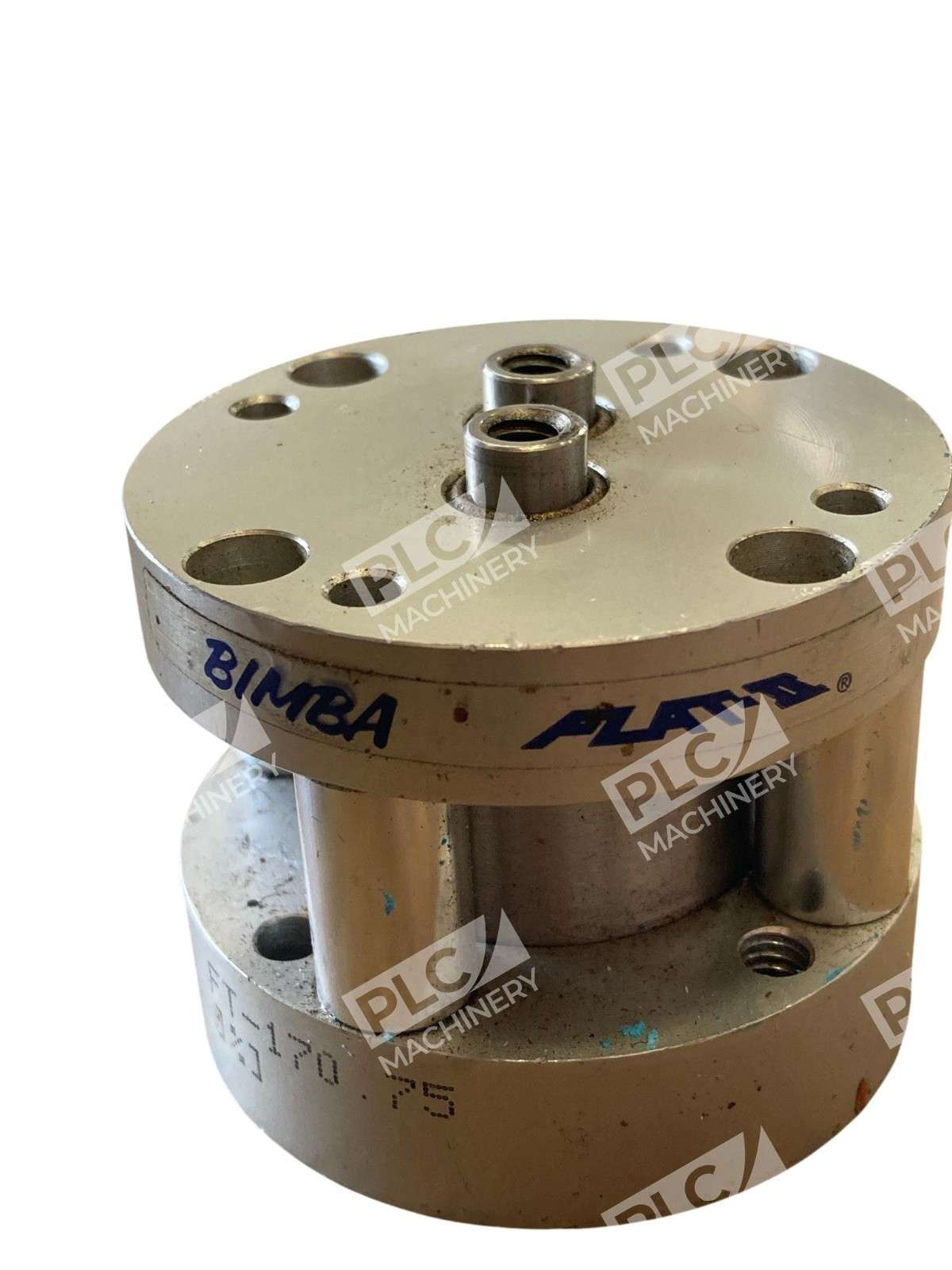

BIMBA FT-170.75

The Bimba FT-170.75 is a Flat-II Non-Rotating Pneumatic Cylinder designed for applications requiring precise linear motion in compact spaces.

Key Features

• Bore Size: 1.5 inches
• Stroke Length: 0.75 inches
• Mounting Type: Standard
• Front Port Position: Standard
• Temperature Range: 15°F to 160°F (Standard); up to 225°F with optional high-temperature seals
• Magnetic Piston: Optional

Construction and Materials

The FT-170.75 cylinder features a hard-coated aluminum body with PTFE for enhanced durability and reduced friction. The piston rod is made of 303 stainless steel, providing corrosion resistance and strength. An anodized aluminum mounting flange ensures secure installation, while nitrile seals (with optional fluoroelastomer seals for higher temperatures) offer reliable sealing performance. The rod bearing is constructed from sintered iron for added durability. ([s3.amazonaws.com](https://s3.amazonaws.com/tsisolutions/specifications/Bimba_Flat_Cyclinders.pdf?utm_source=openai))

Performance Specifications

• Maximum Operating Pressure: 140 psi
• Operating Temperature: 15°F to 160°F (Standard); up to 225°F with -V option
• Lubrication: PTFE Grease

Applications

The Bimba FT-170.75 cylinder is ideal for applications where space is limited, and precise, non-rotating linear motion is required. Its robust construction and versatile mounting options make it suitable for various industrial automation tasks.

Ordering Information

The FT-170.75 cylinder can be customized with various options, including different mounting styles, port positions, temperature ratings, and magnetic piston configurations. For specific requirements, consult the product datasheet or contact a Bimba representative. ([s3.amazonaws.com](https://s3.amazonaws.com/tsisolutions/specifications/Bimba_Flat_Cyclinders.pdf?utm_source=openai))
