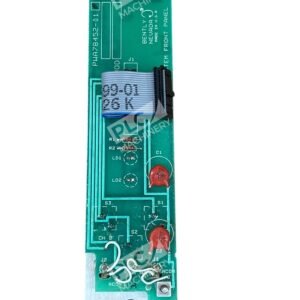

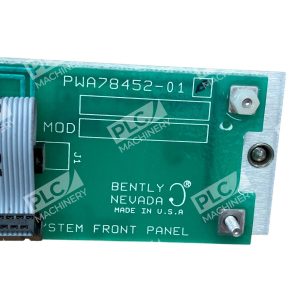

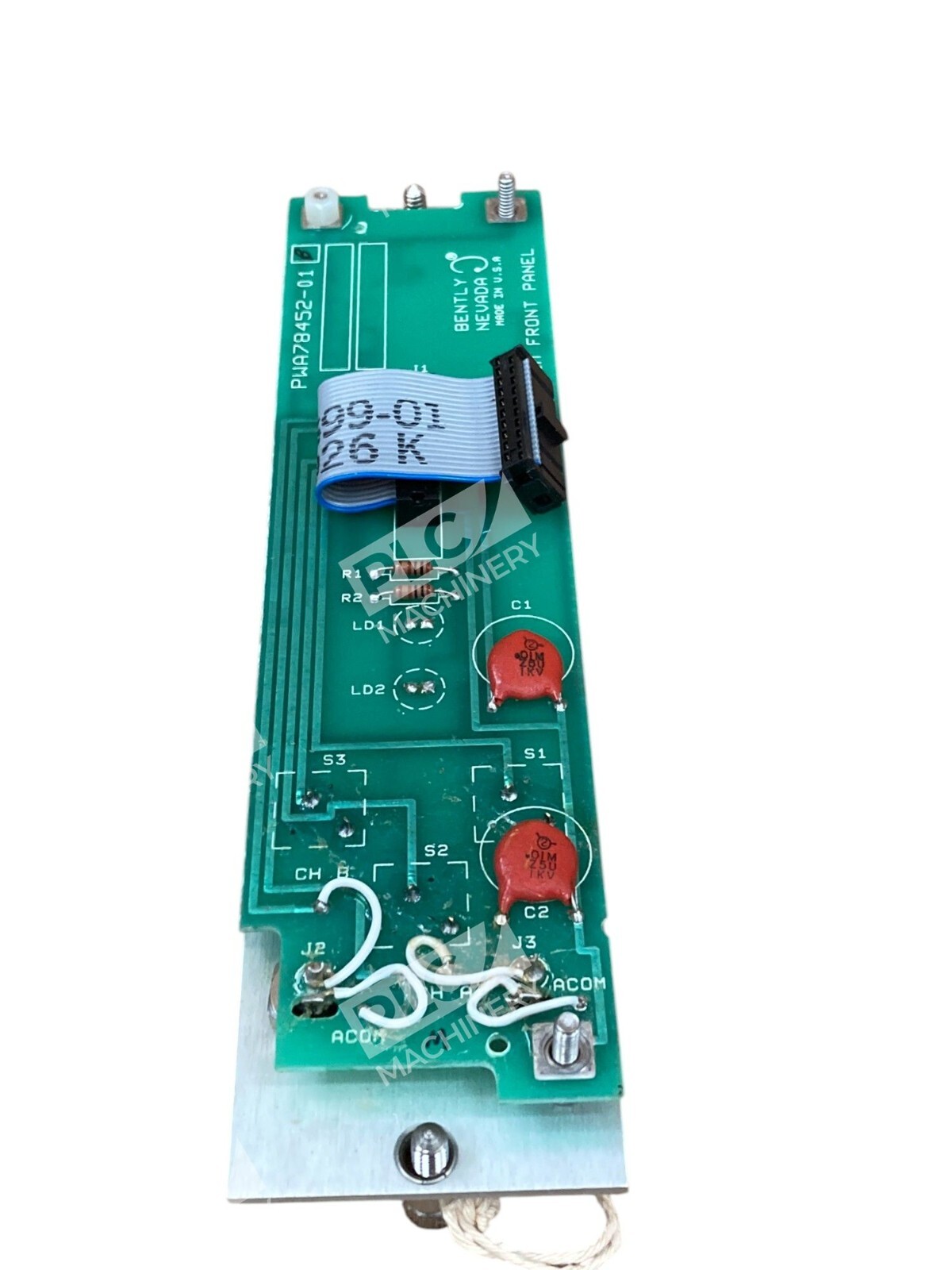

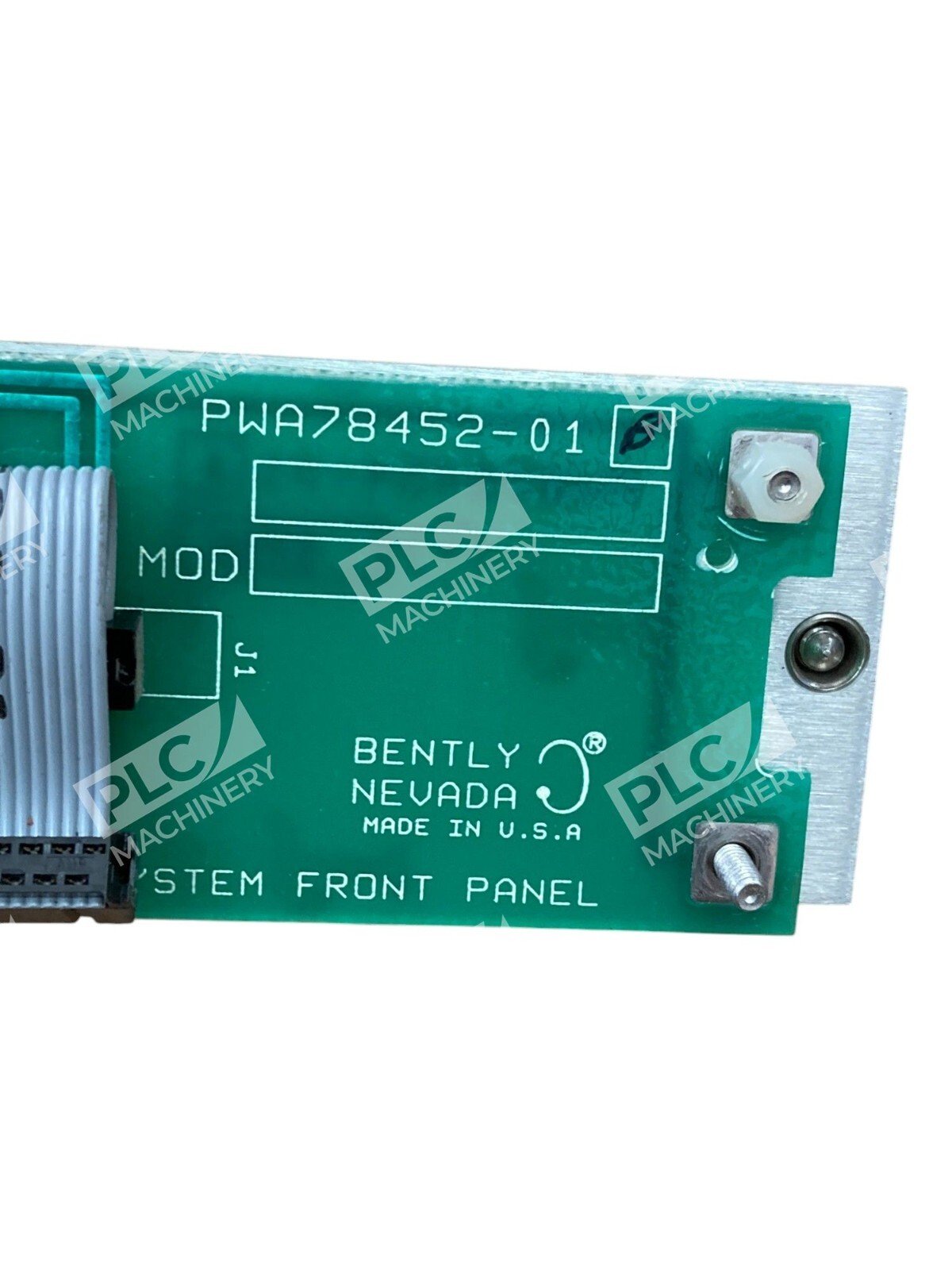

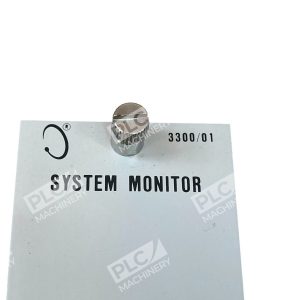

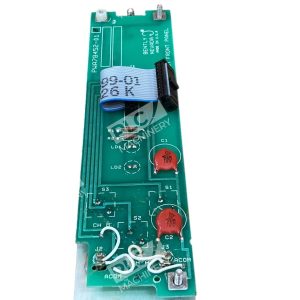

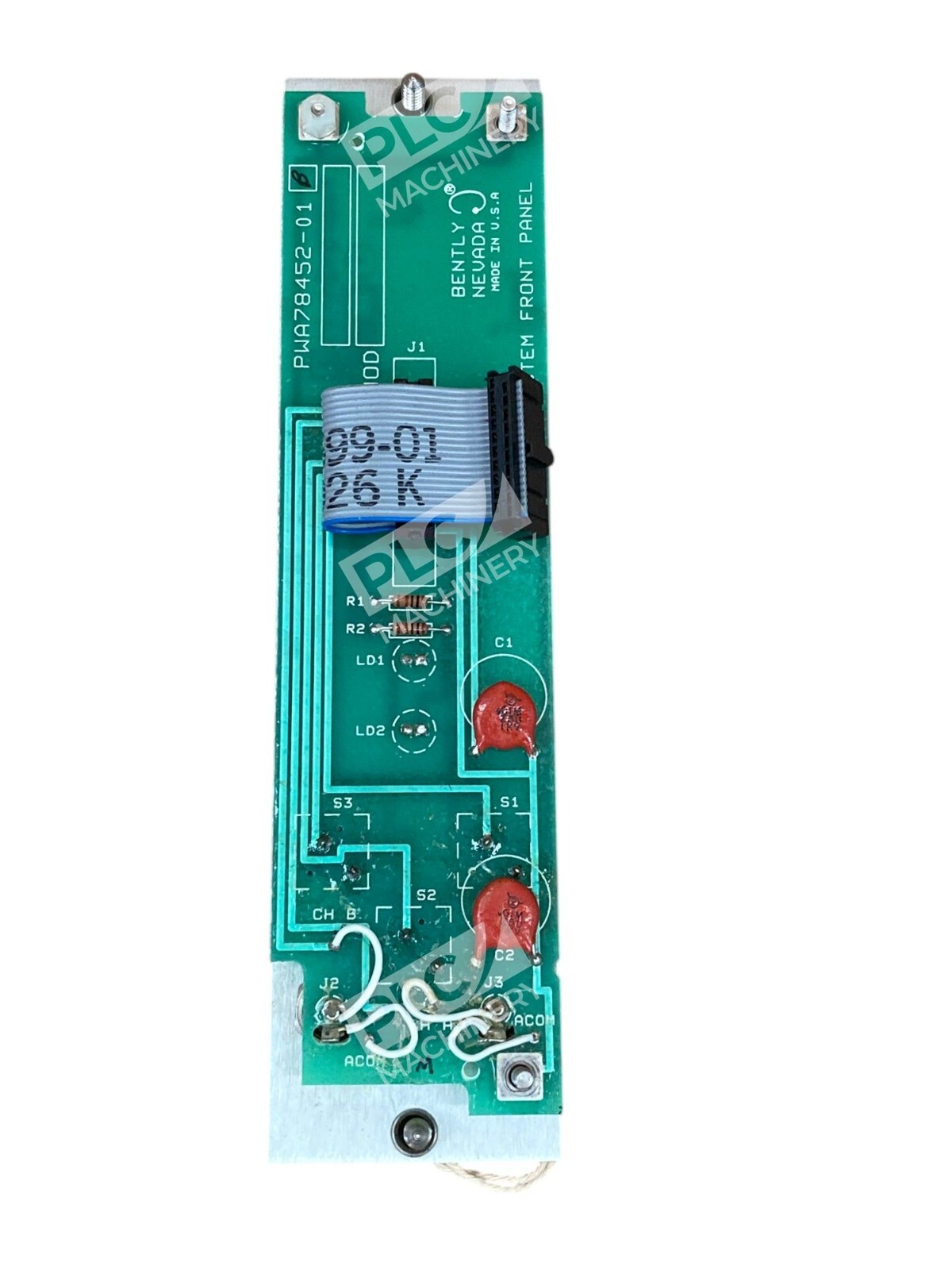

Bently Nevada 3300/01 System Monitor Front Panel PWA78452-01

Bently Nevada 3300/01 System Monitor Front Panel PWA78452-01

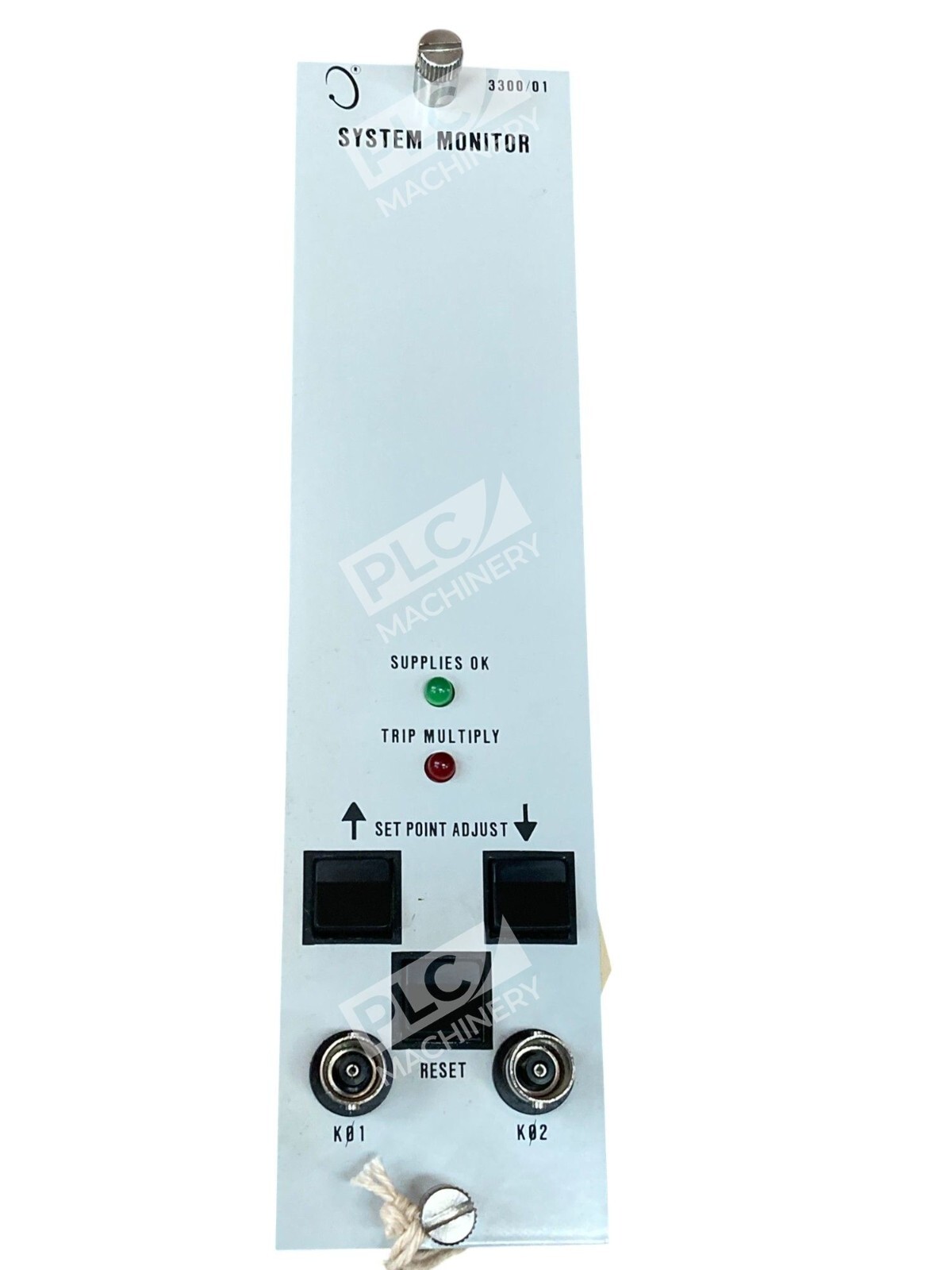

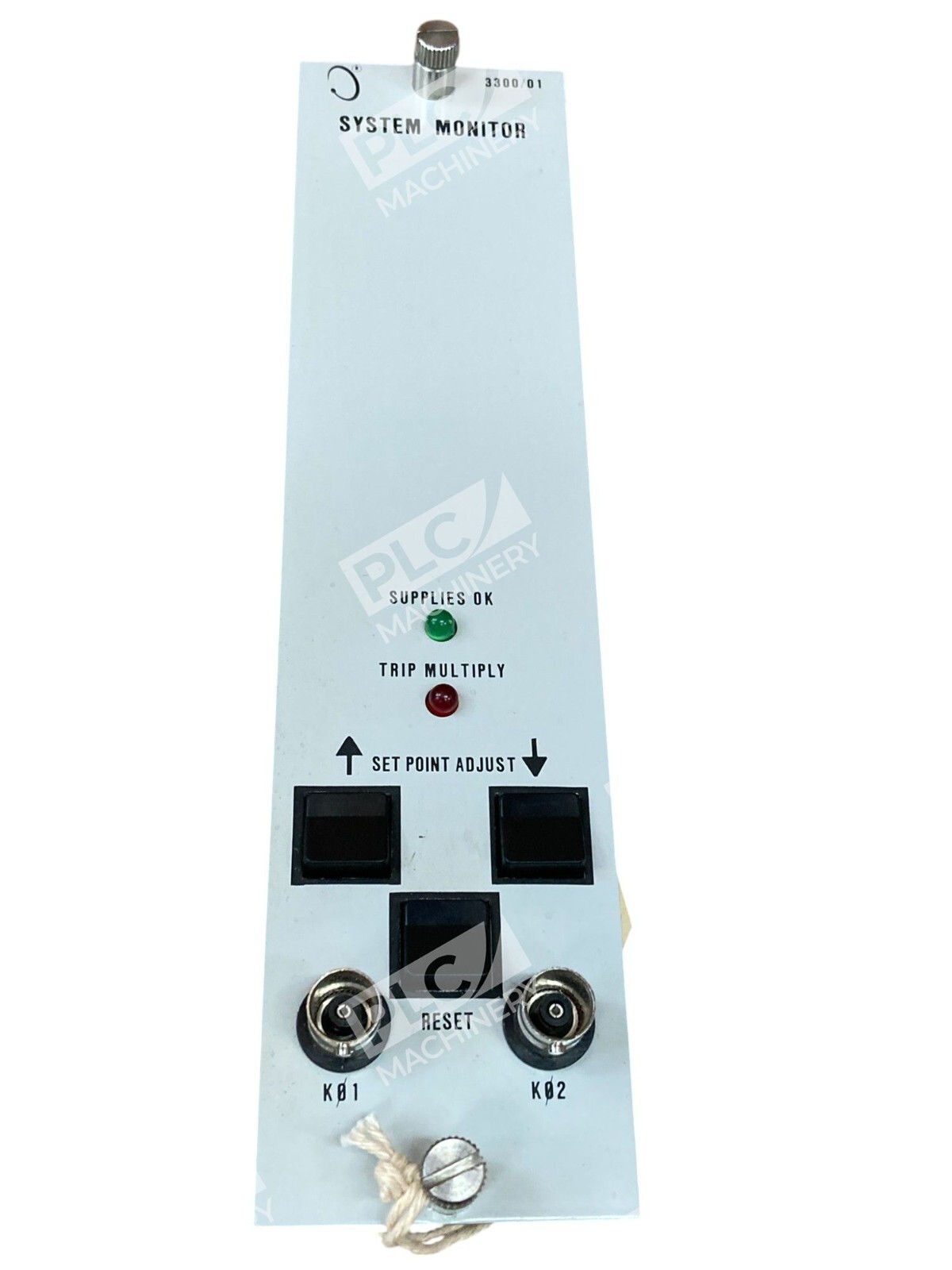

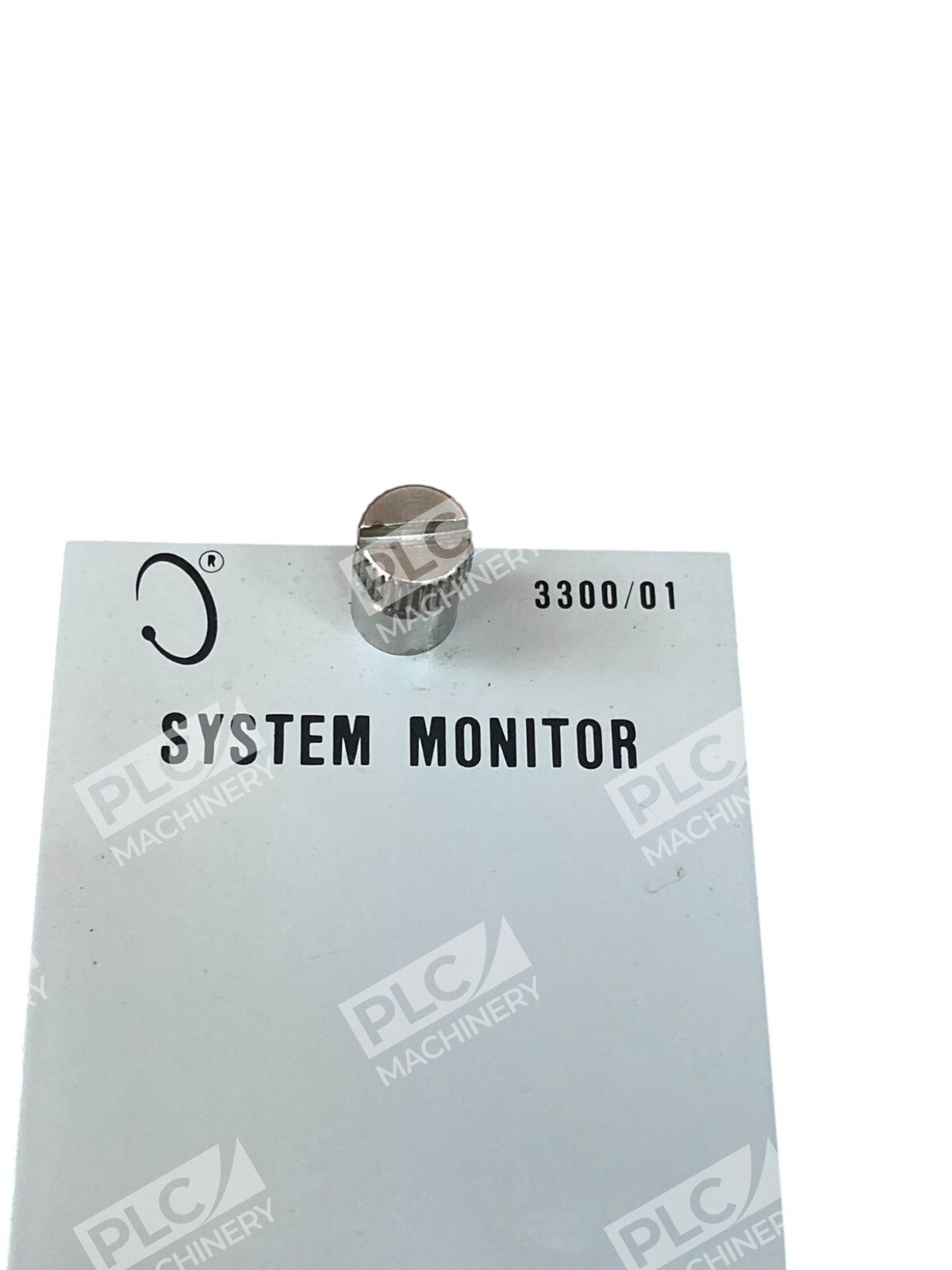

The Bently Nevada 3300/01 System Monitor Front Panel PWA78452-01 is an integral component of the 3300 Series Monitoring System, designed to provide comprehensive machinery protection and condition monitoring. This front panel serves as the user interface for the 3300/01 System Monitor module, facilitating seamless interaction and control.

Key Features

• Centralized Interface: The front panel consolidates control and monitoring functions, allowing operators to efficiently manage system parameters without the need for additional components.

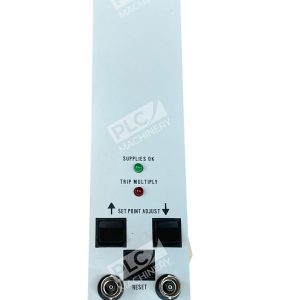

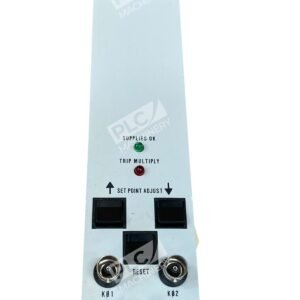

• Visual Indicators: Equipped with LEDs that display the status of system supply voltages and operational conditions, enabling quick assessment of system health.
• Buffered Keyphasor Outputs: Provides easy access to buffered Keyphasor signals via front-panel BNC connectors, facilitating diagnostics and analysis.
• Alarm Management: Features an alarm reset switch that works in parallel with remote reset capabilities, ensuring prompt response to system alerts.

Technical Specifications

• Power Consumption: Nominally 3.6 watts with interface options.
• Input Impedance: 10 kΩ for signal inputs.
• Output Impedance: 100 Ω for buffered Keyphasor outputs.
• Transducer Power Supply: Programmable for ±24 Vdc or ±18 Vdc, with short circuit protection.

Applications

The 3300/01 System Monitor Front Panel is essential for industries requiring reliable machinery monitoring, including power generation, oil and gas, and manufacturing sectors. Its user-friendly interface and robust features contribute to enhanced machine reliability and reduced downtime through early fault detection and preventive maintenance.

Incorporating the Bently Nevada 3300/01 System Monitor Front Panel PWA78452-01 into your monitoring system ensures a streamlined approach to machinery protection, offering both operational efficiency and peace of mind.
