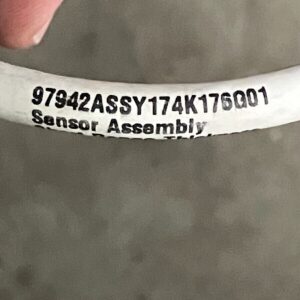

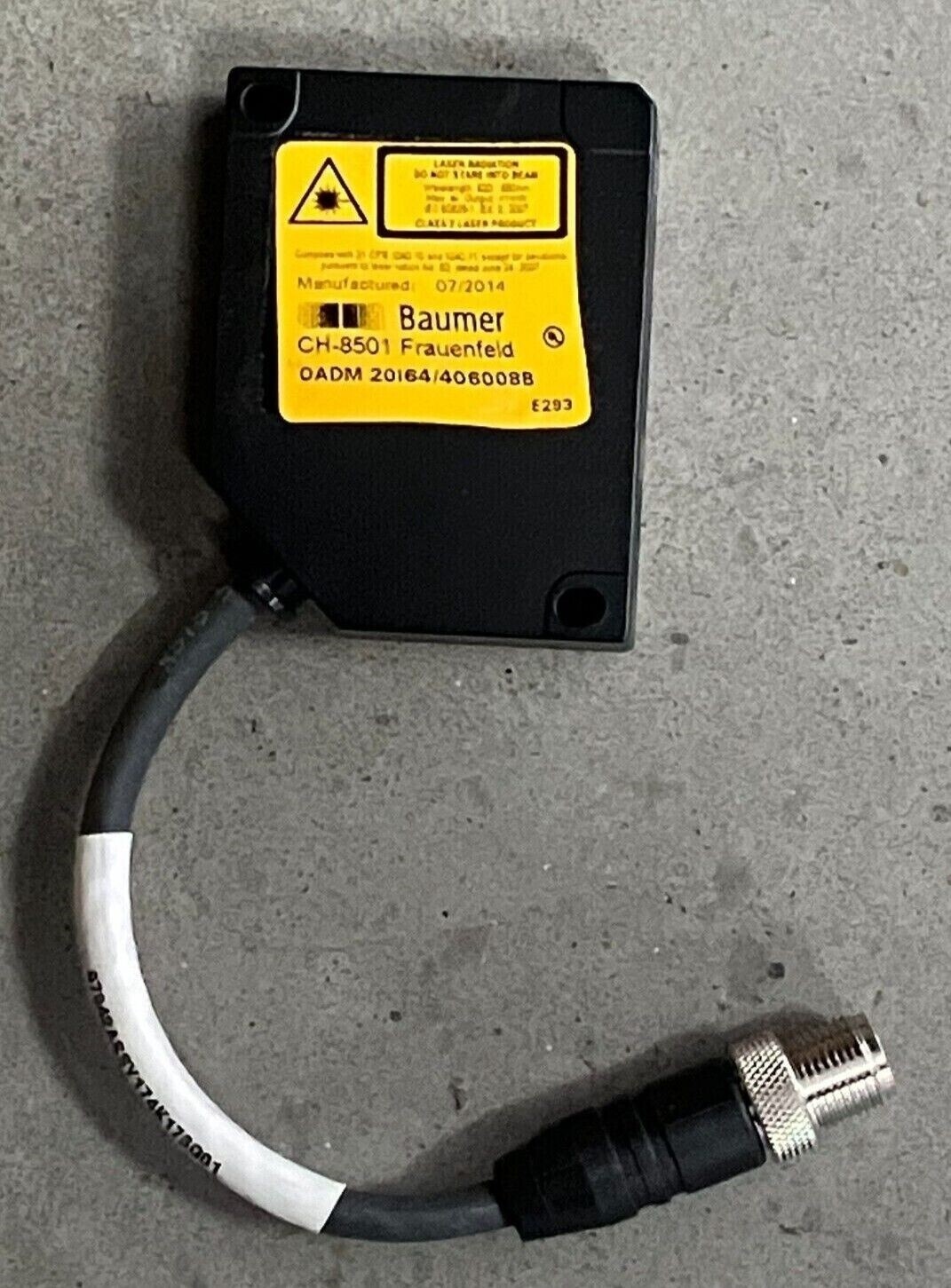

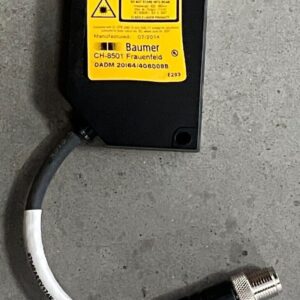

Baumer OADM 20164/406008B Short Range Thickness Sensor 97942ASSY174K176G01

Baumer OADM 20164/406008B Short Range Thickness Sensor 97942ASSY174K176G01

The Baumer OADM 20164/406008B is a high-precision short-range thickness sensor designed to deliver accurate and reliable measurements in industrial automation and motion control applications. Its advanced technology ensures superior performance, making it an ideal choice for businesses seeking enhanced efficiency and precision.

Key Features

• Measurement Range: Capable of measuring distances from 50 mm to 300 mm, suitable for various industrial applications.
• High Resolution: Offers a resolution between 10 to 330 µm, ensuring precise thickness measurements.
• Fast Response Time: Features a response time of less than 0.9 ms, allowing for rapid data acquisition.

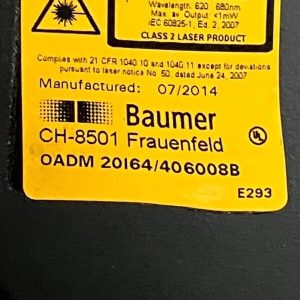

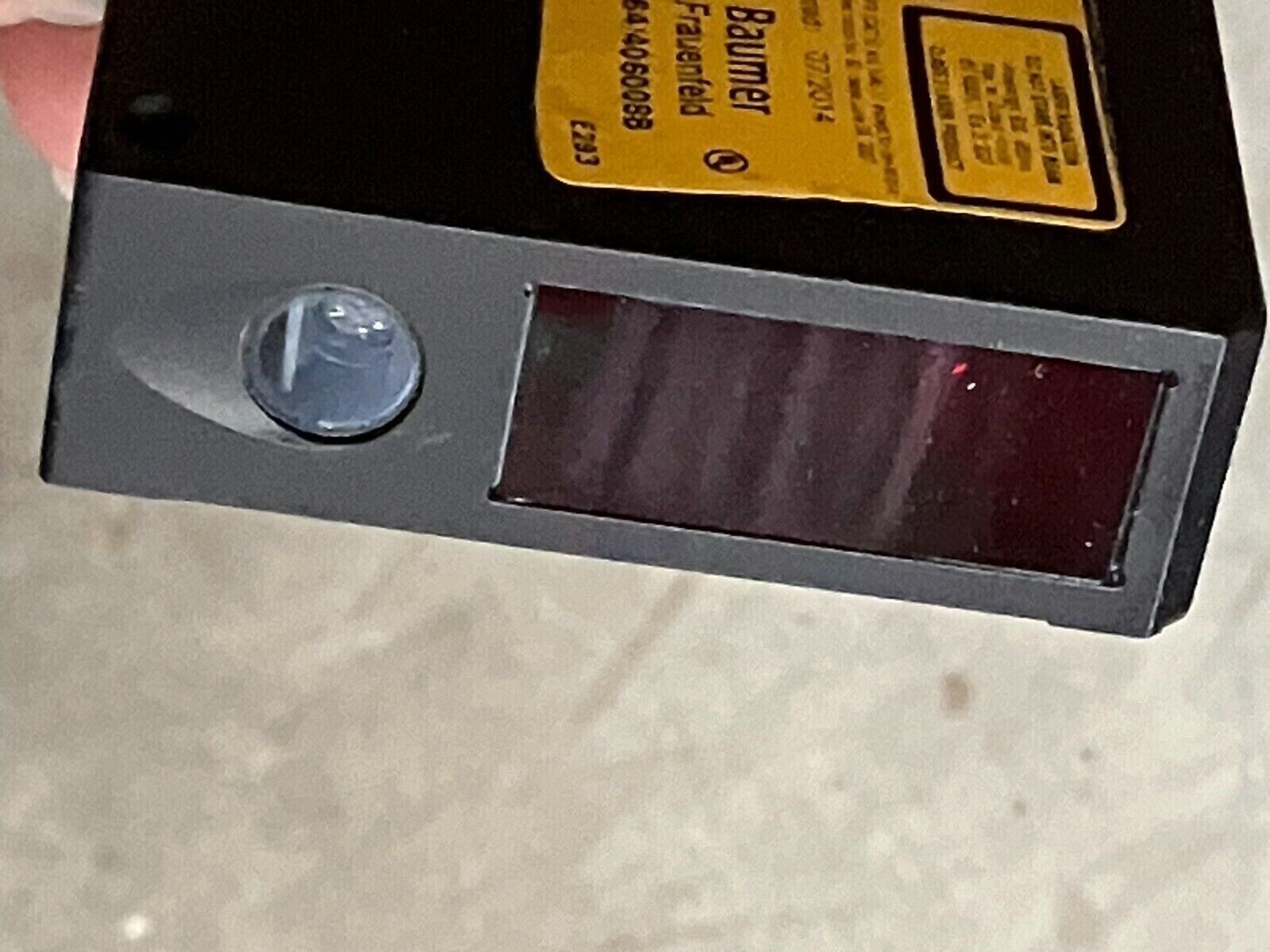

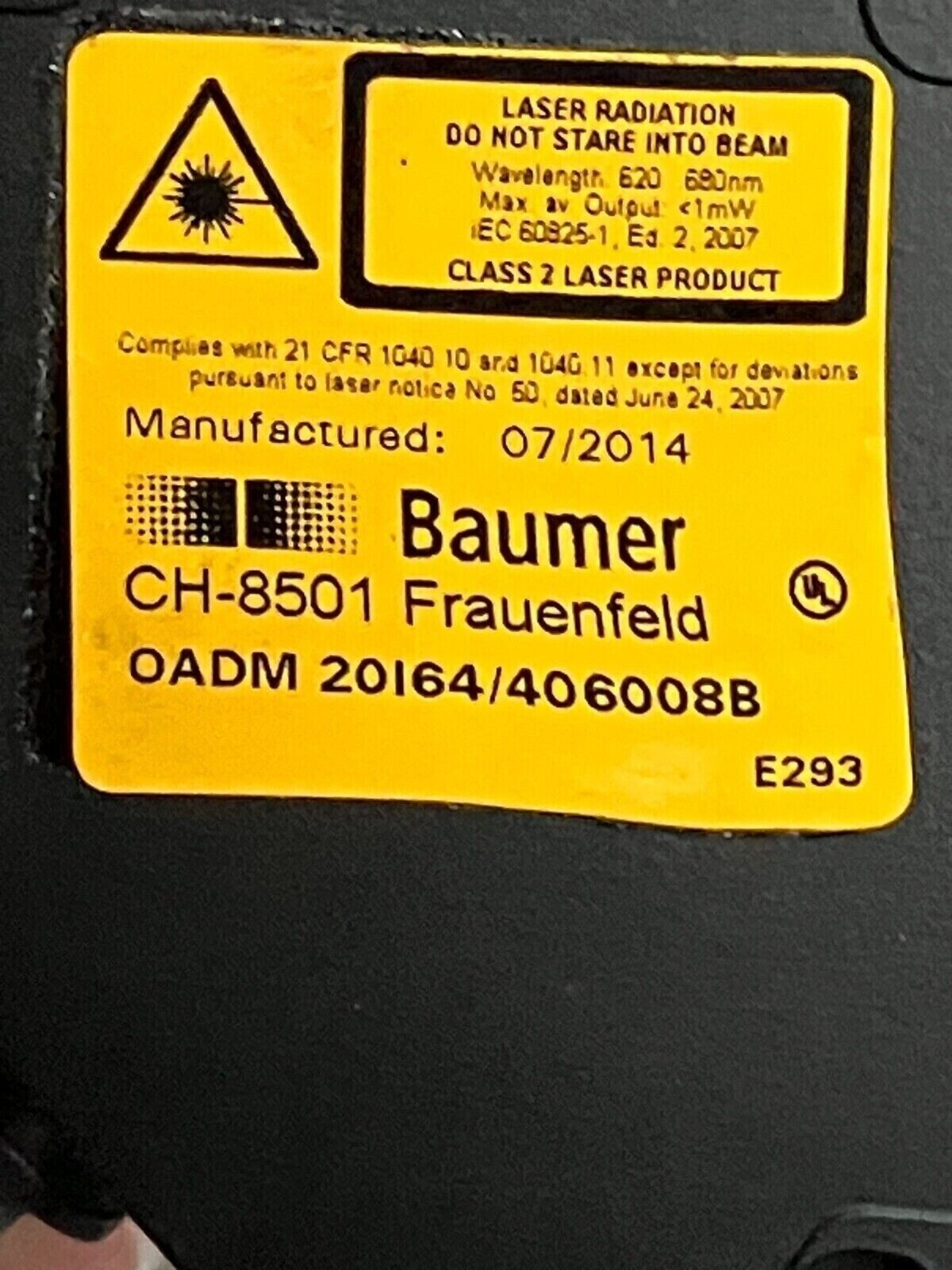

• Laser Technology: Utilizes a pulsed red laser diode with a wavelength of 650 nm, classified as Laser Class 2 for safe operation.
• Robust Construction: Housed in a die-cast zinc casing with an IP67 rating, providing durability and protection against environmental factors.

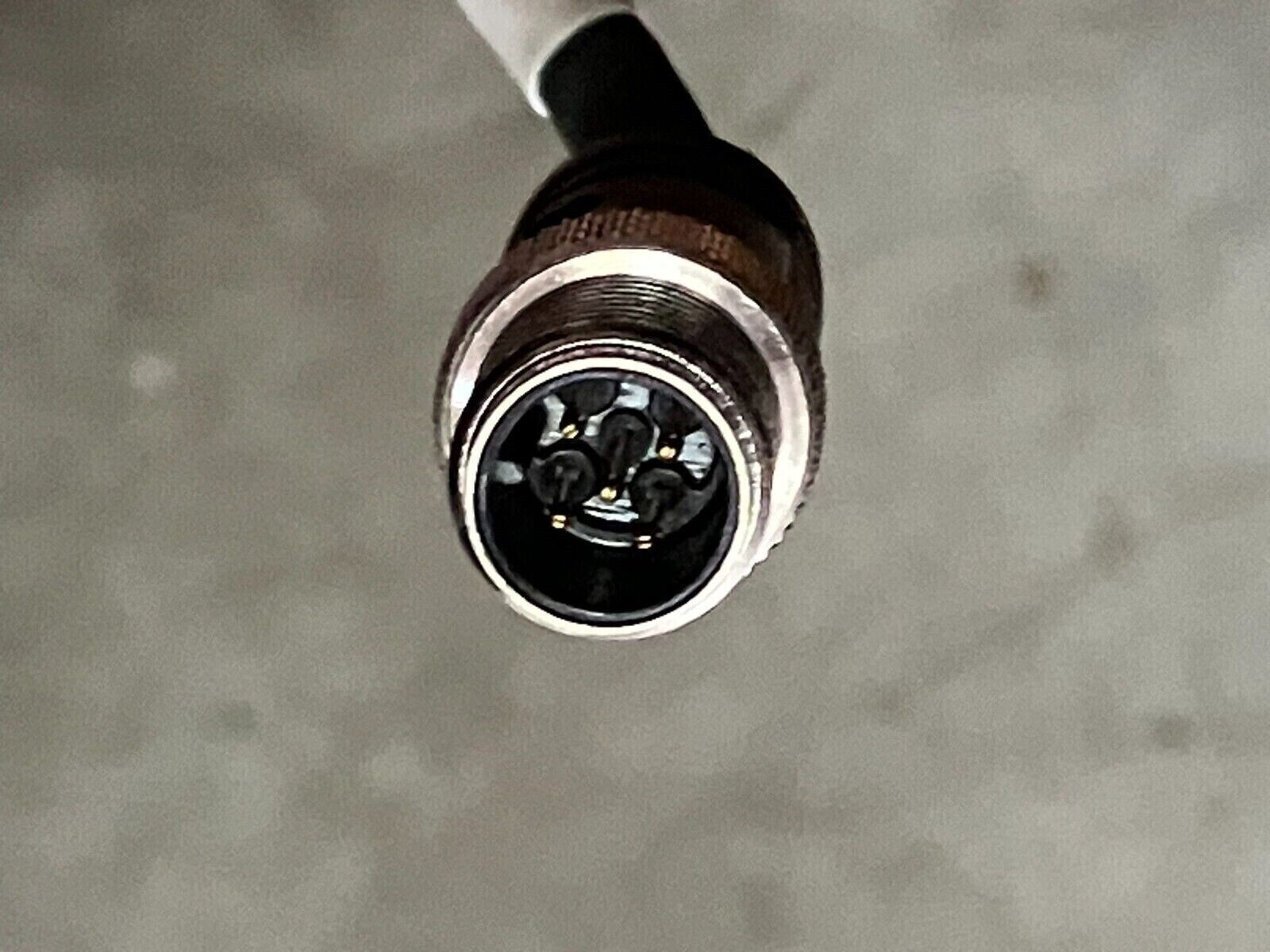

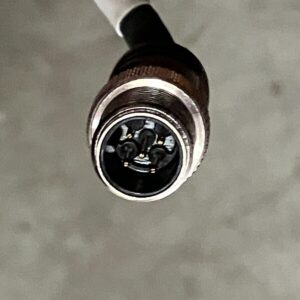

• Flexible Connectivity: Equipped with an M12 8-pin rotatable connector for easy integration into existing systems.
• Adjustable Settings: Features teach-in functionality via button or external input, allowing for easy calibration and setup.

Technical Specifications

• Measuring Distance (Sd): 50 mm to 300 mm
• Beam Diameter: 2 mm
• Resolution: 10 to 330 µm
• Linearity Error: ±0.03 to 1 mm
• Response Time: < 0.9 ms
• Voltage Supply Range: 12 to 28 VDC
• Current Consumption: 100 mA (max, no load)
• Output Signal: 4 to 20 mA / 0 to 10 VDC
• Operating Temperature: 0°C to +50°C
• Protection Class: IP67

The Baumer OADM 20164/406008B Short Range Thickness Sensor is engineered to meet the demands of modern industrial environments, offering precise measurements, rapid response times, and robust construction for reliable performance in various applications.
