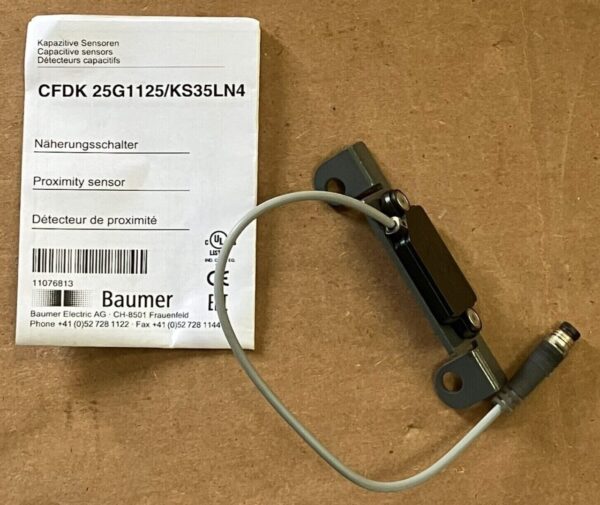

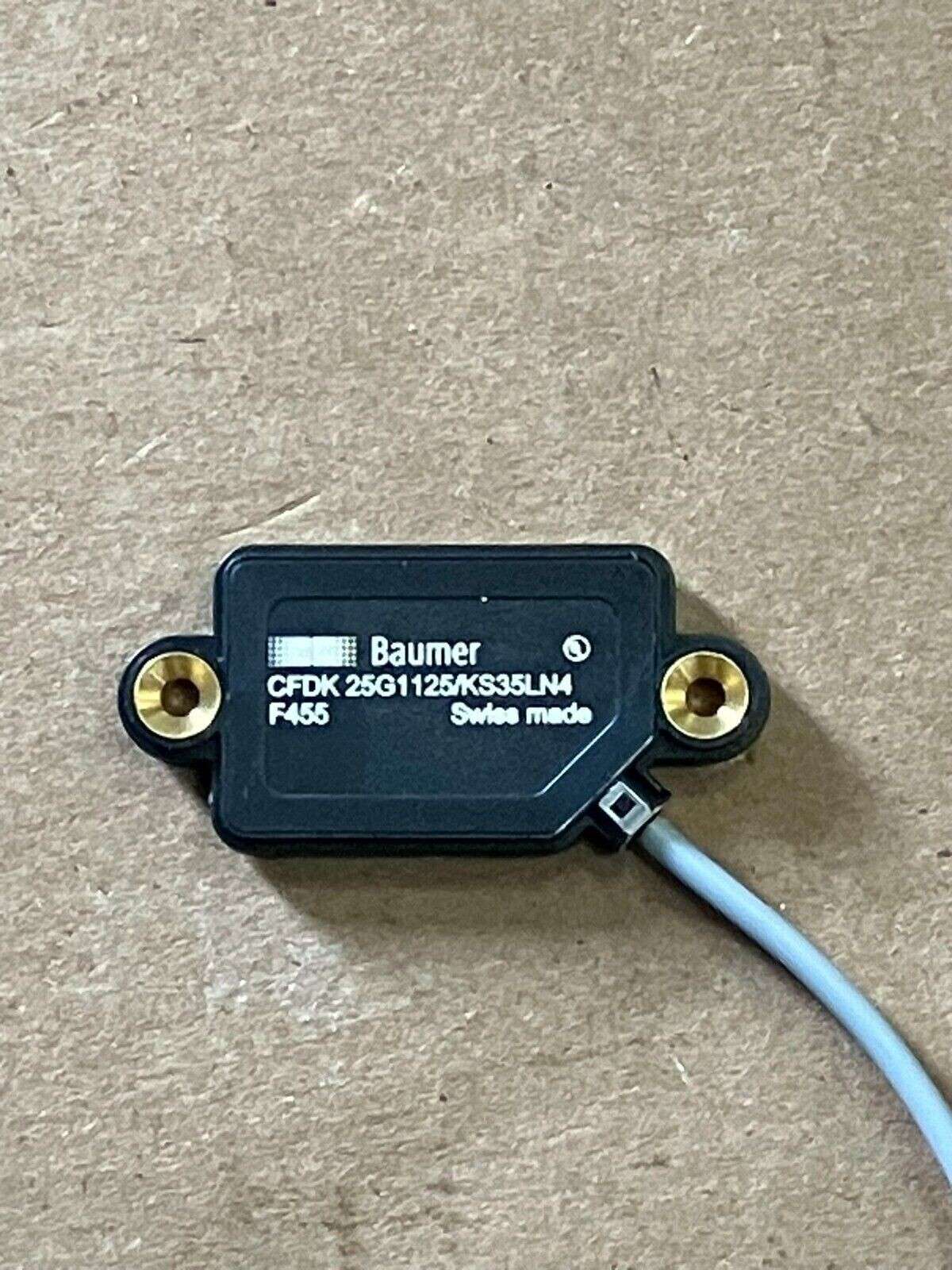

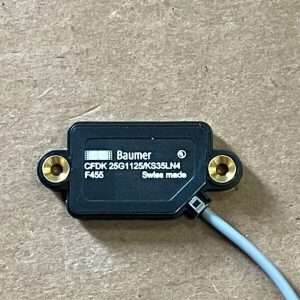

Baumer CFDK 25G1125/KS35LN4 Block Proximity Sensor

The Baumer CFDK 25G1125/KS35LN4 is a capacitive proximity sensor designed for precise detection of non-conductive materials and fill level monitoring through container walls. Its compact, flat housing makes it ideal for applications where space is limited.

Key Features

• Nominal Sensing Distance: 8 mm
• Mounting Type: Flush
• Output Function: Active High
• Output Circuit: Push-Pull
• Supply Voltage Range: 10 to 30 VDC
• Current Consumption: Maximum 15 mA (no load)
• Output Current: Less than 100 mA
• Switching Frequency: Up to 35 Hz
• Operating Temperature Range: -25°C to +75°C
• Protection Class: IP65
• Housing Material: PA 12 (Polyamide)
• Dimensions: 52.4 mm (length) x 25 mm (width) x 6 mm (depth)

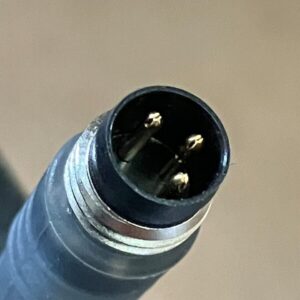

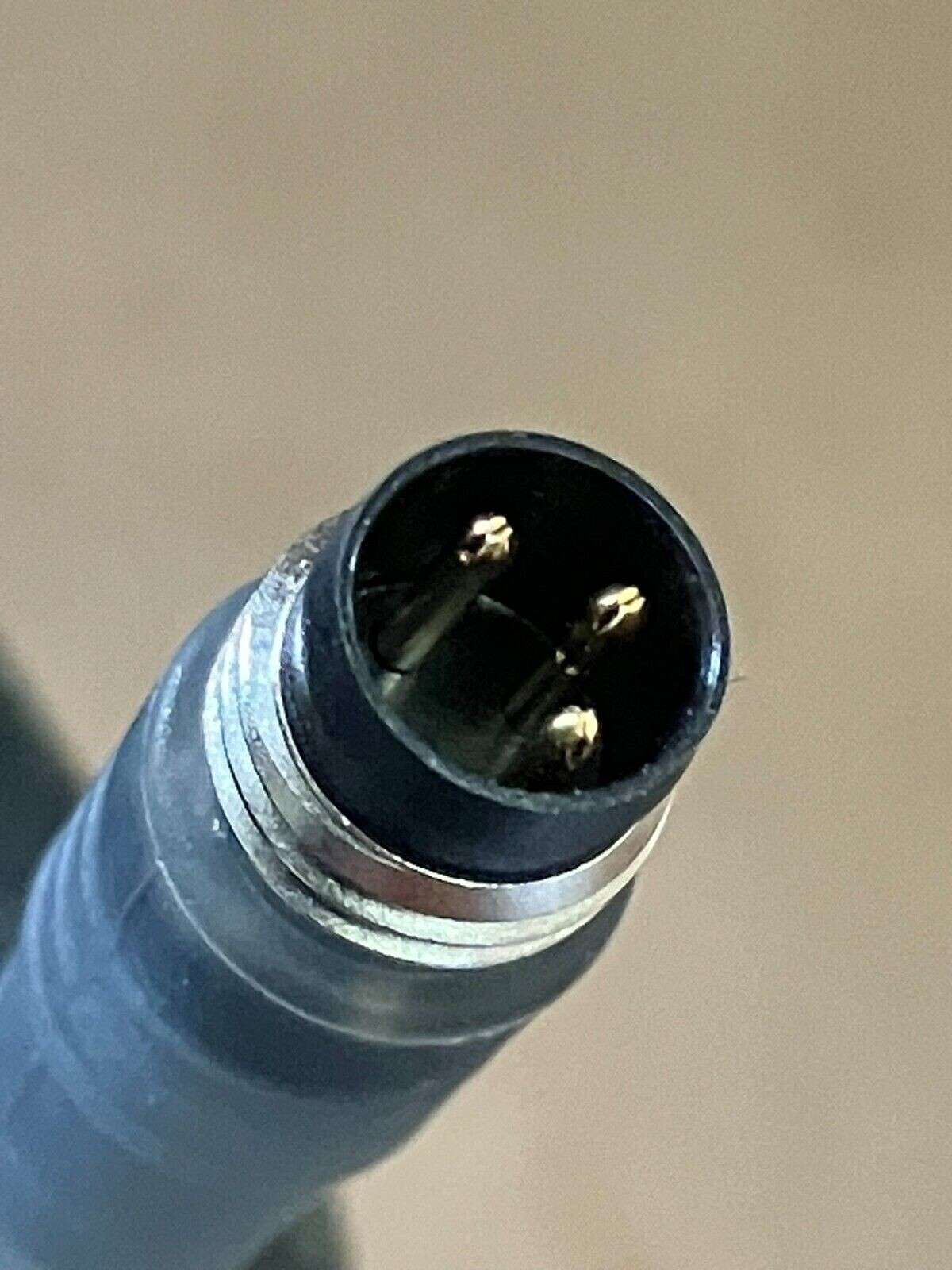

• Connection Type: Flylead connector M8, length 200 mm
• Output Indicator: Red LED
• Short Circuit and Reverse Polarity Protection: Yes

Applications

The CFDK 25G1125/KS35LN4 is suitable for various industrial applications, including:

• Detection of non-conductive media
• Fill level detection through container walls
• Object detection on conveyor belts

Its slim profile and versatile mounting options allow for easy integration into existing systems, providing reliable performance in challenging environments.
