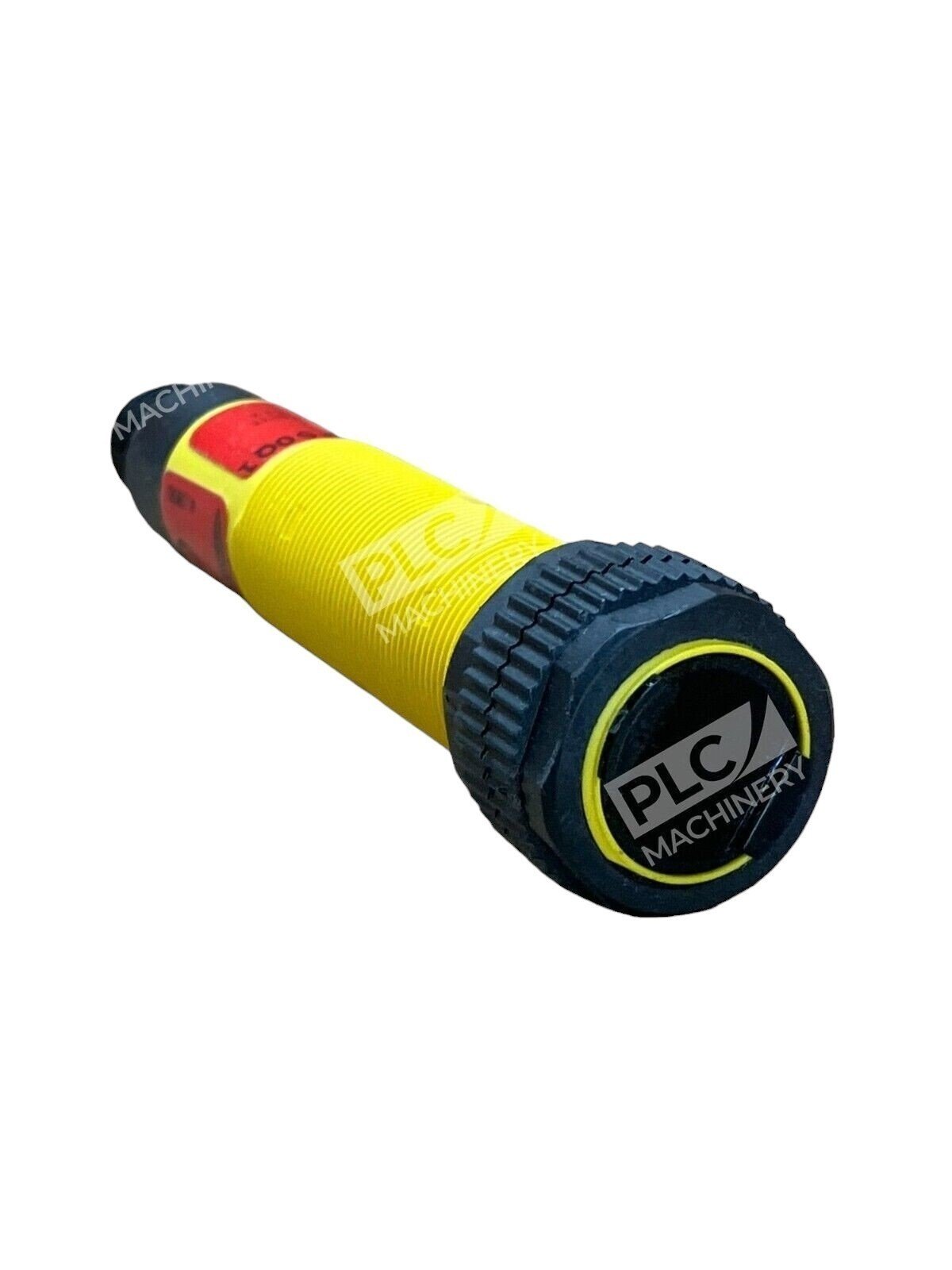

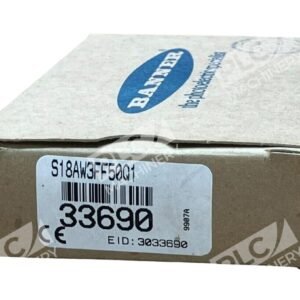

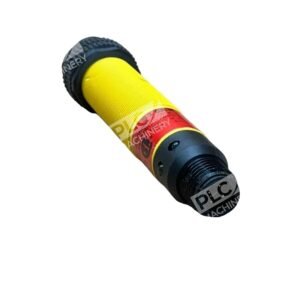

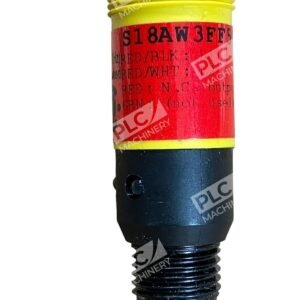

Banner S18AW3FF50Q1 S18 Series Fixed-Field Sensor

Banner S18AW3FF50Q1 S18 Series Fixed-Field Sensor

The Banner S18AW3FF50Q1 is a robust fixed-field sensor from the S18 Series, engineered for precise and reliable object detection in industrial environments. Its design and features make it an ideal choice for applications requiring consistent performance without the need for manual adjustments.

Key Features

• Fixed-Field Sensing: Utilizes background suppression technology to detect objects within a 50 mm range, effectively ignoring objects beyond this distance.
• Infrared LED Emitter: Employs an infrared LED to ensure accurate detection across various materials and surface types.
• Wide Voltage Range: Operates efficiently with an input voltage of 20-250 V AC, accommodating diverse power supply conditions.
• Solid-State AC Switch Output: Features a single-pole, single-throw (SPST) solid-state light operate output for reliable signal transmission.

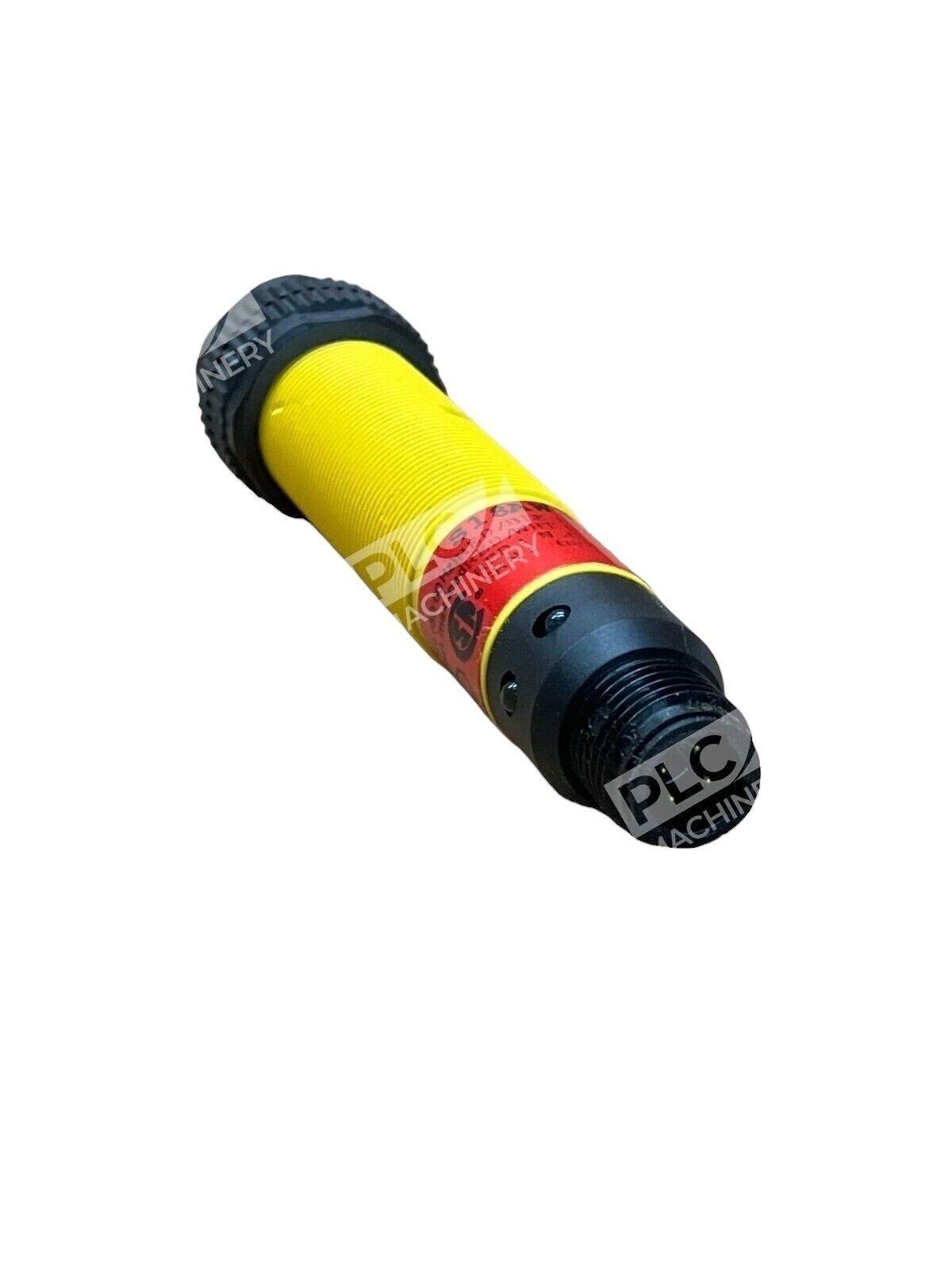

• Durable Construction: Encased in a thermoplastic housing with an 18 mm barrel diameter, providing durability and ease of installation.
• Environmental Resilience: Boasts IP67 and IP69K ratings, ensuring protection against dust, water immersion, and high-pressure washdowns.
• Temperature Tolerance: Functions effectively in temperatures ranging from -40°C to 70°C, suitable for extreme industrial conditions.

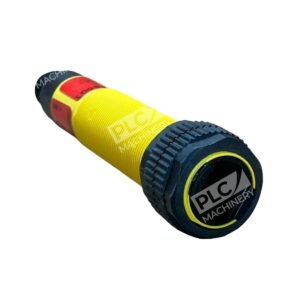

• Quick Disconnect Feature: Equipped with a 1/2 inch micro quick disconnect connector for straightforward installation and maintenance.

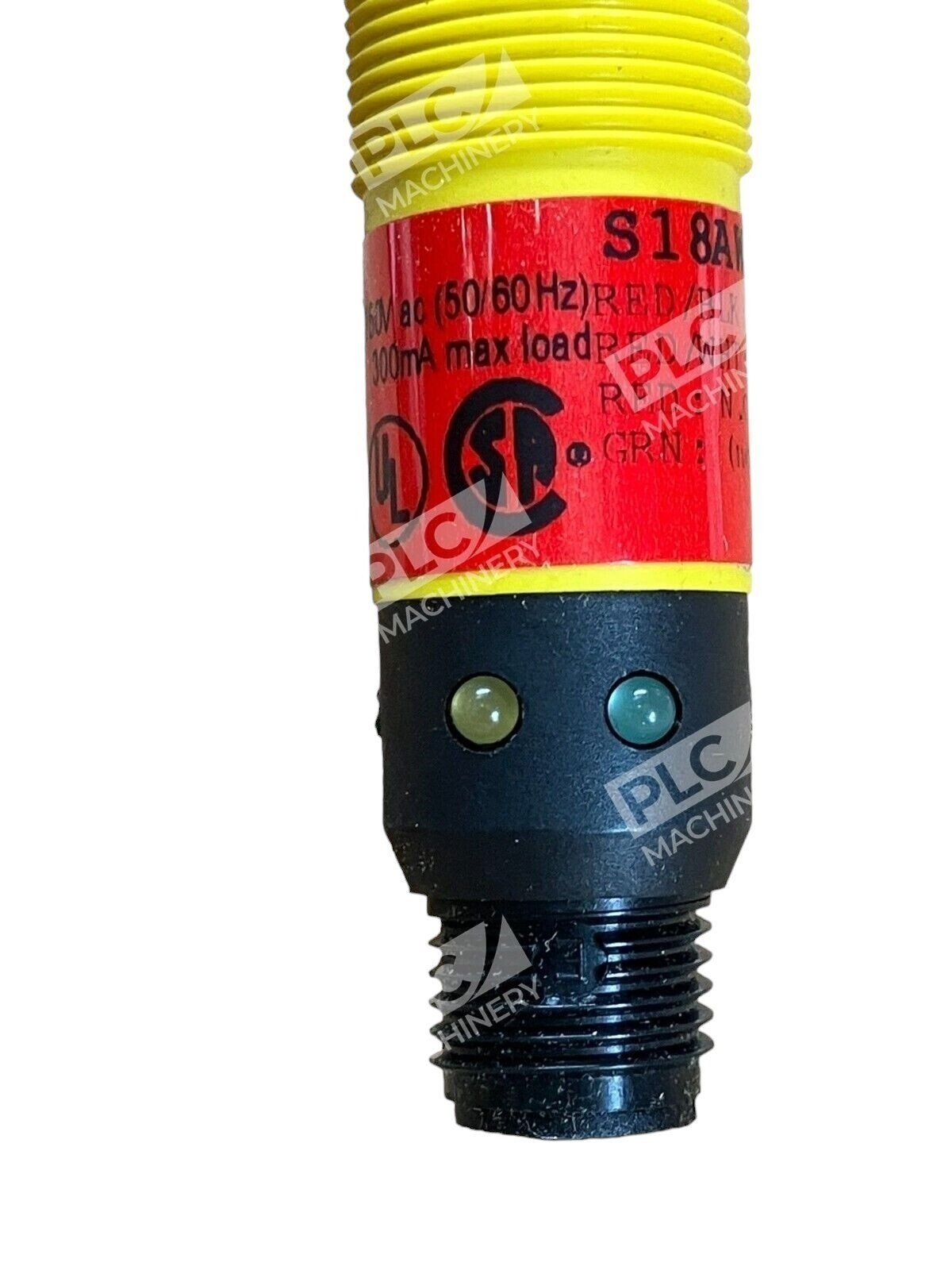

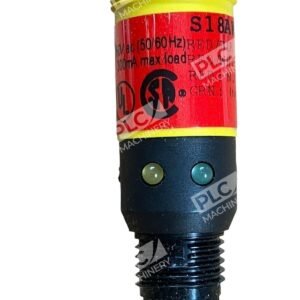

• Dual LED Indicators: Incorporates dual-LED multi-function indicators to monitor sensor performance and status.

Applications

The S18AW3FF50Q1 sensor is well-suited for various industrial applications, including:

• Conveyor systems for object detection and sorting.
• Packaging lines to ensure product presence and positioning.
• Automated assembly processes requiring precise object detection.
• Environments with rigorous cleaning protocols, thanks to its washdown-rated design.

With its combination of advanced sensing capabilities, durable construction, and user-friendly features, the Banner S18AW3FF50Q1 stands as a reliable solution for demanding industrial sensing applications.
