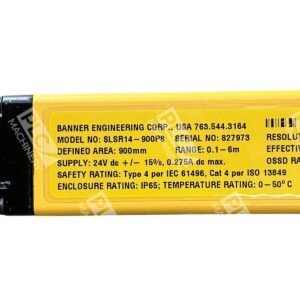

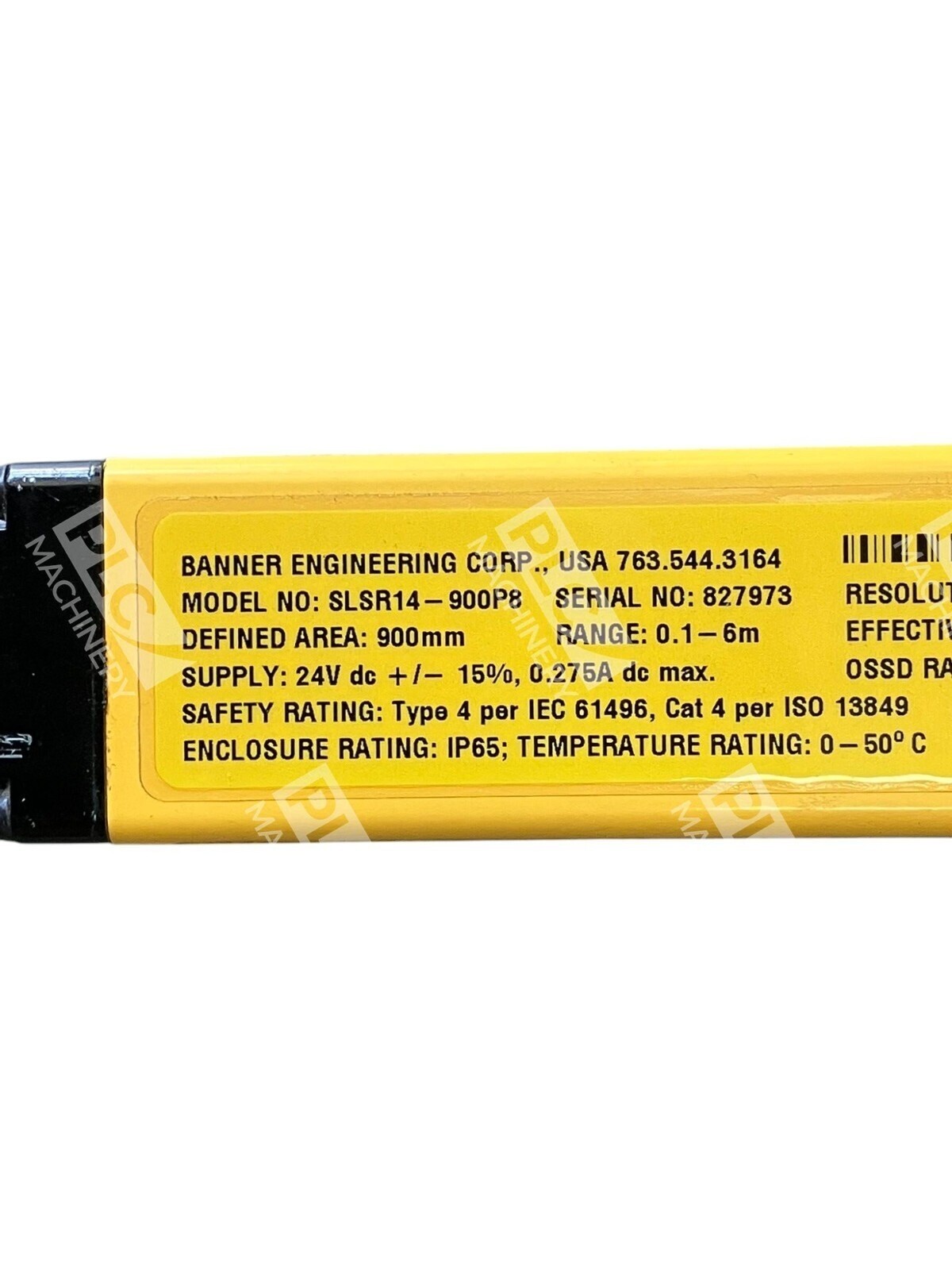

Banner 900mm EZ-Screen Light Screen Receiver SLSR14-900P8

Banner SLSR14-900P8 EZ-SCREEN Safety Light Curtain Receiver

The Banner SLSR14-900P8 is a high-performance safety light curtain receiver designed to enhance workplace safety by detecting the presence of objects or individuals within hazardous areas. This device is part of Banner Engineering’s EZ-SCREEN series, known for its reliability and ease of integration into various industrial applications.

Key Features

• Resolution: 14 mm, suitable for finger, hand, and ankle protection.
• Defined Area Height: 900 mm (35.4 inches), providing extensive coverage.
• Operating Range: 0.1 to 6 meters (4 inches to 20 feet), accommodating diverse operational environments.
• Safety Level: Type 4, ensuring high-level safety compliance.
• Response Time: 32 milliseconds, facilitating rapid detection and response.
• Operating Voltage: 24 V DC ± 15%, compatible with standard industrial power supplies.
• Supply Current: 275 mA maximum, ensuring energy-efficient operation.
• Connector Type: 8-pin M12 pigtail, allowing for straightforward installation and maintenance.
• IP Rating: IP65, offering protection against dust and water ingress.
• Housing Material: Durable aluminum with a black polyester finish, designed to withstand industrial environments.
• Dimensions: 36 mm width x 45.2 mm depth x 971 mm overall length, facilitating integration into various setups.
• Operating Temperature: 0 to +55°C with 95% relative humidity, suitable for a range of industrial conditions.
• External Device Monitoring: Supports 1 or 2 channels, enhancing system reliability.
• Fixed Blanking: Yes, allowing for the exclusion of specific areas from detection.
• Auxiliary Output: Yes, providing additional functionality for system integration.
• Trip/Latch Output: Selectable, offering flexibility in response configurations.

Applications

The SLSR14-900P8 is ideal for safeguarding personnel around machinery and hazardous zones in various industrial settings, including manufacturing, assembly lines, and material handling systems. Its high resolution and rapid response time make it particularly effective in applications requiring precise detection capabilities.

Installation and Maintenance

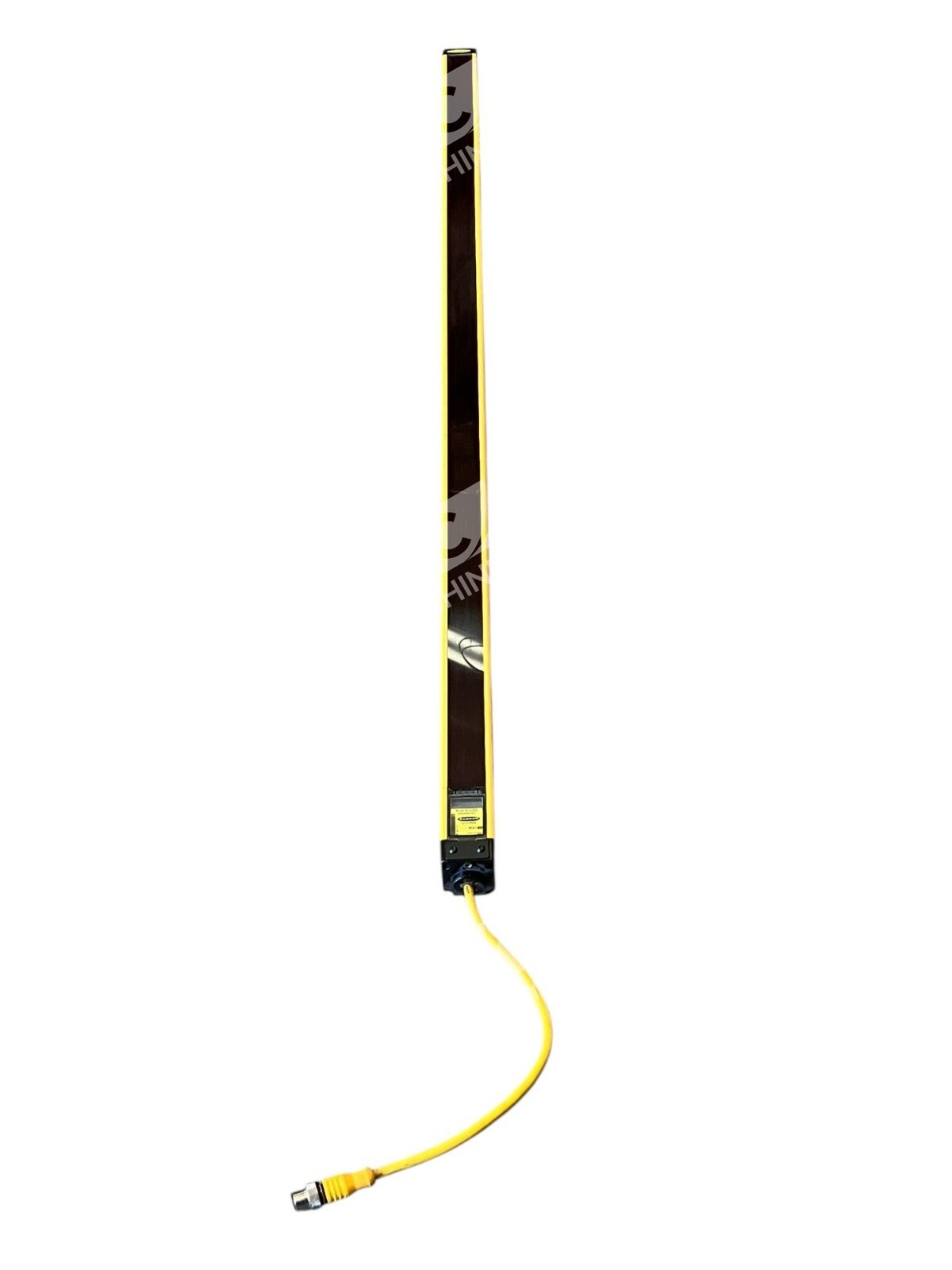

Featuring an 8-pin M12 pigtail connector, the SLSR14-900P8 ensures easy and secure connections. Its robust aluminum housing with a black polyester finish provides durability in demanding environments. The device’s IP65 rating ensures reliable performance in conditions where dust and water exposure are concerns.

By integrating the Banner SLSR14-900P8 into your safety system, you can achieve enhanced protection for personnel and equipment, ensuring compliance with safety standards and promoting a secure working environment.
