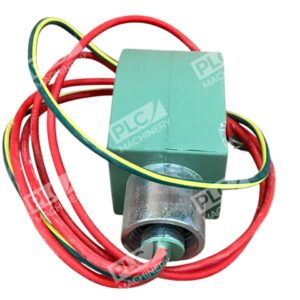

ASCO Red Hat T 148196 MP-C-080 Solenoid Valve 238210-032-D
The ASCO Red Hat T 148196 MP-C-080 Solenoid Valve, model number 238210-032-D, is a high-performance component designed for precise control in various industrial applications. This solenoid valve is engineered to manage the flow of liquids, gases, and steam, ensuring reliable operation in demanding environments.
Key Features
- Voltage Compatibility: Operates efficiently on 120V at 60Hz and 110V at 50Hz, accommodating different power supply standards.
- Power Consumption: Consumes 6.10W at 60Hz and 8.10W at 50Hz, balancing energy efficiency with robust performance.
- Insulation Class: Rated at Class F, providing excellent thermal protection and durability.

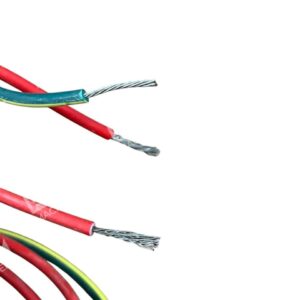

- Construction: Features a thermosetting coil with flying leads, ensuring secure and stable electrical connections.
- Dimensions: Compact design with a hole size of 14.3mm, height of 39.7mm, and width of 49.6mm, facilitating easy integration into various systems.
Applications
This solenoid valve is versatile and suitable for a wide range of applications, including:
- Dust collector pulse valves
- Two-position two-way solenoid valves
- Two-position three-way solenoid valves
- Two-position four-way solenoid valves
It is compatible with various ASCO solenoid valve models, such as 8262H001, 8262H014, 8262H002, 8262H002V, 8262H006, 8353G041, 8353G053, EF8262H014, EF8262H002, EF8262H022, EF8262H007, K3A662U, 8300D009U, S262SG02N3GJ7, and S262SG02N3EG5.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage | 120V/60Hz, 110V/50Hz |
| Power Consumption | 6.10W (60Hz), 8.10W (50Hz) |
| Insulation Class | F |
| Hole Size | 14.3mm |
| Height | 39.7mm |
| Width | 49.6mm |
Installation and Maintenance
Proper installation and maintenance are crucial for the optimal performance of the ASCO Red Hat T 148196 MP-C-080 Solenoid Valve. Ensure that the coil is securely fastened to prevent operational issues. Regularly inspect the coil for signs of wear or damage, and replace it as necessary to maintain system efficiency.
By integrating the ASCO Red Hat T 148196 MP-C-080 Solenoid Valve into your system, you can achieve precise control and reliable operation, enhancing the overall performance of your industrial applications.
