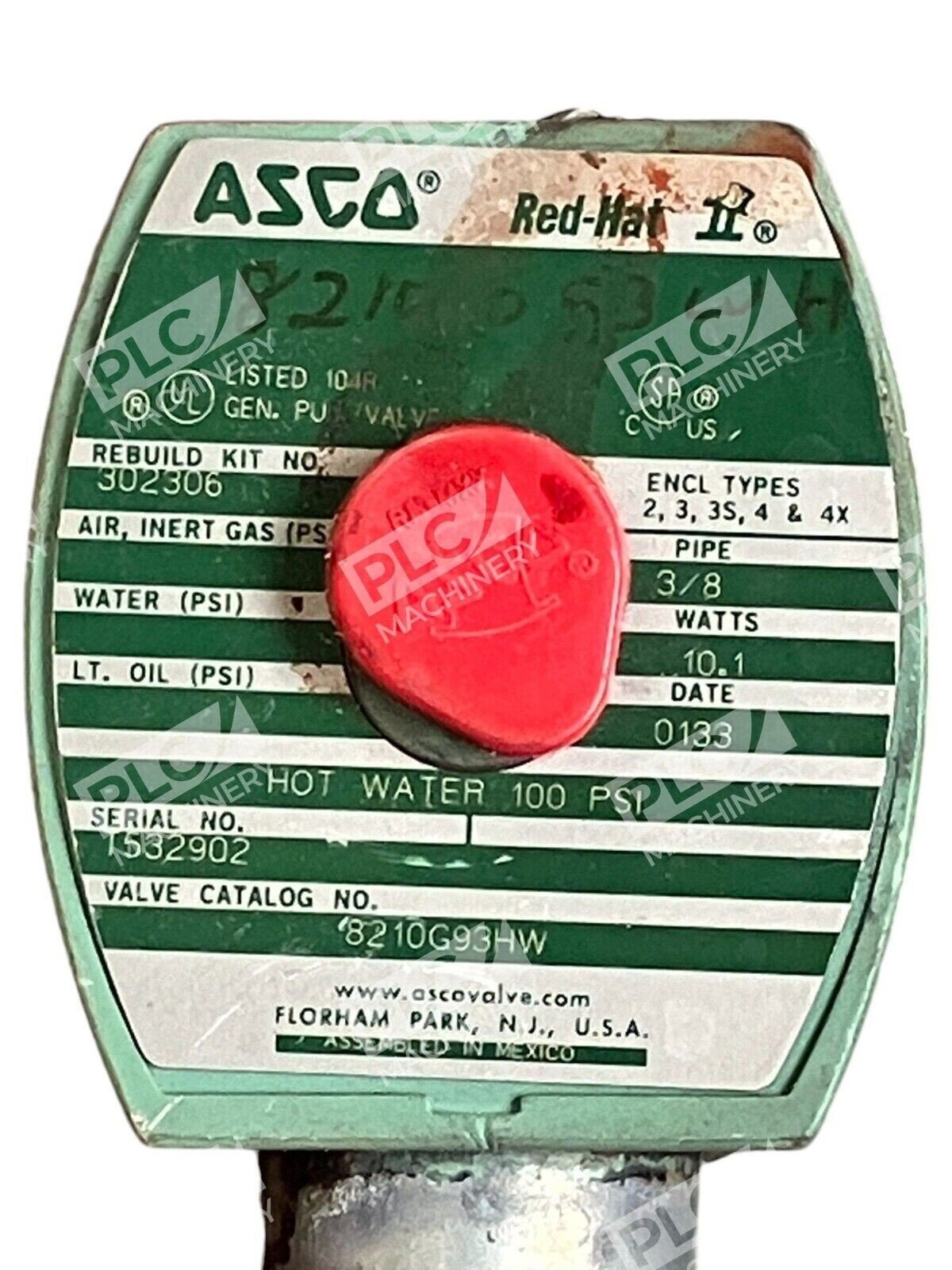

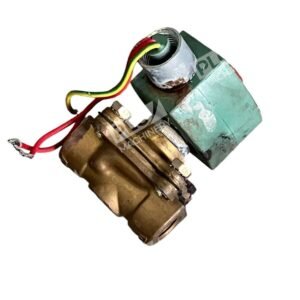

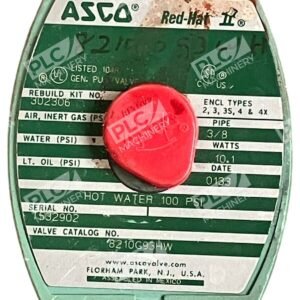

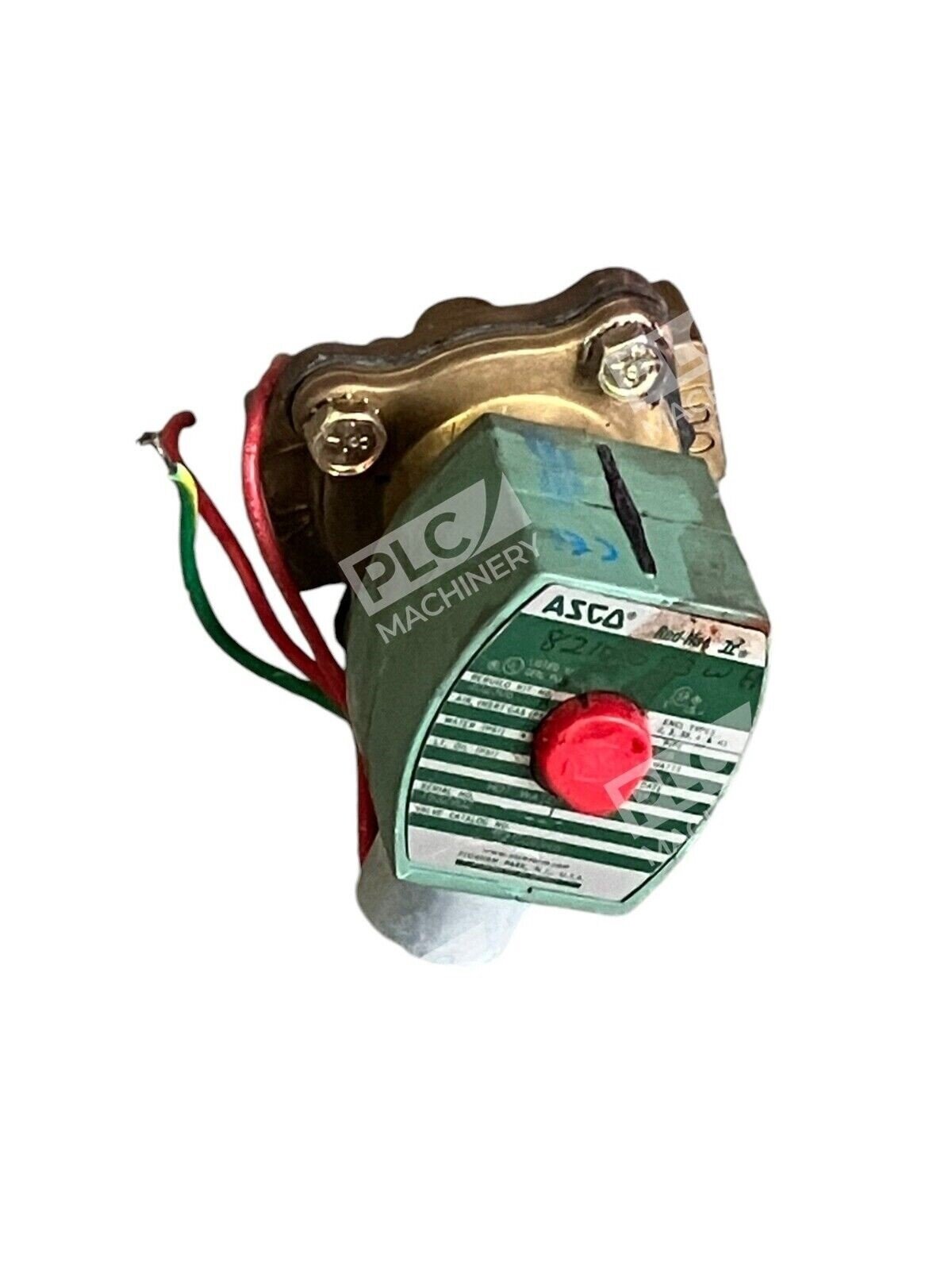

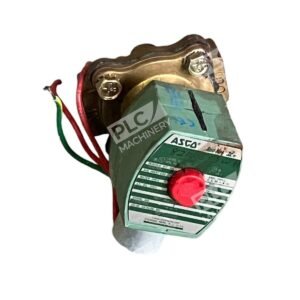

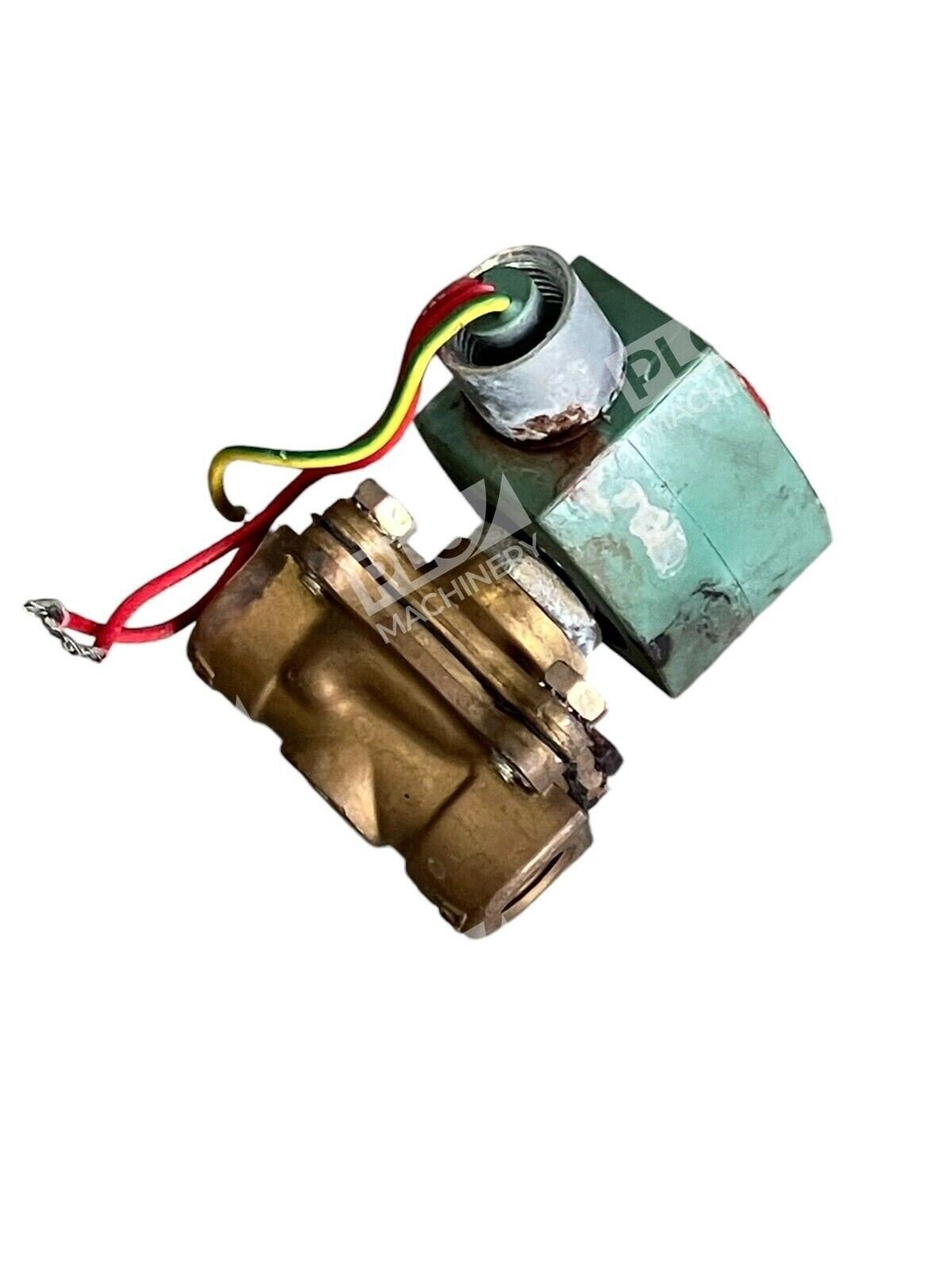

ASCO 8210G93HW

ASCO 8210G93HW 3/8″ Normally Closed Hot Water Solenoid Valve

The ASCO 8210G93HW is a high-performance, pilot-operated solenoid valve designed for hot water applications. Its robust construction and reliable operation make it ideal for various industrial and commercial systems requiring precise control of hot water flow.

Key Features

• Valve Type: 2-way, normally closed, pilot-operated
• Pipe Size: 3/8″ NPT
• Flow Coefficient (Cv): 3.0
• Operating Pressure Range: 0 to 100 psi
• Maximum Fluid Temperature: 210°F (99°C)
• Body Material: Brass
• Seal Material: EPDM elastomer
• Voltage Options: 120 VAC/60Hz, 110 VAC/50Hz
• Coil Wattage: 10.1 W
• Enclosure Rating: NEMA 4 (watertight)

Applications

The ASCO 8210G93HW is suitable for a wide range of applications, including:

• Boiler and heating systems
• Commercial laundry and dishwashing equipment
• Industrial hot water processing
• Food and beverage equipment

Compliance and Approvals

• CSA Certified
• UL File #MP618
• CE Marked

For optimal performance, install the valve with the solenoid in an upright position and ensure a clean water supply to minimize scaling and diaphragm wear. Verify the correct voltage rating before operation.
