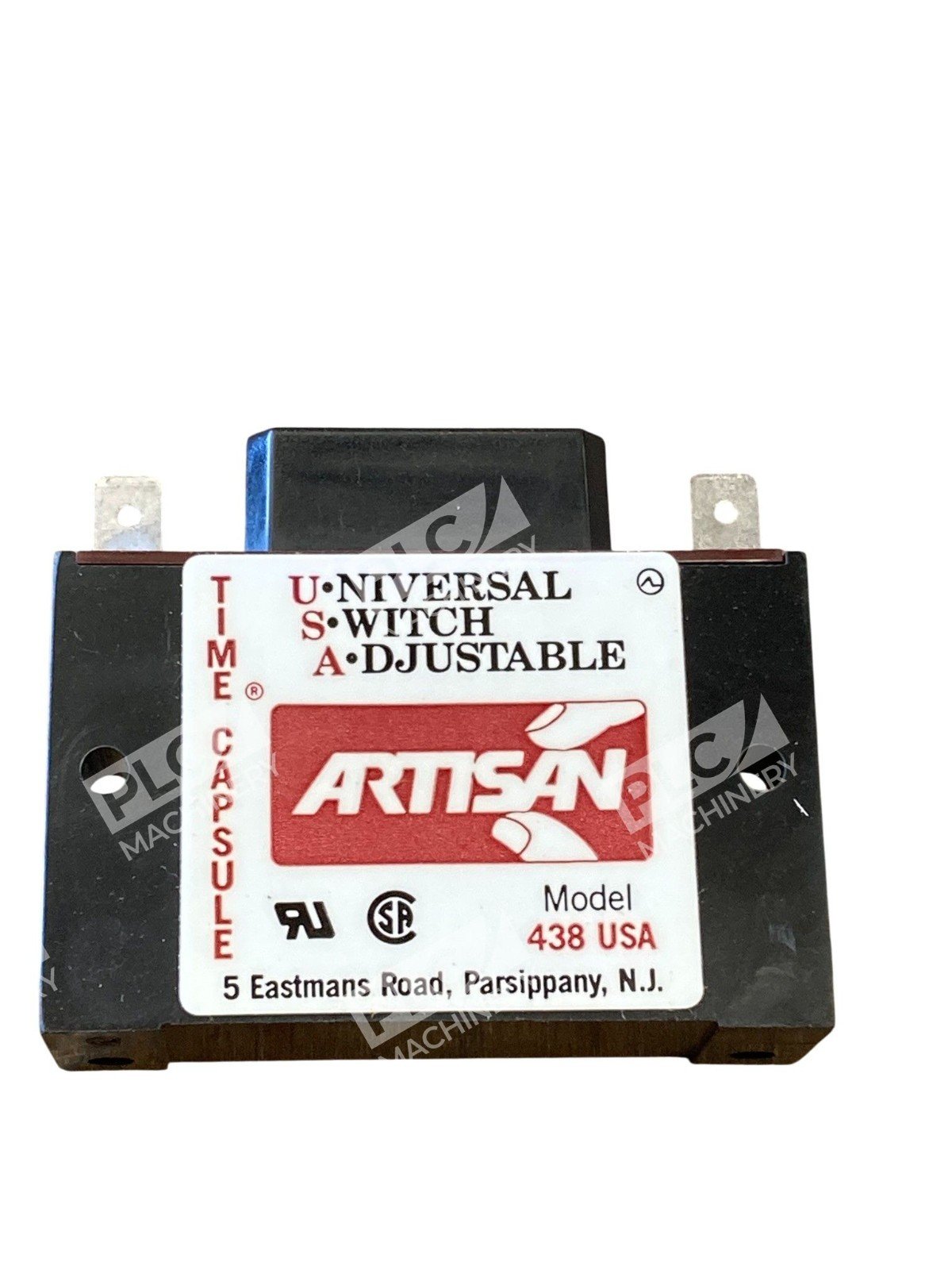

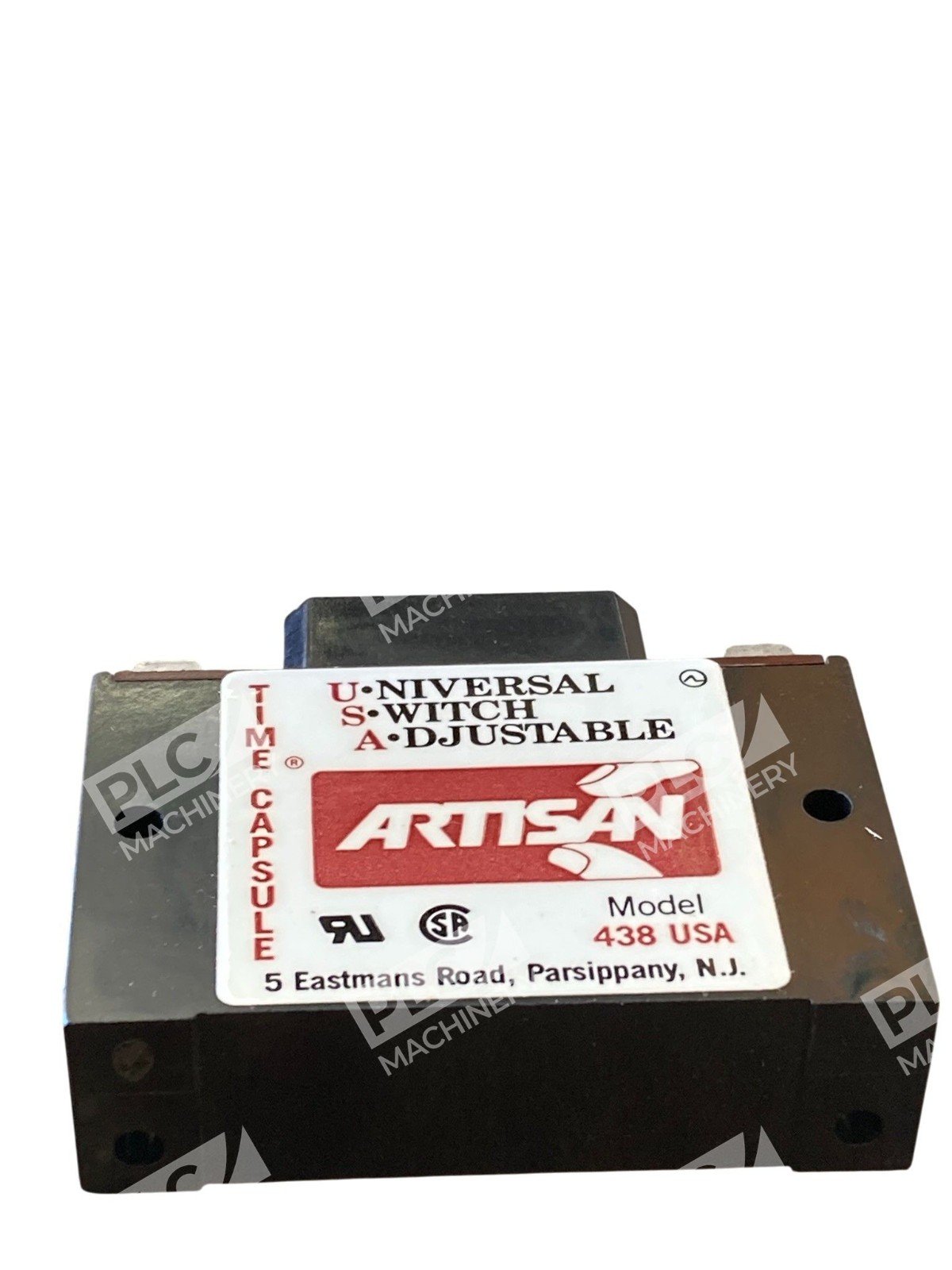

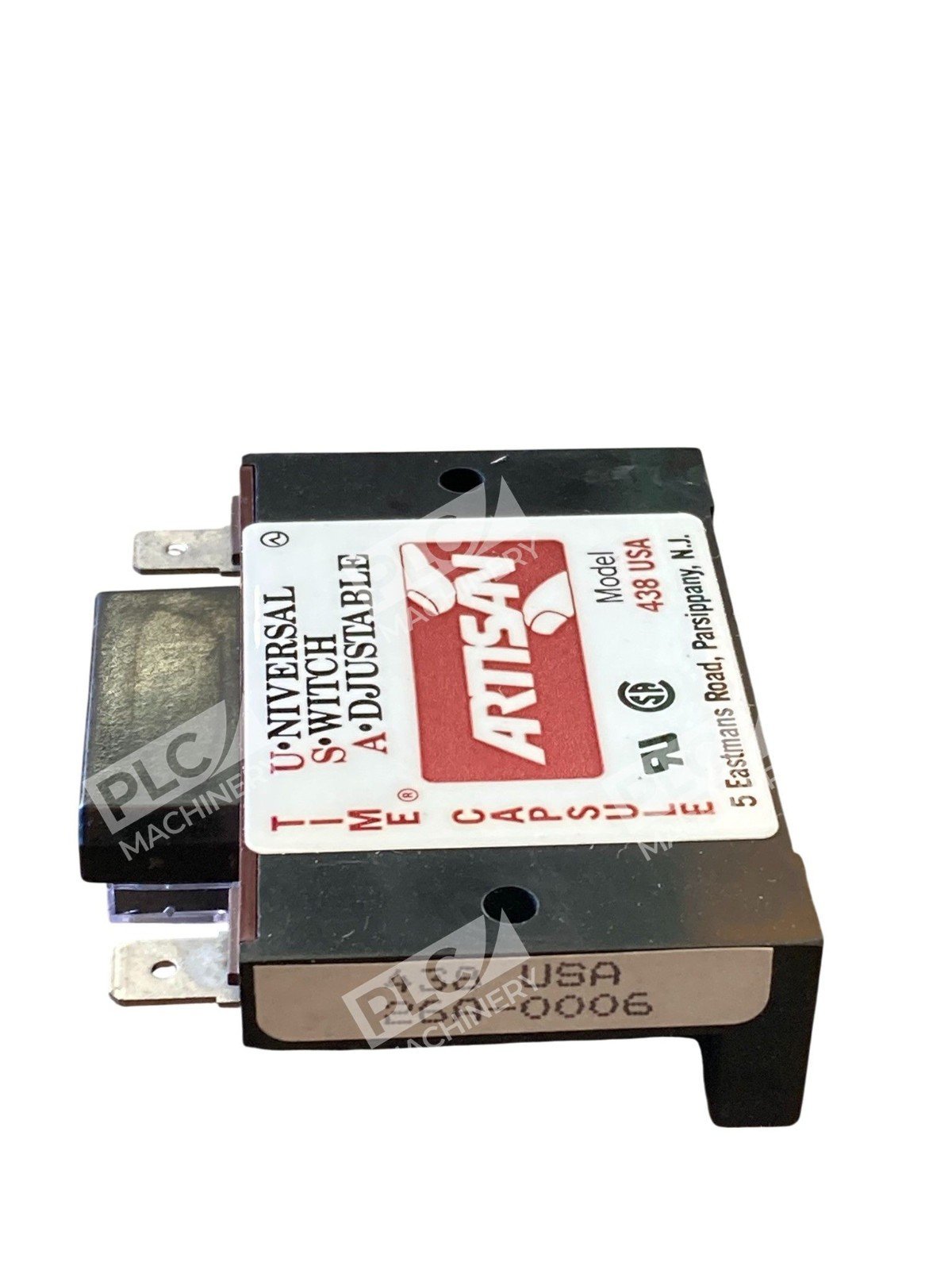

The Artisan 438USA is a solid-state timer designed to provide precise delay-on-make control for various industrial applications. Its universal compatibility and adjustable timing make it a versatile component in automation systems.

Key Features

• Wide Operating Voltage Range: Functions seamlessly with input voltages from 19 to 288V AC or DC, accommodating diverse power systems.
• Adjustable Timing: Offers a timing range from 1 to 1024 seconds, configurable via a 10-position DIP switch for precise delay settings.
• Solid-State Reliability: Utilizes solid-state technology to ensure durability and consistent performance without mechanical wear.
• Compact Design: Features a panel-mountable enclosure, facilitating easy integration into control panels and equipment.
• High Load Capacity: Capable of controlling loads up to 1 ampere inductive, withstanding inrush currents up to 25 amperes for 8 milliseconds.

Specifications

• Operating Voltage: 19-288V AC or DC
• Output Rating: 10 milliamperes to 1 ampere inductive; inrush to 25 amperes for 8 milliseconds
• Timing Mode: Delay on Make

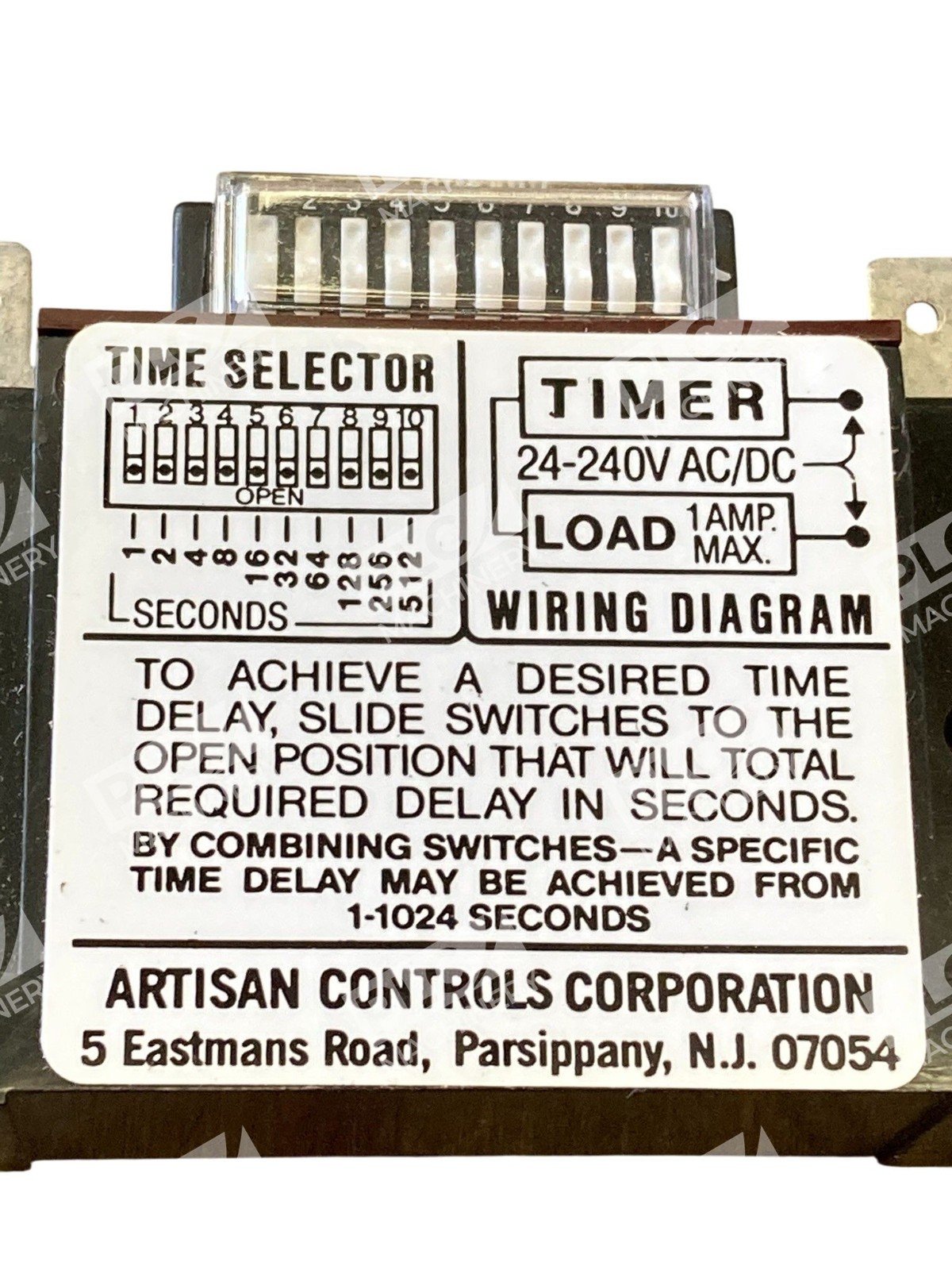

• Timing Adjustment: 10-position DIP switch located between power terminals
• Timing Range: 1-1024 seconds
• Operating Temperature: -20°C to +85°C
• Humidity: 95% condensing
• Terminations: Four (4) #20 AWG wire six (6) inches long; two (2) for operating voltage and two (2) for load circuit

Applications

The 438USA timer is ideal for applications requiring precise delay-on-make timing, such as:

• HVAC systems
• Transportation equipment
• Lighting control
• Elevator and escalator systems

Its robust design and adjustable timing make it suitable for various industrial and commercial uses.

Installation and Operation

Installation is straightforward, with the timer connected in series with the load circuit. Upon applying power, the timer remains in the off state. After the preset delay period, it switches on, allowing the load to energize. The load remains energized as long as power is applied.

For applications requiring different timing ranges, such as 0.1-102.4 seconds or 2-2048 seconds, consider the Artisan 438USA-X model.

Ensure compliance with all applicable electrical codes and standards during installation and operation.
