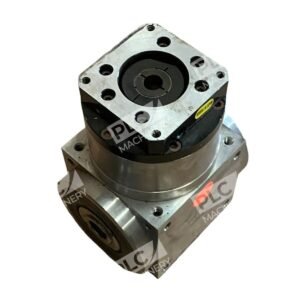

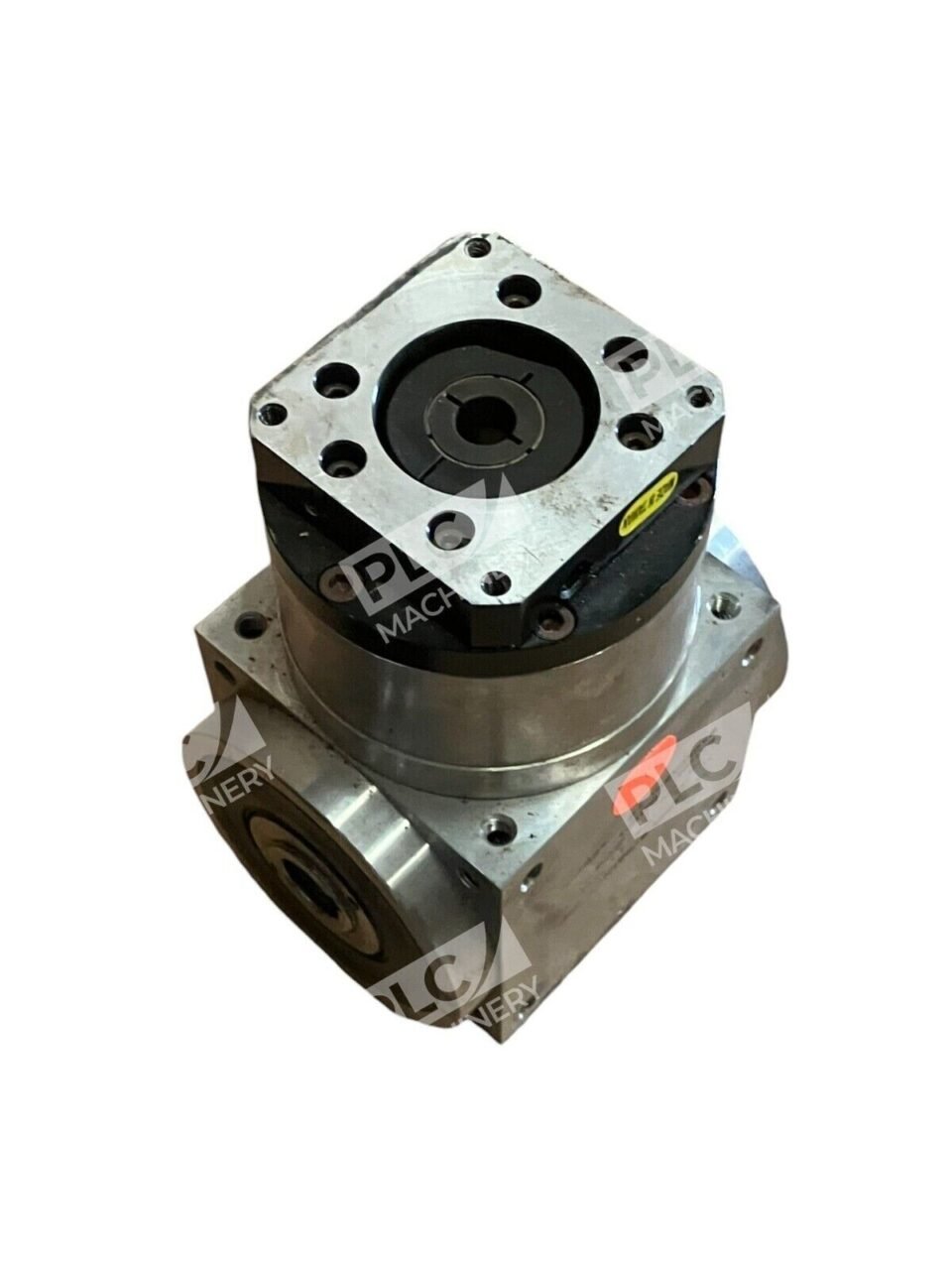

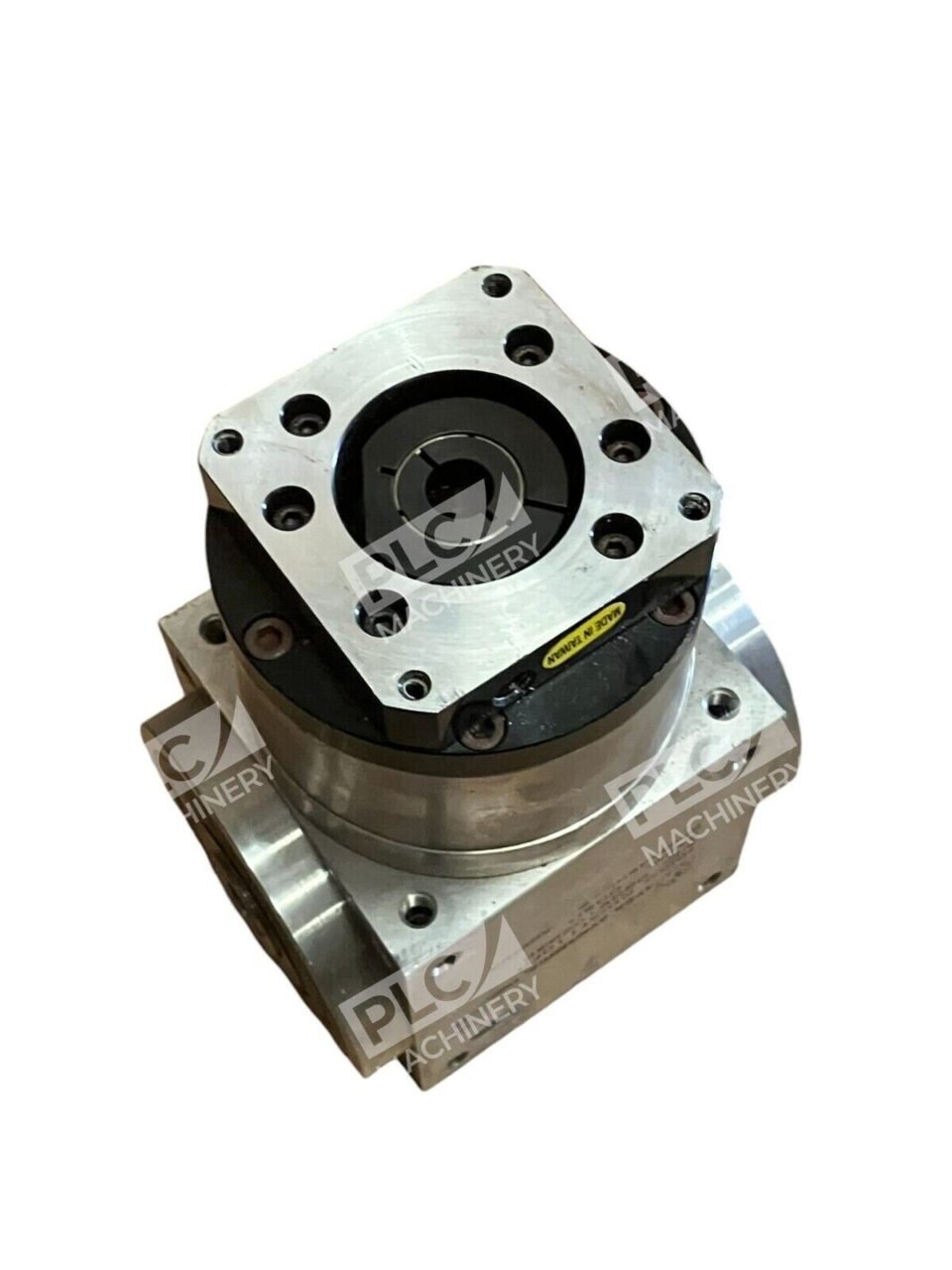

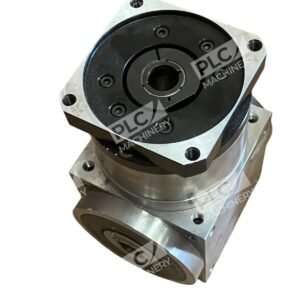

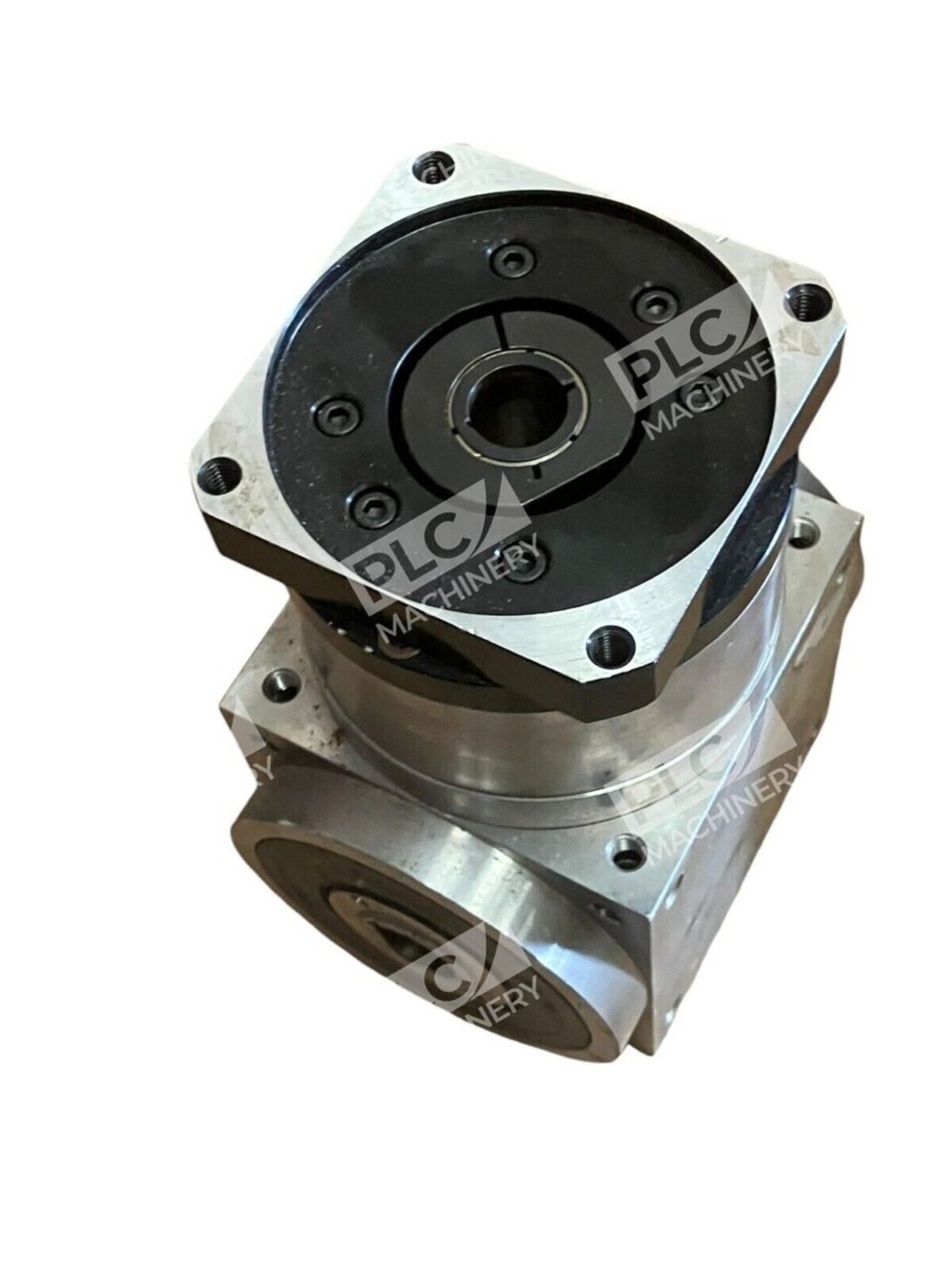

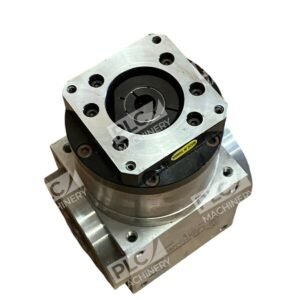

Apex Dynamics AT110FH 5:1 Gear Box Reducer

Apex Dynamics AT110FH 5:1 Gearbox Reducer

The Apex Dynamics AT110FH 5:1 Gearbox Reducer is a high-performance spiral bevel gearbox designed to deliver precision and efficiency in various industrial applications. Engineered with a compact structure, this gearbox ensures reliable torque transmission and minimal backlash, making it ideal for demanding motion control systems.

Key Features

• Output Torque: Capable of delivering nominal output torque ranging from 12 Nm to 3,200 Nm, accommodating a wide range of operational requirements.
• Gear Ratio: This model offers a 5:1 ratio, providing optimal speed reduction and torque multiplication for enhanced performance.
• Low Backlash: Designed with precision, the AT110FH maintains a low backlash of ≤6 arcminutes, ensuring accurate and consistent motion control.
• High Efficiency: Achieves an efficiency of ≥98% in single-stage configurations, reducing energy loss and enhancing system performance.
• Output Shaft Design: Features a hollow thru shaft with a keyway, facilitating easy integration with various machinery setups.
• Input Compatibility: Equipped with a motor adapter input, allowing seamless connection with a wide range of motors.
• Durable Construction: Built with robust materials to withstand demanding industrial environments, ensuring longevity and reliability.
• Compact and Quiet Operation: Its compact design not only saves space but also operates with low noise levels, contributing to a more comfortable working environment.

Applications

The AT110FH 5:1 Gearbox Reducer is suitable for a variety of applications, including but not limited to:

• Automated manufacturing systems
• Conveyor systems
• Robotics
• Packaging machinery
• Material handling equipment

Its versatility and high-performance characteristics make it a preferred choice for engineers and designers seeking reliable and efficient gearbox solutions.

Specifications

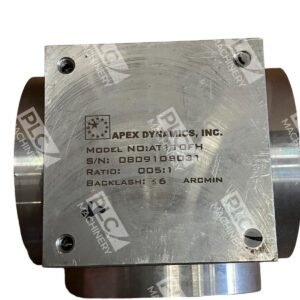

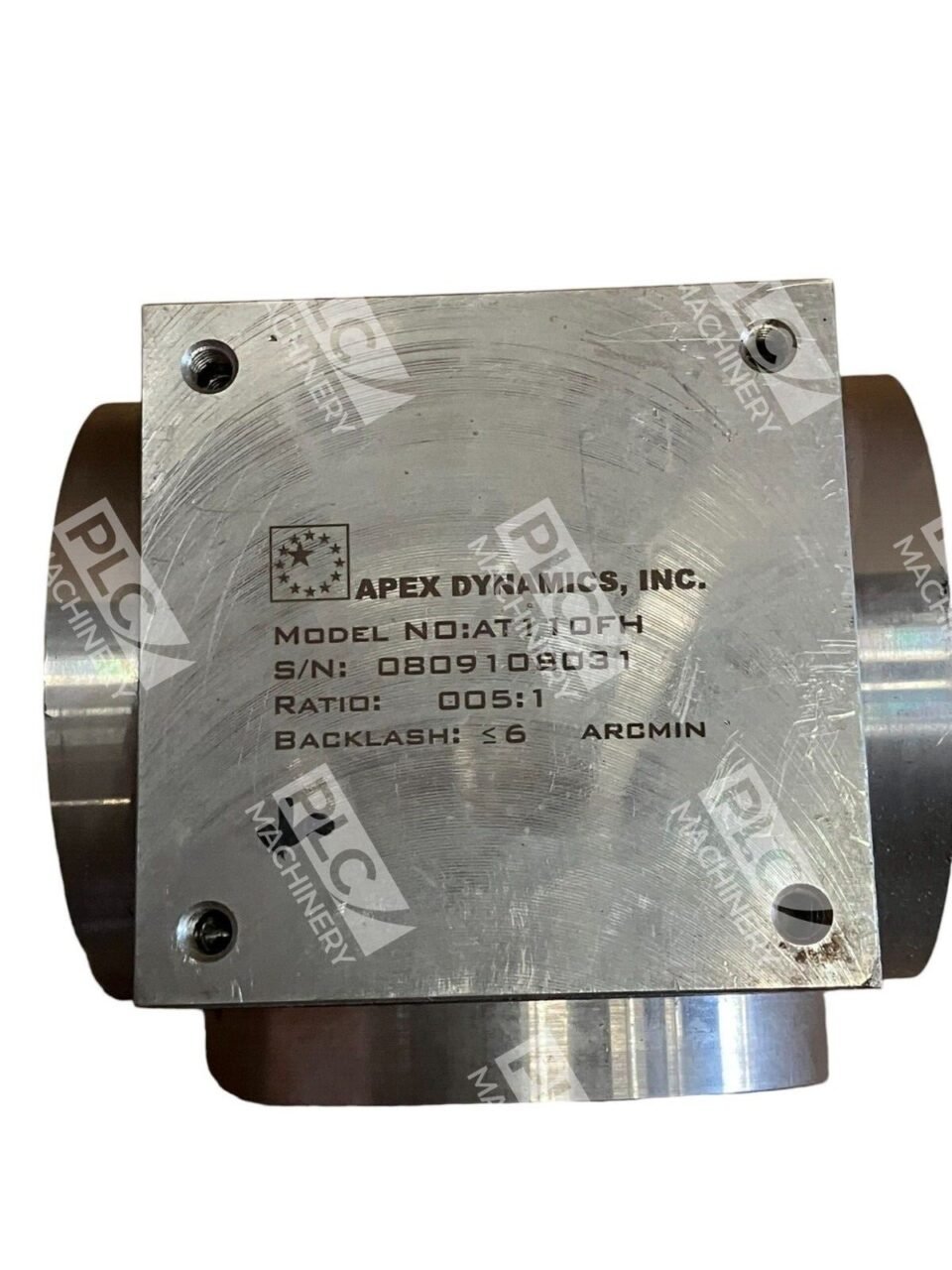

• Model: AT110FH
• Ratio: 5:1
• Output Torque: Up to 3,200 Nm
• Backlash: ≤6 arcminutes
• Efficiency: ≥98%
• Output Shaft: Hollow thru shaft with keyway
• Input Type: Motor adapter

For detailed dimensions and mounting instructions, please refer to the product catalog or contact the manufacturer directly.

Investing in the Apex Dynamics AT110FH 5:1 Gearbox Reducer ensures a combination of precision, efficiency, and durability, meeting the rigorous demands of modern industrial applications.
