Apex Dynamics ABR115-S2-P2 Gearbox 10:1

Apex Dynamics ABR115-S2-P2 Gearbox 10:1

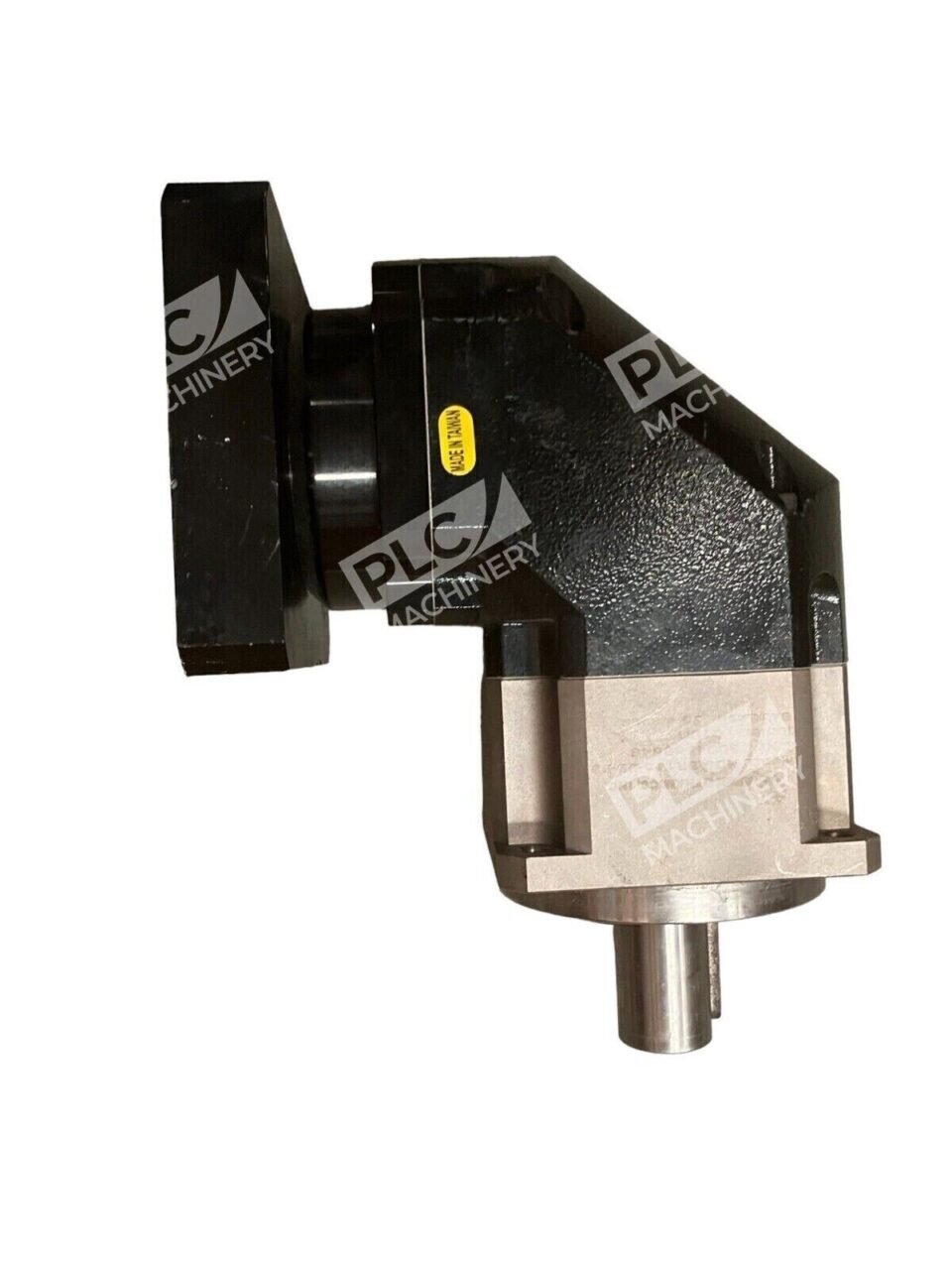

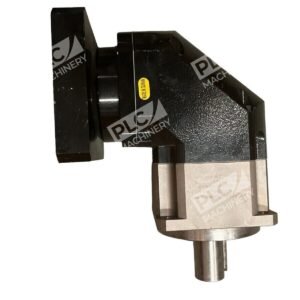

The Apex Dynamics ABR115-S2-P2 is a high-precision right-angle planetary gearbox engineered for demanding industrial automation and motion control applications. Featuring a 10:1 gear ratio, this model delivers exceptional torque transmission and positioning accuracy, making it ideal for servo drives, motor controls, and other precision systems.

Key Features

• Right-Angle Design: Incorporates a 90° input via helical bevel gear, facilitating compact installations and efficient power transmission.
• High Torque Output: Delivers nominal output torque up to 325 Nm, ensuring robust performance across various applications.
• Low Backlash: Offers minimal backlash options, with precision grades achieving ≤2 arcmin, enhancing positioning accuracy.
• High Efficiency: Achieves efficiency levels of ≥95% in single-stage configurations, optimizing energy use.
• Durable Construction: Features a stainless steel housing and output shaft, providing corrosion resistance and longevity.
• Versatile Output Shaft Options: Available with or without key, or with spline (DIN 5480), catering to diverse application requirements.
• Compact and Lightweight: Designed with a high tensile, low weight single-piece aluminum alloy housing for maximum stiffness without added bulk.
• Maintenance-Free Operation: Equipped with lifetime lubrication and a patented sealing design, ensuring reliable performance with minimal upkeep.
• Low Noise Levels: Utilizes helical gear technology to maintain noise levels as low as 61 dB, promoting a quieter working environment.

Technical Specifications

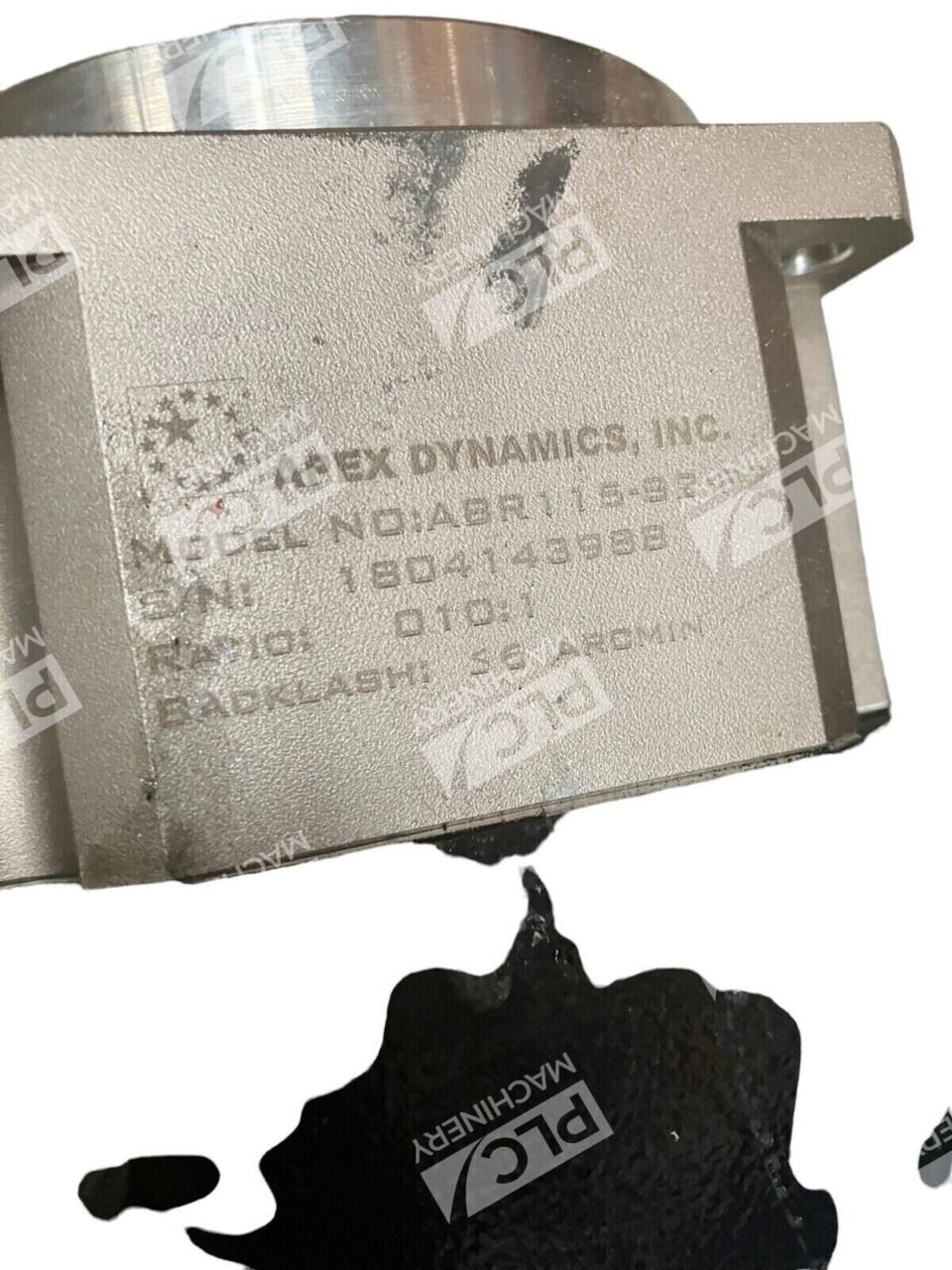

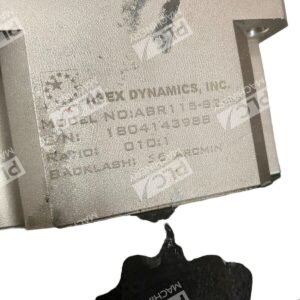

• Model Number: ABR115-S2-P2
• Gear Ratio: 10:1
• Nominal Output Torque (T_2N): Up to 325 Nm
• Backlash: ≤2 arcmin (P0 precision grade)
• Efficiency: ≥95% (single-stage)
• Housing Material: Stainless steel
• Output Shaft Options: Keyed, keyless, or spline (DIN 5480)
• Noise Level: As low as 61 dB

The ABR115-S2-P2 gearbox is designed to meet the rigorous demands of modern industrial applications, offering a combination of precision, durability, and efficiency. Its right-angle configuration and compact design make it suitable for installations where space is limited, while its robust construction ensures reliable performance in challenging environments.
