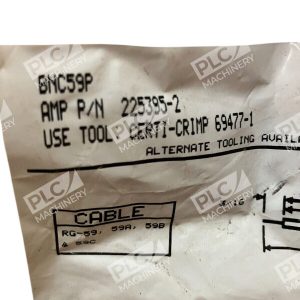

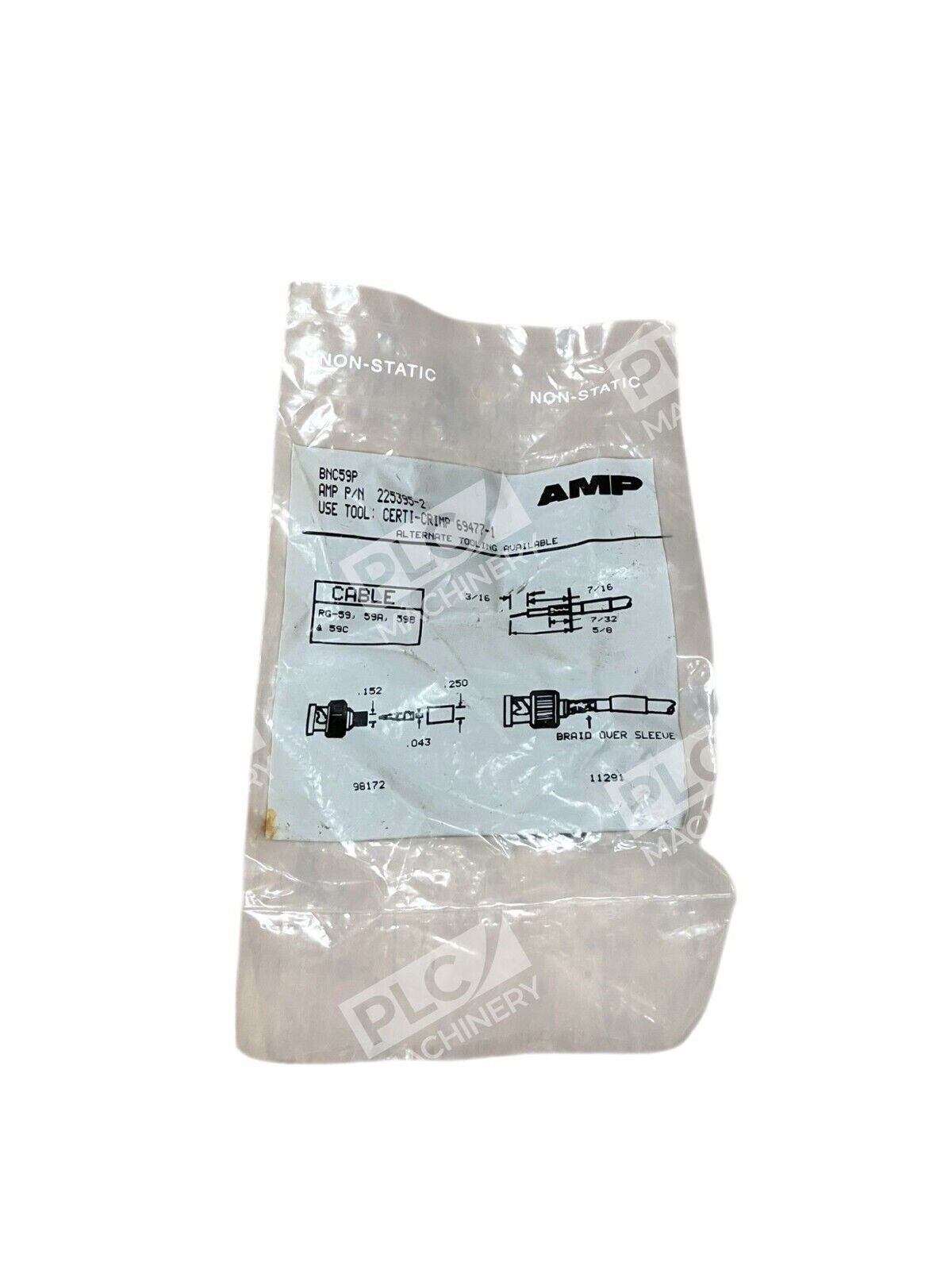

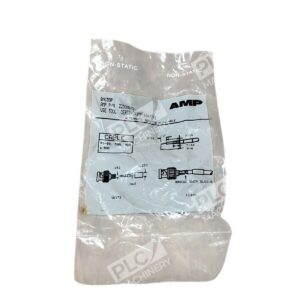

AMP BNC59P Terminate To Coaxial Cable 225395-2

AMP BNC59P Coaxial Cable Connector (Part Number: 225395-2)

The AMP BNC59P, part number 225395-2, is a high-quality BNC coaxial connector designed for reliable signal transmission in various applications. This straight plug connector features a crimp termination, ensuring a secure and durable connection.

Key Features

• Connector Type: BNC Coaxial
• Body Style: Straight Plug
• Termination Method: Crimp
• Impedance: 50 Ohms
• Compatible Cable Types: RG-55, RG-55A, RG-55B, RG-223
• Contact Material: Brass with Gold Plating
• Body Material: Brass with Nickel Plating
• Dielectric Material: Polytetrafluoroethylene (PTFE)
• Maximum Frequency: 4 GHz
• Operating Temperature Range: -55°C to 85°C
• Voltage Rating: 500 V
• Mating Cycles: 500
• Insertion Loss: 0.2 dB

Applications

This connector is ideal for use in telecommunications, broadcasting, and other RF applications where a reliable 50-ohm impedance connection is required. Its compatibility with various RG coaxial cables makes it versatile for different setups.

Package Contents

• 1 Connector
• 1 Contact
• 1 Ferrule

Ensure proper installation by following the manufacturer’s guidelines for crimping and assembly to maintain optimal performance and signal integrity.
