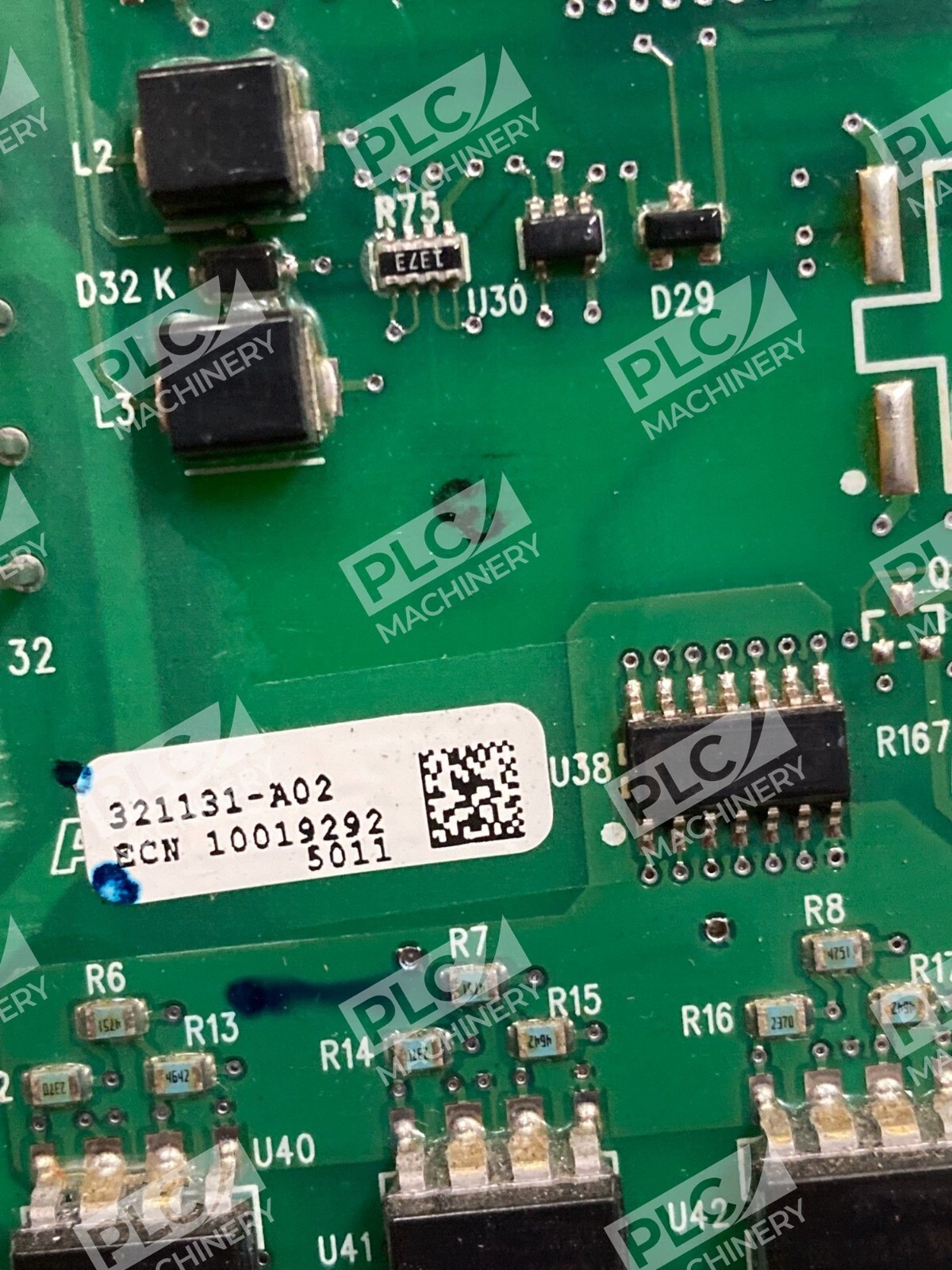

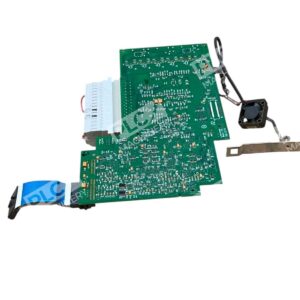

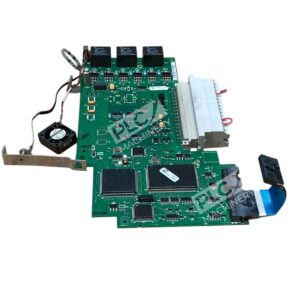

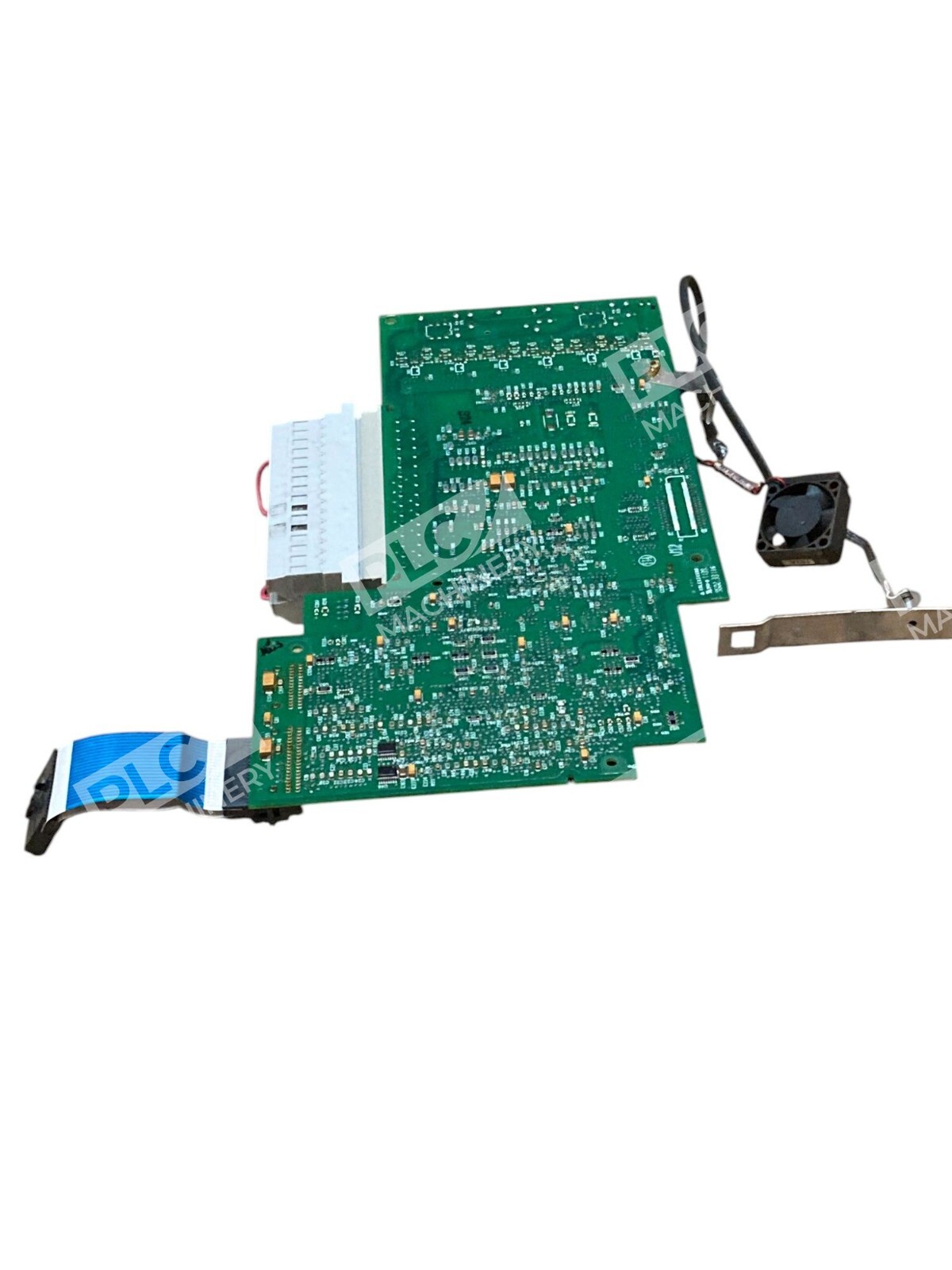

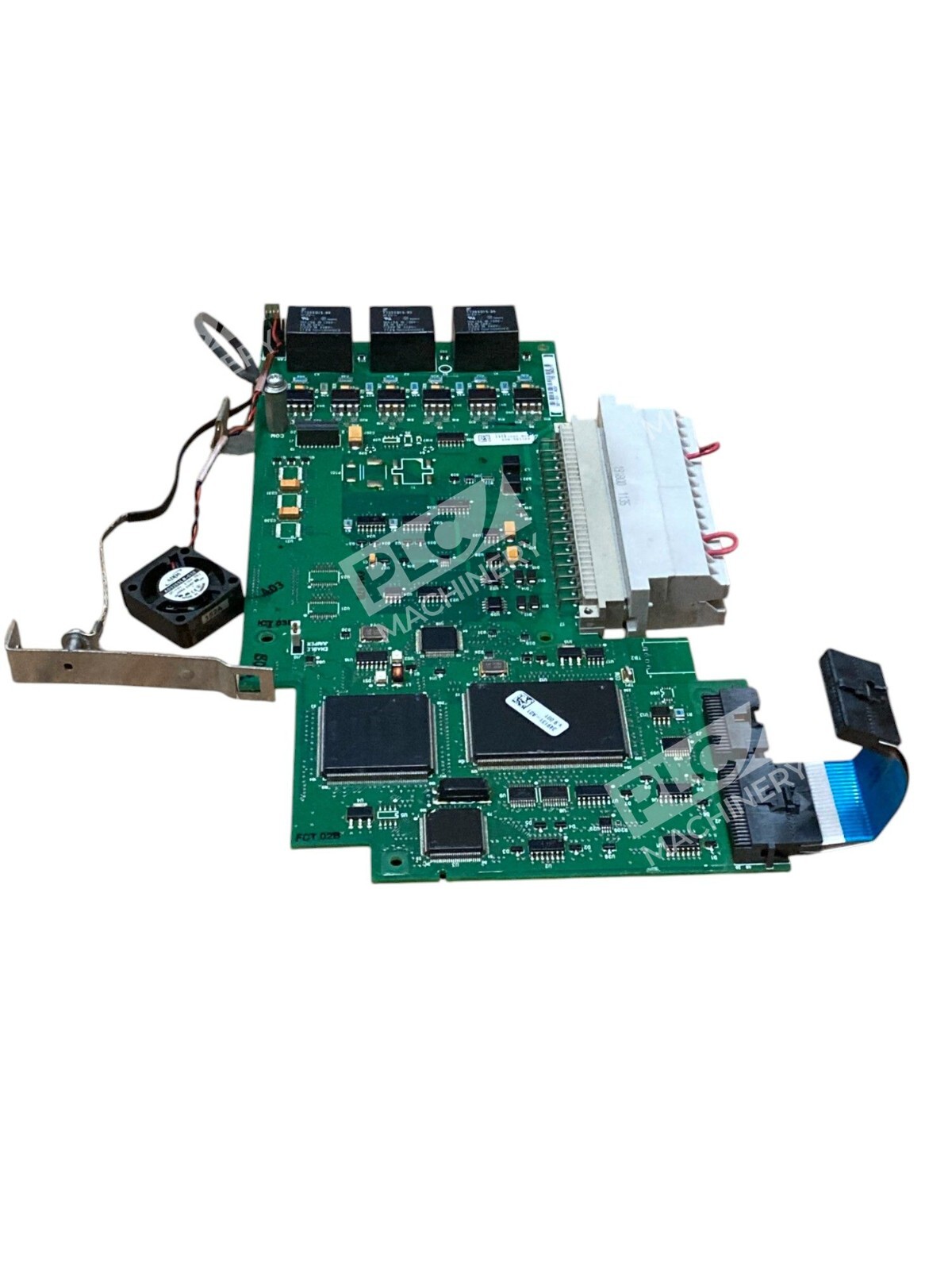

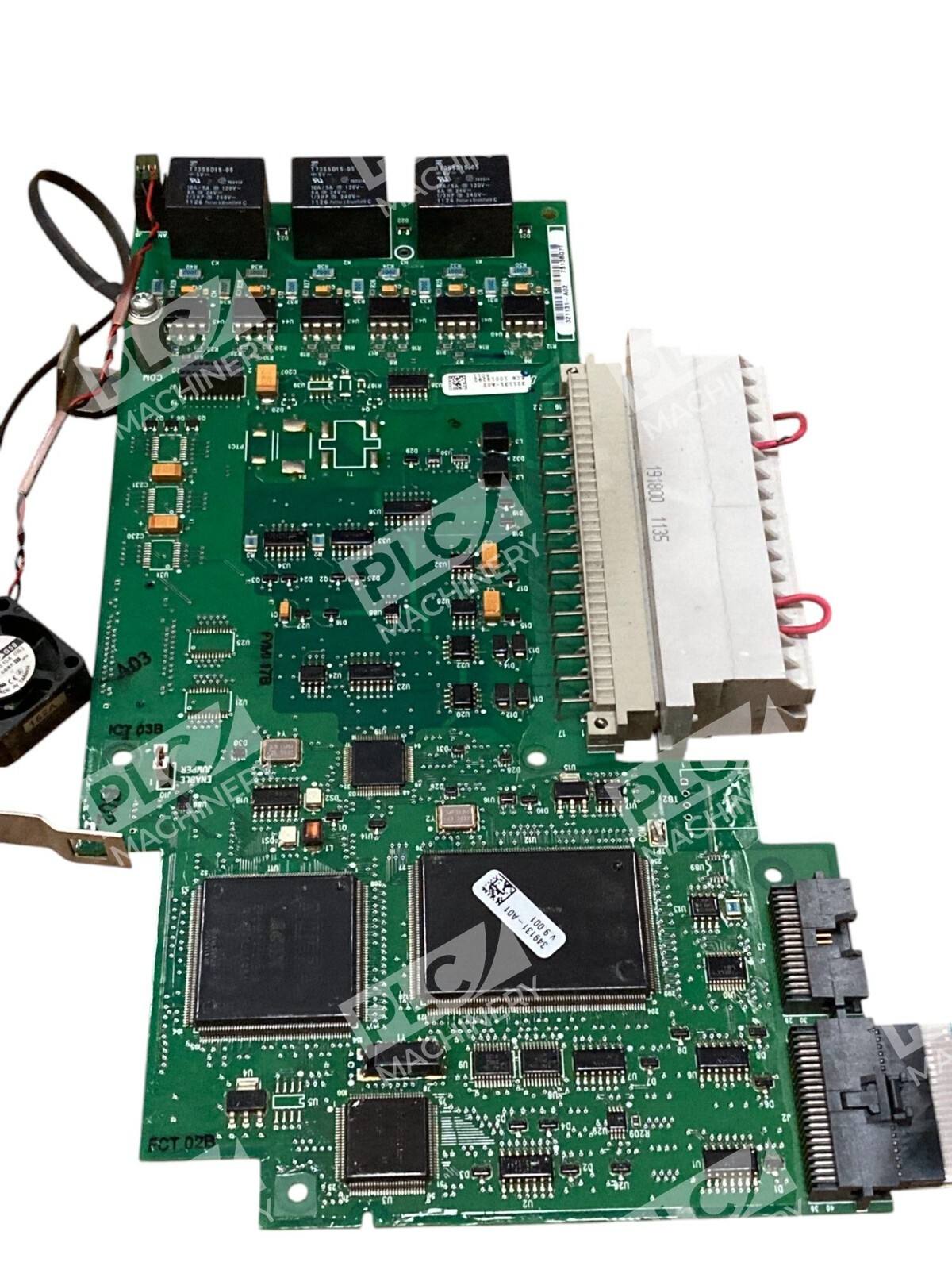

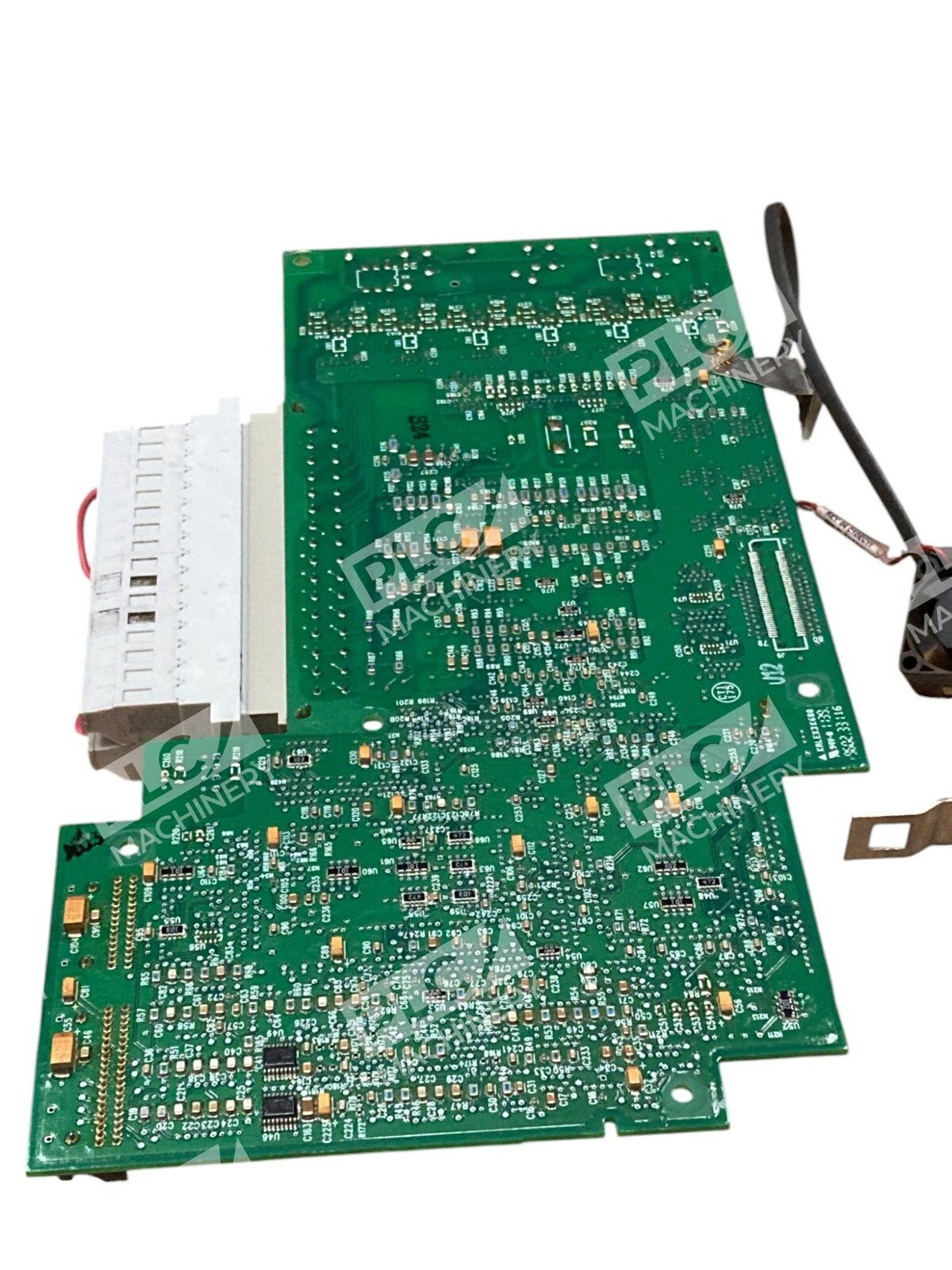

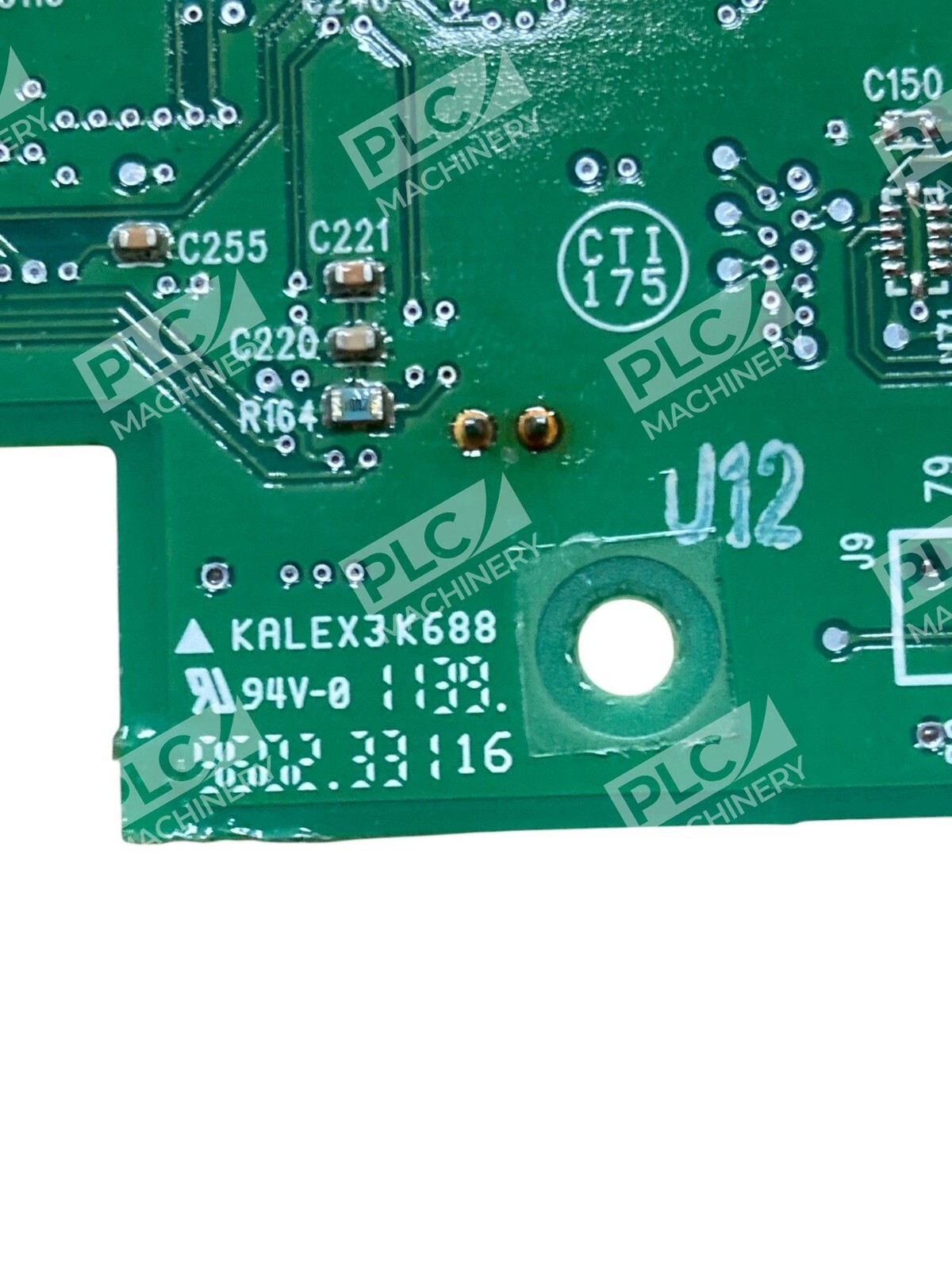

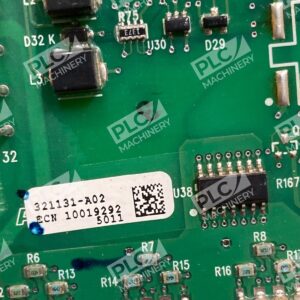

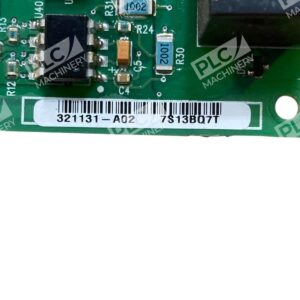

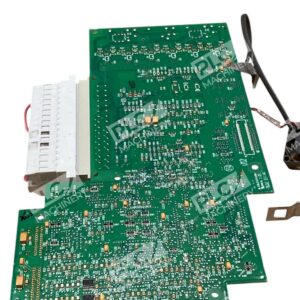

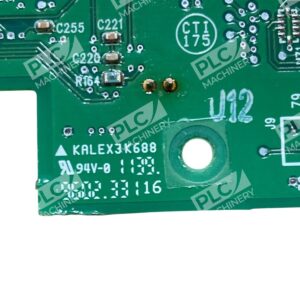

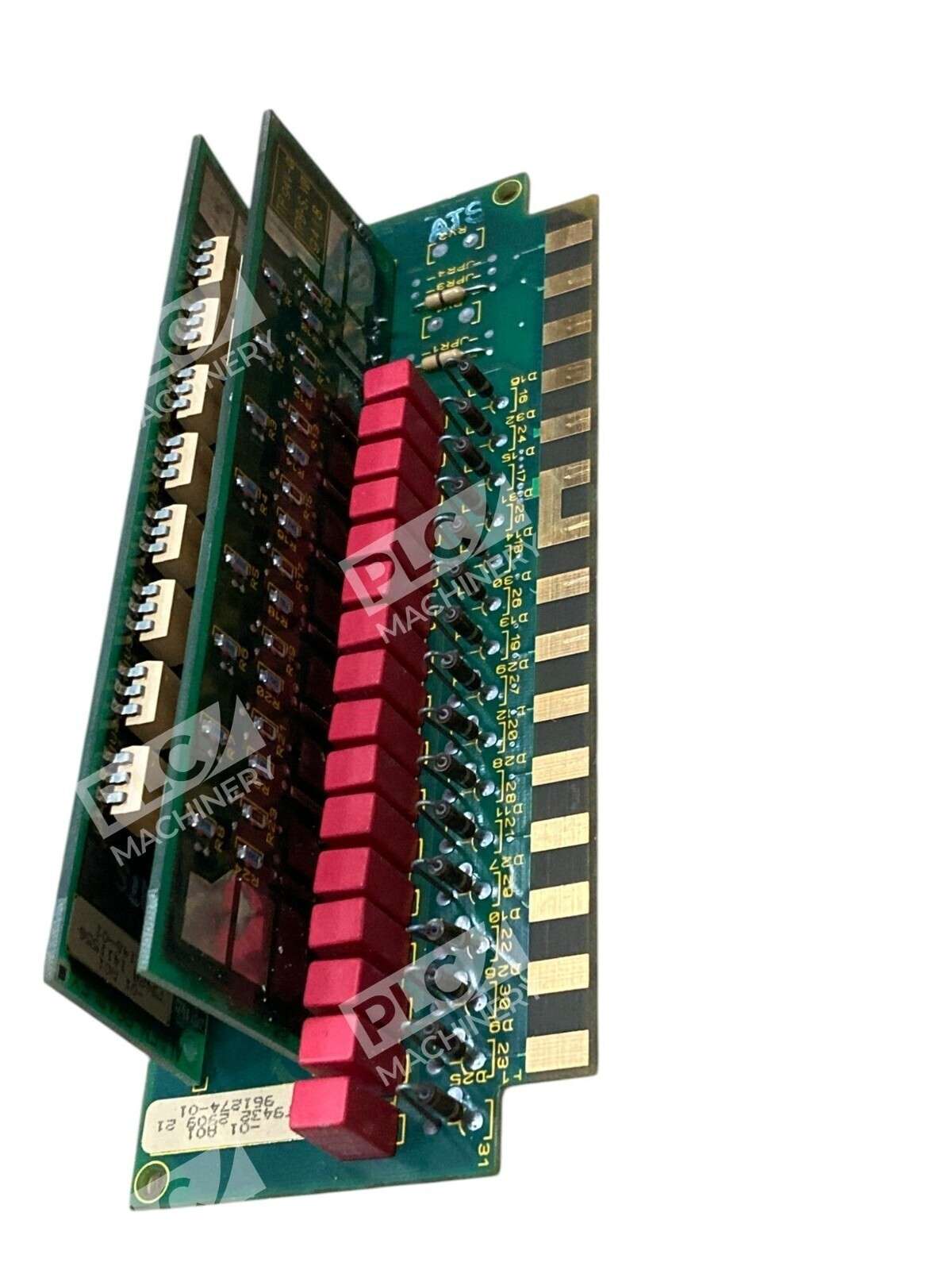

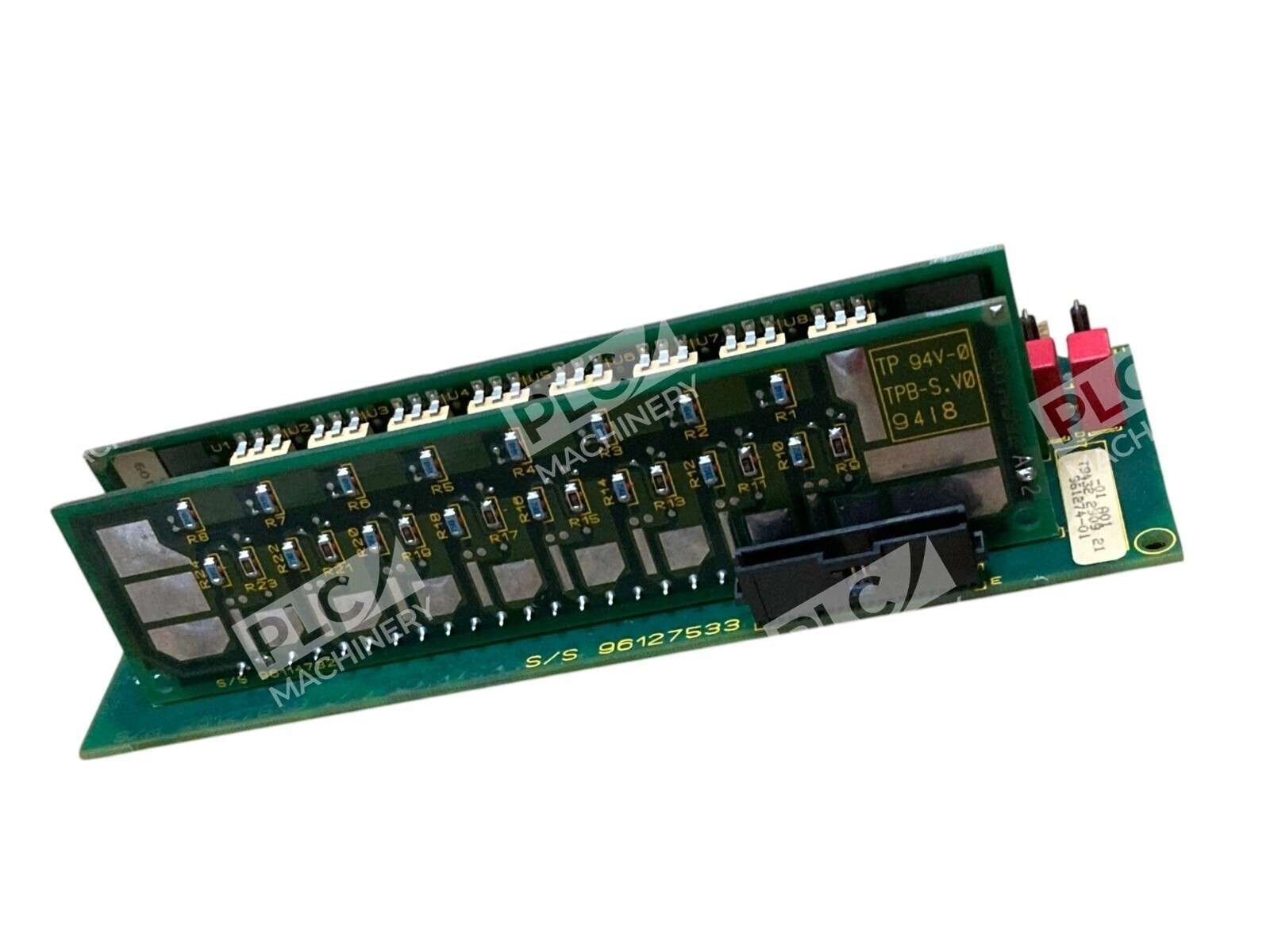

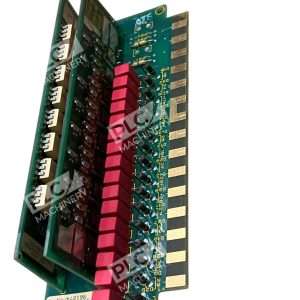

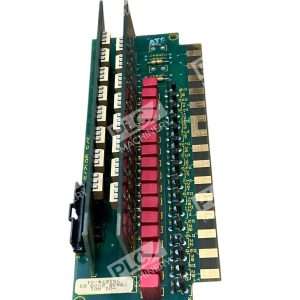

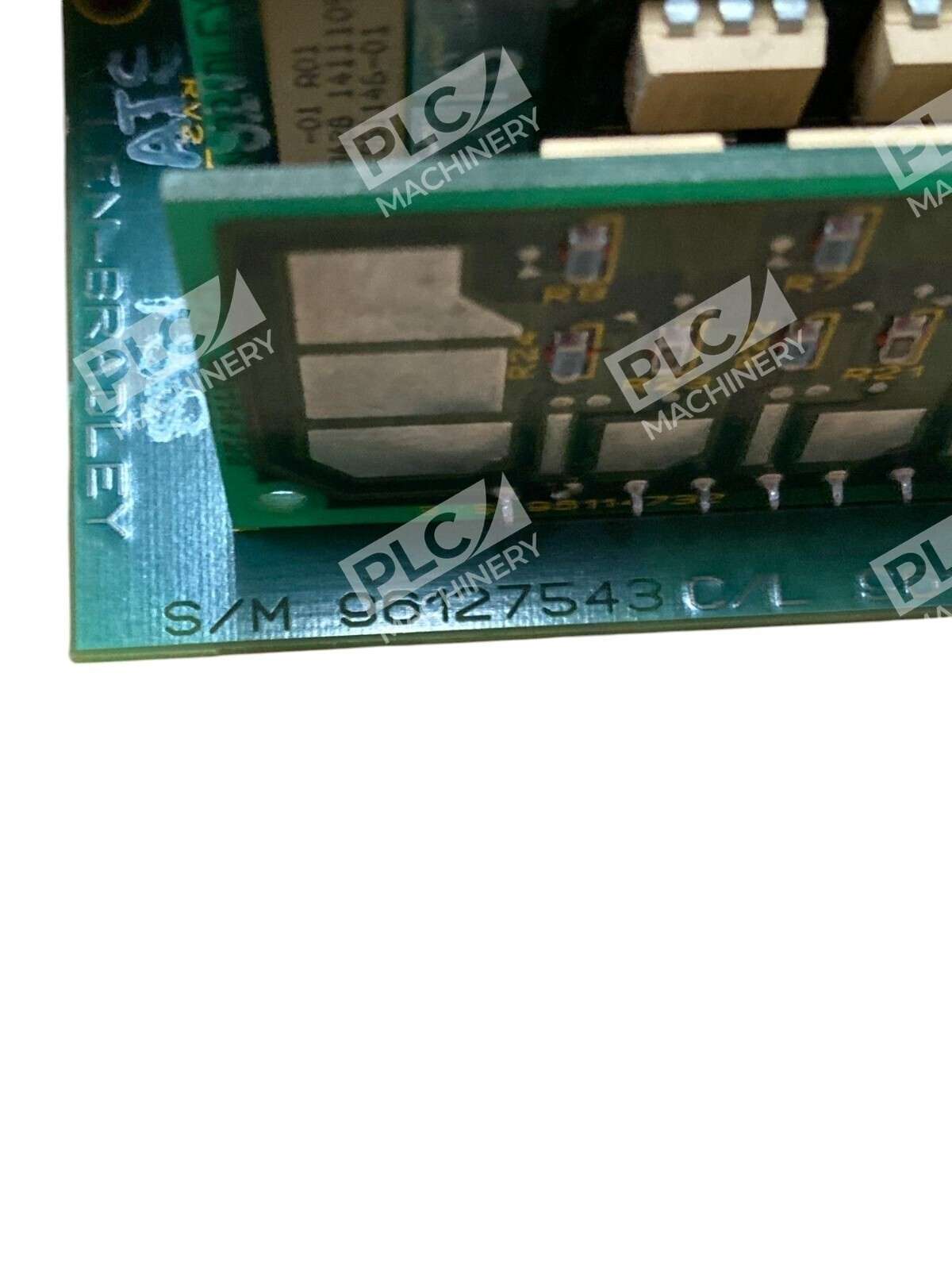

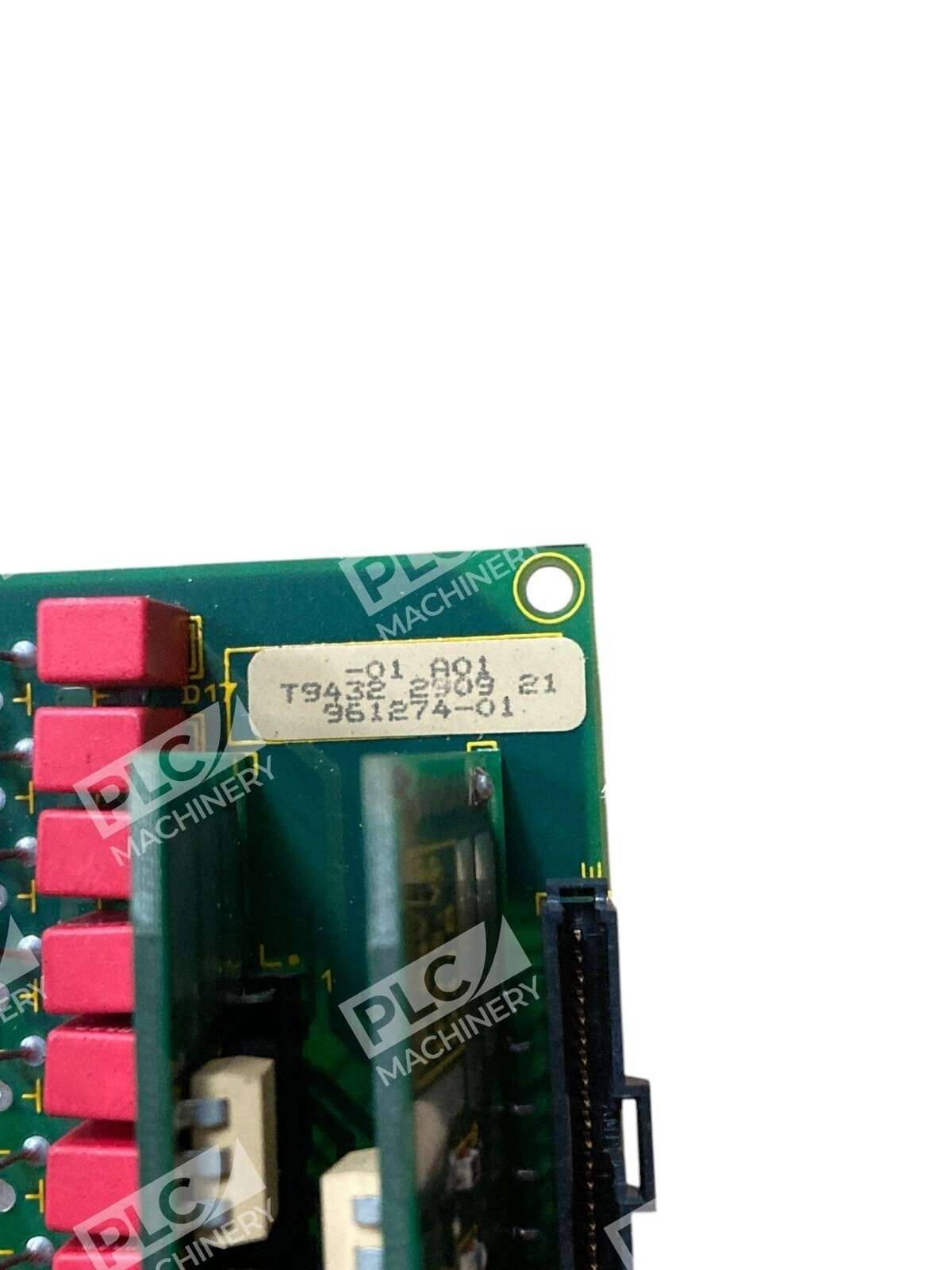

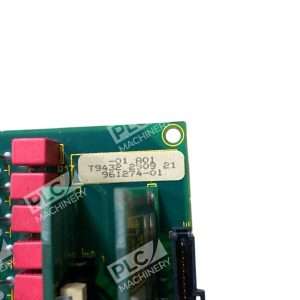

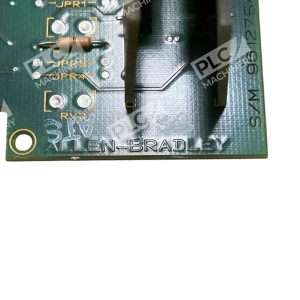

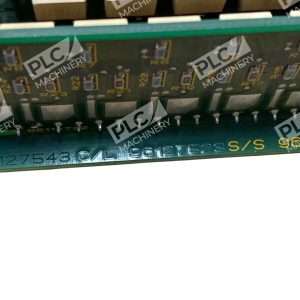

Allen-Bradley SK-G9-VMCB1-D0 PowerFlex 700 Control Board
The Allen-Bradley SK-G9-VMCB1-D0 is a control board kit designed for integration with PowerFlex 700 series AC drives. This component plays a crucial role in managing and regulating drive operations, ensuring optimal performance and reliability in industrial applications.
Key Features
- Voltage Rating: 115 Volts AC
- Current Rating: 25 Amps RMS
- Compatibility: Specifically engineered for PowerFlex 700 drives
- Installation: Designed for placement beneath the Human Interface Module (HIM) cradle within the drive system
Technical Specifications
- Enclosure Type: Open
- Operating Temperature Range: 0 to 65 degrees Celsius
- Frame Size Compatibility: Frames 7 through 10
Installation and Integration
The SK-G9-VMCB1-D0 control board is designed for straightforward installation beneath the HIM cradle of the PowerFlex 700 drive. This strategic placement allows for seamless integration with the main control panel, facilitating efficient communication and coordination with various drive components. The design emphasizes ease of installation, minimizing downtime during maintenance or upgrades.
Applications
Ideal for a wide range of industrial applications, the SK-G9-VMCB1-D0 control board enhances the functionality of PowerFlex 700 drives. Its robust design and compatibility make it suitable for sectors requiring precise motor control and reliable drive performance.
Additional Information
For detailed installation instructions and technical data, refer to the official documentation provided by the manufacturer. Proper adherence to installation guidelines ensures optimal performance and longevity of the control board within your drive system.
