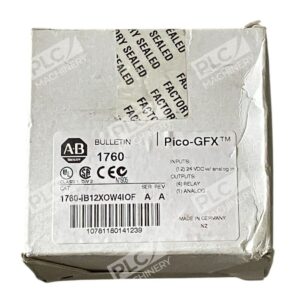

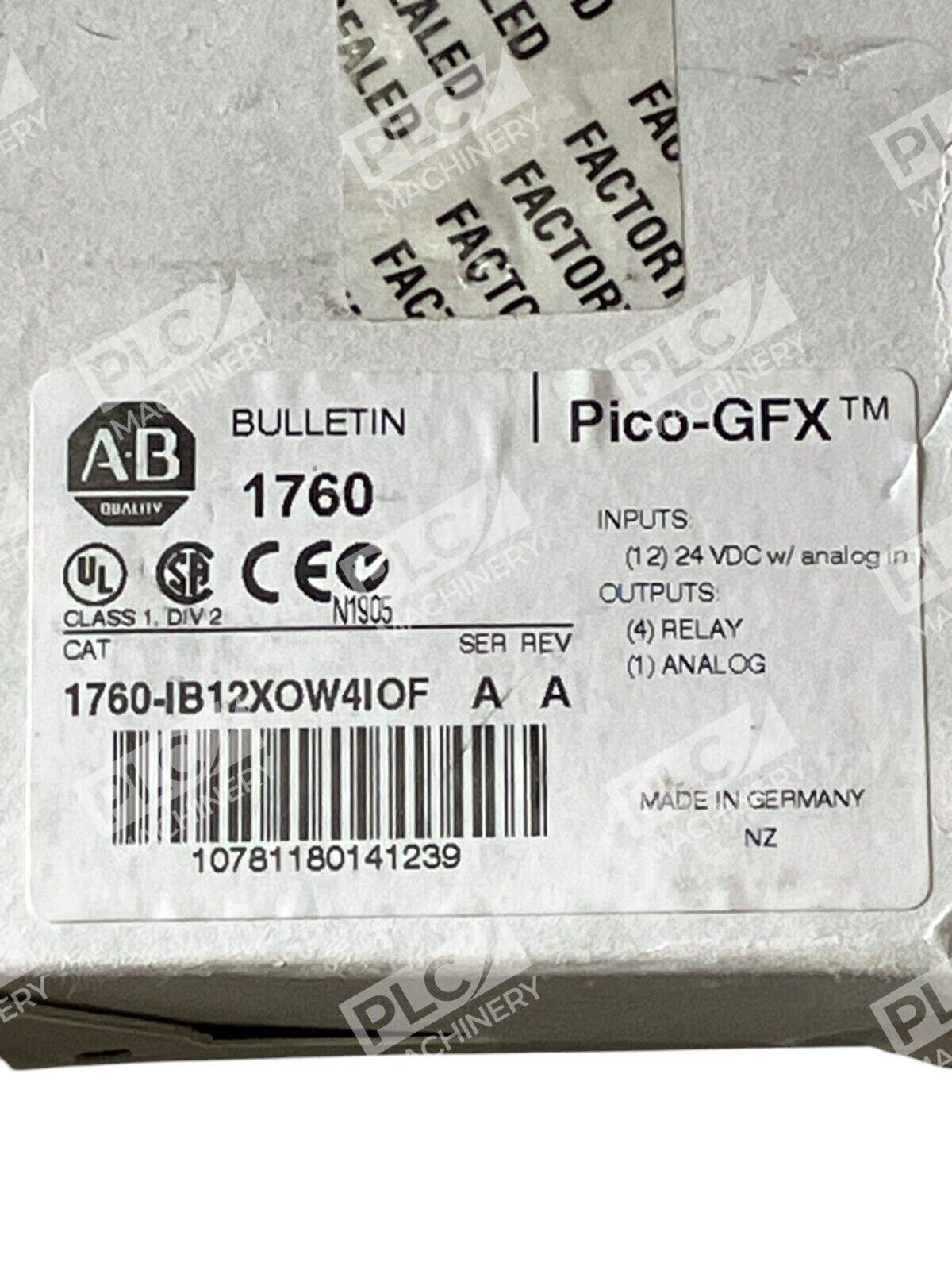

Allen Bradley Ser A Rev A Pico GFX Analog Combination Module 1760-IB12XOW4IOF /A

Allen-Bradley 1760-IB12XOW4IOF PicoGFX Analog Combination Module

The Allen-Bradley 1760-IB12XOW4IOF is a versatile PicoGFX Analog Combination Module designed to enhance the functionality of industrial automation systems. This module integrates both digital and analog input capabilities, along with relay outputs, to provide comprehensive control solutions.

Key Features

• Digital Inputs: 12 inputs, with 4 configurable as analog inputs and 4 as high-speed inputs.
• Analog Inputs: 4 inputs supporting a 0 to 10 Volts DC range with a resolution of 0.01 Volts.
• Relay Outputs: 4 outputs capable of handling various control tasks.
• Operating Voltage: 24 Volts DC, ensuring compatibility with standard industrial power supplies.
• Input Impedance: 11.2 kiloOhms, facilitating accurate signal processing.
• Signal Delay: 20 milliseconds with debounce feature enabled, enhancing signal stability.
• High-Speed Inputs: Support for frequency counters and incremental encoders up to 3 kiloHertz.
• Dimensions: 88.1 mm x 90 mm x 25 mm, allowing for compact installation.
• Weight: Approximately 150 grams, facilitating easy handling and integration.

Applications

The 1760-IB12XOW4IOF module is suitable for a wide range of industrial applications, including:

• Process control systems requiring both digital and analog input monitoring.
• Machinery automation where precise input and output control is essential.
• Systems needing high-speed input processing for tasks such as counting or timing.

Installation and Compatibility

This module is designed for seamless integration with Allen-Bradley’s PicoGFX controllers. It connects directly to the back of the GFX processor, allowing for straightforward installation. Only one GFX I/O module and one Pico expansion I/O module can be connected to a single GFX-70 controller. Relay outputs can be connected to different lines, providing flexibility in system design.

Considerations

When implementing the 1760-IB12XOW4IOF module, ensure that the relay contact voltage does not exceed 250 Volts AC to prevent potential damage. The module’s design supports unshielded cable lengths up to 328 feet for digital signals and up to 98 feet for analog signals, offering flexibility in various installation environments.

The Allen-Bradley 1760-IB12XOW4IOF PicoGFX Analog Combination Module stands as a reliable component for enhancing industrial automation systems, providing a blend of digital and analog input capabilities along with robust relay outputs.
