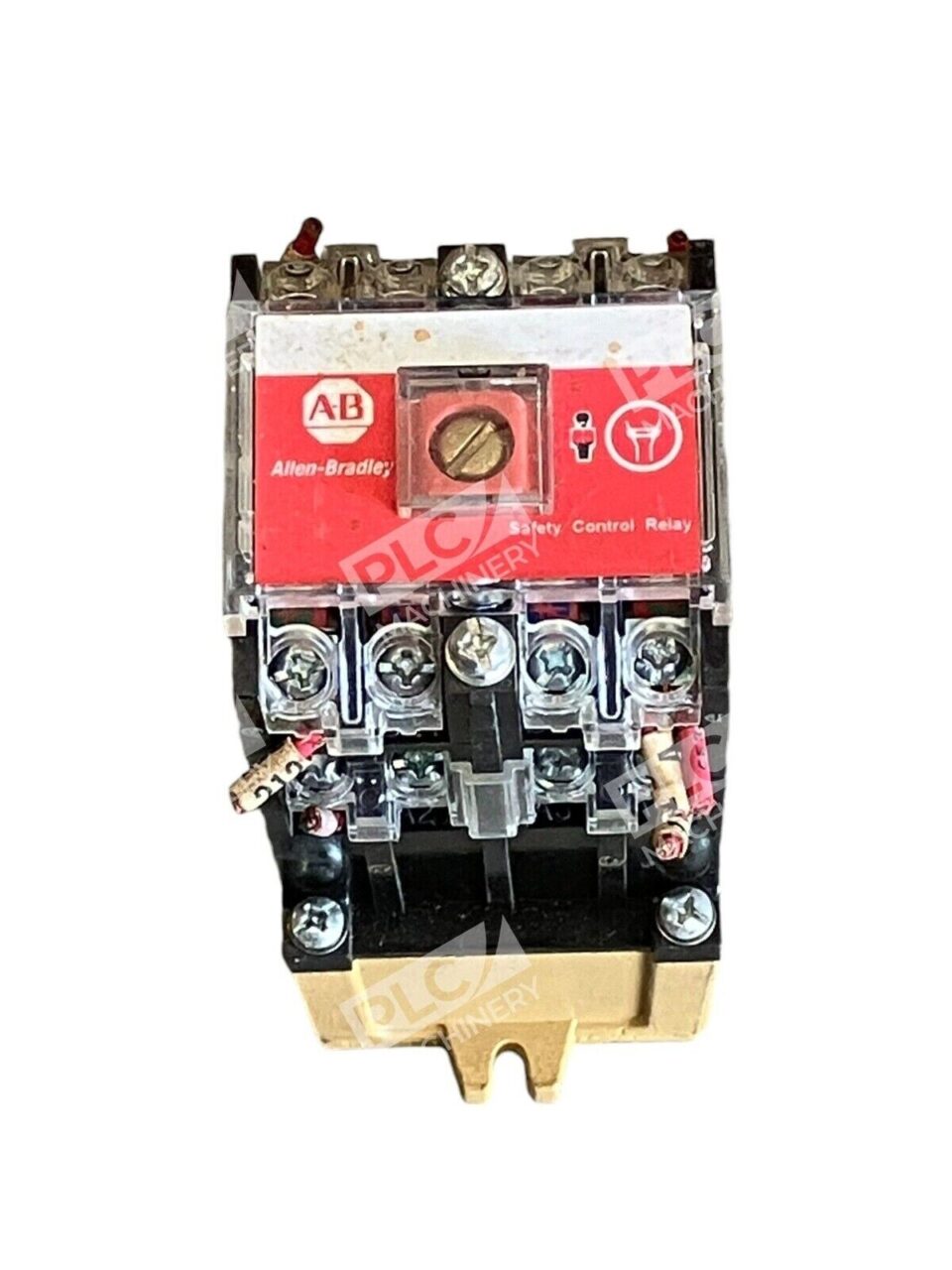

Allen Bradley Safety Control Relay AC Relay 700S-P440A1 /D

The Allen-Bradley 700S-P440A1 is a NEMA 600V safety control relay designed for industrial applications requiring reliable safety performance.

Key Features

• Contact Configuration: 4 Normally Open (N.O.) and 4 Normally Closed (N.C.) contacts, providing flexibility in control circuit design.
• Coil Voltage: Operates on a 120V AC coil at 60 Hz, suitable for standard industrial power systems.
• Mounting Type: Open-type relay designed for DIN rail mounting, facilitating easy installation and integration into control panels.
• Current Rating: Rated for 10A, ensuring robust performance in various safety applications.
• Electrical Life Cycle: Engineered for 1,500,000 operations at 10A break at 120V AC, highlighting its durability and reliability.

Technical Specifications

• Voltage Type for Actuating: AC
• Rated Control Supply Voltage at AC 60 Hz: 120V
• Mounting Method: DIN-rail/screw
• Contact Rating, Continuous: 5A at 600V DC
• Operating Temperature: -20°C
• Storage Temperature: -40°C
• Connection Type: Screw connection
• Wire Size: #18 AWG to (2) #12 AWG per UL/CSA

The 700S-P440A1 safety control relay is part of Allen-Bradley’s 700S-P and 700S-DCP series, known for their high-quality construction and adherence to safety standards. Its combination of multiple contacts, high current rating, and extensive electrical life cycle makes it a reliable choice for safety-critical applications in industrial environments.
