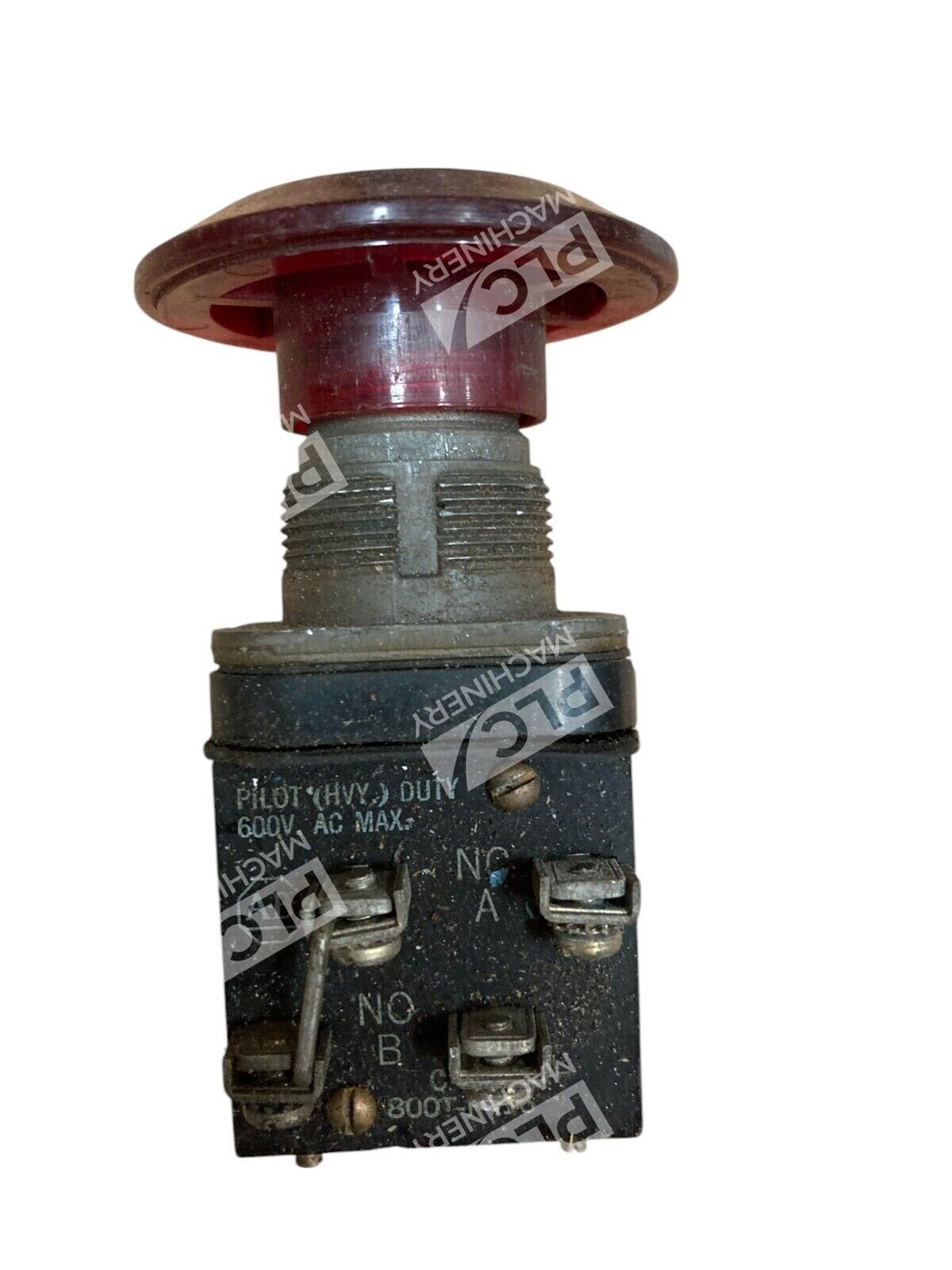

Allen-Bradley 800T-PT16 Push-to-Test Pilot Light
The Allen-Bradley 800T-PT16 is a 30.5 mm push-to-test pilot light designed for industrial control applications. This device combines durability with functionality, ensuring reliable performance in demanding environments.
Key Features
- Illumination: Equipped with an incandescent lamp, the 800T-PT16 provides clear visual indication.
- Push-to-Test Functionality: Allows operators to test the lamp’s functionality without external tools, ensuring system integrity.
- Transformer Module: Incorporates a transformer module suitable for 120V AC at 50/60 Hz, facilitating efficient power management.

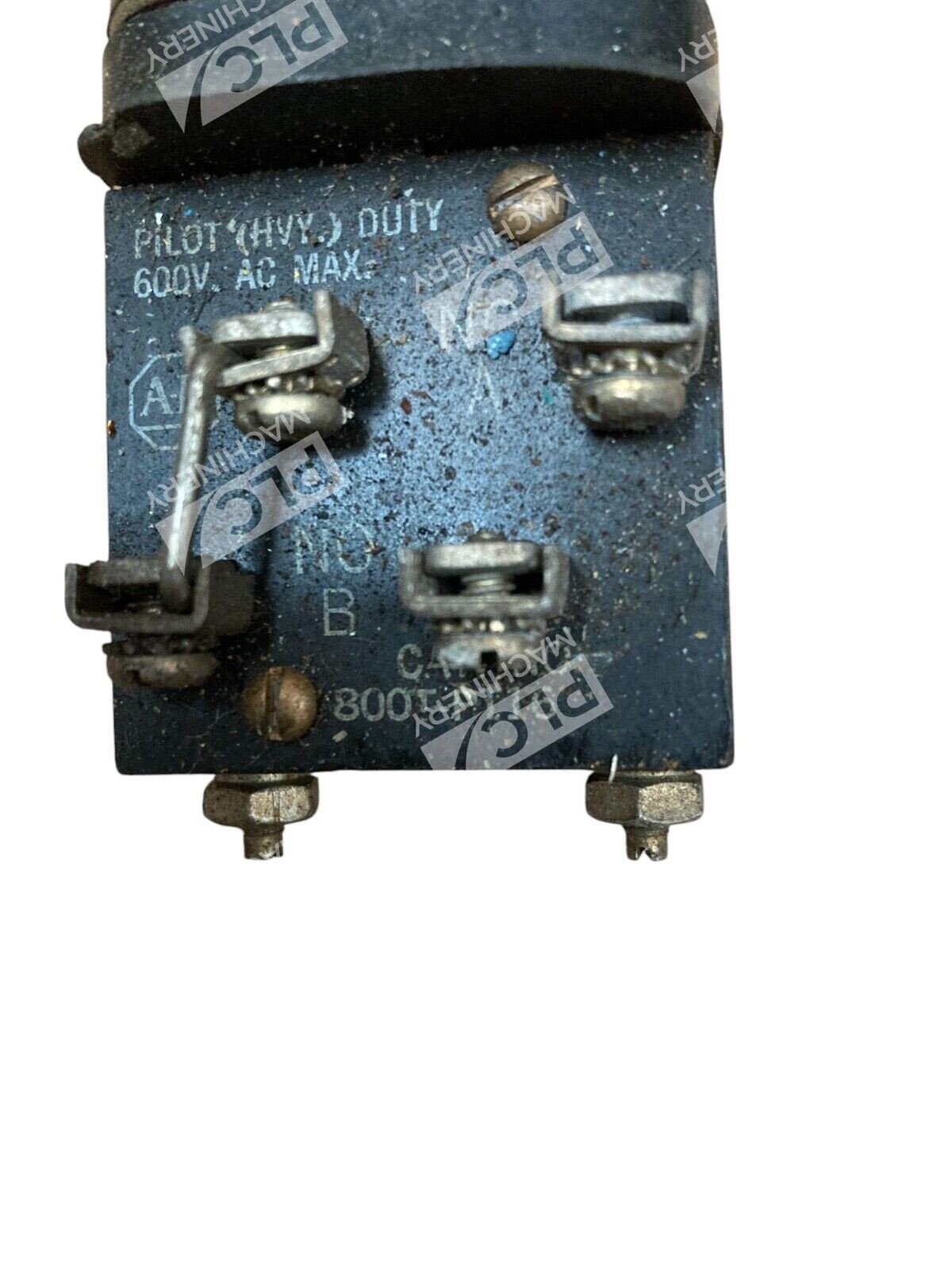

- Contact Configuration: Features one normally open (N.O.) and one normally closed (N.C.) contact block, rated for 10 A thermal current.
- Durability: Designed for a mechanical lifespan of at least 250,000 cycles and an electrical lifespan of up to 1,000,000 cycles at maximum load.
- Construction: Built with a robust metal operator construction, ensuring longevity and resistance to industrial wear and tear.
- Environmental Ratings: Compatible with NEMA Type 1, 4, 12, and 13 enclosures, offering versatility in various environmental conditions.
- Certifications: Holds certifications including ABS, CCC, CE, CSA, EAC, GOST, and UL, affirming compliance with international standards.
Technical Specifications
- Hole Diameter: 30.5 mm
- Electrical Connection: Screw terminals
- Operational Voltage: Up to 600V AC/DC
- Operating Temperature Range: -25°C to 40°C
- Vibration Resistance: Up to 10 G
- Shock Resistance: 25 G (contact fragility) / 100 G (no damage)
The Allen-Bradley 800T-PT16 push-to-test pilot light is engineered to meet the rigorous demands of industrial environments, providing reliable operation and ease of maintenance.
