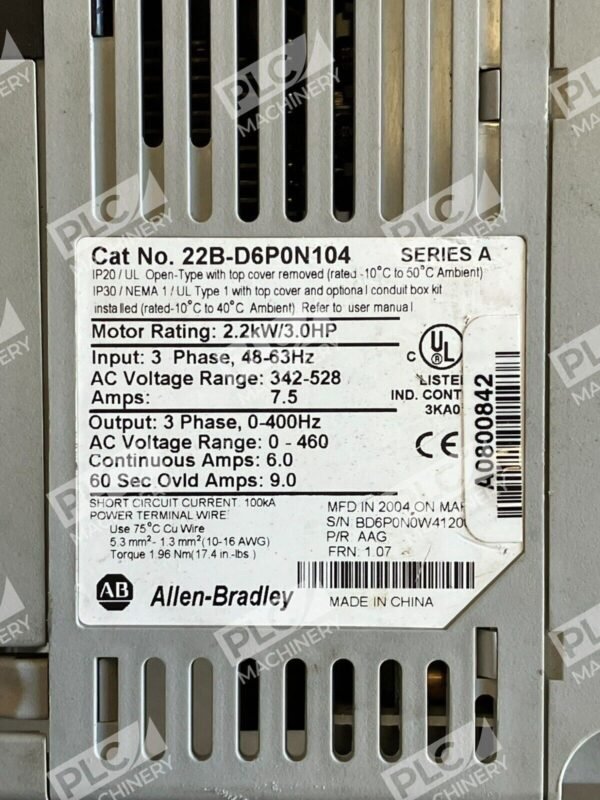

Allen Bradley PowerFlex 40 22B-D6P0N104 /A

Allen-Bradley PowerFlex 40 AC Drive (22B-D6P0N104)

The Allen-Bradley PowerFlex 40 AC Drive, catalog number 22B-D6P0N104, is a versatile and compact solution designed for efficient motor control in various industrial applications. This drive offers reliable performance and user-friendly features, making it suitable for a wide range of uses.

Key Features

• Power Rating: 2.2 kW (3 HP)
• Input Voltage: 380–480V AC, three-phase
• Output Current: 6.0 A
• Enclosure: Panel Mount – IP20, NEMA/UL Type Open
• Control Interface: Integral LED display with digital keypad
• Communication: Built-in RS-485 port
• Brake IGBT: Included

Technical Specifications

• Frequency Rating: 50–60 Hz
• Power Factor: 0.98
• Frame Size: B
• Dimensions (H x W x D): 19.05 cm x 15.875 cm x 29.921 cm
• Weight: 2.2 kg

Applications

The PowerFlex 40 AC Drive is ideal for applications requiring precise speed control and energy efficiency, such as:

• Fans
• Pumps
• Conveyors
• Material handling systems

Its compact design and advanced features make it a suitable choice for both new installations and retrofit projects.

Documentation

For detailed information, refer to the following documents:

• Quick Start Manual: 22B-QS001
• User Manual: 22B-UM001
• Specification Sheet: 22B-SR001

These resources provide comprehensive guidance on installation, operation, and maintenance of the drive.
