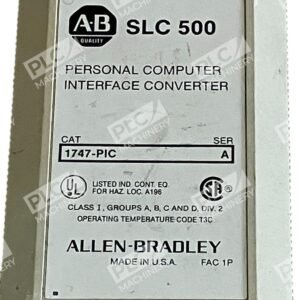

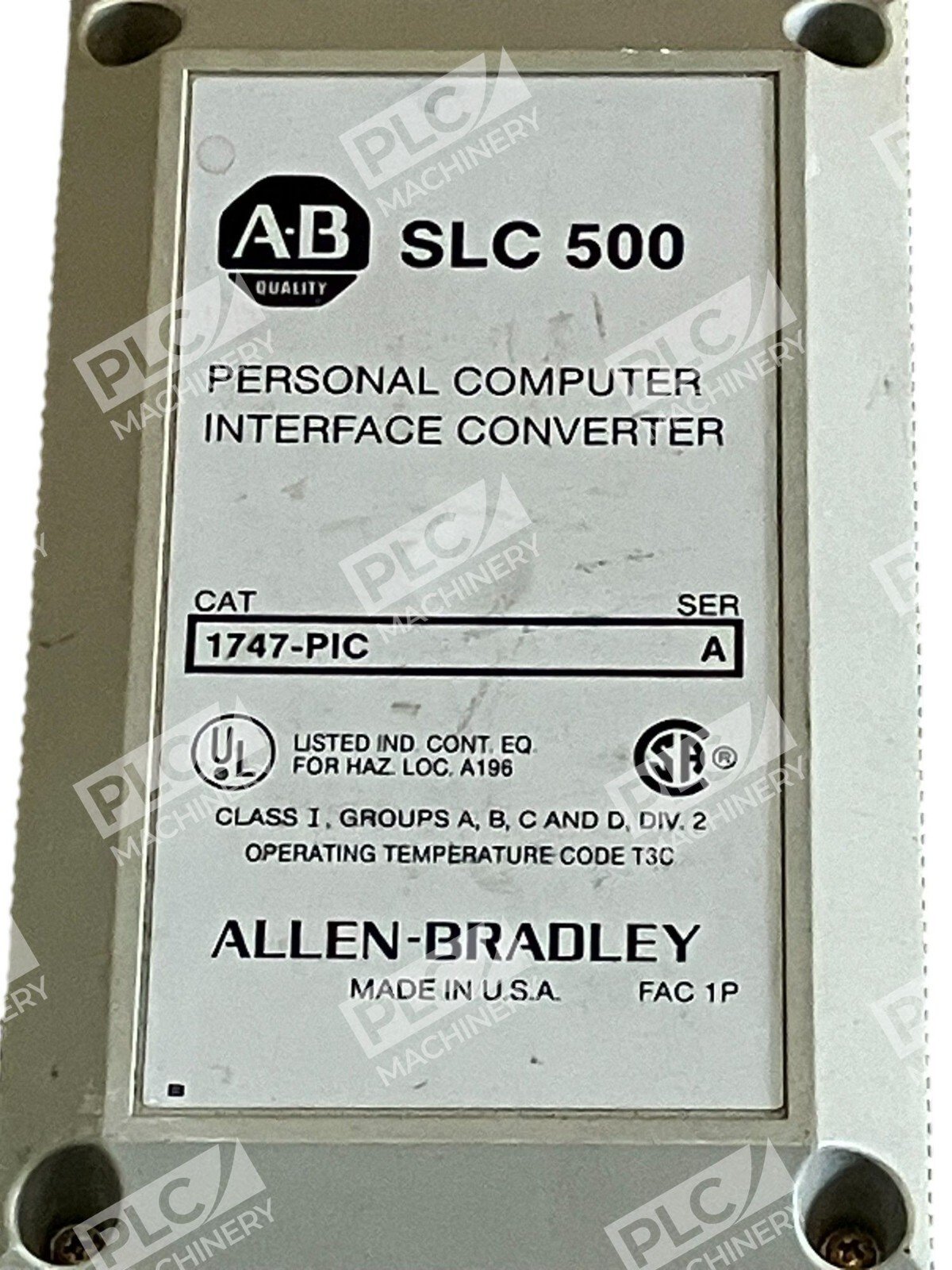

Allen-Bradley 1747-PIC/A Personal Computer Interface Converter

The Allen-Bradley 1747-PIC/A is a Personal Computer Interface Converter designed to facilitate communication between personal computers and SLC 500 series controllers, specifically the SLC 5/01, SLC 5/02, and SLC 5/03 processors. This device converts RS-232 signals from the PC to RS-485 signals compatible with the DH-485 network protocol, enabling efficient data exchange in industrial automation systems.

Key Features

• RS-232 to RS-485 Conversion: Translates RS-232 signals from the PC to RS-485 signals, allowing seamless integration with DH-485 networks.
• Compatibility: Supports communication with SLC 5/01, SLC 5/02, and SLC 5/03 processors.

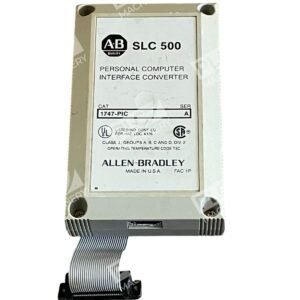

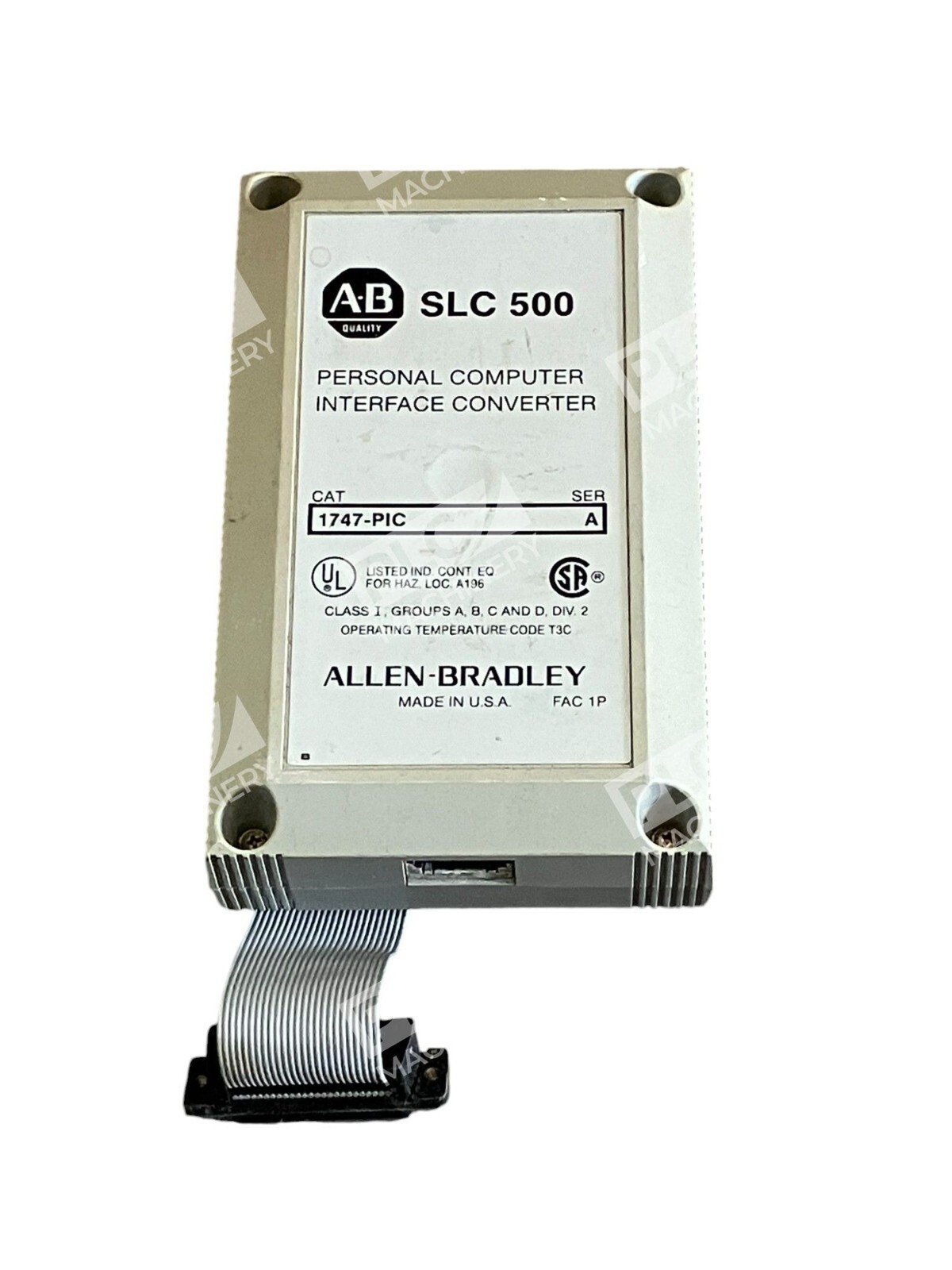

• Integrated Ribbon Cable: Comes with an 11-inch (279.4 mm) ribbon cable for direct connection to the computer’s serial port.
• Operating Temperature Range: Functions reliably within a temperature range of 0°C to 60°C (32°F to 140°F).
• Power Consumption: Operates with a maximum power consumption of 2 Watts.

Technical Specifications

• Manufacturer: Allen-Bradley
• Model Number: 1747-PIC/A
• Communication Ports: 9-pin DB9-F port for PC connection; RJ-45 port for controller connection
• Baud Rate: Supports 9600 and 19200 Kbps
• Dimensions: Approximately 13 cm x 10 cm x 20 cm
• Weight: Approximately 0.29 kg (0.64 lbs)

Installation and Compatibility

The 1747-PIC/A is designed for use with built-in COM1 and COM2 serial ports on personal computers. It is important to note that this converter is not compatible with USB-to-serial adapters, serial port extender boards, or PCMCIA-format serial port cards. For optimal performance, ensure that the PC’s serial ports are available and not occupied by other devices or drivers.

Applications

This interface converter is ideal for industrial environments where reliable communication between PCs and SLC 500 series controllers is essential. It is commonly used in settings such as manufacturing plants, process control systems, and other automation applications requiring robust and efficient data exchange.

Additional Information

When integrating the 1747-PIC/A into your system, ensure that all connections are secure and that the device is operated within its specified environmental conditions. Proper installation and adherence to technical specifications will contribute to the longevity and reliability of the interface converter in your automation setup.
