Allen Bradley Non-Reversing Contactor 100-M05NZ*31 /A

Allen-Bradley Non-Reversing Contactor 100-M05NZ*31 /A

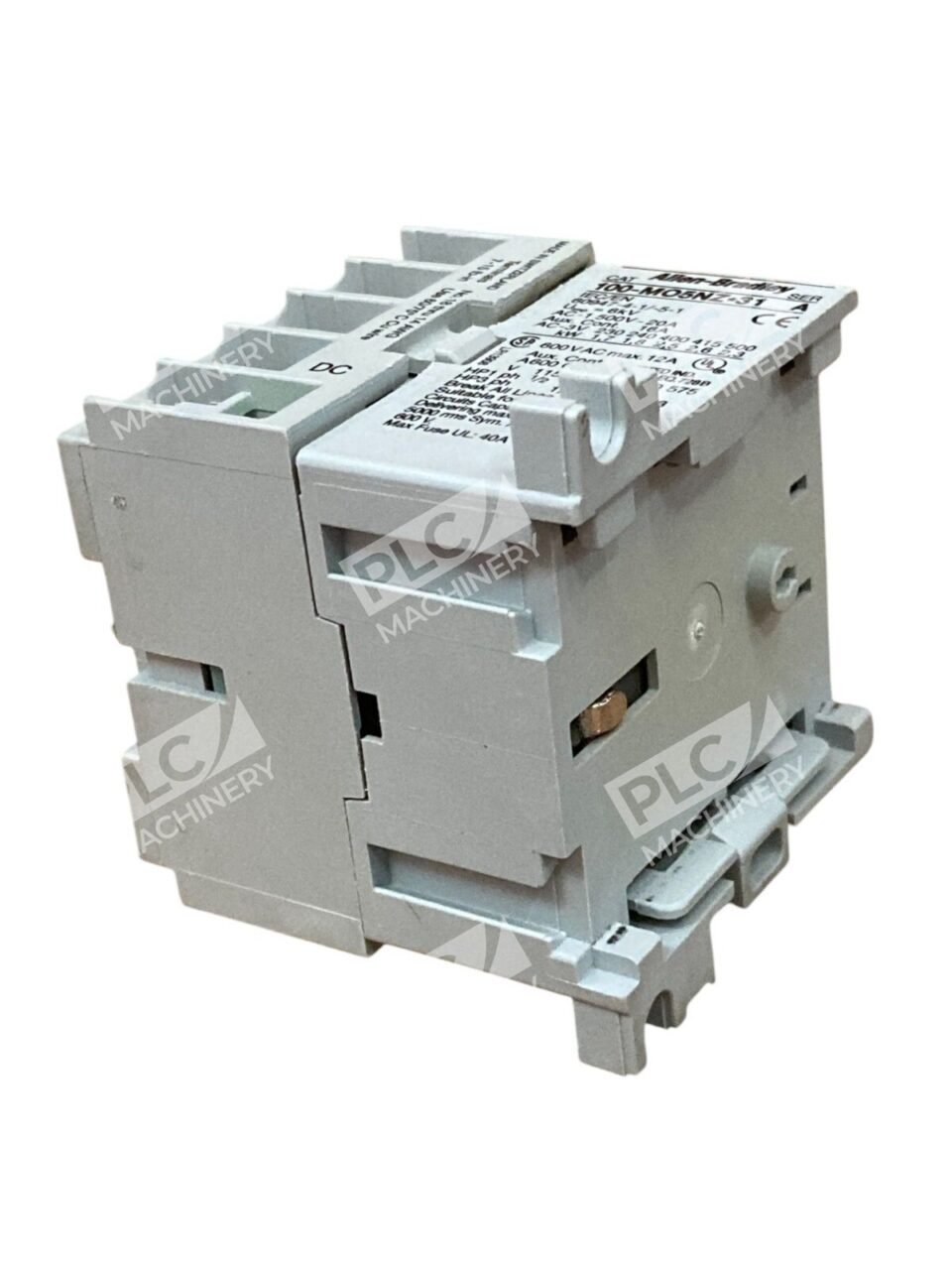

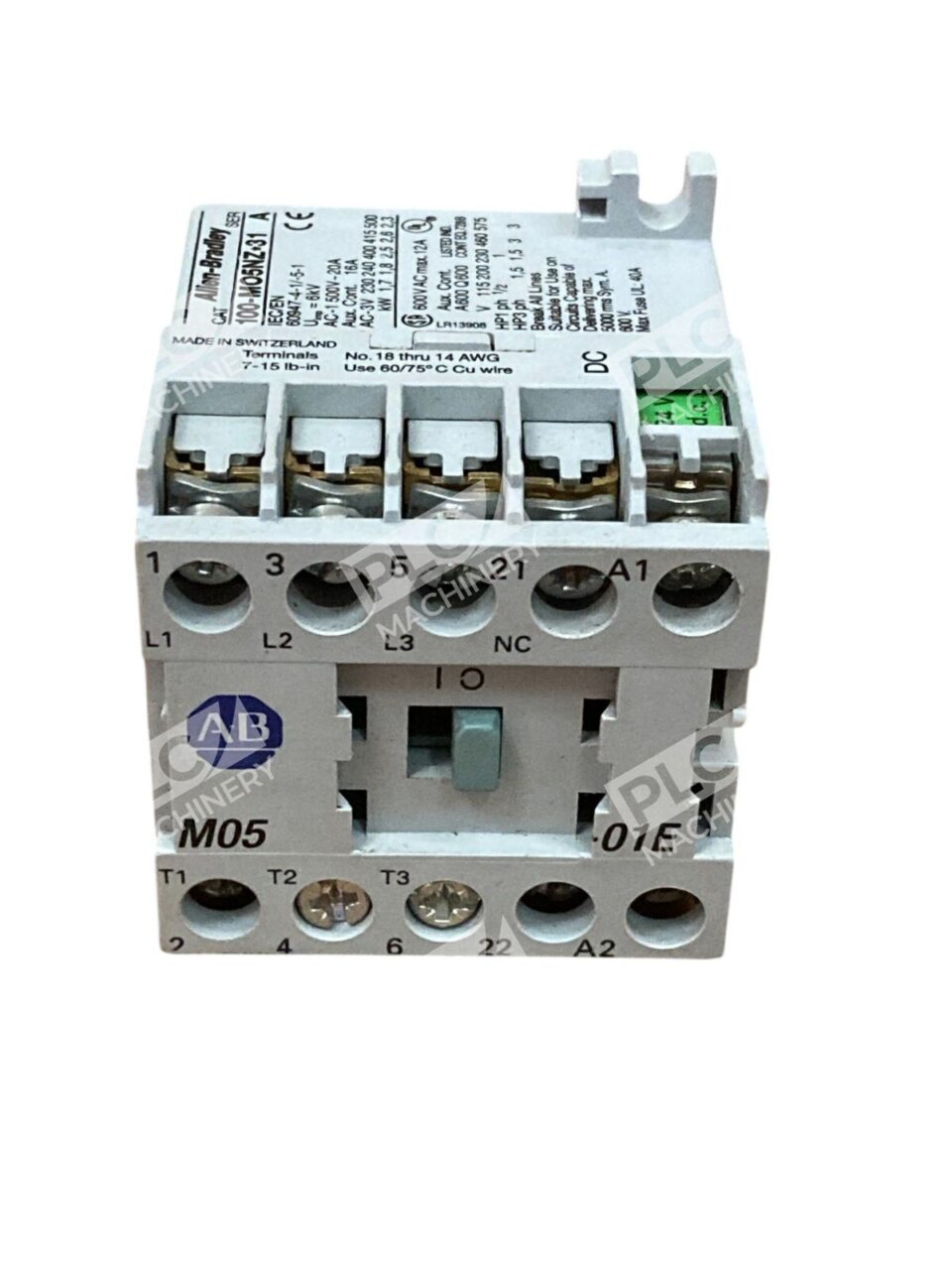

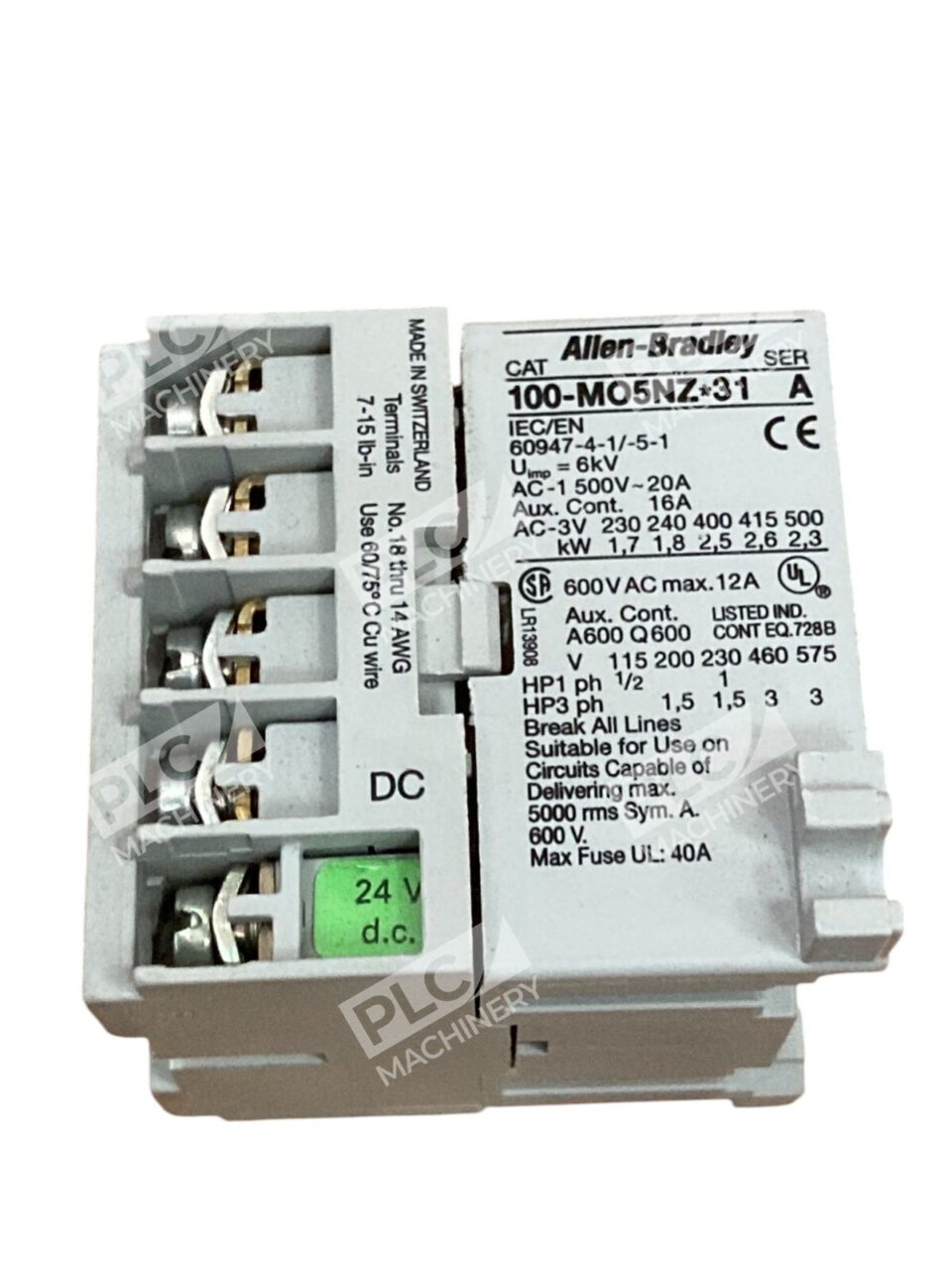

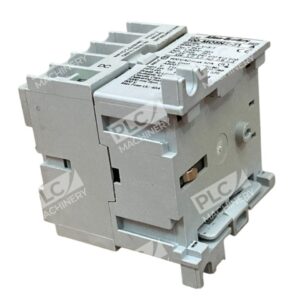

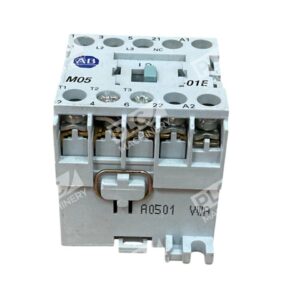

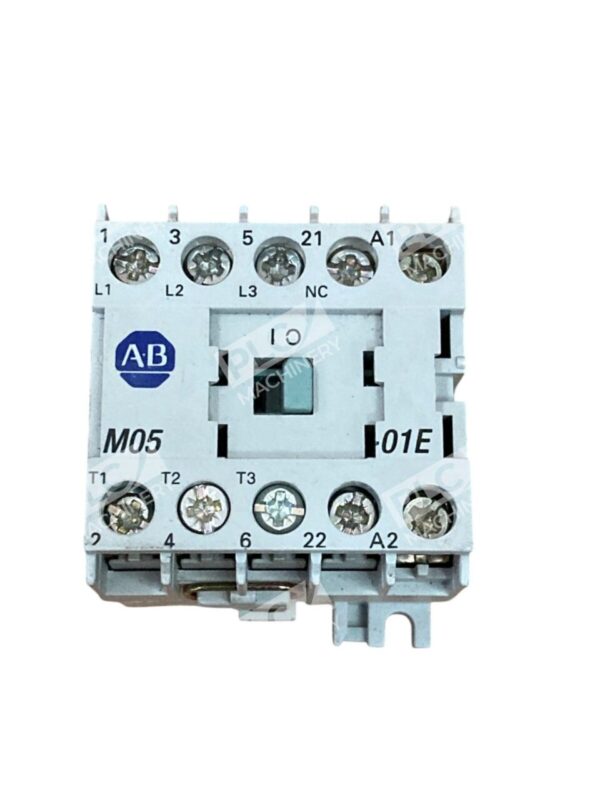

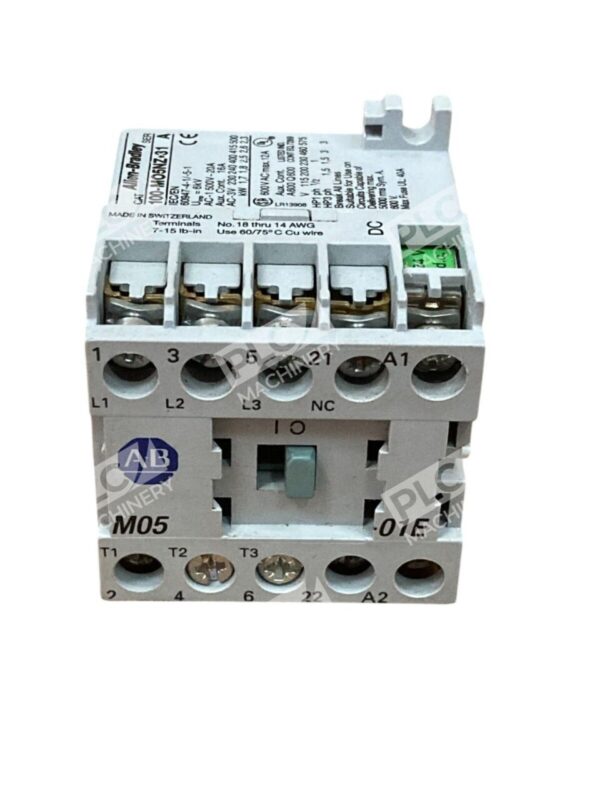

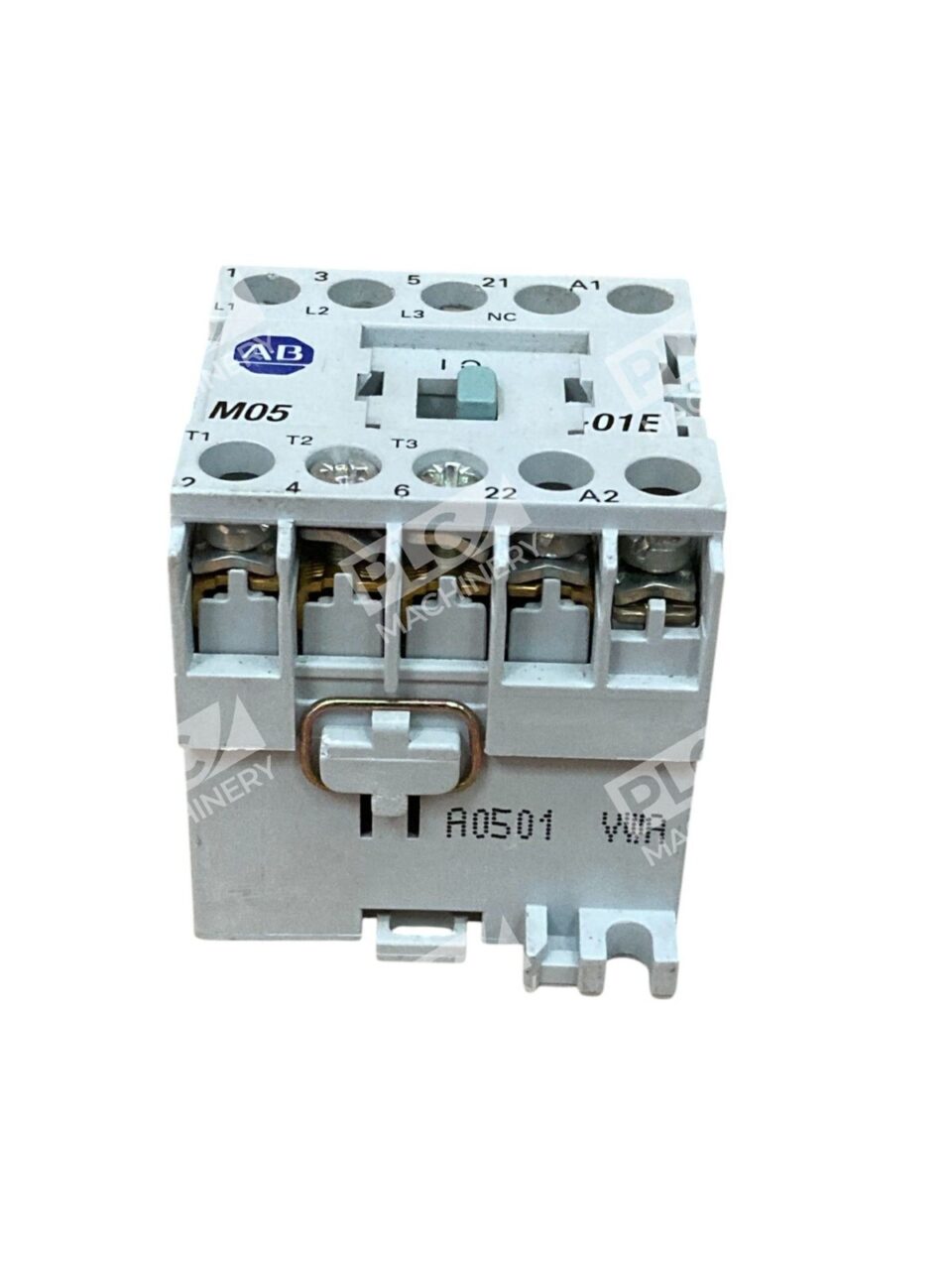

The Allen-Bradley 100-M05NZ*31 /A is a non-reversing miniature contactor designed for efficient motor control applications. This compact device is engineered to deliver reliable performance in various industrial settings.

Key Features

• Configuration: Equipped with three normally open (N.O.) power poles and one normally closed (N.C.) auxiliary contact, facilitating versatile control options.
• Coil Voltage: Operates with a 24 V DC coil, ensuring compatibility with standard control systems.
• Current Rating: Supports a rated operational current of up to 20 A, suitable for various motor loads.
• Voltage Rating: Capable of handling a maximum rated voltage of 500 V AC, accommodating a range of industrial power requirements.
• Power Ratings: Delivers power ratings across different voltages:
• 1.7 kW at 230 V
• 1.8 kW at 240 V
• 2.5 kW at 400 V
• 2.6 kW at 415 V
• 2.3 kW at 500 V
• Impulse Voltage: Rated impulse voltage of 8 kV, enhancing its durability against voltage spikes.
• Auxiliary Contact Rating: The auxiliary contact is rated for 16 A, providing additional control capabilities.

Applications

The 100-M05NZ*31 /A contactor is ideal for controlling small motors and other electrical loads in industrial automation systems. Its compact design and robust specifications make it suitable for applications where space is limited but reliable performance is essential.

Additional Information

This contactor is part of Allen-Bradley’s 100-M series, known for its durability and efficiency in motor control solutions. It is designed to meet international standards, ensuring compatibility and safety in various industrial environments.
