Allen Bradley NEMA A600 Bulletin 802T Oiltight Limit Switch With Head 802T-AP /F

Allen-Bradley NEMA A600 Bulletin 802T Oiltight Limit Switch with Head 802T-AP/F

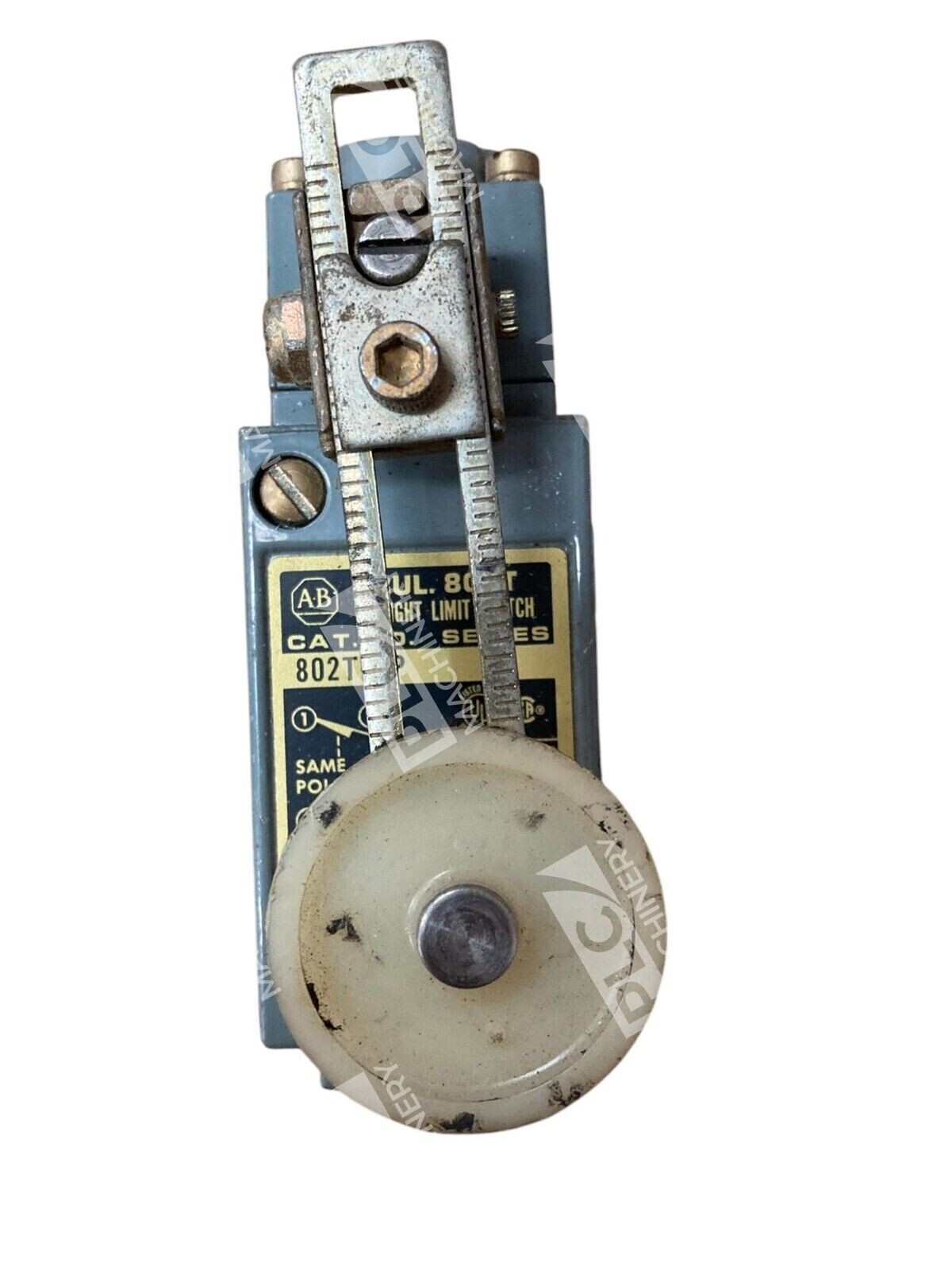

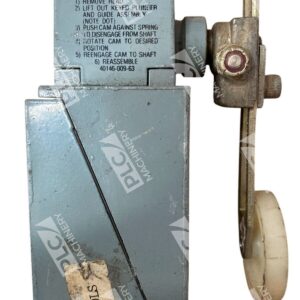

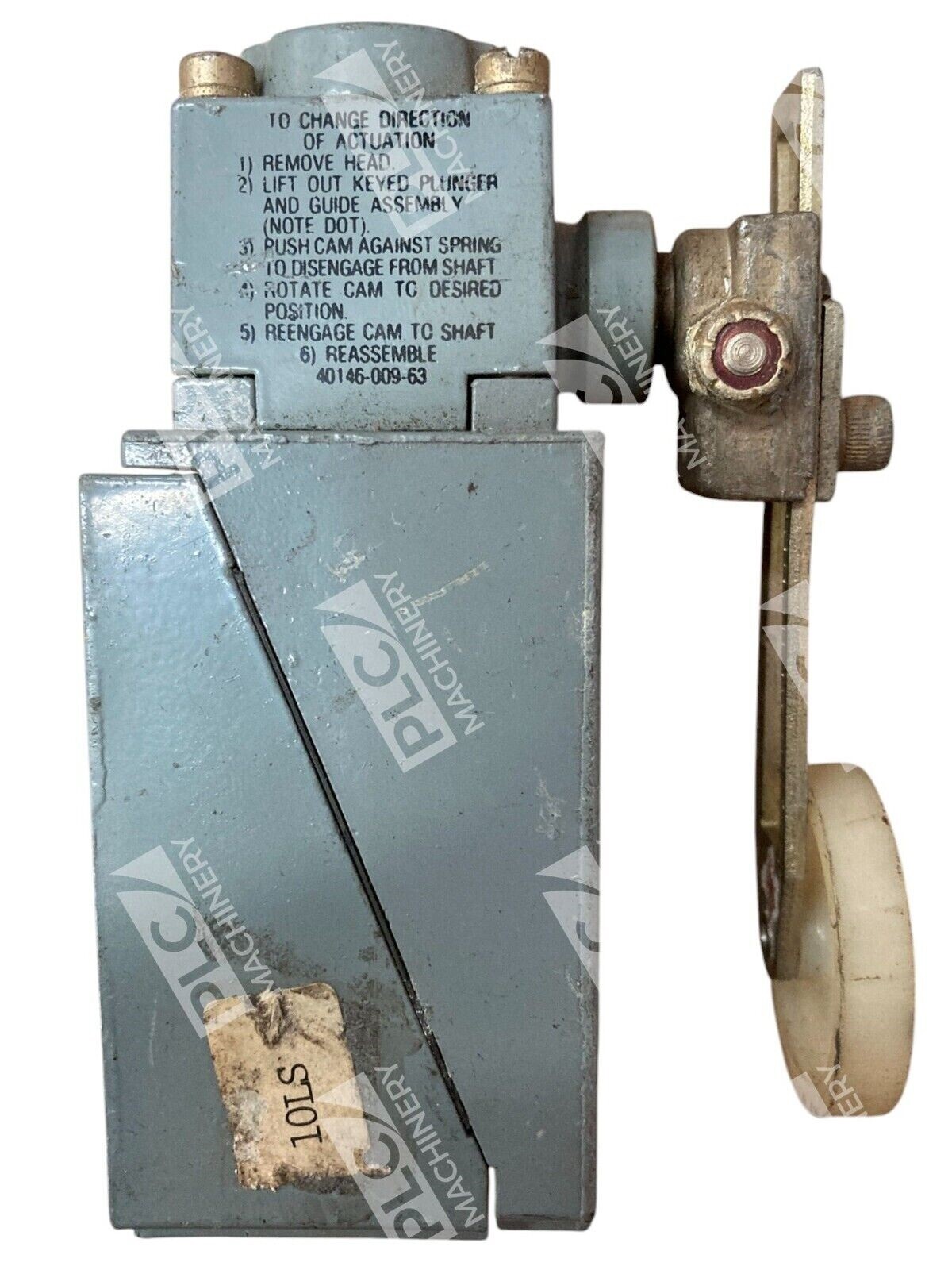

The Allen-Bradley 802T-AP/F is a robust and versatile oiltight limit switch designed to meet the demanding requirements of industrial applications. This plug-in style switch features a durable metal construction, ensuring longevity and reliable performance in harsh environments.

Key Features

• Actuator Type: Rotary Lever Arm
• Contact Configuration: Double Pole, Double Throw (DPDT) with snap-acting standard contacts
• Electrical Ratings:

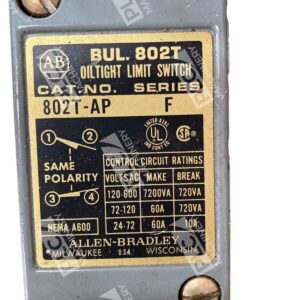

  • AC Voltage: 120–600 VAC with make contact rating of 7200 VA and break contact rating of 720 VA
  • AC Voltage: 72–120 VAC with make contact rating of 60 Amperes and break contact rating of 720 VA
  • AC Voltage: 24–72 VAC with make contact rating of 60 Amperes and break contact rating of 10 Amperes
  • DC Voltage: 115–125 VDC at 0.4 Amperes; 230–250 VDC at 0.2 Amperes; 550–600 VDC at 0.1 Amperes
• Operating Temperature Range: -18°C to 110°C (0°F to 230°F)
• Enclosure Ratings: NEMA 4, 13, 6P, and IP67, providing excellent protection against dust, water, and oil
• Mounting Options: Front or rear mounting available
• Operation: Supports both clockwise and counterclockwise actuation with a spring return mechanism
• Conduit Entry: 1/2″ NPT thread
• Torque to Operate Contacts: 0.29 N·m (2.6 lb·in)
• Travel to Operate Contacts: 13°
• Travel to Reset Contacts: 7°

Applications

The 802T-AP/F limit switch is ideal for a variety of industrial applications, including:

• Conveyor systems
• Transfer machines
• Automatic turret lathes
• Milling and boring machines
• Radial drills
• Other high-speed production equipment

Its rugged design and reliable performance make it a preferred choice for ensuring precise control and safety in demanding industrial environments.
