The Allen-Bradley JAIN200P502UA is a high-quality rotary potentiometer designed for precise resistance control in various industrial applications.
Key Features
- Resistance Value: 5,000 Ohms (5kΩ)
- Power Rating: 2 Watts
- Tolerance: ±10%
- Taper: Linear
- Number of Turns: Single-turn
- Voltage Rating: 500 Volts
- Mounting Type: Panel mount with a 3/8″ bushing
- Shaft Style: Round shaft measuring 1/4″ in diameter and 1 5/8″ in length
- Terminal Type: Solder terminals

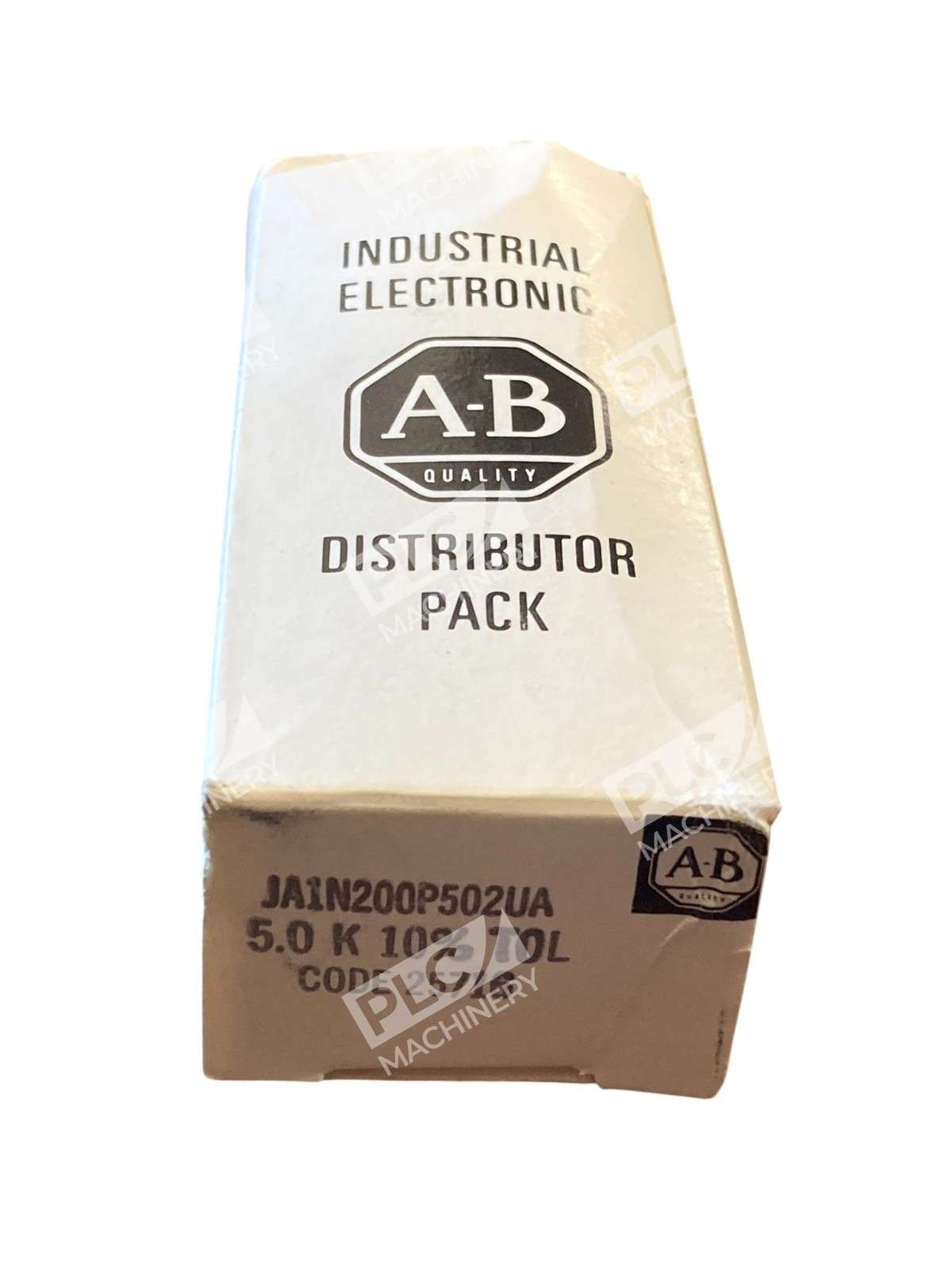

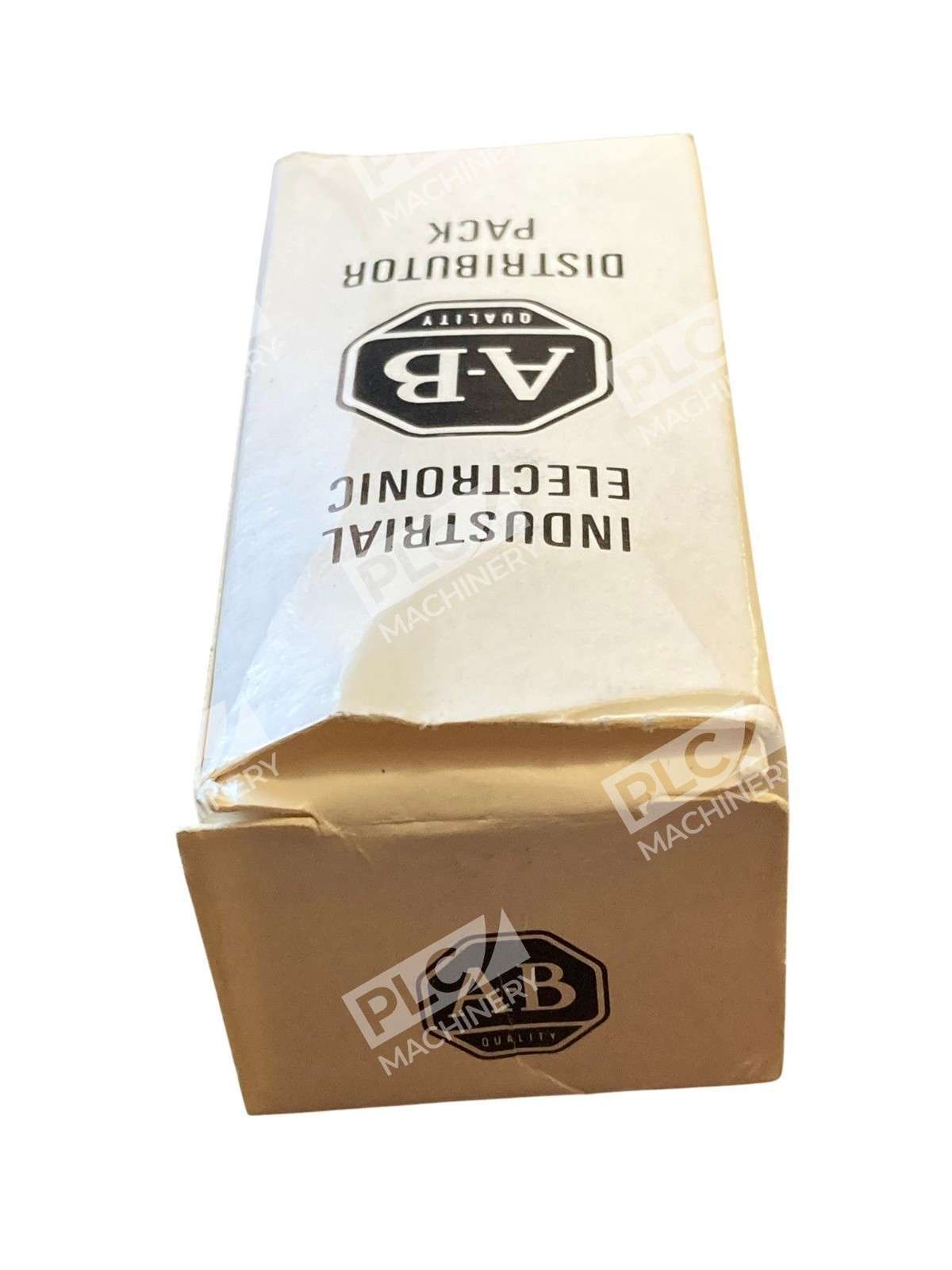

- Package: Bulk packaging
Design and Construction

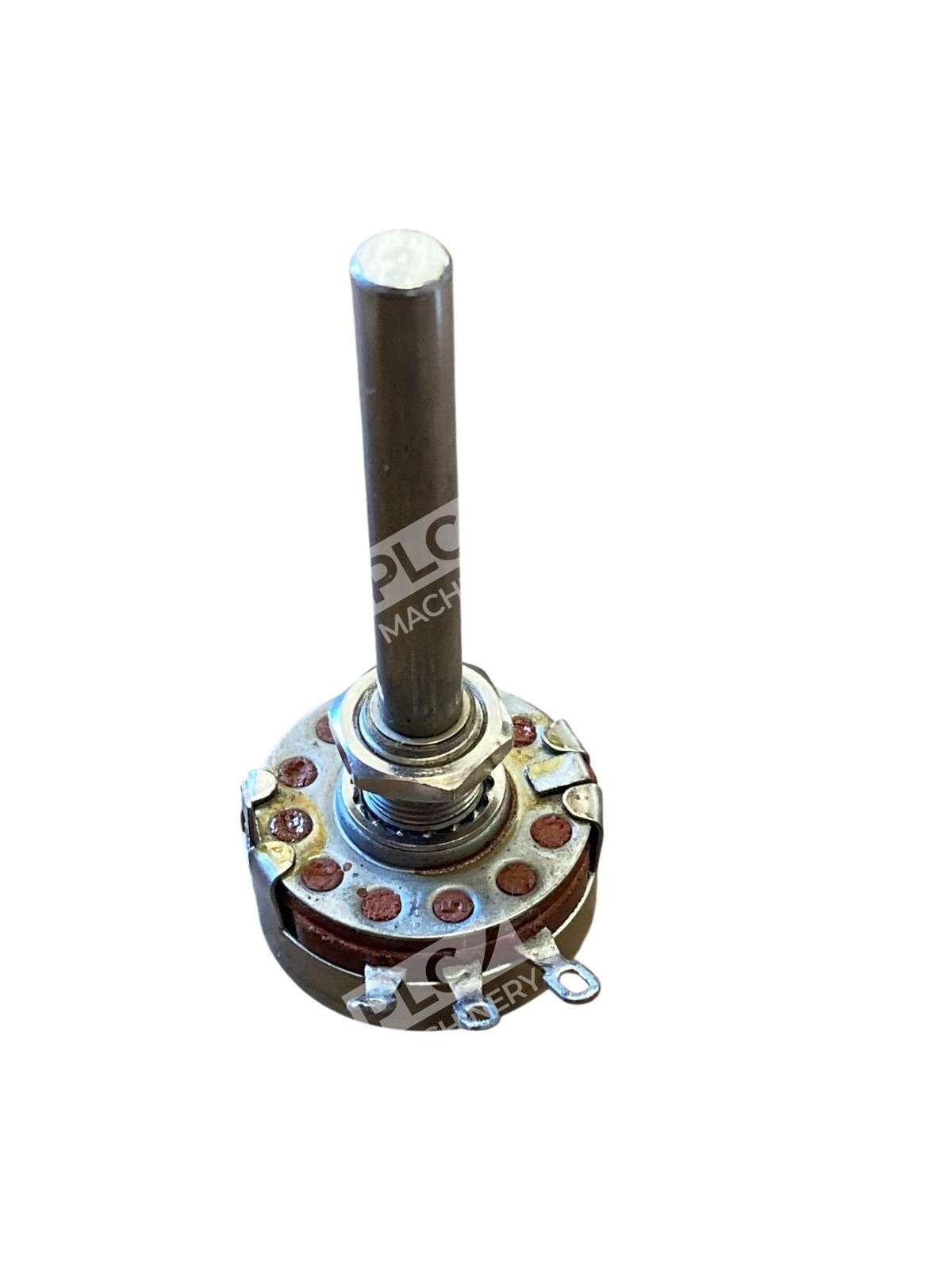

The JAIN200P502UA potentiometer features a robust design with a hot-molded carbon composition element, ensuring durability and consistent performance. Its linear taper provides smooth and predictable resistance changes, making it suitable for applications requiring precise control. The potentiometer’s panel mount design, complemented by a 3/8″ bushing and a round shaft, facilitates easy installation and integration into various equipment.
Applications
This potentiometer is ideal for use in industrial control systems, audio equipment, and other applications where reliable and accurate resistance adjustment is essential. Its 2-watt power rating and 500-volt voltage rating make it suitable for handling significant electrical loads, while the ±10% tolerance ensures consistent performance within specified parameters.
Additional Information
The Allen-Bradley JAIN200P502UA is part of the Type J series, known for its high-quality construction and reliability. Its single-turn operation allows for straightforward adjustments, and the solder terminals provide secure connections for long-term use. The potentiometer’s dimensions, including a 1.1-inch diameter, make it compatible with standard panel mount configurations.
In summary, the Allen-Bradley JAIN200P502UA potentiometer offers a combination of precision, durability, and ease of use, making it a valuable component in various industrial and electronic applications.
