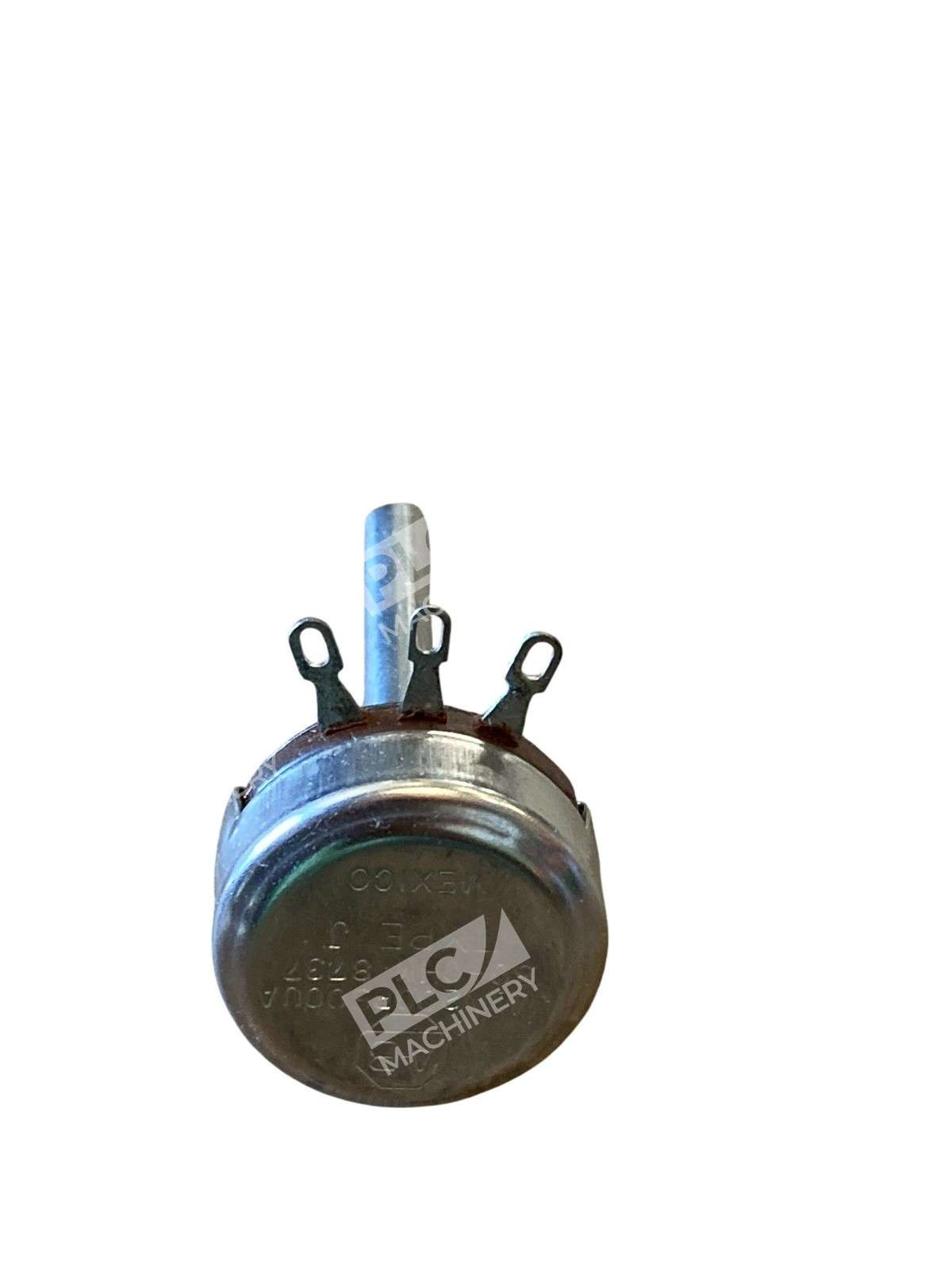

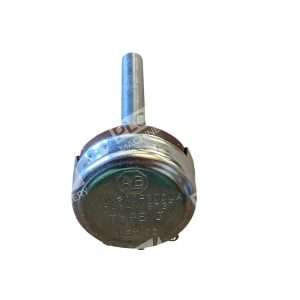

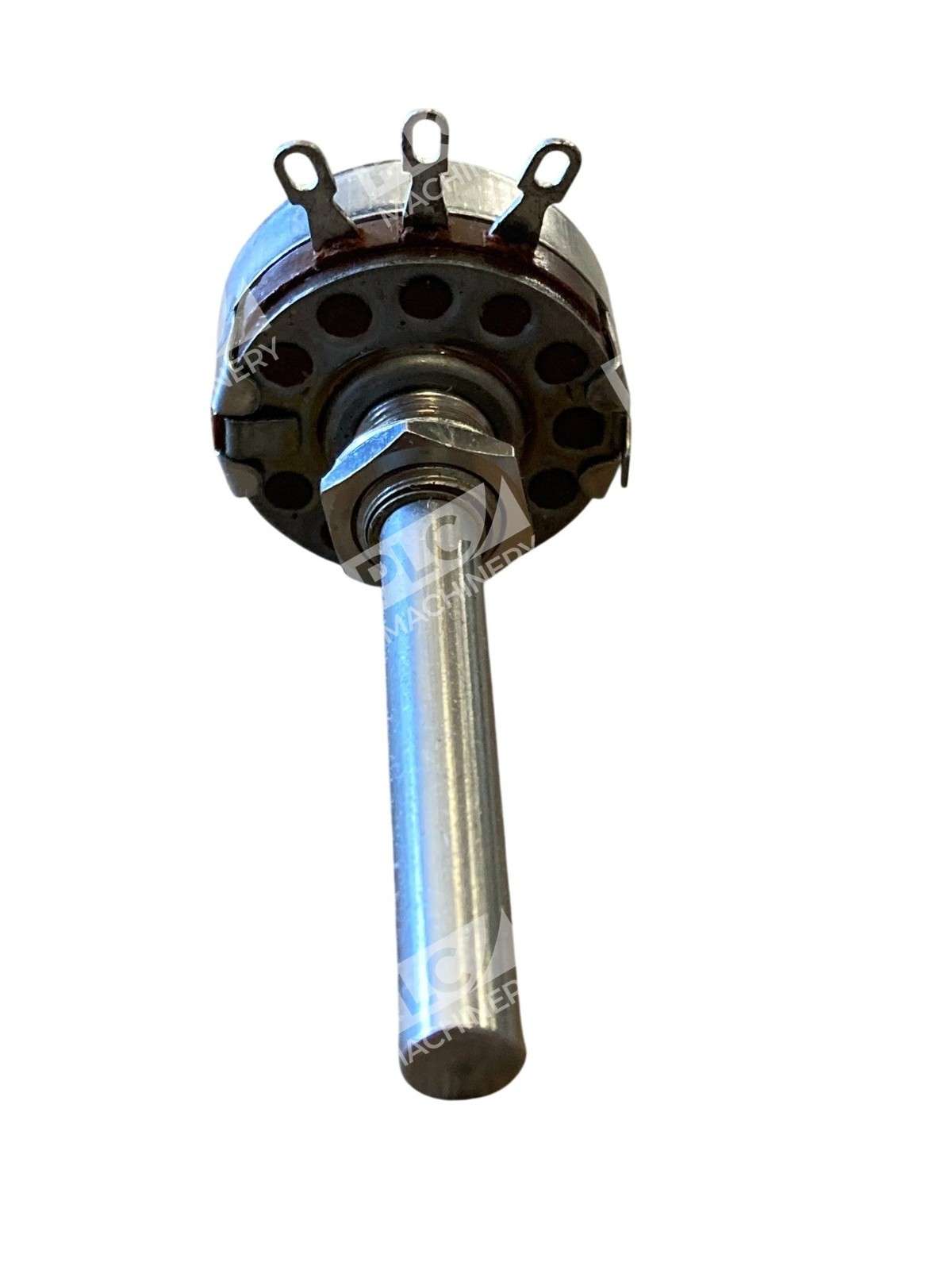

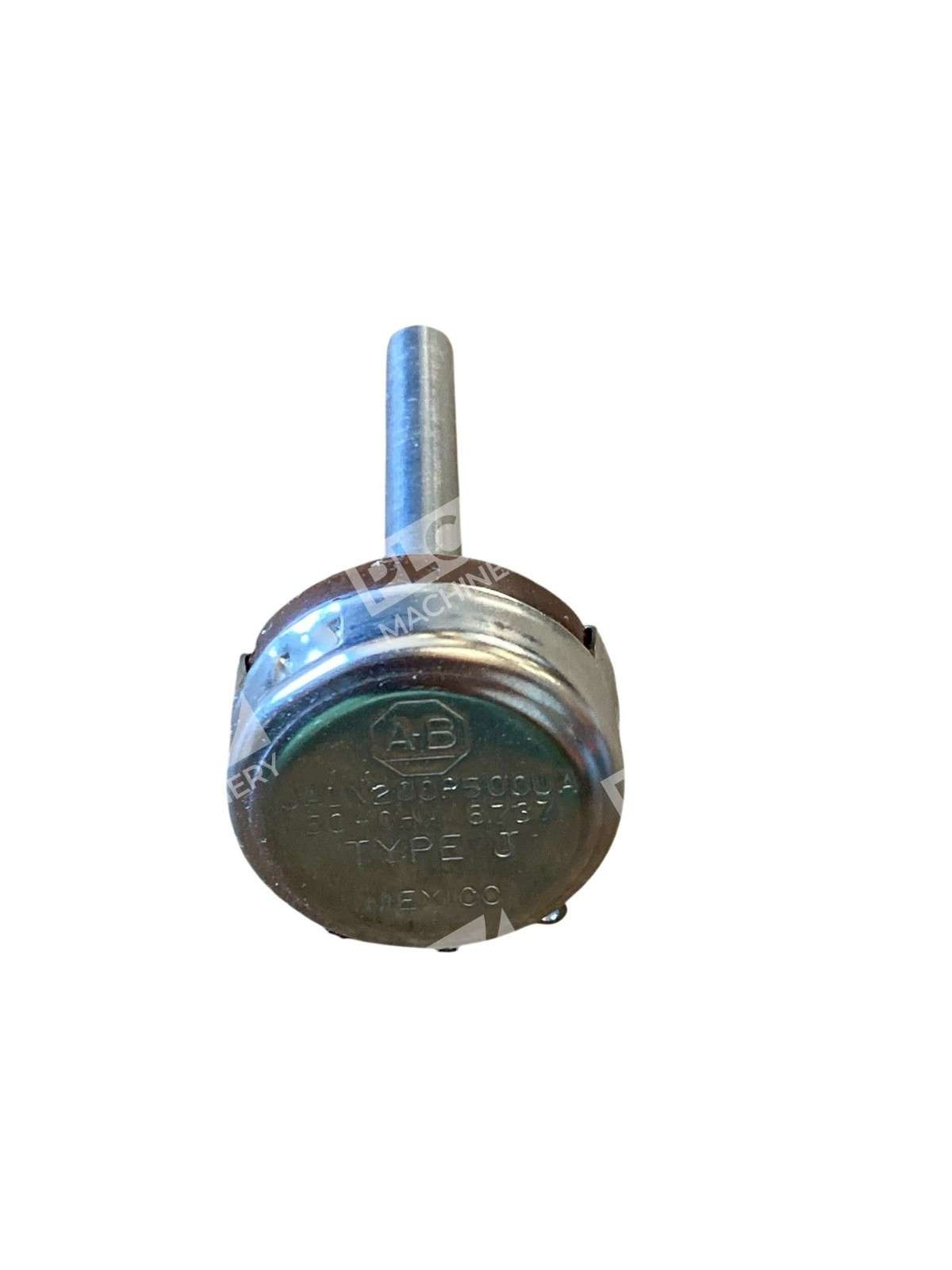

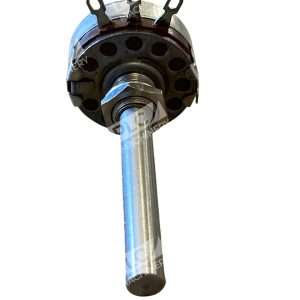

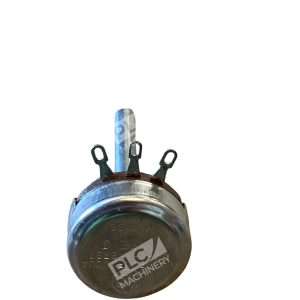

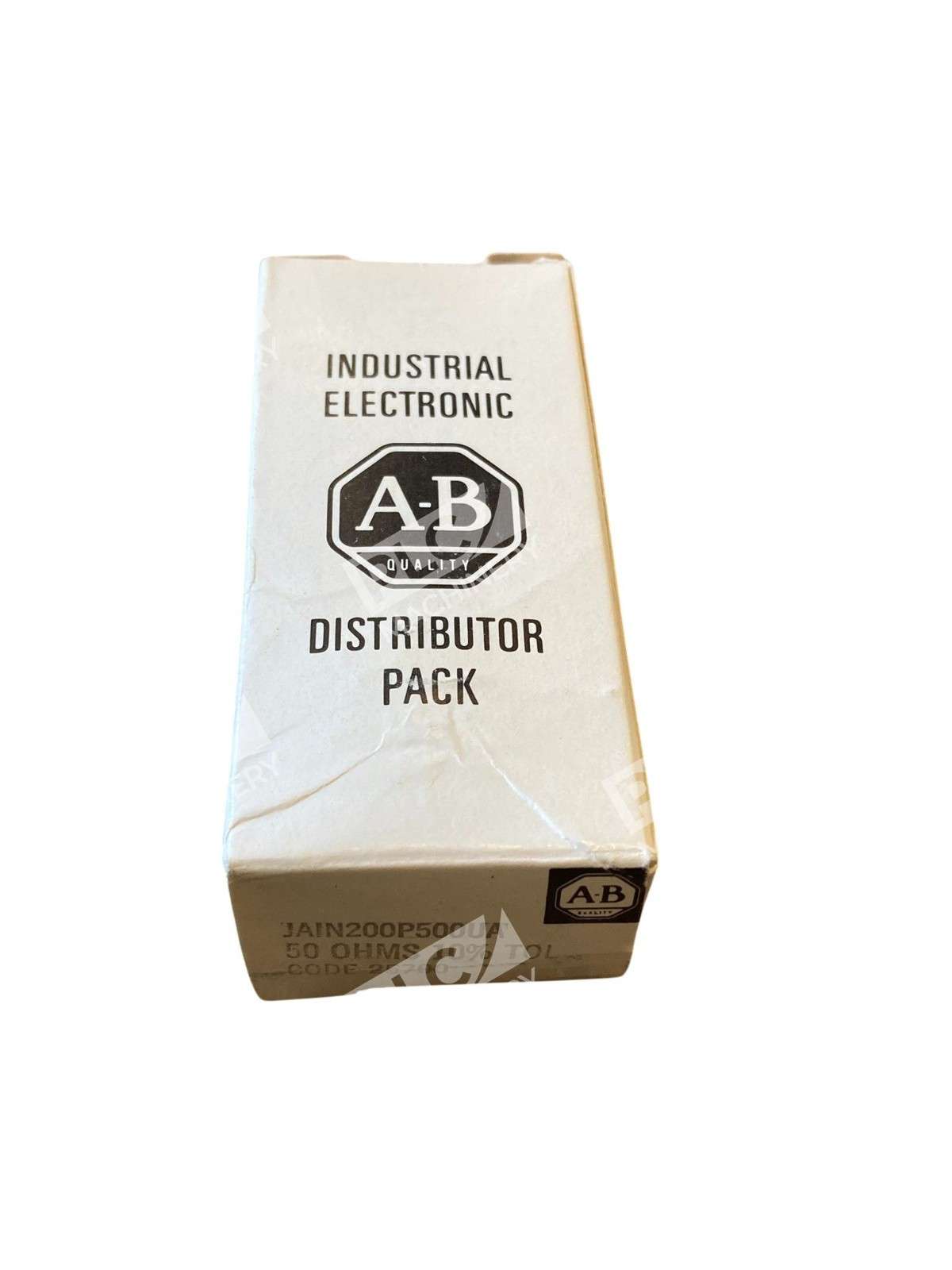

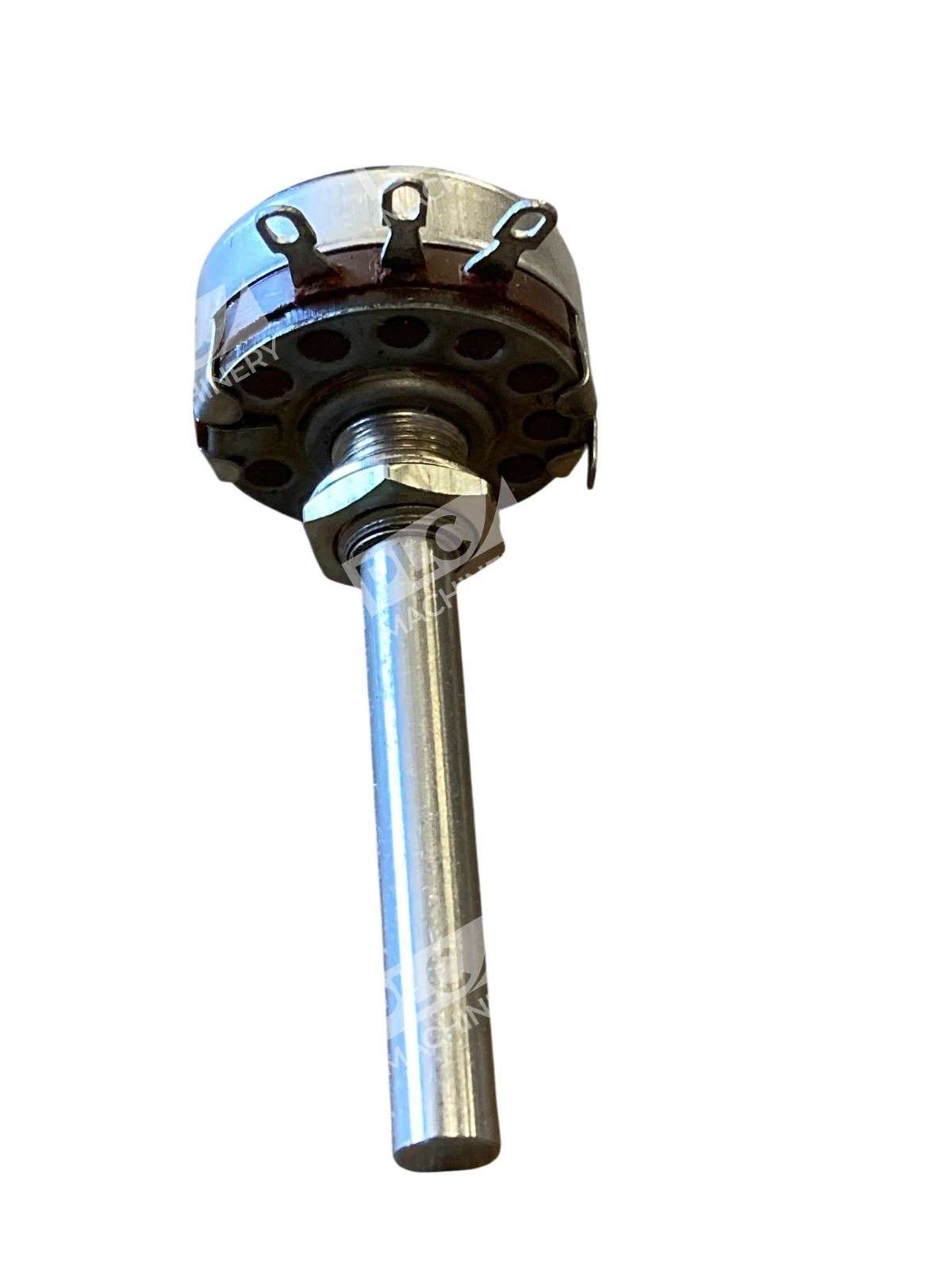

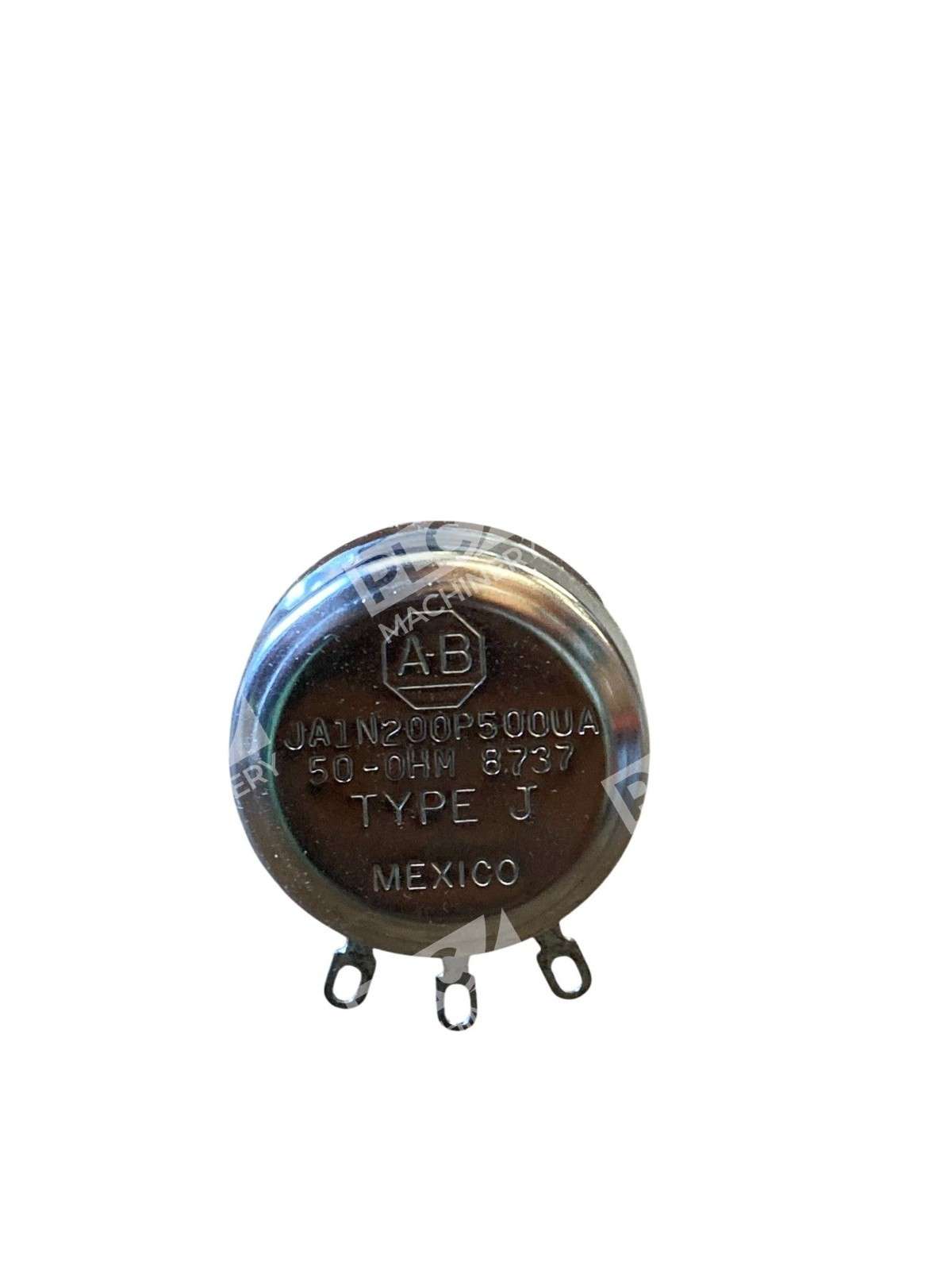

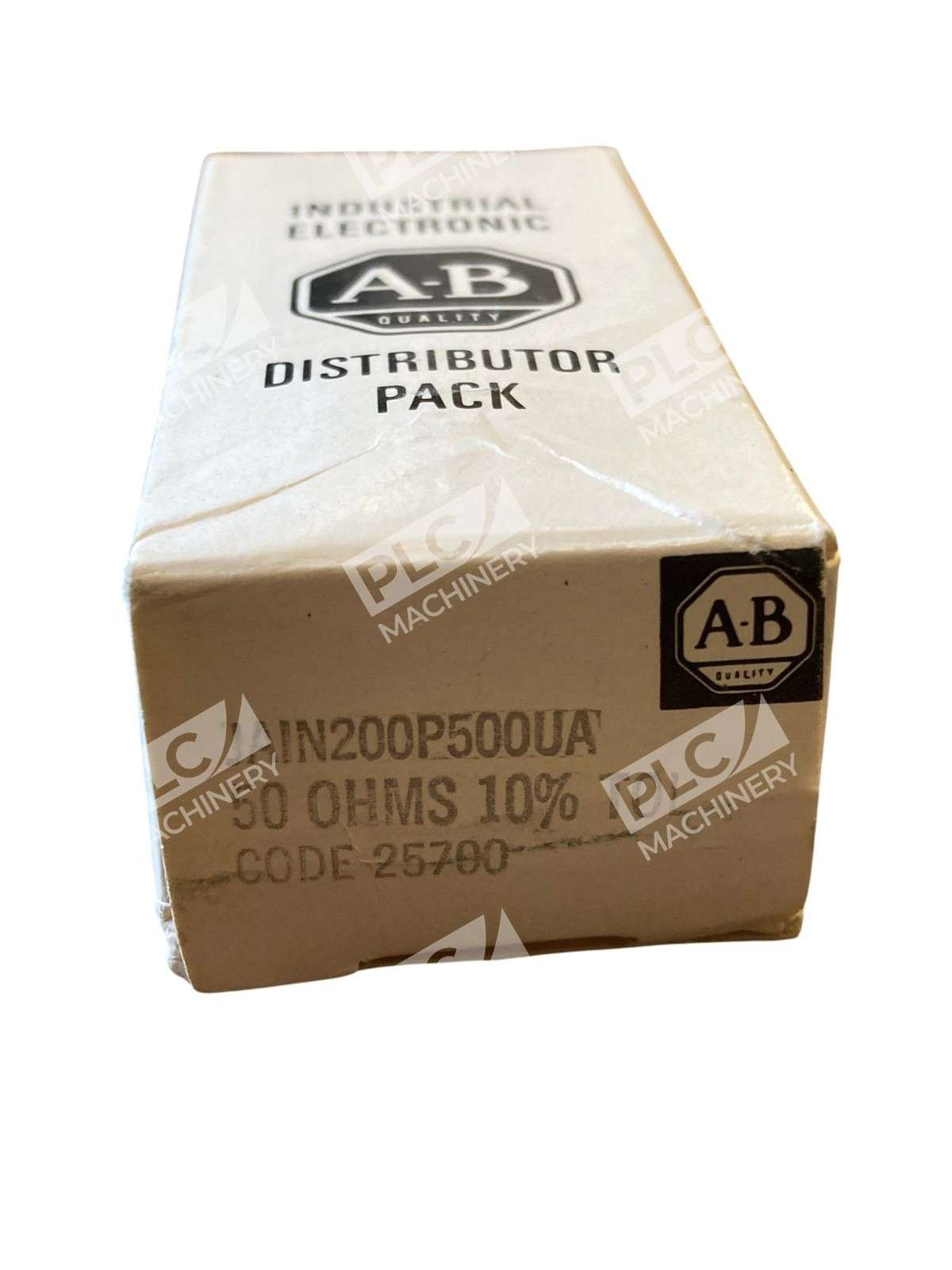

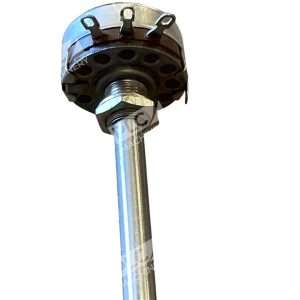

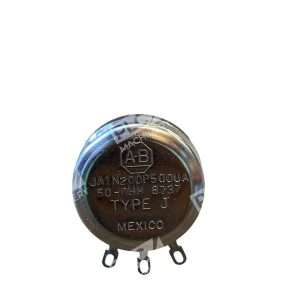

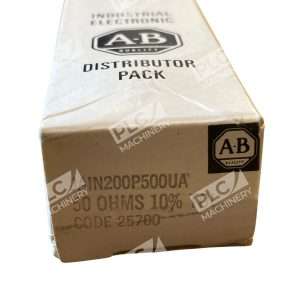

Allen-Bradley JA1N200P500UA 50 Ohm 10% Tolerance Potentiometer Type J
The Allen-Bradley JA1N200P500UA is a high-quality Type J potentiometer designed for precise resistance control in various industrial and electronic applications. This rotary potentiometer offers a resistance value of 50 ohms with a tolerance of ±10%, ensuring reliable performance where accurate resistance adjustment is essential.
Key Features
- Resistance Value: 50 ohms
- Tolerance: ±10%
- Power Rating: 2 watts at 70°C
- Temperature Range: -55°C to +120°C
- Mounting Style: Panel mount
- Shaft Type: Slotted shaft
- Termination Style: Solder lugs
- Rotation: 300°
Design and Construction
The JA1N200P500UA features a hot-molded carbon composition element, providing a smooth and consistent linear taper. Its robust construction ensures durability and longevity, making it suitable for demanding environments. The potentiometer’s design includes a slotted shaft for easy manual adjustments and solder lug terminals for secure connections.
Applications
This potentiometer is ideal for applications requiring precise control of electrical parameters, such as:
- Audio equipment
- Industrial machinery
- Test and measurement instruments
- Control panels
Its low noise characteristics and reliable performance make it a preferred choice for engineers and technicians seeking quality components for their projects.
Additional Information
The Allen-Bradley JA1N200P500UA is part of the Type J series, known for its versatility and wide range of standard variations, including different resistance values, tapers, and mechanical configurations. This series is designed to meet various application requirements, offering flexibility and reliability in design.
