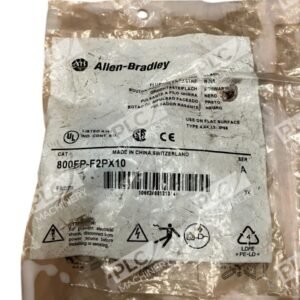

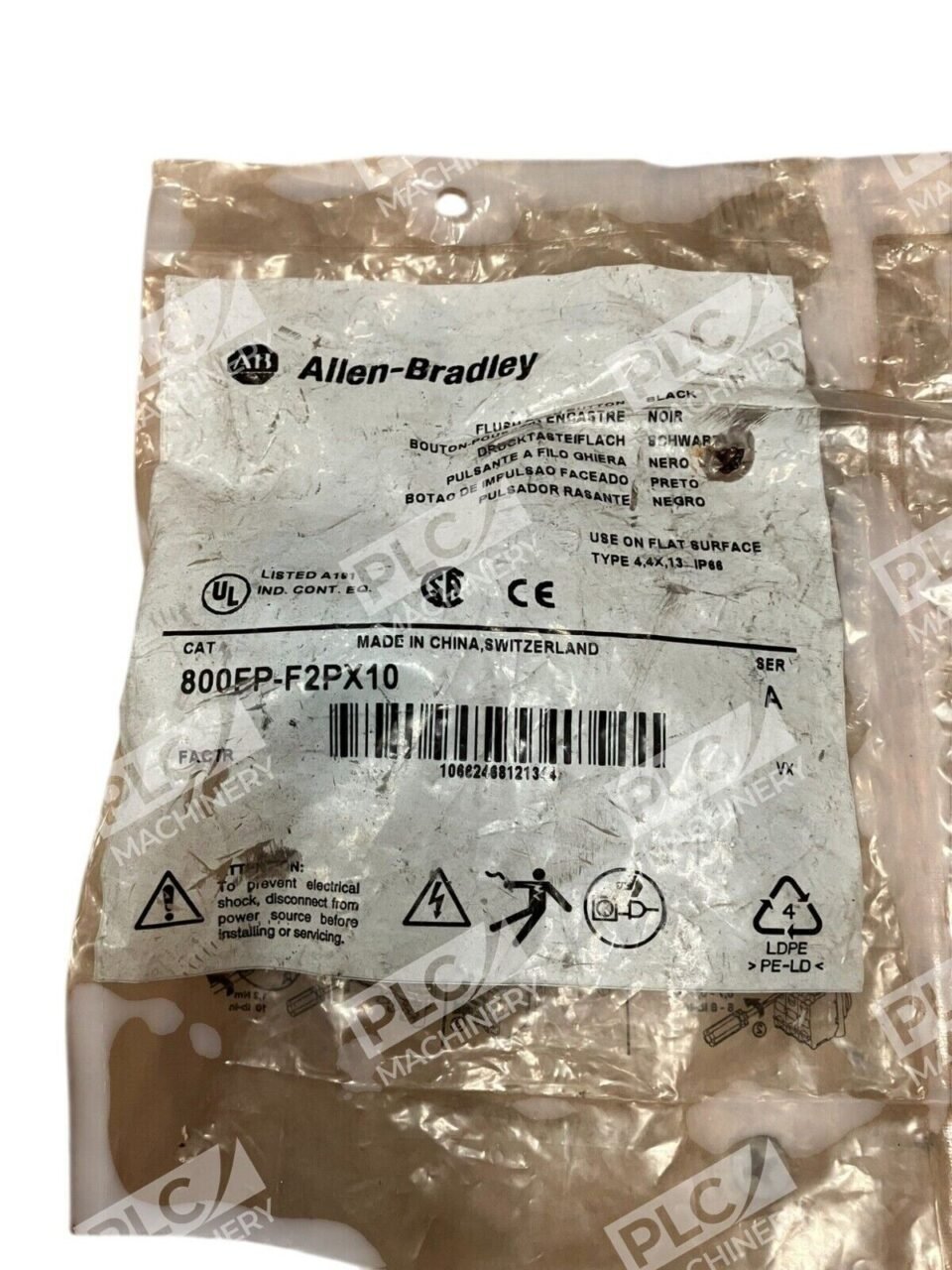

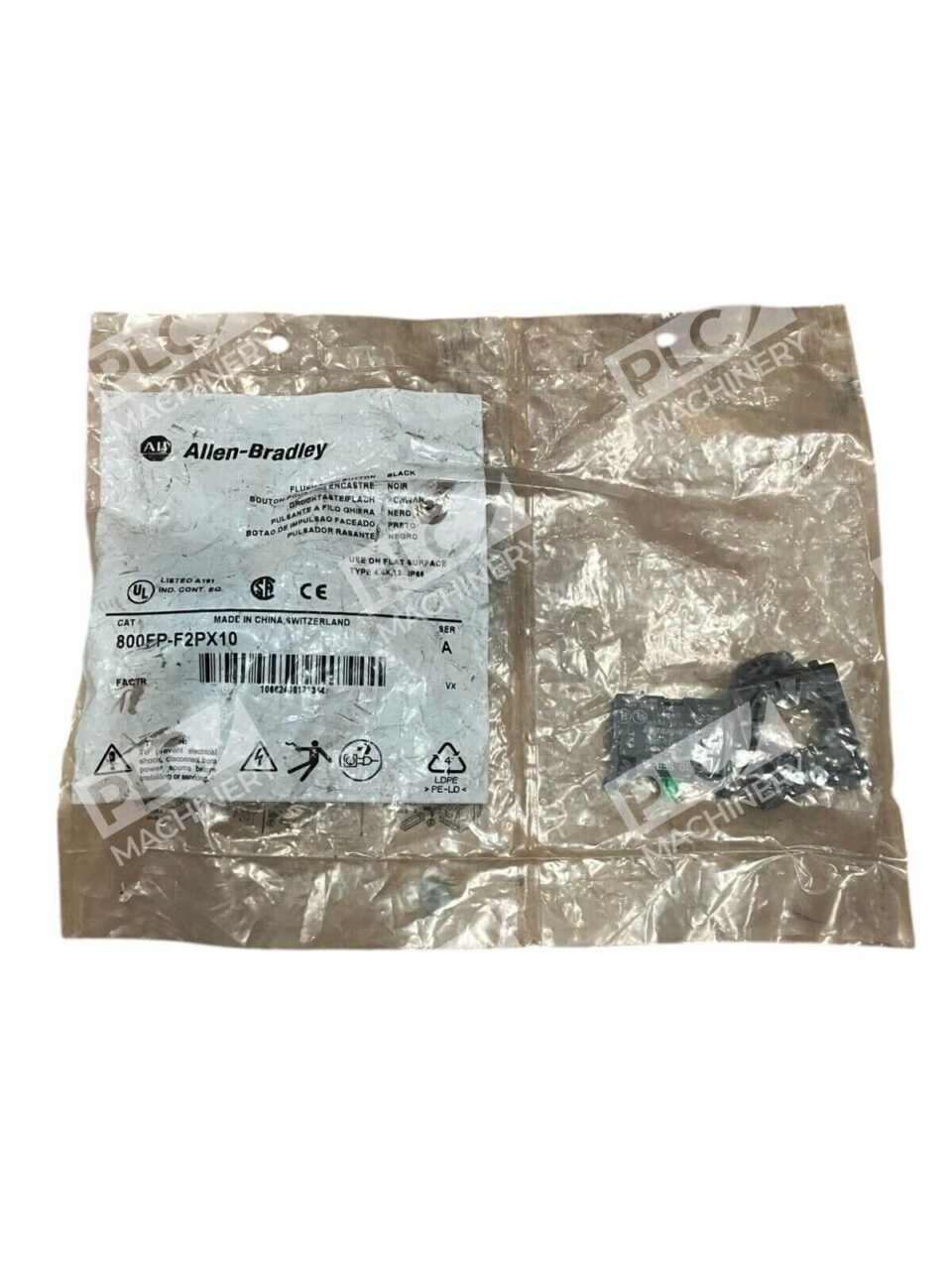

Allen Bradley Black Flush Button 800FP-F2PX10 /A

Allen-Bradley 800FP-F2PX10 Black Flush Push Button

The Allen-Bradley 800FP-F2PX10 is a 22 mm momentary push button designed for industrial applications requiring reliable and durable control components. This non-illuminated, flush push button features a black plastic cap and is constructed from industrial-grade thermoplastic, offering superior chemical resistance and durability.

Key Features

• Operator Type: Flush push-button
• Color: Black
• Material: Plastic
• Contact Configuration: 1 Normally Open (N.O.) contact
• Mounting: Plastic latch mount
• Hole Diameter: 22.5 mm
• Enclosure Compatibility: IP66, Type 4/4X/13
• Electrical Ratings: 10 A thermal current rating; 600V maximum operational voltage
• Certifications: UL, CSA, CE, CCC

Applications

The 800FP-F2PX10 push button is suitable for various industrial control applications, including machinery operation, process control, and automation systems. Its robust design ensures reliable performance in demanding environments.

Installation and Compatibility

Designed for easy installation, this push button fits standard 22.5 mm mounting holes and is compatible with Allen-Bradley’s 800F series components. The plastic latch mount ensures secure attachment, and the screw contact block allows for straightforward wiring connections.

Environmental Specifications

• Operating Temperature: -25°C to +60°C
• Humidity: ≤95% RH from 25°C to 60°C
• Shock Resistance: 100 G
• Vibration Resistance: 10 G

These specifications ensure the push button’s reliability and longevity in various industrial settings.

Certifications

The 800FP-F2PX10 push button meets multiple international standards, including UL, CSA, CE, and CCC certifications, ensuring compliance with safety and performance requirements.

For more detailed information, refer to the product’s technical documentation.
