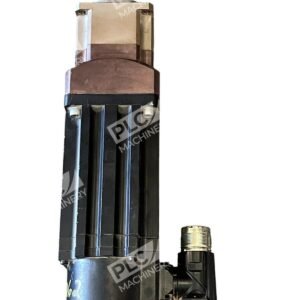

Allen-Bradley VPL-B0751M-PK14AA Servo Motor with Apex Dynamics AB060-S1-P2 Gearbox

The combination of the Allen-Bradley VPL-B0751M-PK14AA servo motor and the Apex Dynamics AB060-S1-P2 gearbox offers a high-performance solution for precision motion control applications. This pairing is designed to deliver optimal efficiency, accuracy, and reliability in demanding industrial environments.

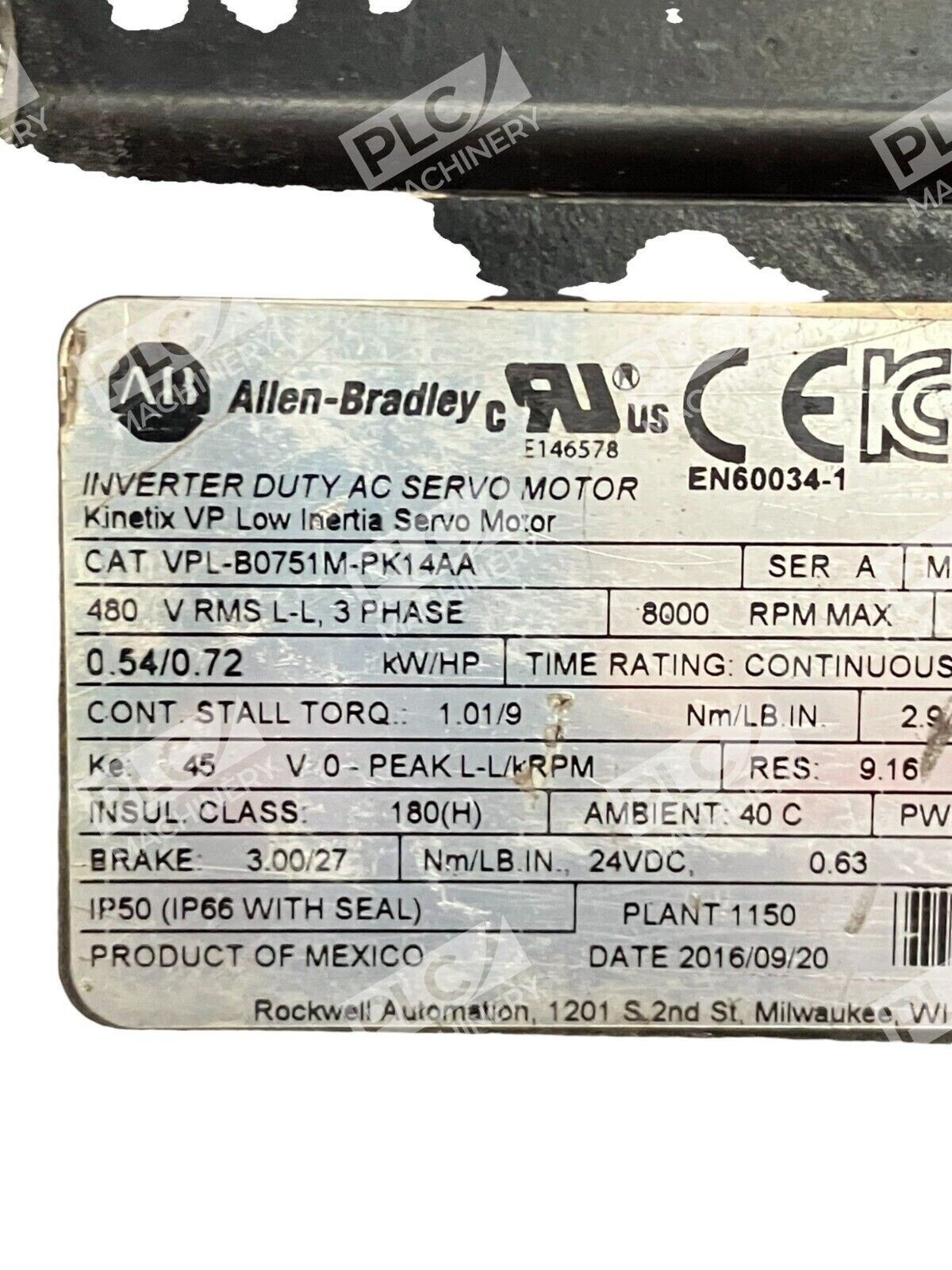

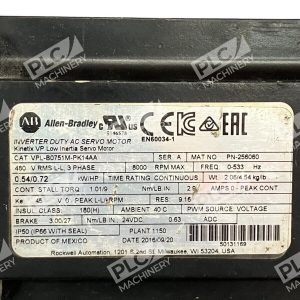

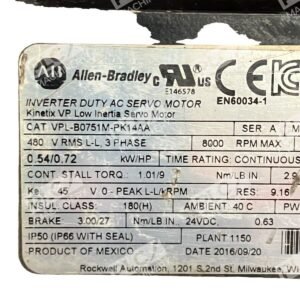

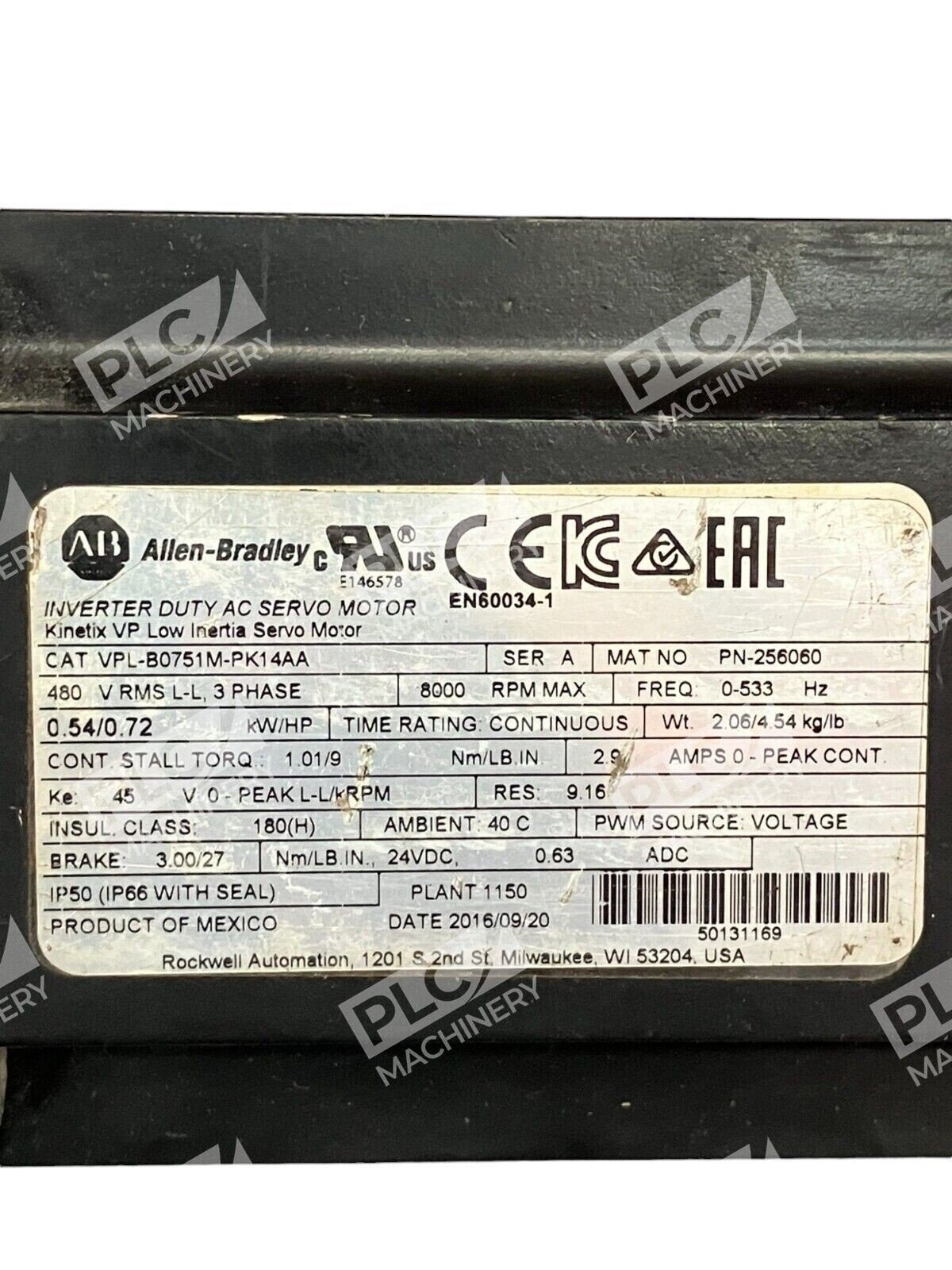

Allen-Bradley VPL-B0751M-PK14AA Servo Motor

The VPL-B0751M-PK14AA is part of Allen-Bradley’s Kinetix VP Low Inertia Servo Motor series, engineered for applications requiring rapid acceleration and deceleration. Key features include:

• Frame Size: 75mm bolt circle
• Magnet Stack: Single (1) magnet stack
• Rated Speed: 6700 RPM
• Feedback Type: 18-bit single-turn and 12-bit multi-turn digital high-resolution encoder
• Shaft Configuration: Keyless shaft
• Connectors: Single SpeedTec DIN connector
• Holding Brake: 24V DC
• Mounting Flange: IEC metric
• Voltage Class: 480V AC

These specifications ensure precise control and high responsiveness, making the motor suitable for a wide range of motion control tasks.

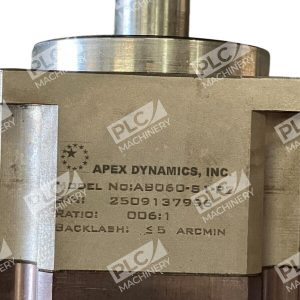

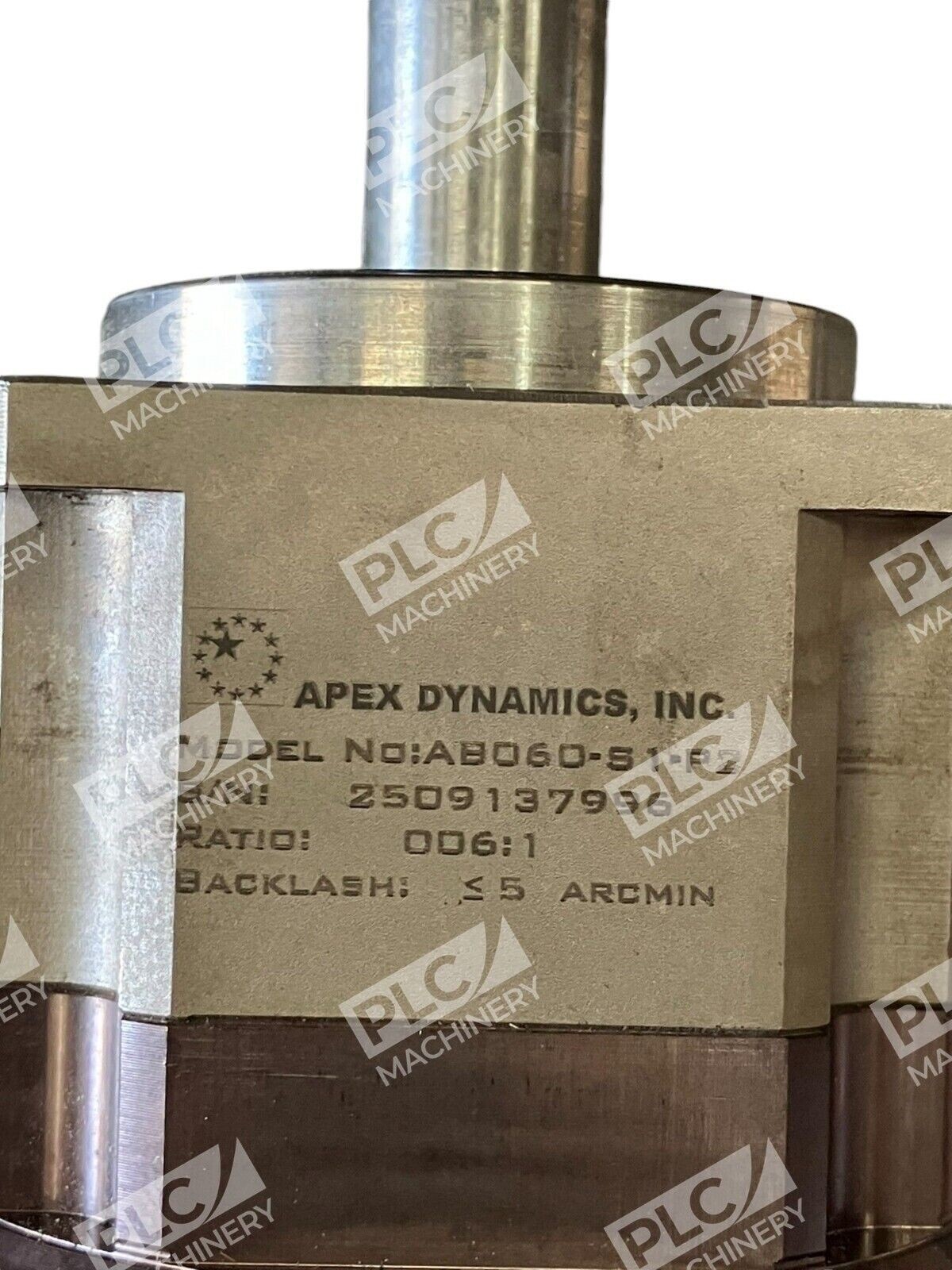

Apex Dynamics AB060-S1-P2 Gearbox

The AB060-S1-P2 is a high-precision planetary gearbox from Apex Dynamics, designed to complement servo motors in applications requiring reduced speed and increased torque. Notable features include:

• Gearbox Size: 60mm
• Output Shaft Option: Smooth output shaft (S1)
• Backlash Class: Standard backlash (P2)
• Ratio Options: Available in various ratios to meet specific application requirements

This gearbox is engineered for high torque transmission with minimal backlash, ensuring accurate and efficient power delivery.

Integrated Solution Benefits

When integrated, the Allen-Bradley VPL-B0751M-PK14AA servo motor and Apex Dynamics AB060-S1-P2 gearbox provide a robust solution for applications demanding precise motion control. The combination offers:

• Enhanced Performance: The low inertia of the servo motor allows for rapid acceleration, while the gearbox provides the necessary torque multiplication.
• High Precision: The high-resolution encoder and low-backlash gearbox ensure accurate positioning and repeatability.
• Versatility: Suitable for various industrial applications, including robotics, packaging, and material handling systems.

This integrated system is designed to meet the rigorous demands of modern automation, delivering reliable and efficient performance across diverse applications.
