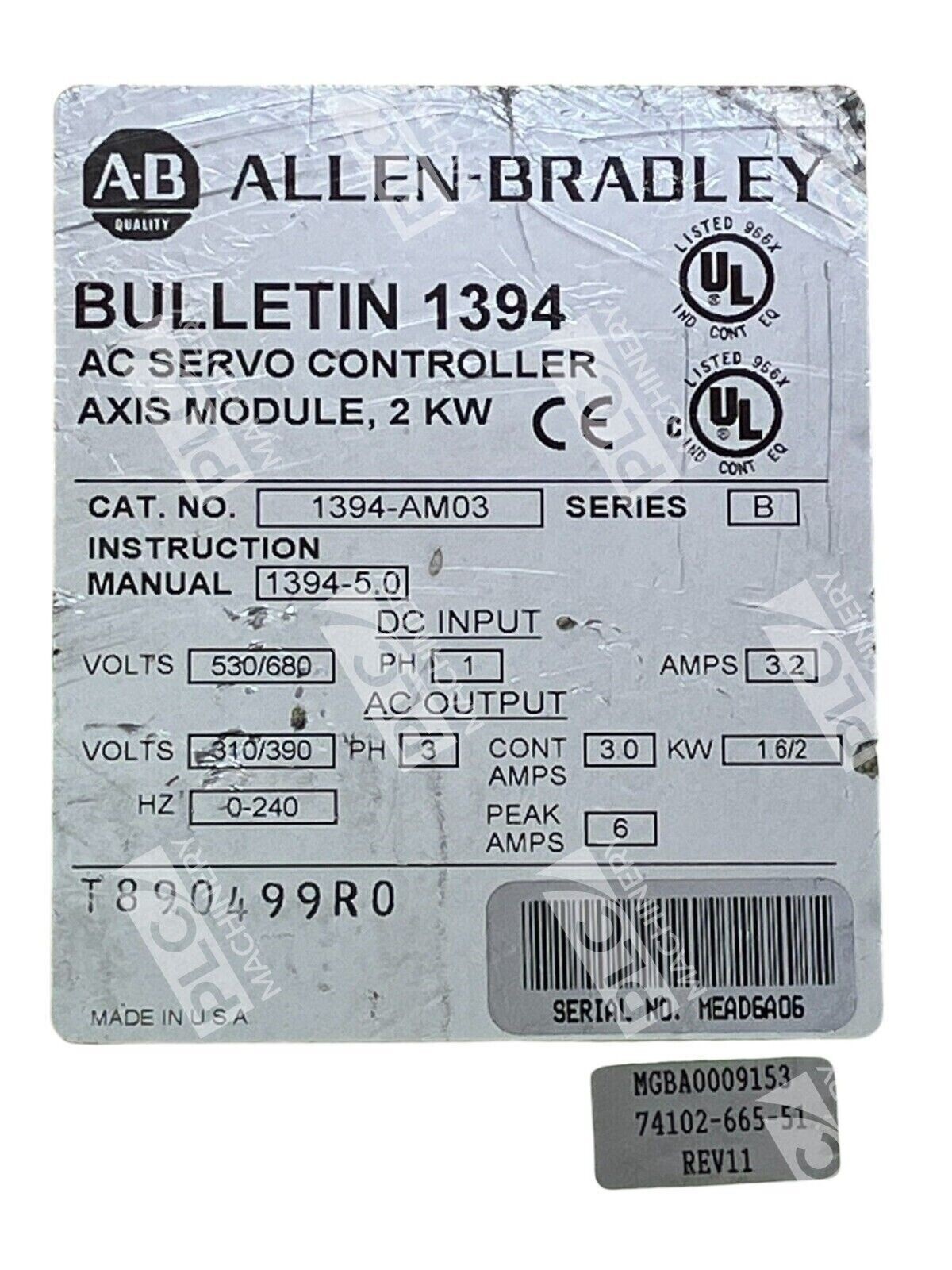

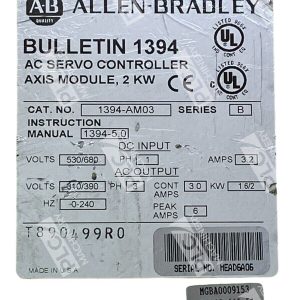

The Allen-Bradley 1394-AM03/B is a high-performance AC Servo Controller Axis Module designed to deliver precise motion control in industrial automation systems.
Key Features
- Power Output: 2 Kilowatts, suitable for demanding servo applications.
- Input Voltage: Operates within a DC input range of 530 to 680 Volts.
- Current Capacity: Continuous output current of 3 Amperes, with a peak capacity of 6 Amperes.
- Efficiency: Achieves an efficiency rating of 98%, ensuring minimal energy loss during operation.
- Compact Design: Measures 13.78 x 11.02 x 1.97 inches and weighs approximately 11.02 lbs, facilitating easy integration into existing systems.
Performance Specifications
- Speed Regulation: Maintains speed within 0-0.05% of base speed, even under 100% torque disturbance, ensuring consistent performance.
- Capacitance: Equipped with a 110 µF capacitor to support stable voltage levels.
- Static Gain: Features a static gain of 1.28 RMS A/mV, contributing to precise control responsiveness.
Applications
The 1394-AM03/B is ideal for various industrial applications, including:
- Material handling systems
- High-speed packaging machinery
- Press load/unload operations
- Converting equipment
Its robust design and reliable performance make it a valuable component in complex motion control environments.
Integration and Compatibility
Designed for seamless integration, the 1394-AM03/B utilizes a slide-and-lock mechanism, reducing wiring complexity and enhancing system reliability. It is compatible with various servo motors and can be incorporated into multi-axis motion control systems, supporting up to four high-performance axes.
In summary, the Allen-Bradley 1394-AM03/B AC Servo Controller Axis Module offers a combination of power, precision, and efficiency, making it a suitable choice for advanced industrial automation applications.
