Allen Bradley AB Twist Lock E-Stop 800F-X01S /A

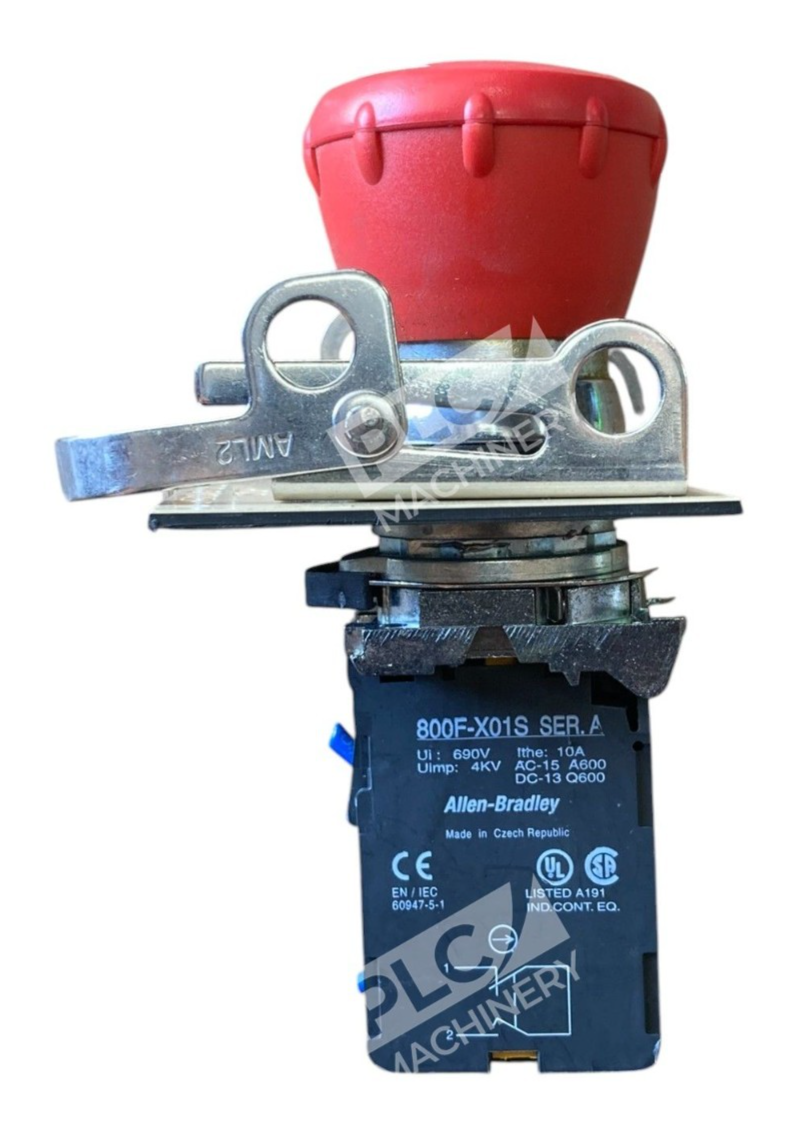

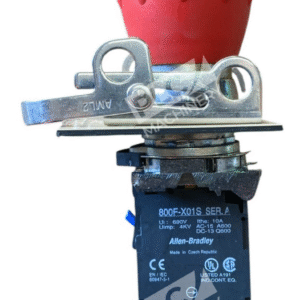

Allen-Bradley 800F-X01S Twist Lock E-Stop Contact Block

The Allen-Bradley 800F-X01S is a 22mm contact block designed for use with emergency stop (E-Stop) push buttons in industrial automation systems. This self-monitoring, normally closed (NC) contact block ensures reliable performance and safety in critical applications.

Key Features

• Self-Monitoring Functionality: Enhances safety by continuously checking the integrity of the contact block, ensuring proper operation of the E-Stop mechanism.
• Normally Closed Contact Configuration: Provides a fail-safe design, opening the circuit when the E-Stop is activated to halt machinery operation.
• Latch Mounting Style: Facilitates secure and straightforward installation onto compatible push button operators.
• Screw Termination: Allows for secure and reliable wiring connections, accommodating wire sizes ranging from #18 to #12 AWG (0.75 to 2.5 mm²).
• Durability: Engineered for longevity with a mechanical durability rating of 10 million operations, suitable for demanding industrial environments.

Electrical Specifications

• Operational Voltage: Up to 600V AC/DC, supporting various industrial power requirements.
• Thermal Current Rating: 10 A, ensuring compatibility with standard industrial control circuits.
• Utilization Categories: Rated for A600 (AC-15) and Q600 (DC-13) applications, indicating suitability for controlling electromagnetic loads.

Environmental and Mechanical Specifications

• Operating Temperature Range: -25°C to 60°C, allowing for use in diverse environmental conditions.
• Storage Temperature Range: -40°C to 85°C, ensuring stability during storage and transport.
• Humidity Tolerance: Up to 95% relative humidity from 25°C to 60°C, suitable for humid environments.
• Vibration Resistance: Withstands vibrations up to 10 g, ensuring reliable operation in dynamic settings.
• Shock Resistance: Rated for shocks up to 100 g, providing resilience against mechanical impacts.

Certifications

The 800F-X01S contact block meets multiple international standards, including UL, UR, CSA, CCC, and CE certifications, ensuring compliance with global safety and performance requirements.

In summary, the Allen-Bradley 800F-X01S Twist Lock E-Stop Contact Block offers a robust and reliable solution for enhancing safety in industrial automation systems, combining self-monitoring capabilities with durable construction and versatile electrical specifications.
