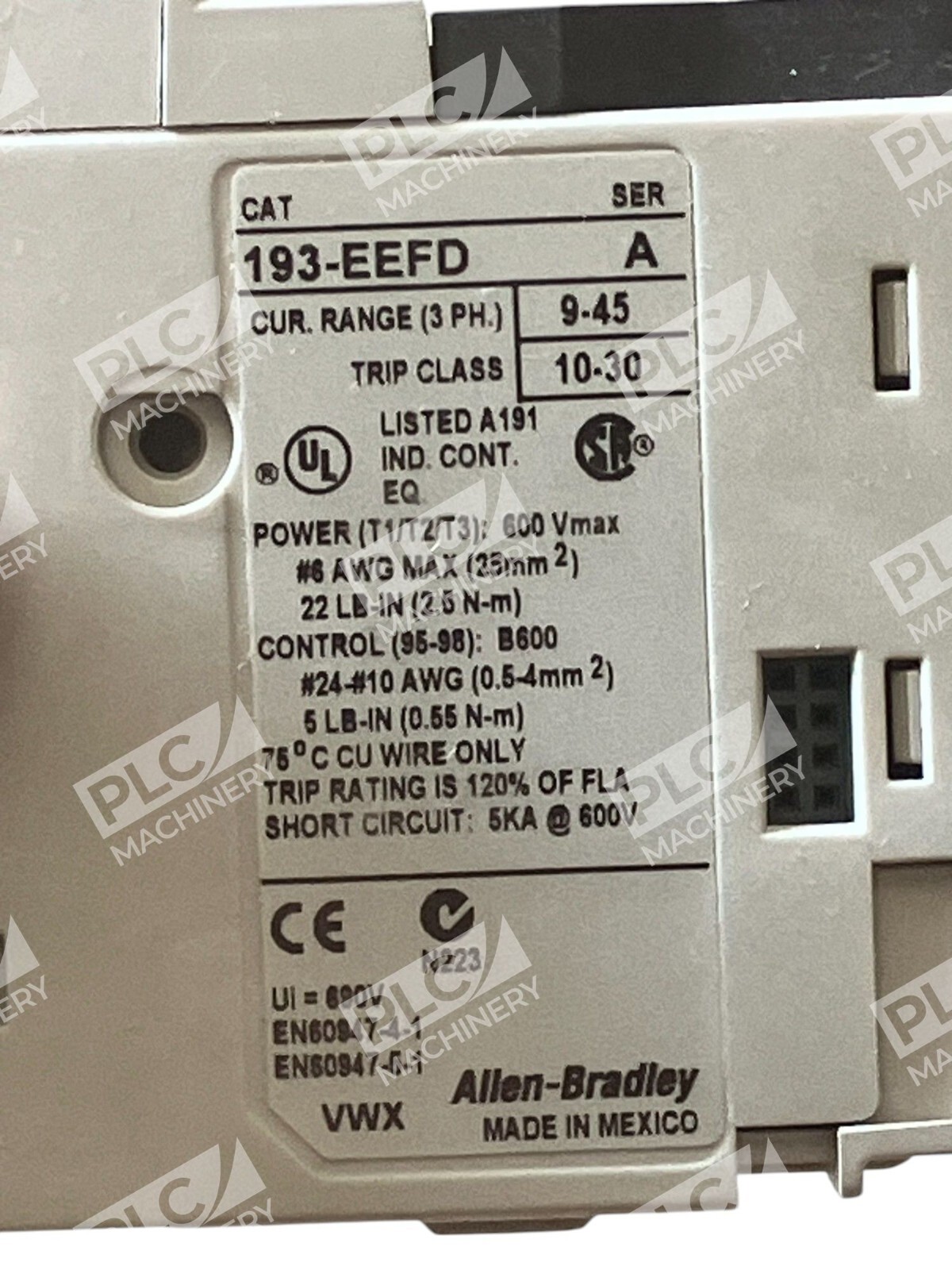

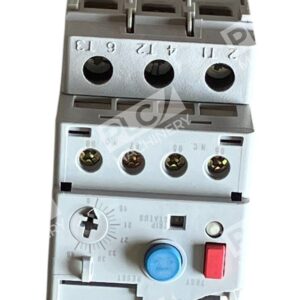

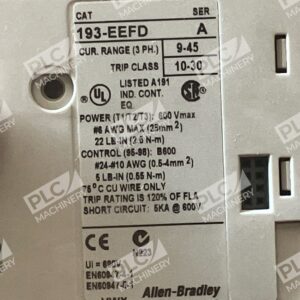

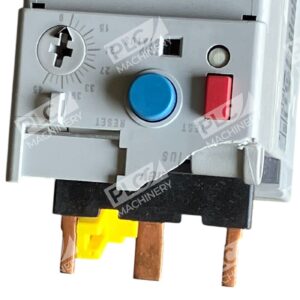

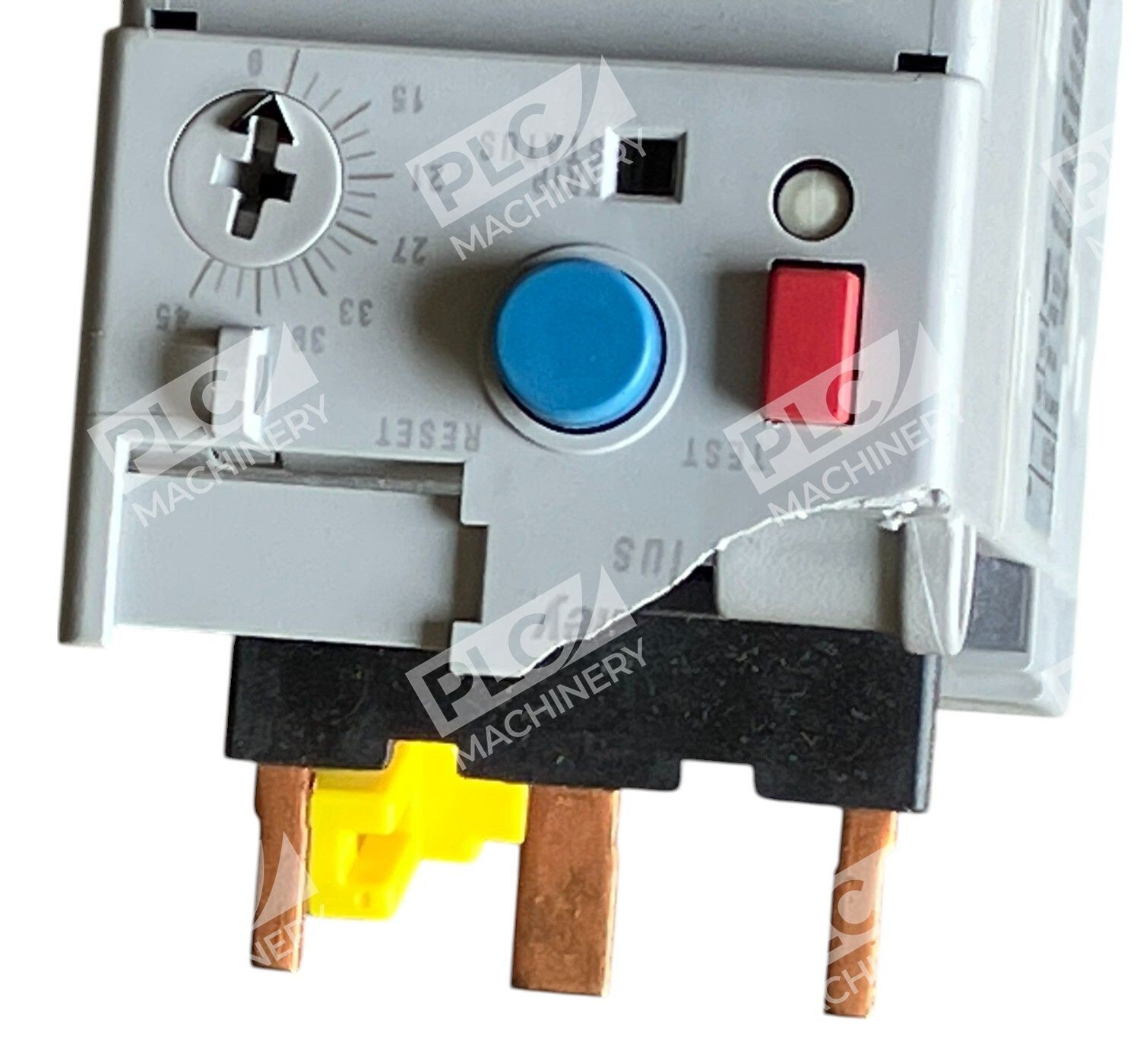

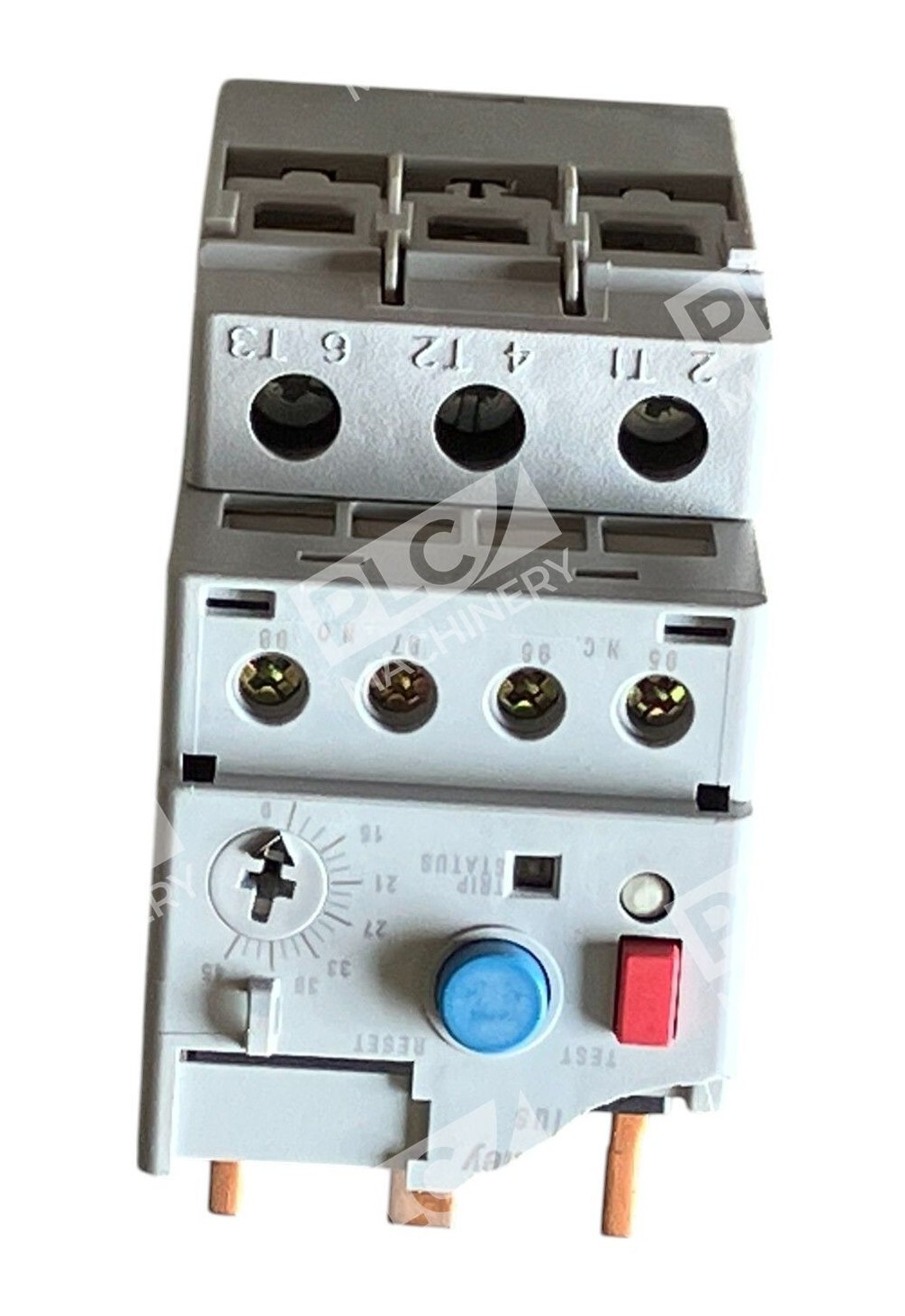

Allen-Bradley 193-EEFD E1 Plus Overload Relay
The Allen-Bradley 193-EEFD is a solid-state overload relay designed to provide reliable protection for three-phase motors. This device offers a comprehensive current adjustment range and selectable trip classes, making it suitable for various industrial applications.
Key Features
- Current Adjustment Range: 9 to 45 Amperes
- Selectable Trip Classes: 10, 15, 20, and 30
- Reset Options: Automatic and Manual
- Control Terminals: Screw-type
- Compatibility: Mounts directly to 100-C30, 100-C37, and 100-C43 contactors
Design and Functionality
The 193-EEFD overload relay is engineered to safeguard motors by detecting and responding to overcurrent conditions. Its solid-state design ensures precise and consistent performance, while the wide current adjustment range allows for flexibility in various motor protection scenarios. The selectable trip classes enable customization of the relay’s response time to overcurrent events, catering to specific application requirements.
Installation and Compatibility
Designed for seamless integration, the 193-EEFD mounts directly onto Allen-Bradley 100-C30, 100-C37, and 100-C43 contactors. The screw-type control terminals facilitate straightforward wiring, ensuring a secure and reliable connection. This compatibility simplifies the installation process and enhances system reliability.
Applications
The Allen-Bradley 193-EEFD overload relay is ideal for protecting three-phase motors in various industrial settings, including manufacturing plants, processing facilities, and other environments where motor protection is critical. Its adjustable settings and robust design make it a versatile choice for ensuring motor longevity and operational safety.
