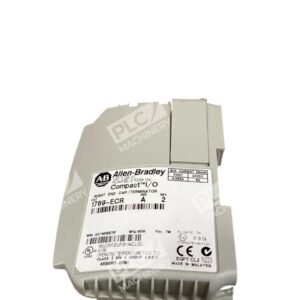

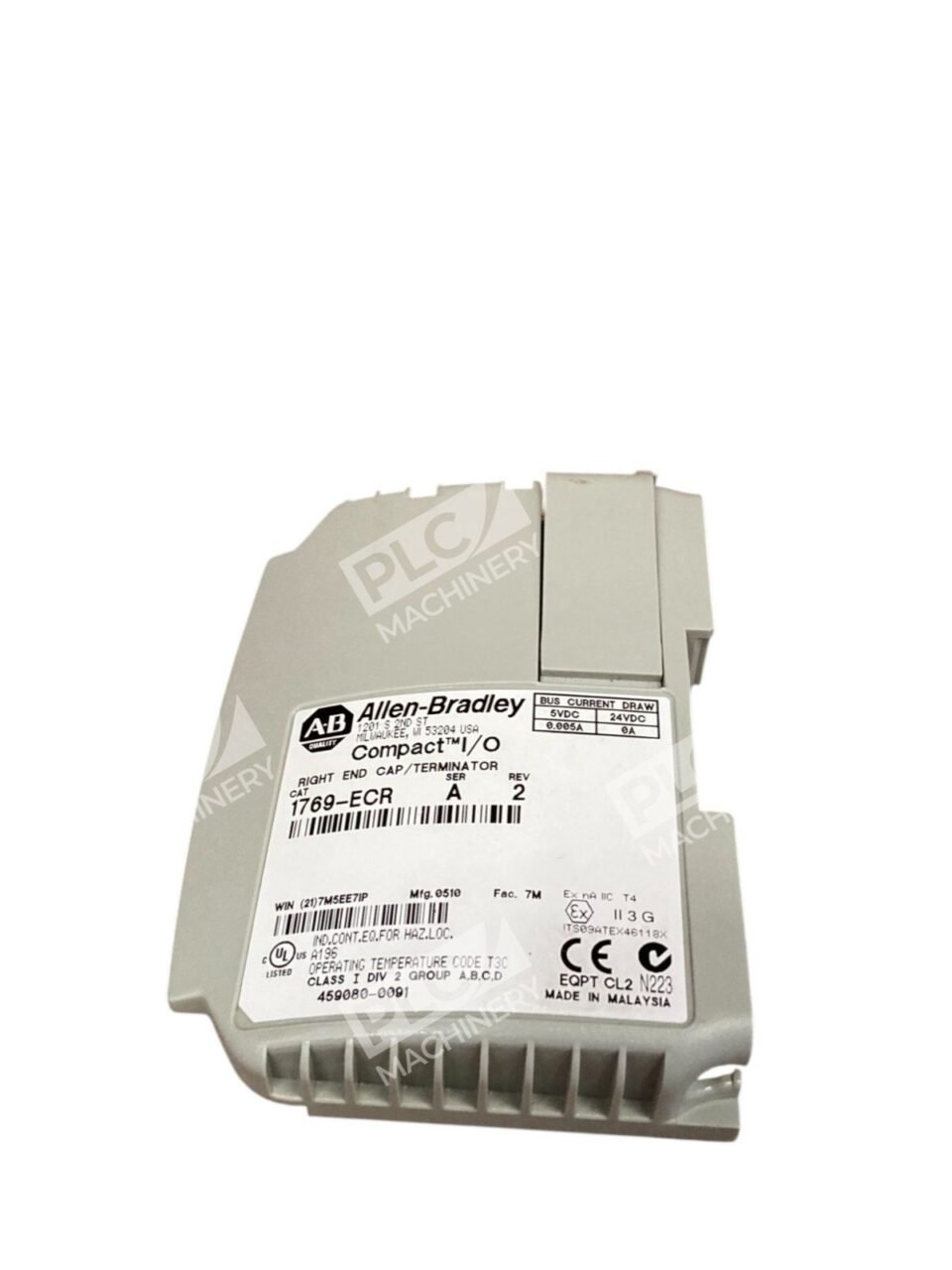

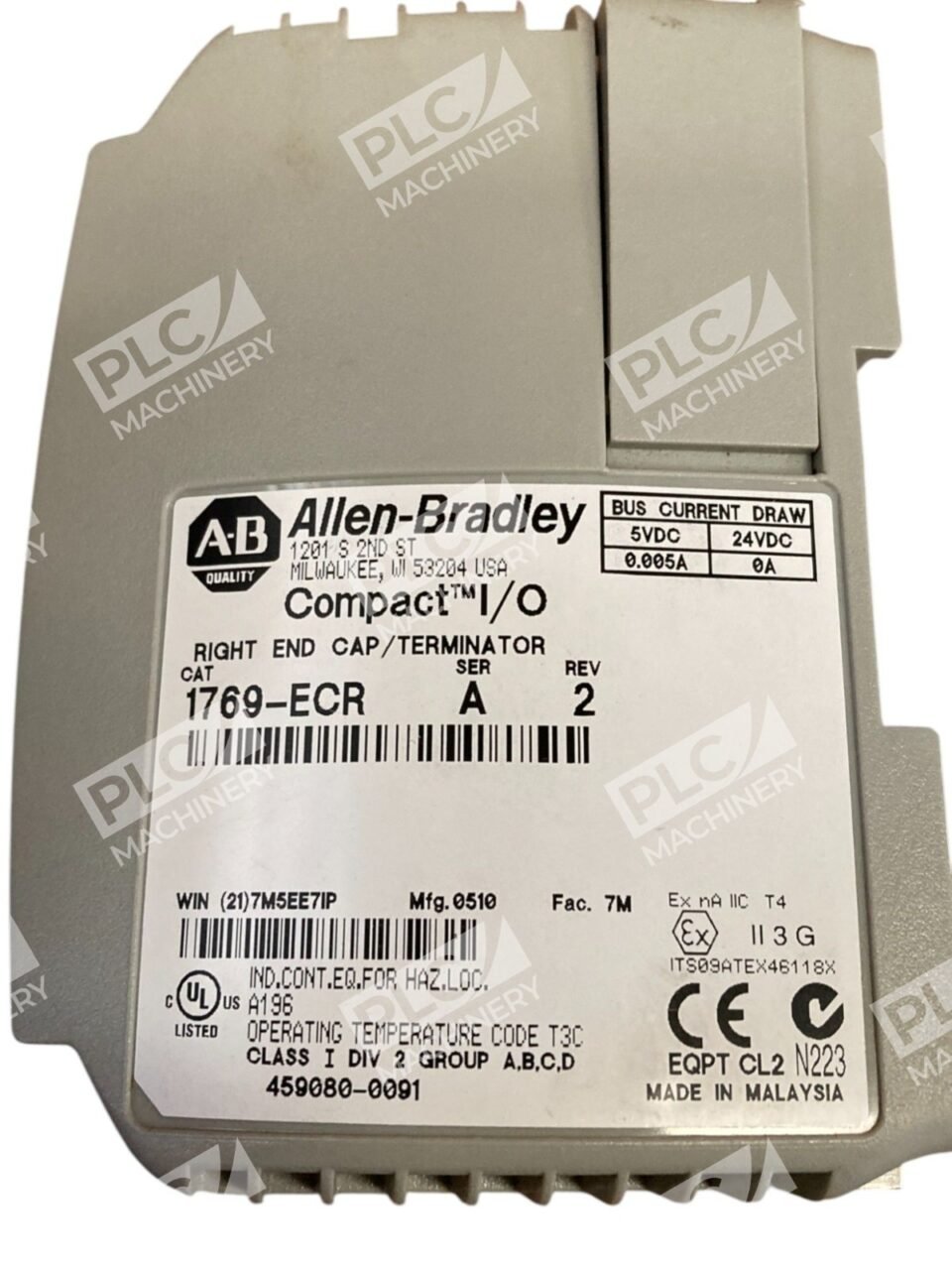

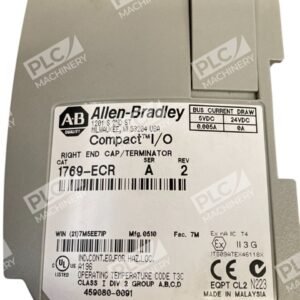

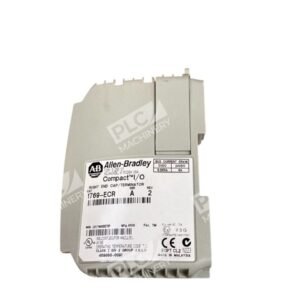

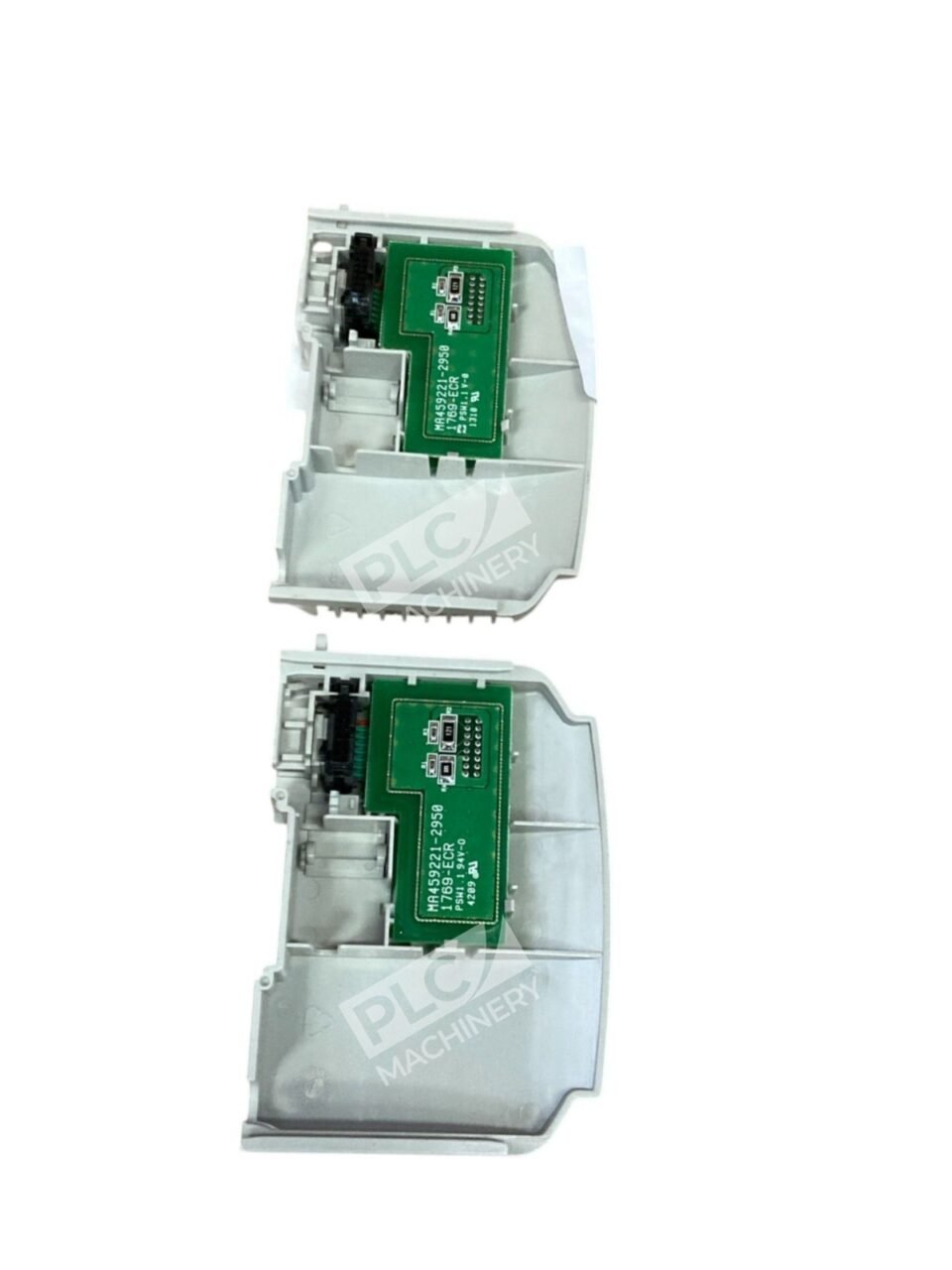

Allen Bradley AB Right End Cap Terminator Compact I/O 1769-ECR /A (lot of 2)

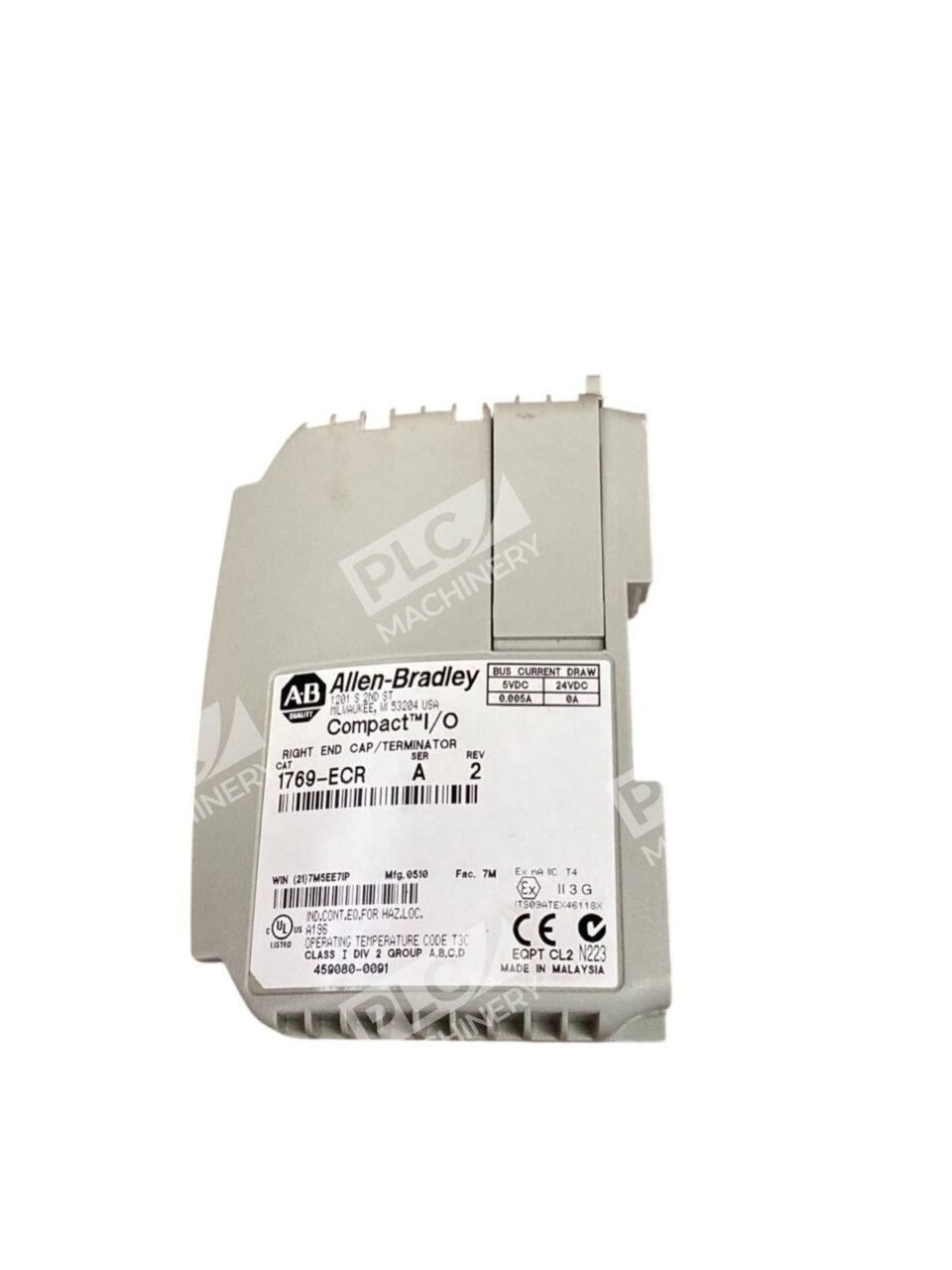

Allen-Bradley 1769-ECR Compact I/O Right End Cap/Terminator (Lot of 2)

The Allen-Bradley 1769-ECR is a right end cap/terminator designed for use with CompactLogix and Compact I/O 1769 systems. This component is essential for terminating the end of the communication bus, ensuring proper signal integrity and optimal system performance in modular controller configurations.

Key Features

• Function: Terminates the end of the 1769 I/O communication bus.
• Compatibility: Suitable for CompactLogix controllers and 1769 I/O modules.
• Installation: Easily attaches to the right end of the I/O bank.
• Operating Temperature: 0°C to +60°C (32°F to 140°F).
• Dimensions: Approximately 6.35 cm (H) x 13.97 cm (W) x 16.51 cm (L).
• Weight: Approximately 0.136 kg.

Technical Specifications

• Catalog Number: 1769-ECR.
• Series: CompactLogix.
• Current Draw:
  • 5V DC: 5 mA.
  • 24V DC: 0 mA.
• Certifications: CE, UL, c-UL, Class I Div 2, ATEX.

Applications

• CompactLogix Systems: Ensures proper termination of the communication bus in modular controller setups.
• 1769 I/O Configurations: Essential for maintaining signal integrity in 1769 I/O module assemblies.

Why Choose the Allen-Bradley 1769-ECR?

• Ensures System Integrity: Proper termination of the communication bus is crucial for reliable system performance.
• Easy Installation: Designed for straightforward attachment to the right end of 1769 I/O banks.
• Robust Design: Built to withstand industrial environments with appropriate certifications.

By purchasing this lot of two Allen-Bradley 1769-ECR units, you can ensure that your CompactLogix systems are properly terminated, maintaining optimal performance and reliability.
