Allen Bradley AB Right End Cap Terminator Compact I/O 1769-ECR /A

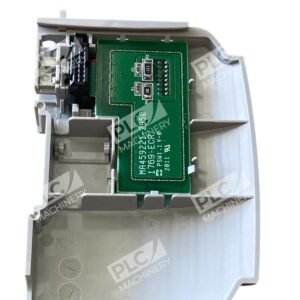

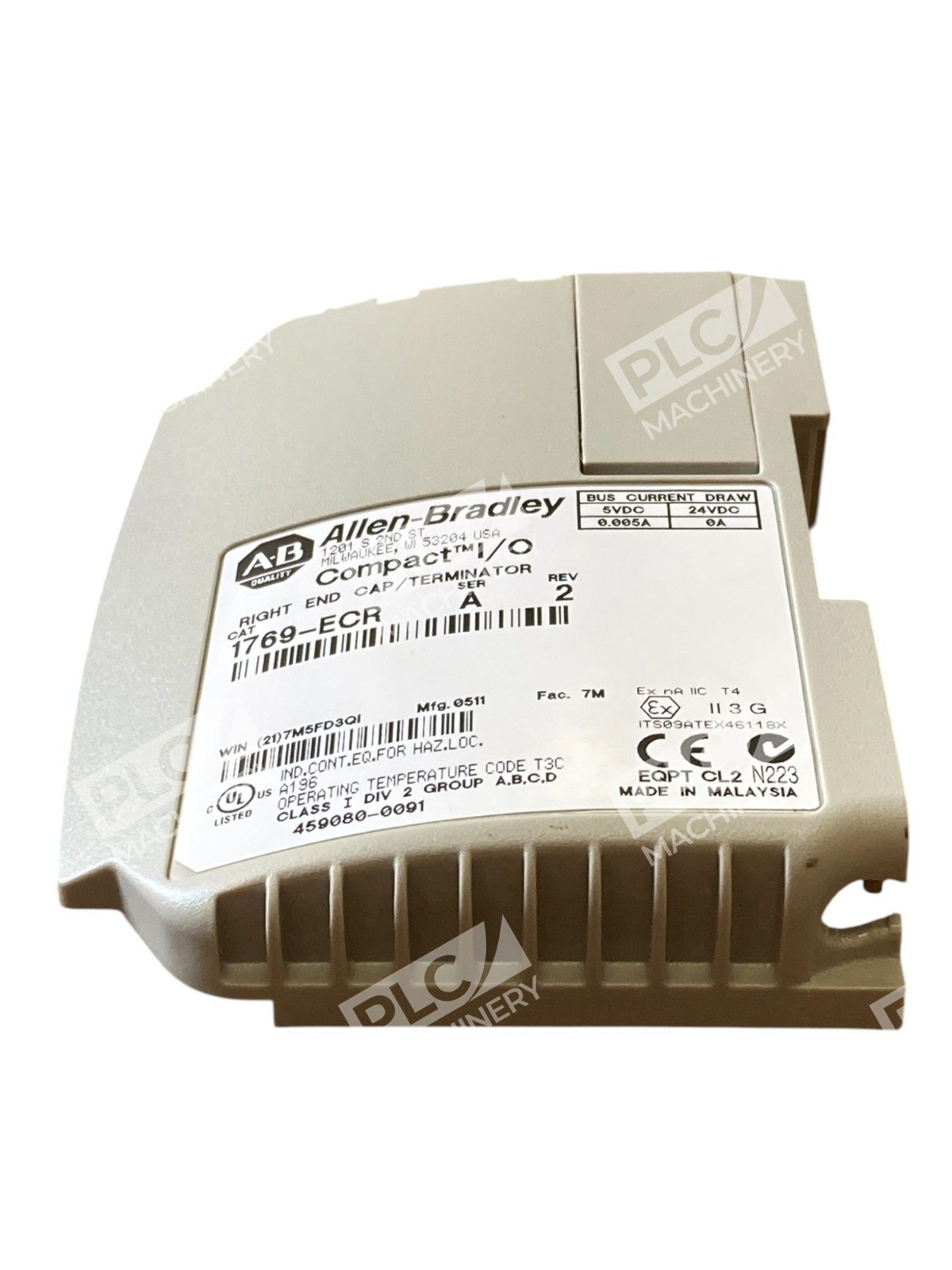

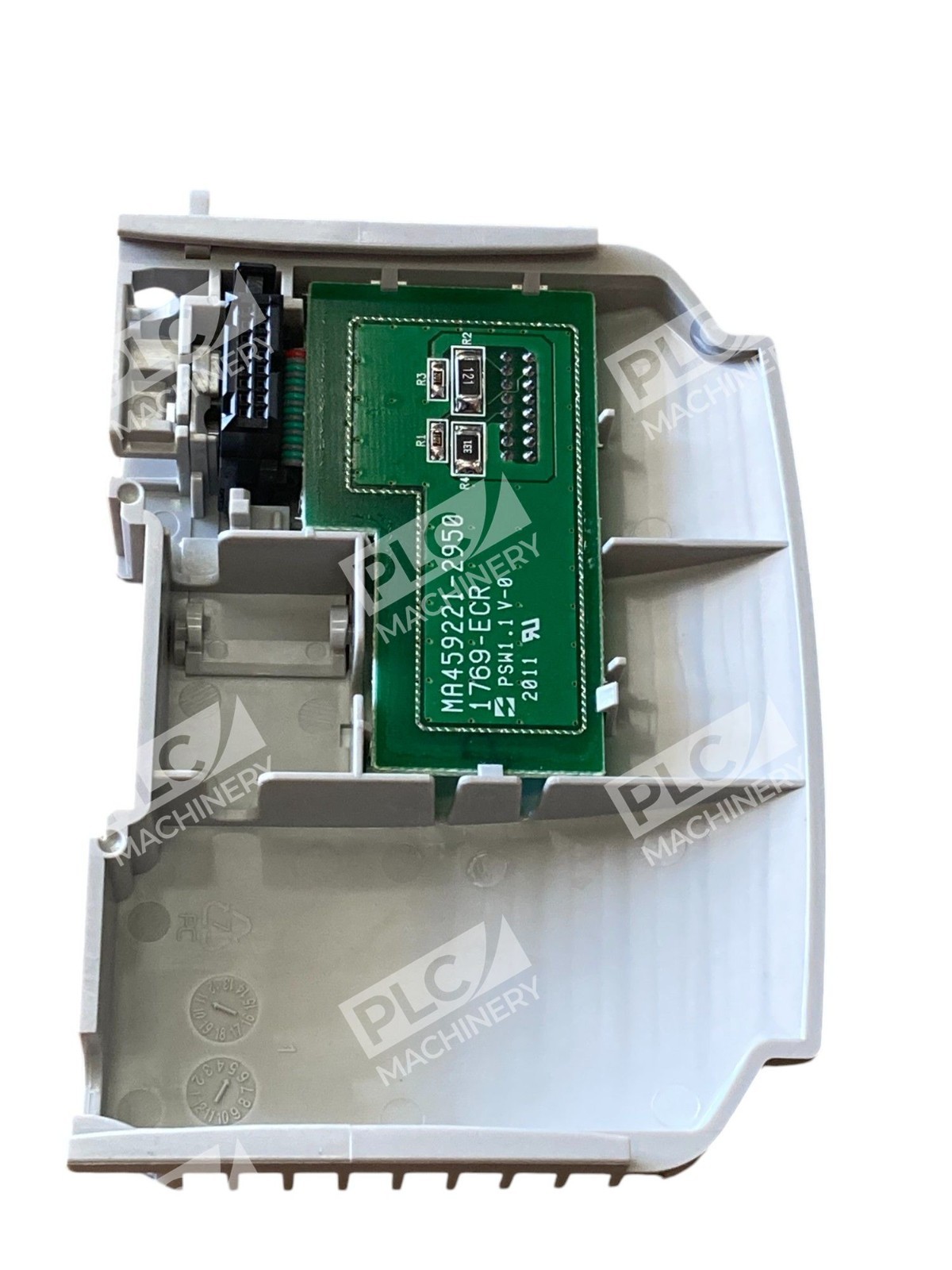

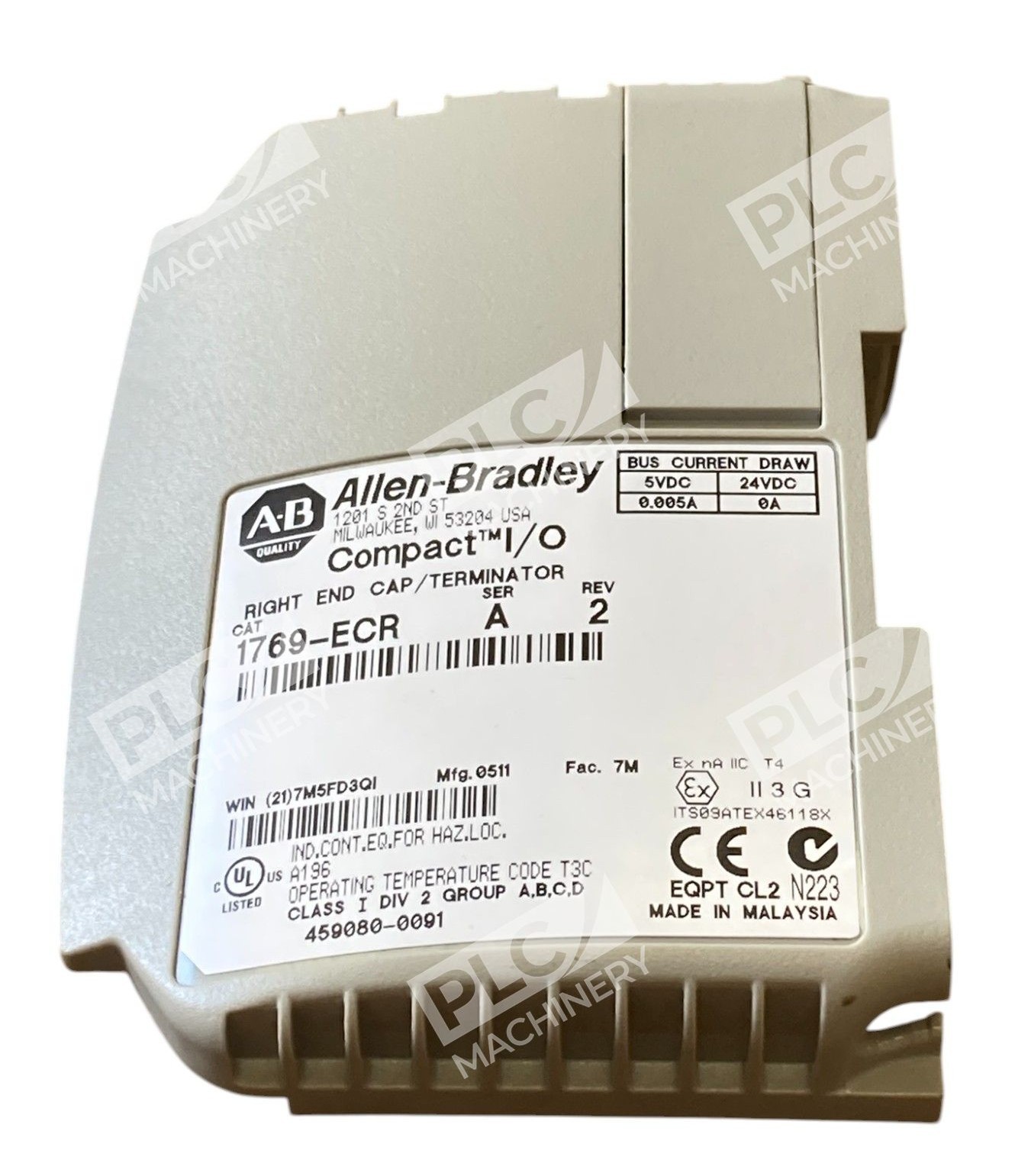

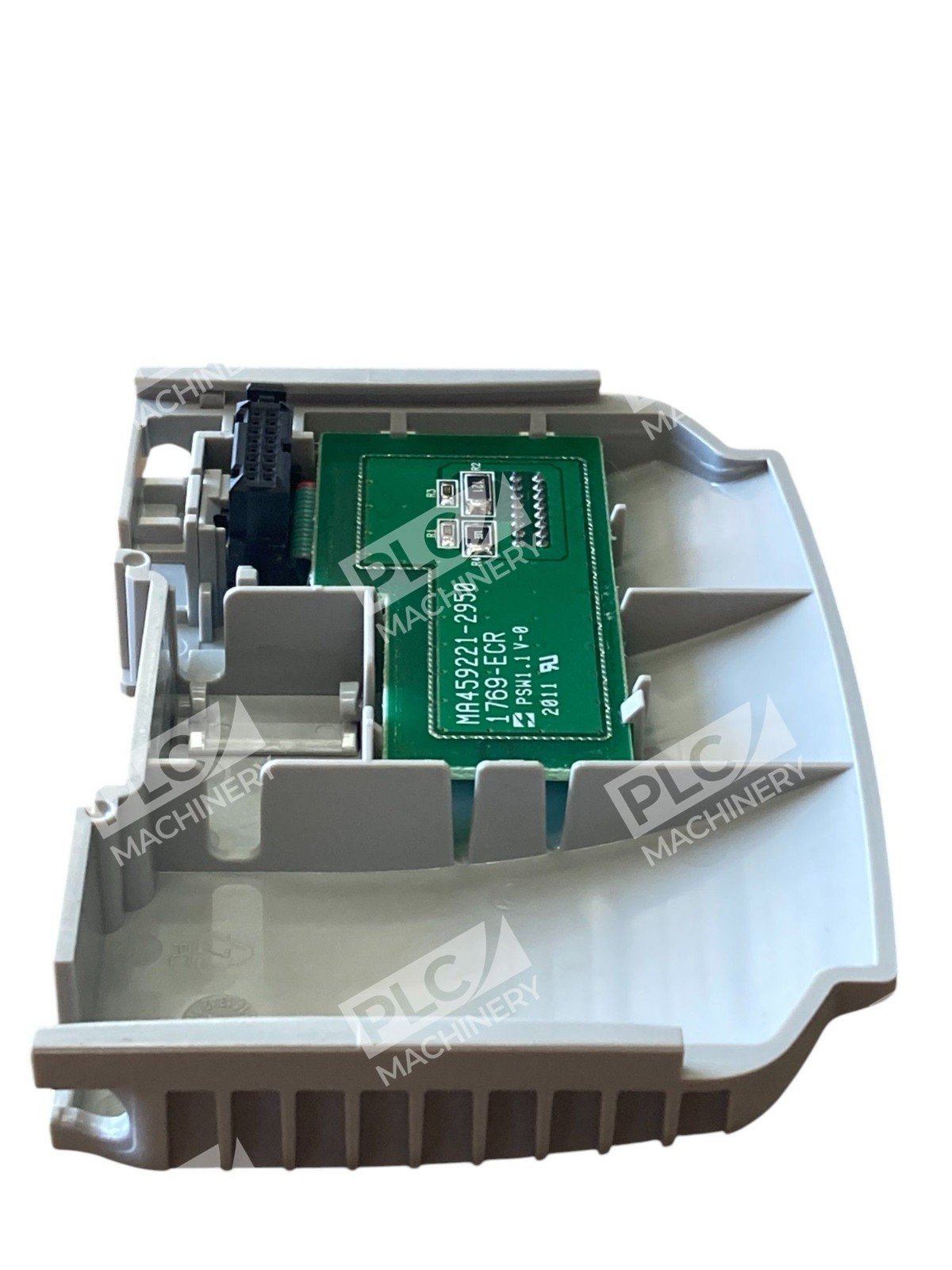

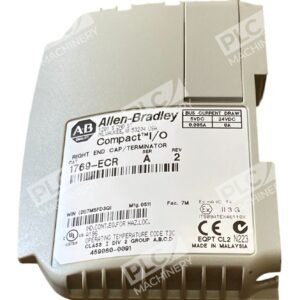

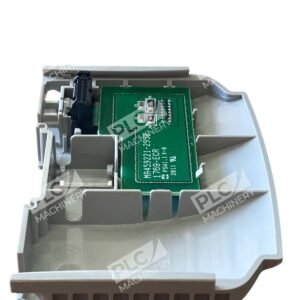

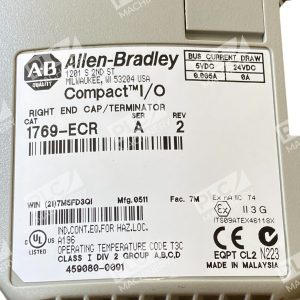

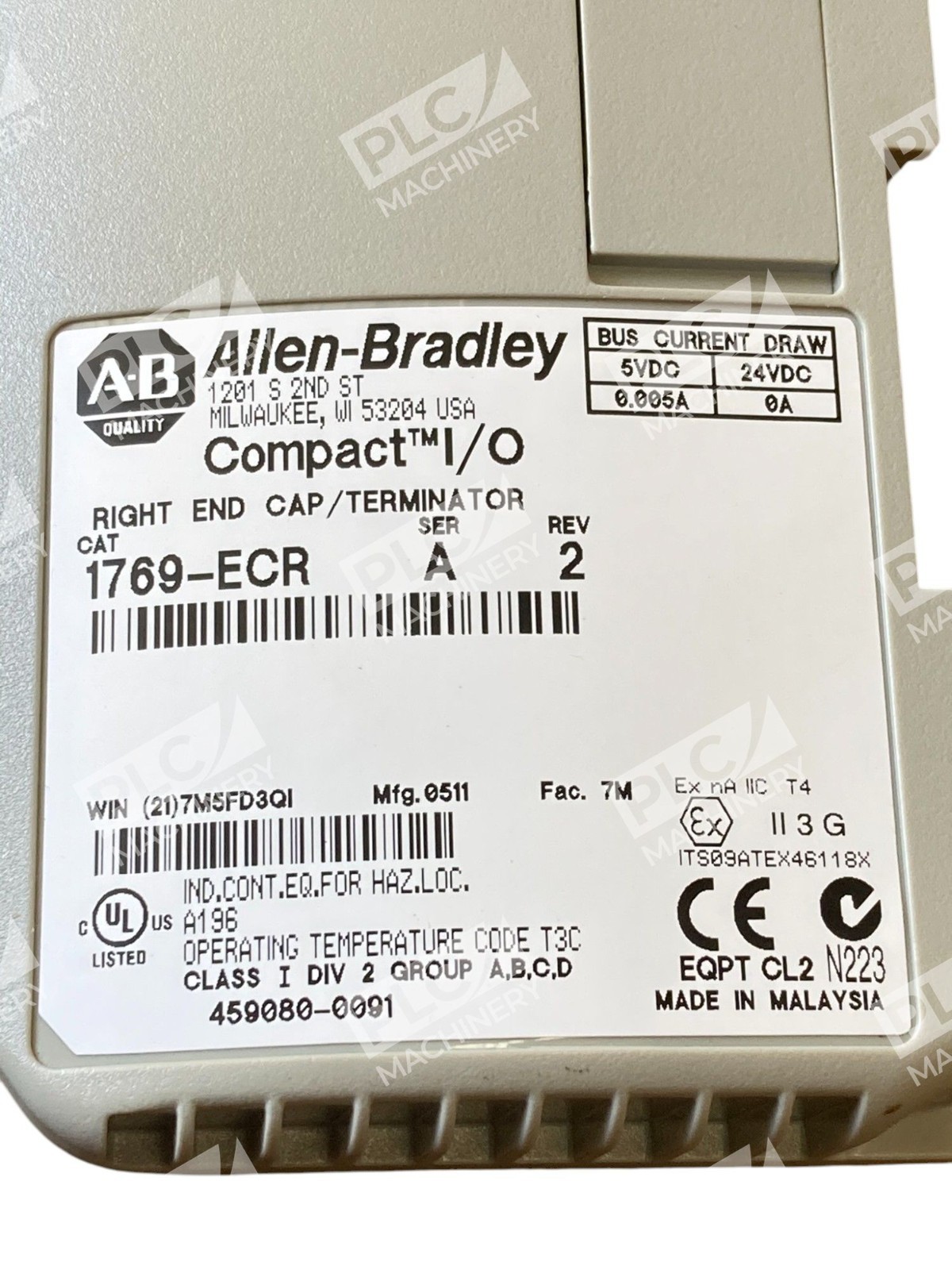

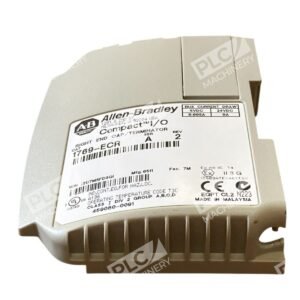

Allen-Bradley 1769-ECR Right End Cap Terminator

The Allen-Bradley 1769-ECR is a right end cap terminator designed for use with CompactLogix and MicroLogix 1500 systems. It serves as a critical component in terminating the communication bus at the end of a series of I/O modules, ensuring proper signal integrity and system performance.

Key Features

• Functionality: Terminates the end of the 1769 I/O communication bus, completing the system’s modular configuration.
• Compatibility: Compatible with CompactLogix controllers and 1769 I/O modules, facilitating seamless integration.
• Installation: Easily attaches to the right end of the I/O bank, supporting both DIN rail and panel mounting options.
• Operating Temperature: Designed to operate within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for various industrial environments.
• Current Draw: Minimal power consumption with a current draw of 5 mA at 5.1V DC and 0 mA at 24V DC.
• Certifications: Meets standards including CE, UL, c-UL, Class I Div 2, ATEX, ensuring compliance with international safety and performance regulations.

Technical Specifications

• Catalog Number: 1769-ECR
• Series: CompactLogix
• Dimensions:
  • Height: 118 mm (4.65 in)
  • Width: 32 mm (1.26 in)
  • Depth: 87 mm (3.43 in)
• Weight: Approximately 0.136 kg (0.3 lbs)
• Operating Altitude: Up to 2000 meters (6562 feet)
• Enclosure Type Rating: Open-style (IP20)

Applications

• CompactLogix Systems: Ensures proper termination of the communication bus in modular controller setups.
• 1769 I/O Configurations: Essential for maintaining signal integrity in 1769 I/O module assemblies.
• Industrial Automation: Suitable for various industrial automation systems requiring reliable bus termination.

Why Choose the Allen-Bradley 1769-ECR?

• Ensures System Integrity: Proper termination of the communication bus is crucial for reliable system performance.
• Easy Installation: Designed for straightforward attachment to the right end of 1769 I/O banks.
• Robust Design: Built to withstand industrial environments with appropriate certifications.
• Compact and Lightweight: Its compact size and lightweight design make it easy to handle and install.

The Allen-Bradley 1769-ECR Right End Cap Terminator is an essential component for maintaining the integrity and performance of your CompactLogix and MicroLogix 1500 systems, ensuring reliable operation in various industrial applications.
