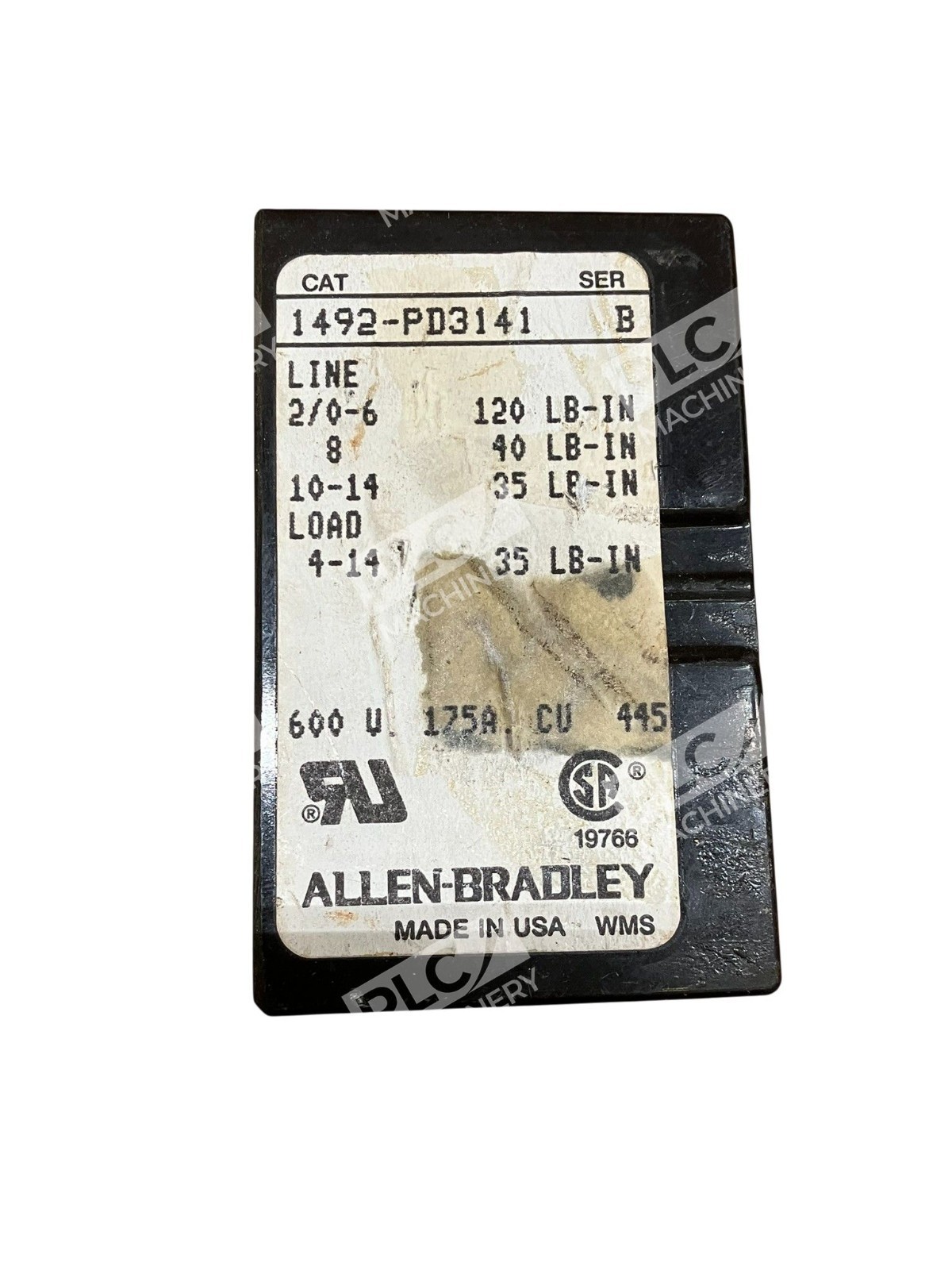

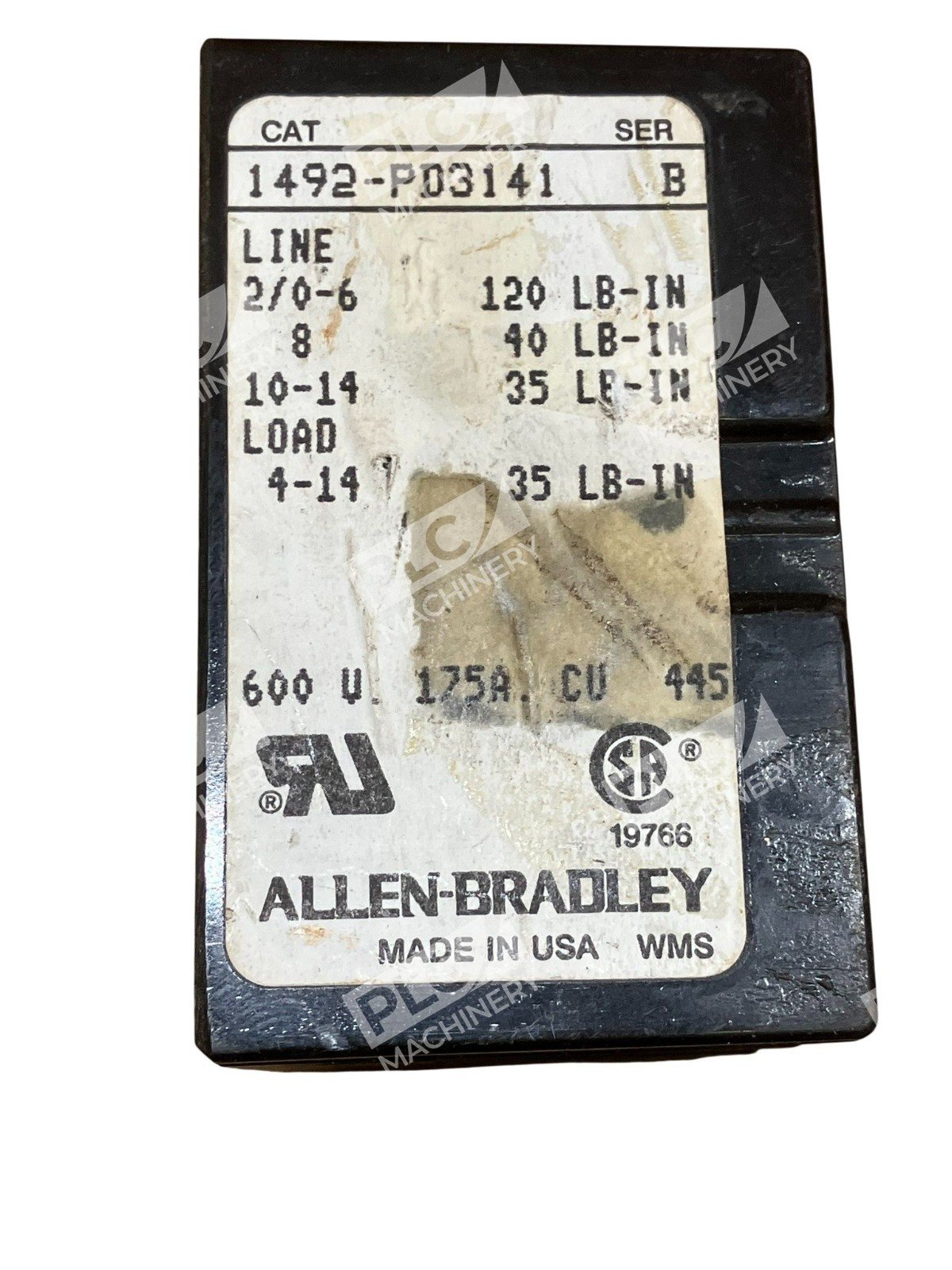

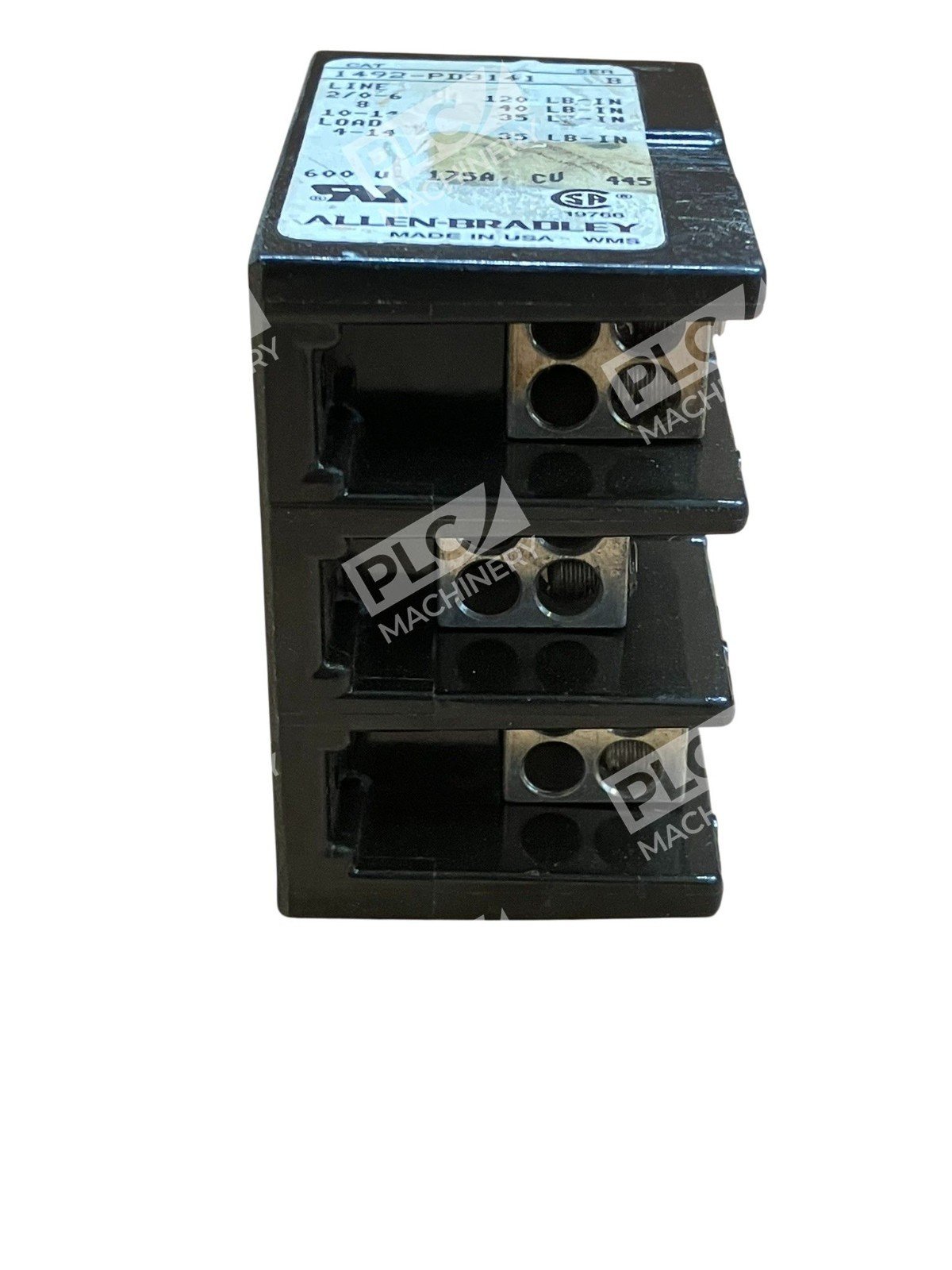

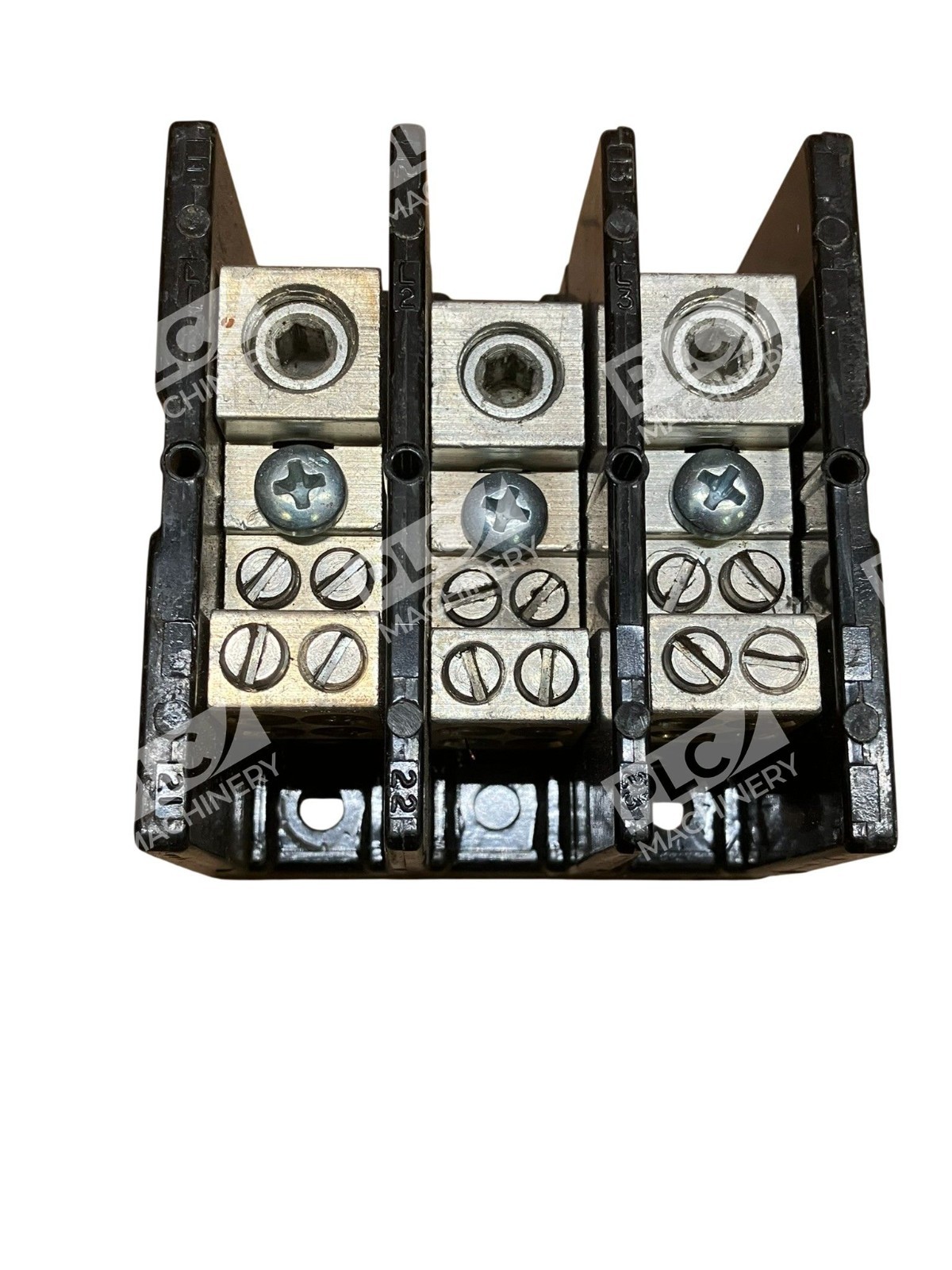

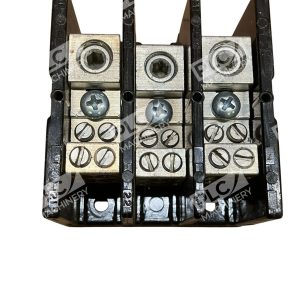

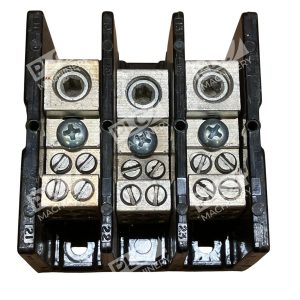

The Allen-Bradley 1492-PD3141 Series B is a robust 3-pole power distribution block engineered for efficient and reliable power distribution in industrial settings. With a current rating of 175 Amps per pole and a voltage rating of 600V AC/DC, it is well-suited for high-demand applications.
Key Features
- 3-Pole Configuration: Facilitates multi-phase power distribution, enhancing system flexibility.
- High Current Capacity: Supports up to 175 Amps per pole, accommodating substantial power loads.

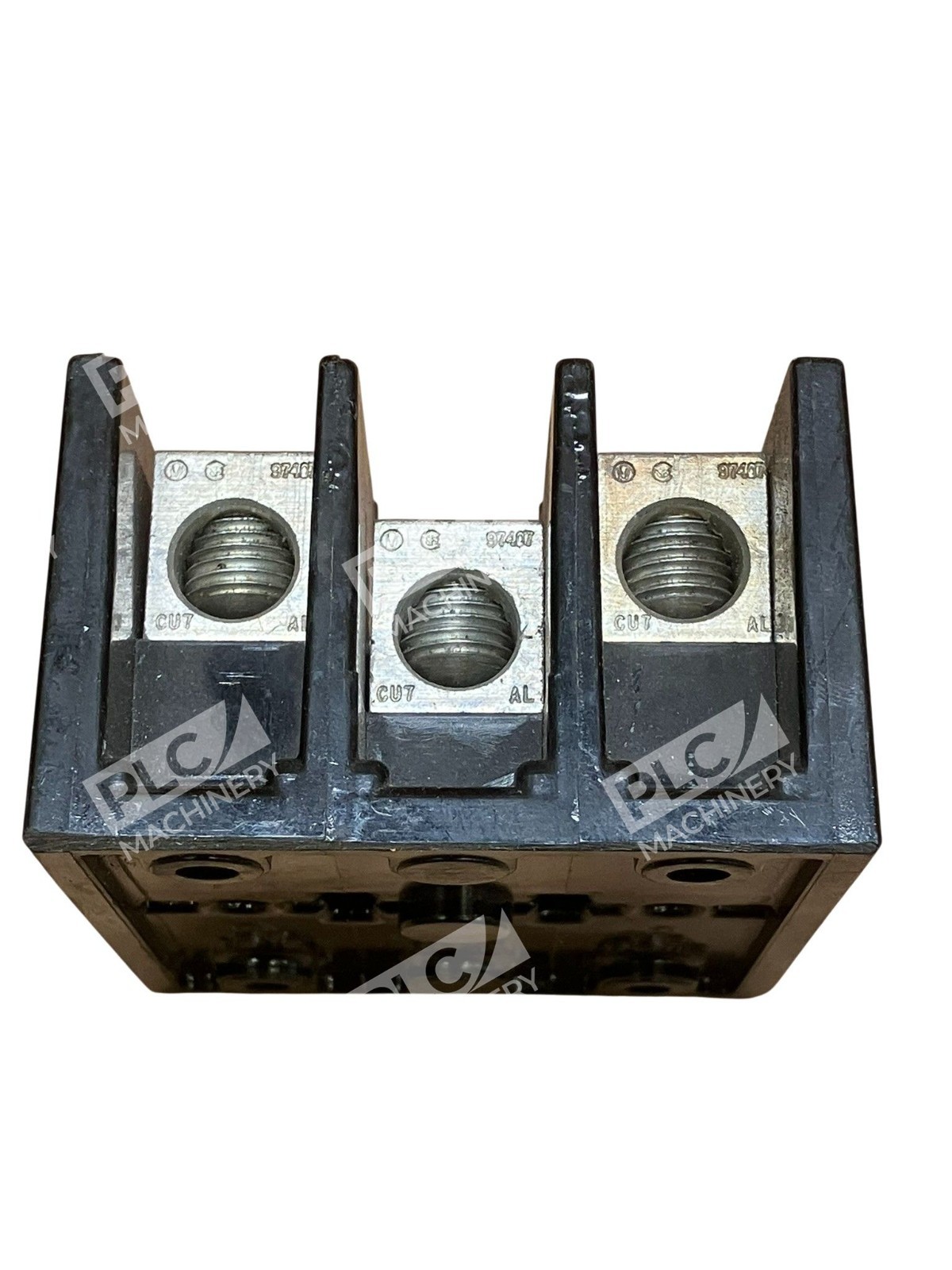

- Durable Construction: Features high-conductivity tin-plated aluminum connectors and a phenolic insulator base for longevity and optimal electrical performance.

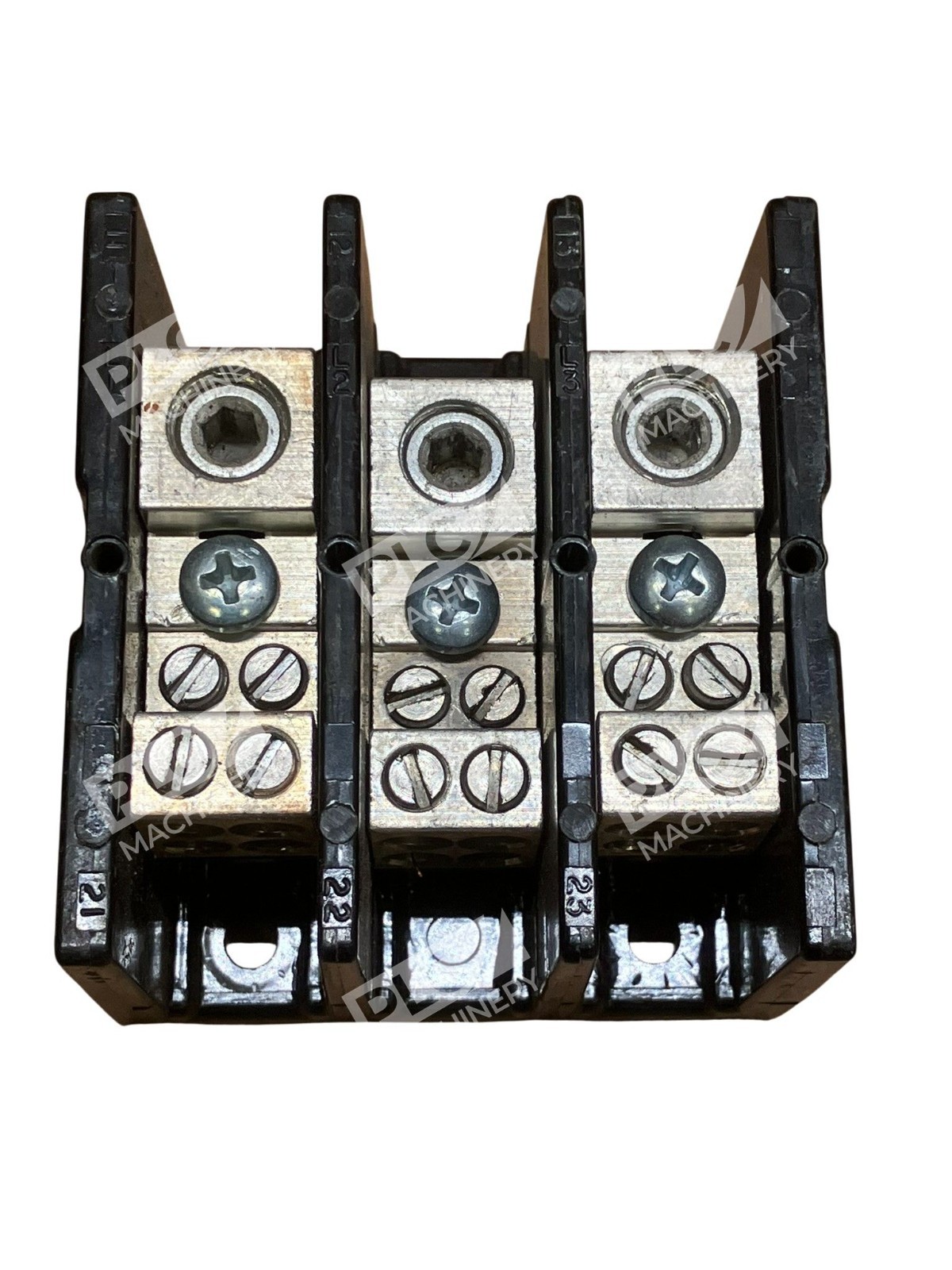

- Versatile Wire Accommodation: Equipped with one line-side opening supporting wire sizes from 2/0 to 14 AWG, and four load-side openings accommodating wire sizes from 4 to 14 AWG.
- Compliance and Safety: UL Recognized and CSA Certified, ensuring adherence to stringent safety and performance standards.
Technical Specifications
- Model: 1492-PD3141 Series B
- Number of Poles: 3
- Current Rating: 175 Amps per pole
- Voltage Rating: 600V AC/DC
- Line-Side Openings: 1 (supports 2/0 to 14 AWG wire)
- Load-Side Openings: 4 (supports 4 to 14 AWG wire)
- Connector Material: High-conductivity tin-plated aluminum
- Insulator Base Material: Phenolic

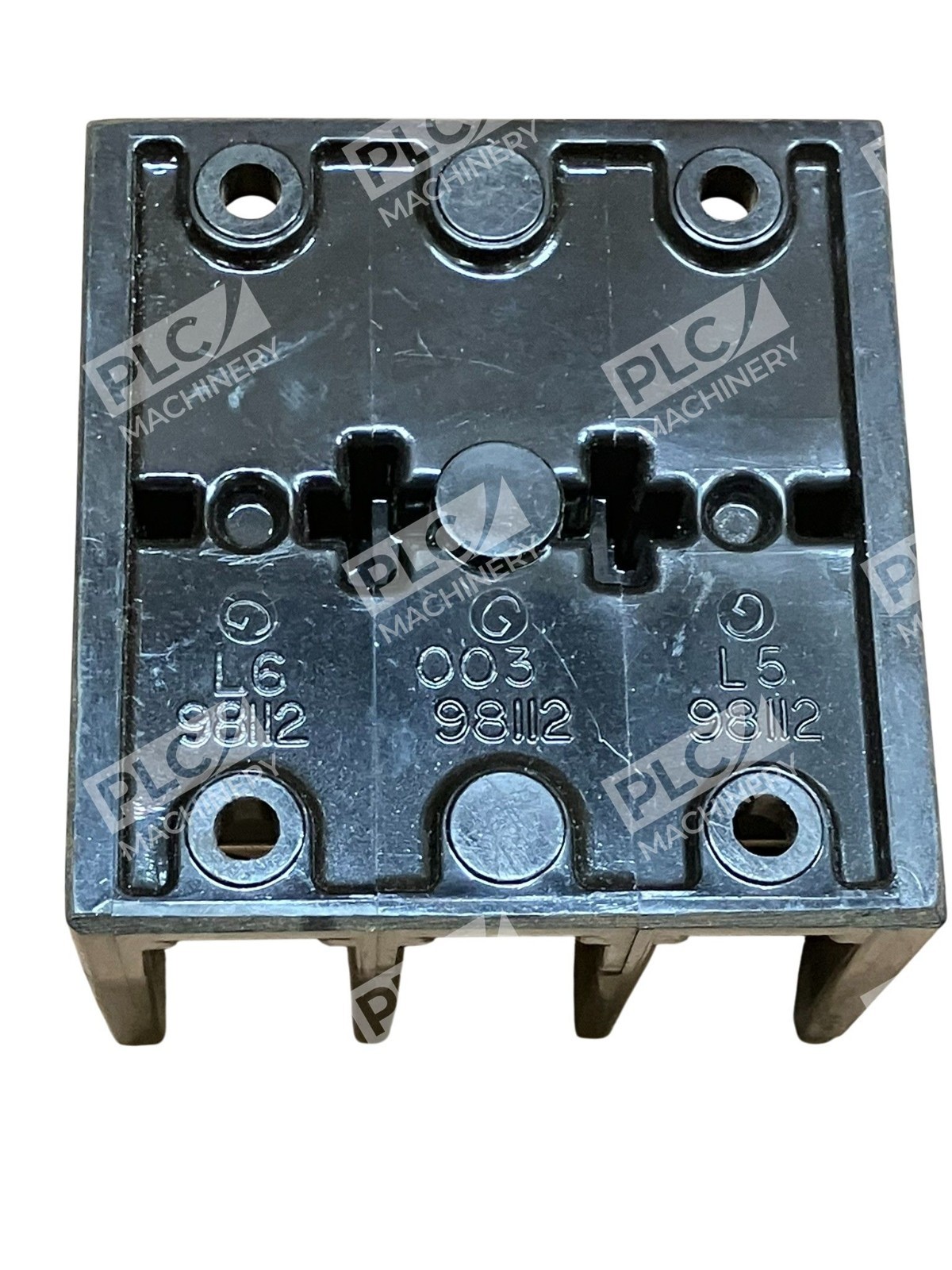

- Mounting: Panel mount with #10 fasteners (torque to 25-30 in-lbs)
- Certifications: UL Recognized, CSA Certified
Applications
The 1492-PD3141 Series B is ideal for various industrial applications, including:
- Industrial power distribution systems
- Control panels and electrical enclosures
- Manufacturing and automation systems
- Commercial electrical installations
Its design ensures safe and efficient power management, making it a reliable choice for demanding environments.
