Allen Bradley AB MicroLogix 1200 Controller 1762-L40BWA /C

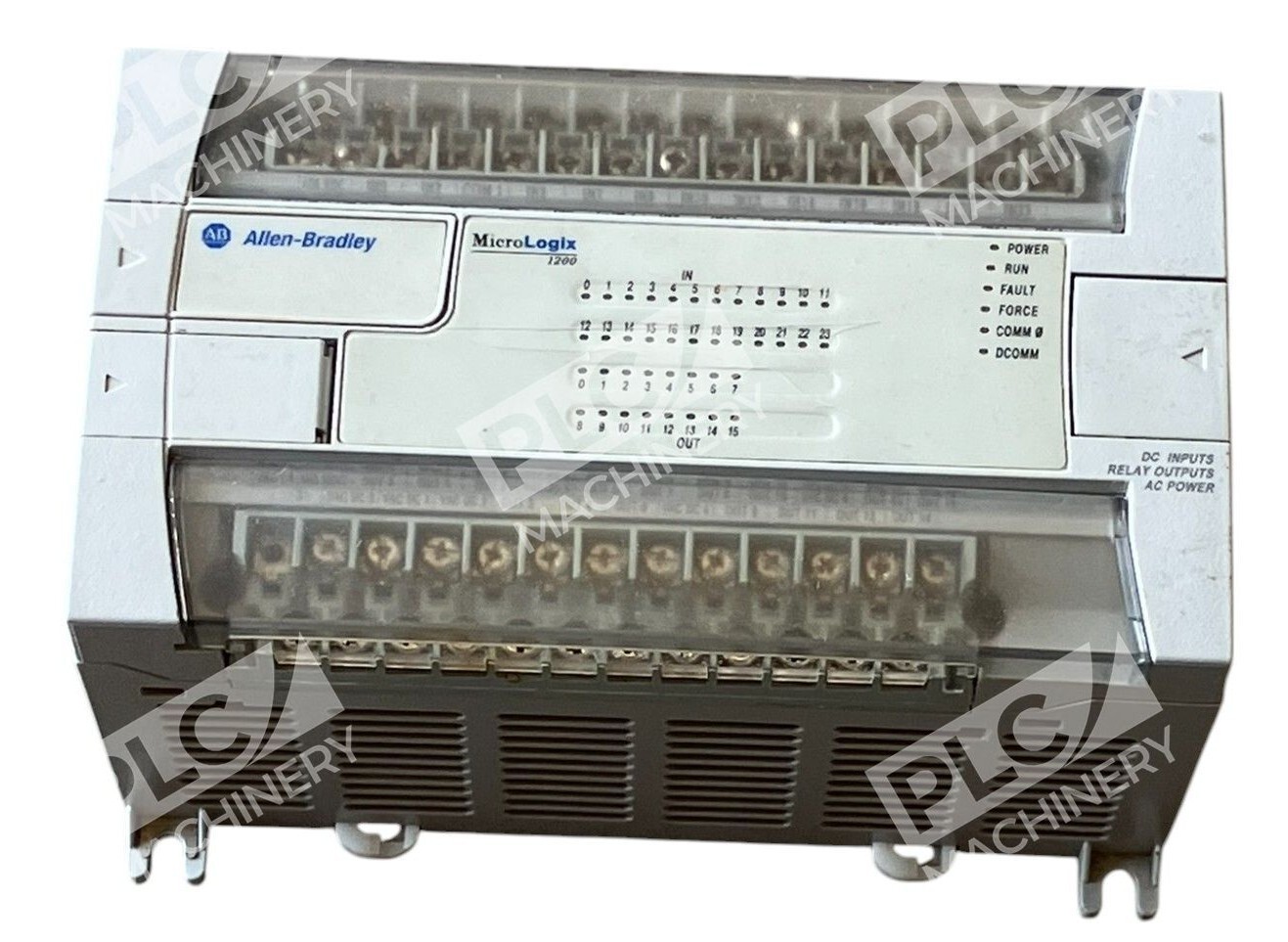

Allen-Bradley MicroLogix 1200 Controller 1762-L40BWA/C

The Allen-Bradley MicroLogix 1200 Controller, catalog number 1762-L40BWA/C, is a compact and versatile programmable logic controller (PLC) designed to meet a wide range of industrial automation needs. This controller offers a robust set of features suitable for various applications.

Key Features

• Input and Output Configuration: The 1762-L40BWA/C provides a total of 40 I/O points, comprising 24 digital inputs and 16 relay outputs. The inputs are designed for 24V DC signals, accommodating both sinking and sourcing configurations, while the relay outputs support a range of voltages, including 24-125V DC and 120-240V AC.
• Communication Capabilities: Equipped with an RS-232C port, the controller supports multiple communication protocols such as DF1, DH-485, Modbus RTU, and ASCII, facilitating seamless integration into various network configurations.
• Memory and Processing: The unit features 6 KB of memory, allowing for efficient program storage and execution, suitable for complex control tasks.
• Power Supply: Operating on a 120/240V AC power supply, the controller is adaptable to different power environments, enhancing its versatility in industrial settings.
• Physical Dimensions: With a compact design measuring 90 mm in height, 160 mm in width, and 87 mm in depth, the 1762-L40BWA/C is suitable for installations where space is limited.

Applications

The MicroLogix 1200 series is ideal for applications requiring reliable and flexible control solutions. Its combination of digital inputs and relay outputs makes it suitable for tasks such as machine control, process automation, and monitoring systems.

Installation and Environmental Considerations

For optimal performance, the controller should be installed in an enclosure that maintains an ambient temperature between 0°C and 55°C. Depending on the installation environment, incorporating climate control devices like heaters or fans may be necessary to ensure proper operation.

In summary, the Allen-Bradley MicroLogix 1200 Controller 1762-L40BWA/C offers a compact, reliable, and versatile solution for a variety of industrial automation applications, combining robust input/output capabilities with flexible communication options.
