Allen Bradley AB Green Cap Booted HD Push Button Unit 800H-R1A /F

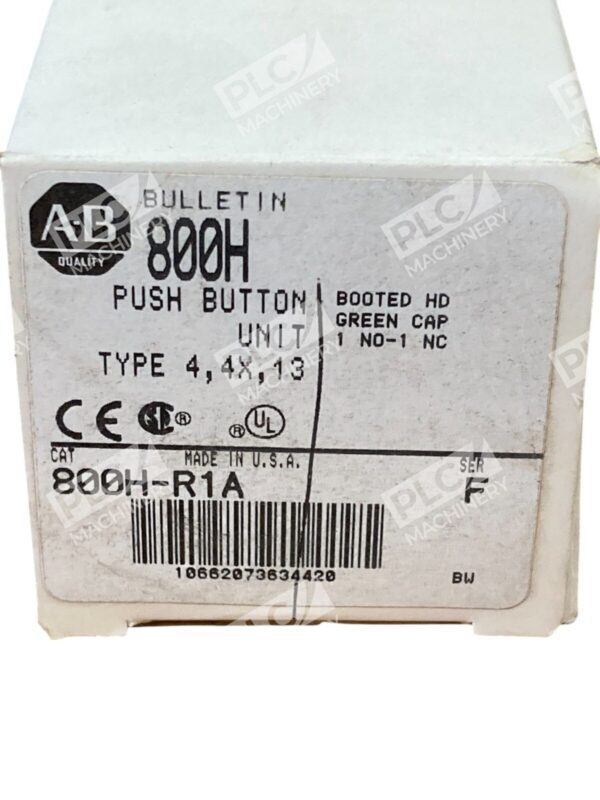

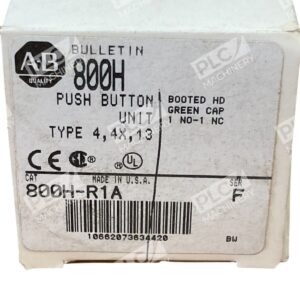

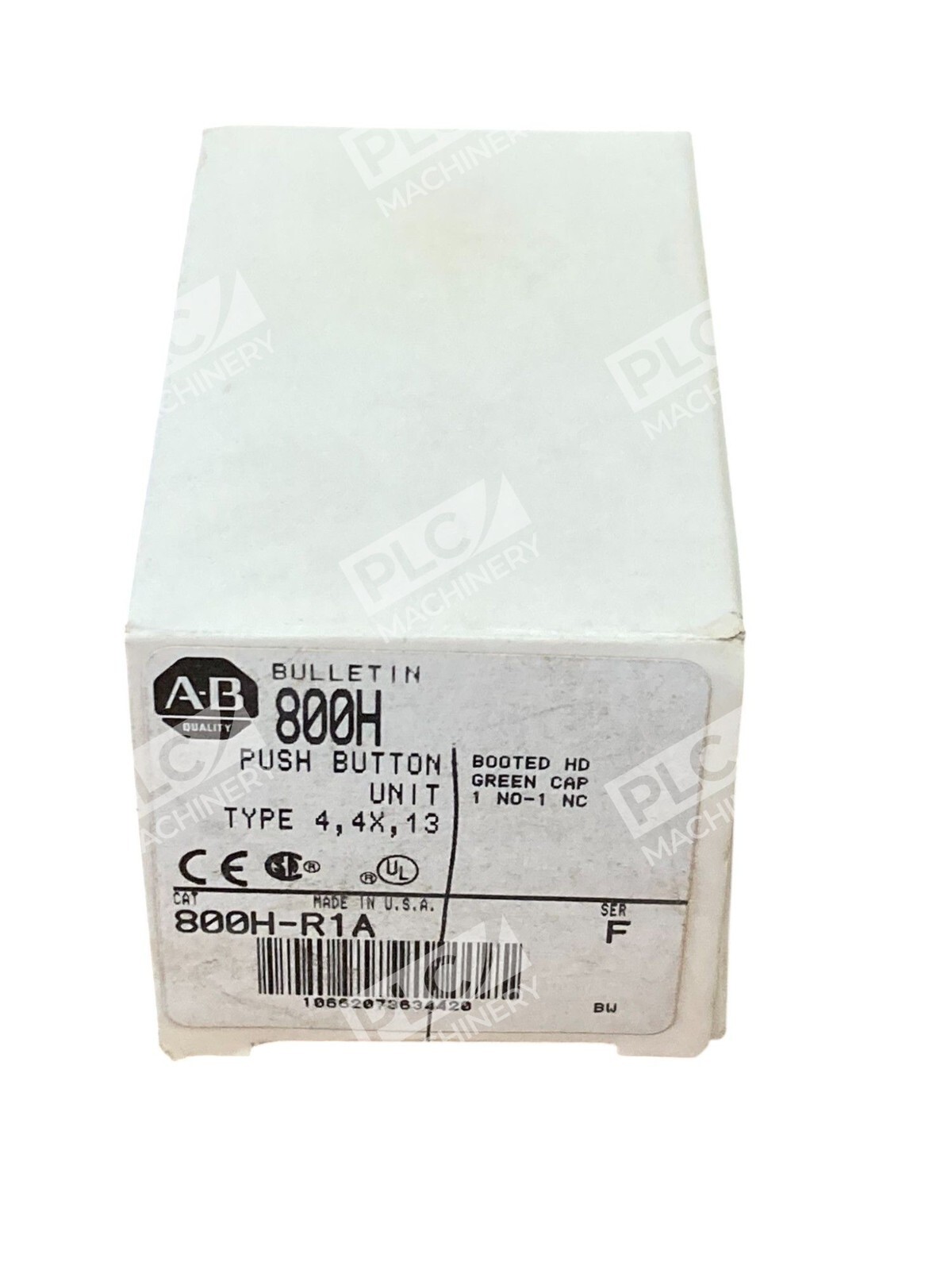

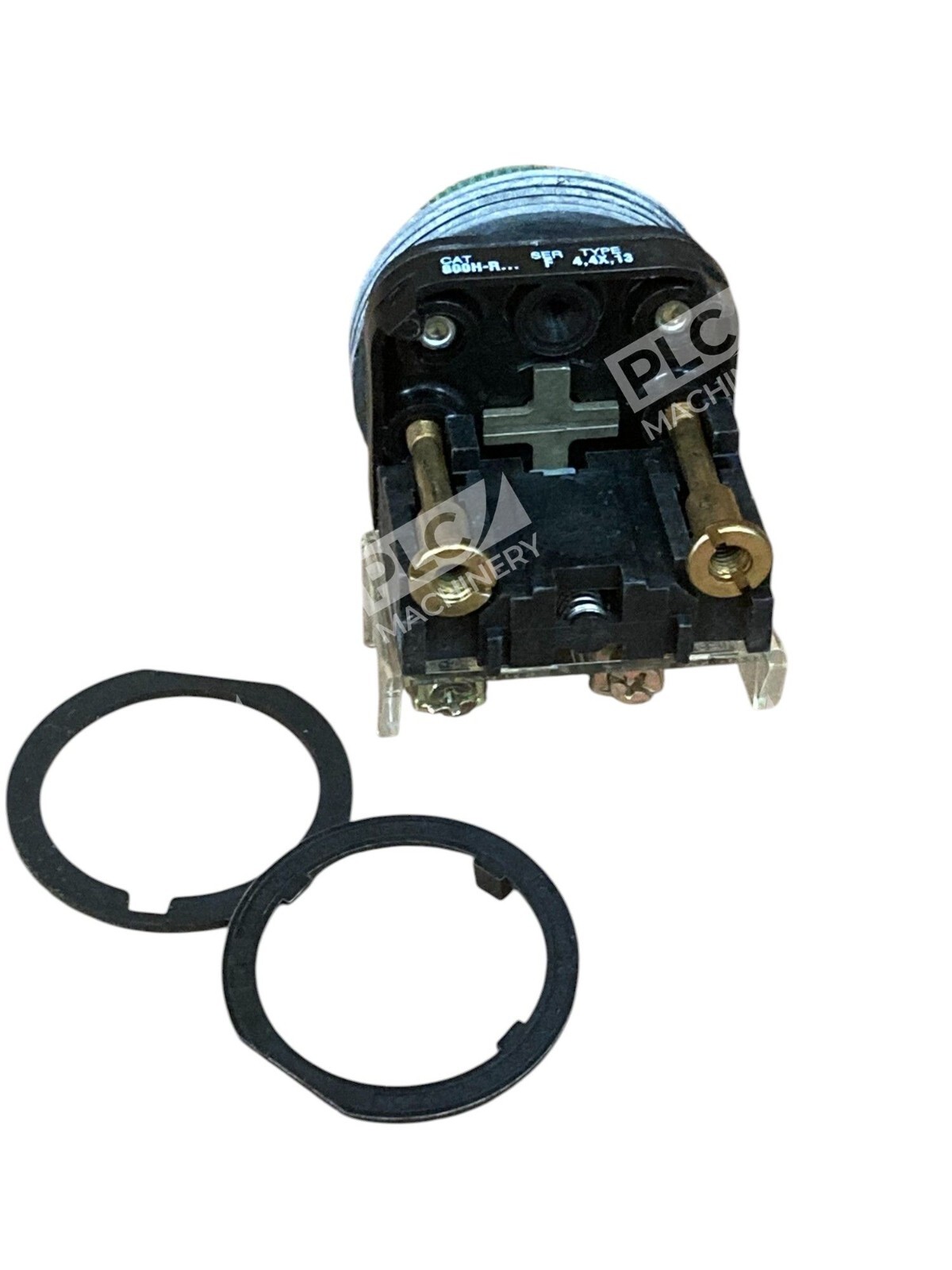

Allen-Bradley 800H-R1A Green Cap Booted Heavy-Duty Push Button Unit

The Allen-Bradley 800H-R1A is a 30mm momentary push button designed for heavy-duty industrial applications. Featuring a green booted head, this unit ensures reliable operation and enhanced durability in demanding environments.

Key Features

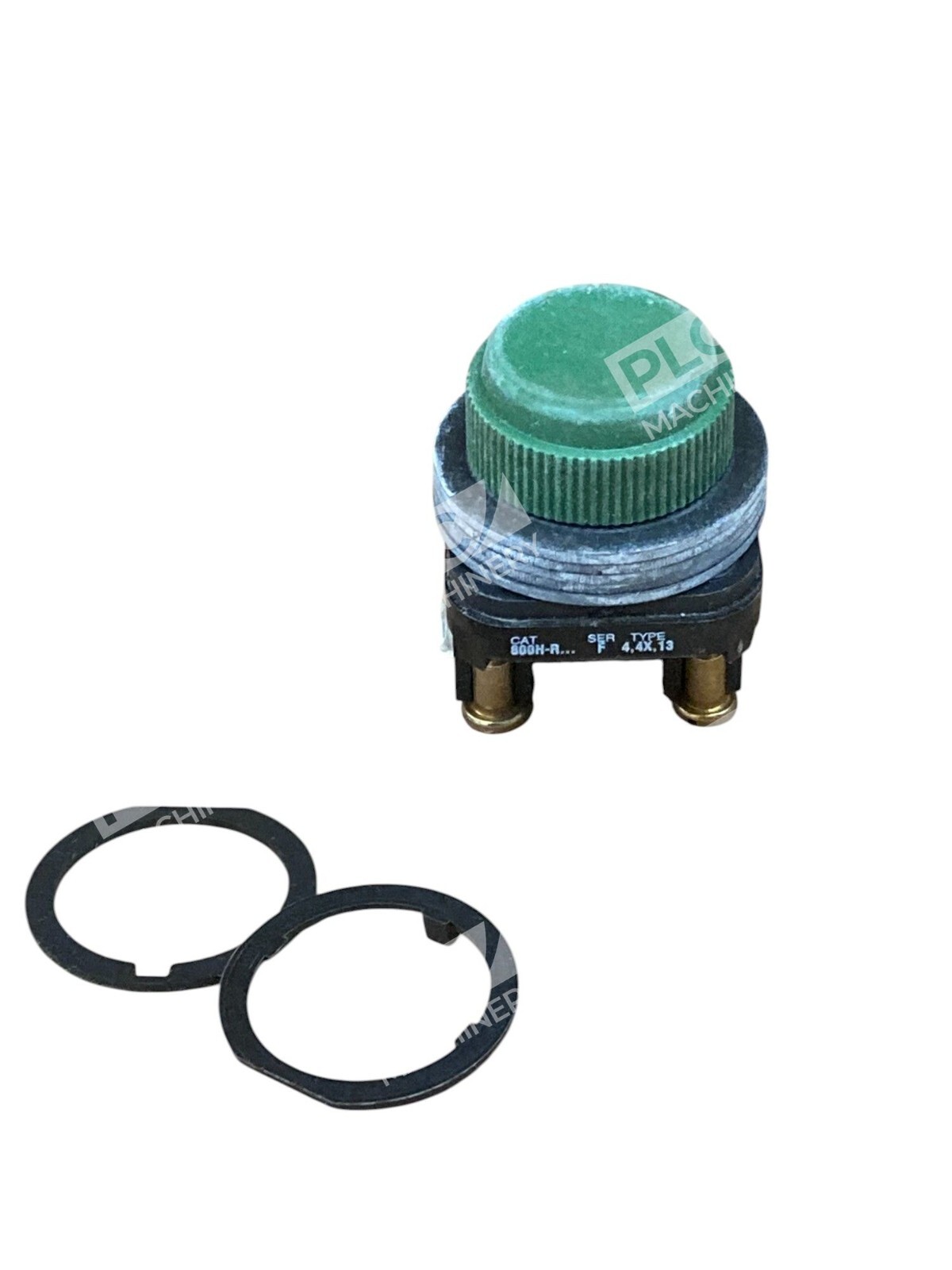

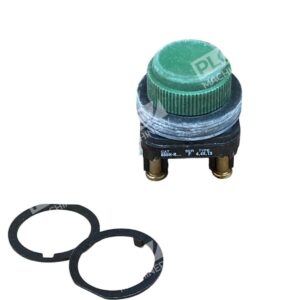

• Operator Cap: Round, green, synthetic rubber booted head for protection against contaminants.

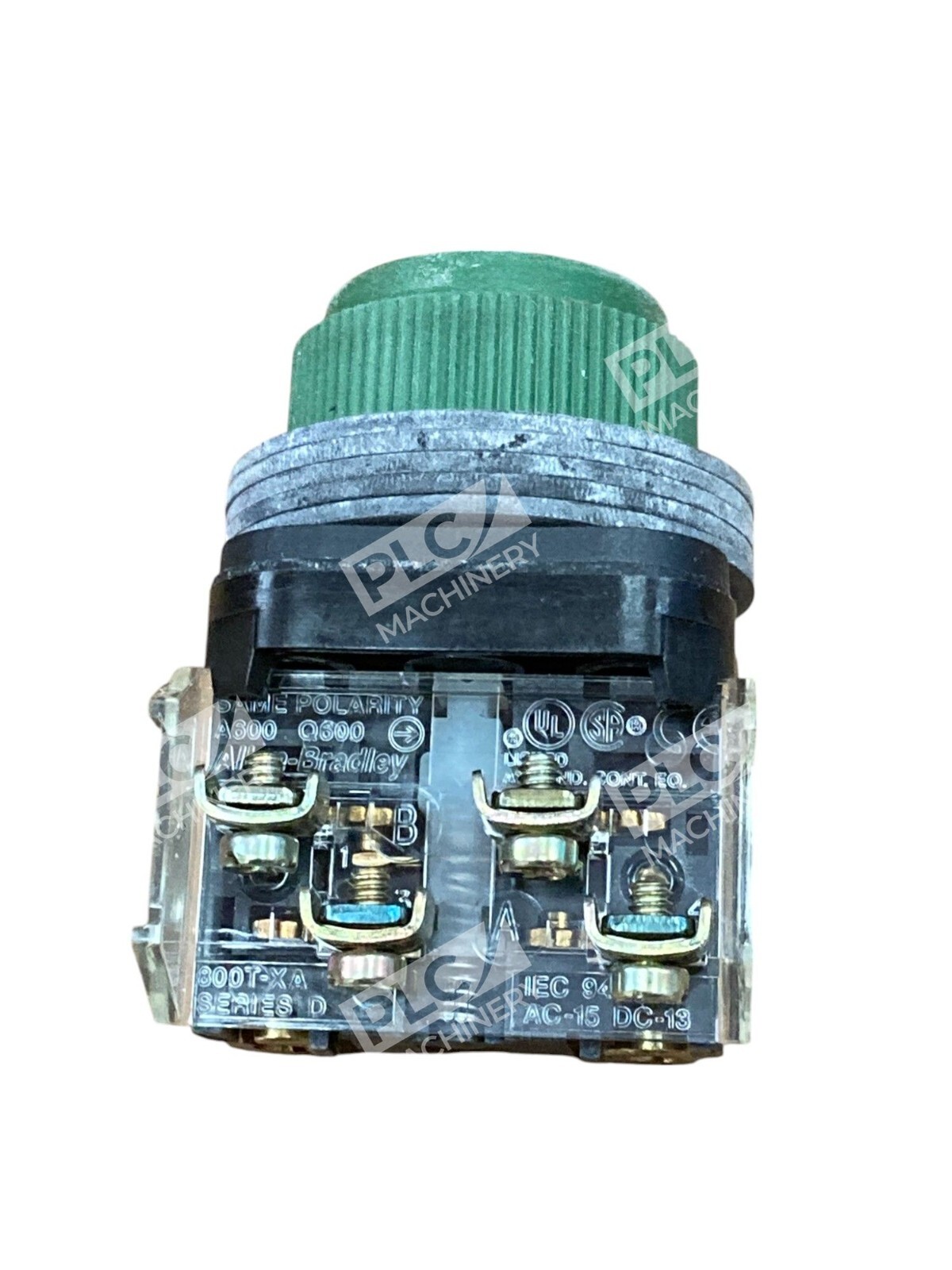

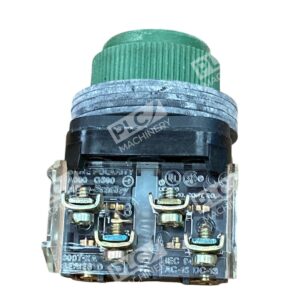

• Contact Configuration: Equipped with one normally open (NO) and one normally closed (NC) standard contact block (800T-XA).
• Electrical Ratings: Supports up to 600V AC/DC with a thermal current rating of 10A.
• Mechanical Durability: Designed for a minimum of 10 million mechanical operations.
• Environmental Ratings: Compatible with NEMA Type 1, 4, 4X, 12, and 13 enclosures, suitable for various industrial settings.
• Operating Conditions: Functions effectively within a temperature range of -25°C to 40°C.
• Certifications: Complies with ABS, CCC, CE, CSA, EAC, GOST, and UL standards.

Applications

The 800H-R1A push button is ideal for control panels, machinery interfaces, and other industrial applications requiring a robust and reliable momentary switch.

Installation and Maintenance

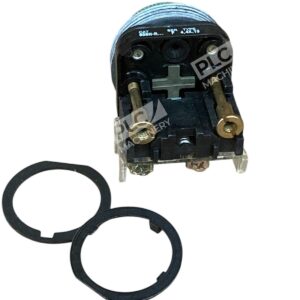

Designed for easy installation with a 30.5mm mounting hole and screw connections. The unit’s durable construction minimizes maintenance needs, ensuring long-term performance.

For detailed specifications and installation guidelines, refer to the manufacturer’s documentation.
