Allen Bradley AB Booted HD Red Cap Push Button Unit 800H-R6A /F

Allen-Bradley 800H-R6A Booted Head Red Cap Push Button Unit

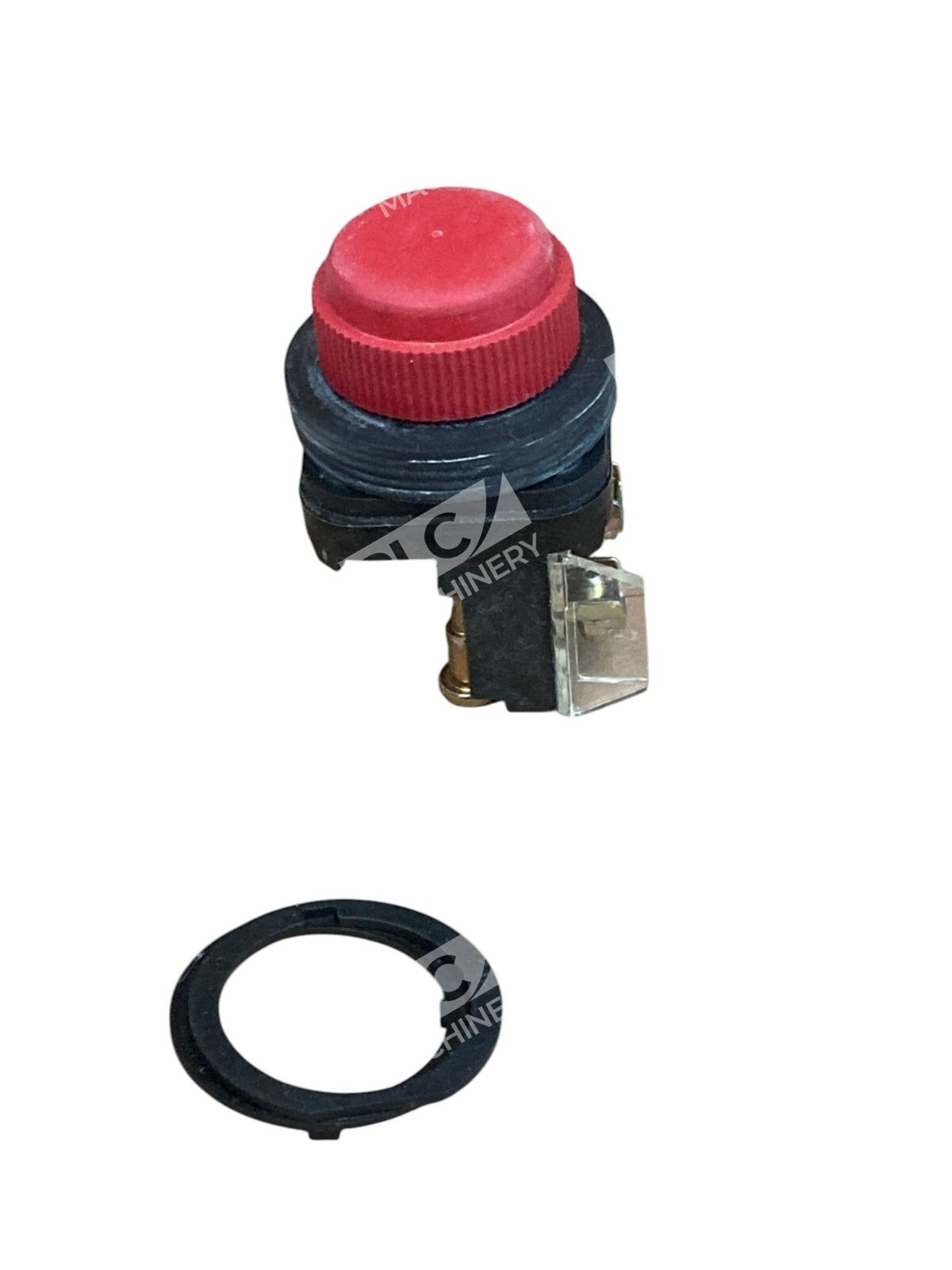

The Allen-Bradley 800H-R6A is a 30mm momentary push button designed for industrial applications requiring reliable and durable control solutions. This unit features a booted head with a red cap, ensuring both visibility and protection in demanding environments.

Key Features

• Operator Cap: Round, synthetic rubber booted head in red for enhanced durability and easy identification.
• Contact Configuration: Equipped with one normally open (NO) and one normally closed (NC) standard contact block (800T-XA).
• Electrical Ratings: Supports a thermal current rating of 10 A, with operational voltage up to 600V AC/DC. Utilization categories include A600 (AC-15) and Q600 (DC-13).
• Mechanical Durability: Designed for a minimum mechanical lifespan of 10 million cycles, ensuring long-term reliability.
• Environmental Compatibility: Suitable for NEMA Type 1, 4, 4X, 12, and 13 enclosures, offering versatility across various industrial settings.
• Operating Conditions: Functions effectively within a temperature range of -25°C to 50% humidity, accommodating diverse environmental conditions.
• Certifications: Complies with ABS, CCC, CE, CSA, EAC, GOST, and UL standards, affirming its quality and safety.

Applications

The 800H-R6A push button is ideal for use in control panels, machinery, and other industrial equipment where a robust and reliable momentary contact is required. Its booted design provides additional protection against contaminants, making it suitable for harsh environments.

Installation and Maintenance

Featuring a 30.5 mm hole diameter and screw connection terminals, the 800H-R6A ensures straightforward installation. The contact block terminals accommodate wire ranges from 14 to 18 AWG, with a recommended tightening torque of 6 – 8 in-lb (0.7 – 0.9 N-m). The unit’s design facilitates easy maintenance and replacement when necessary.

For detailed technical specifications and installation guidelines, refer to the product documentation provided by the manufacturer.
