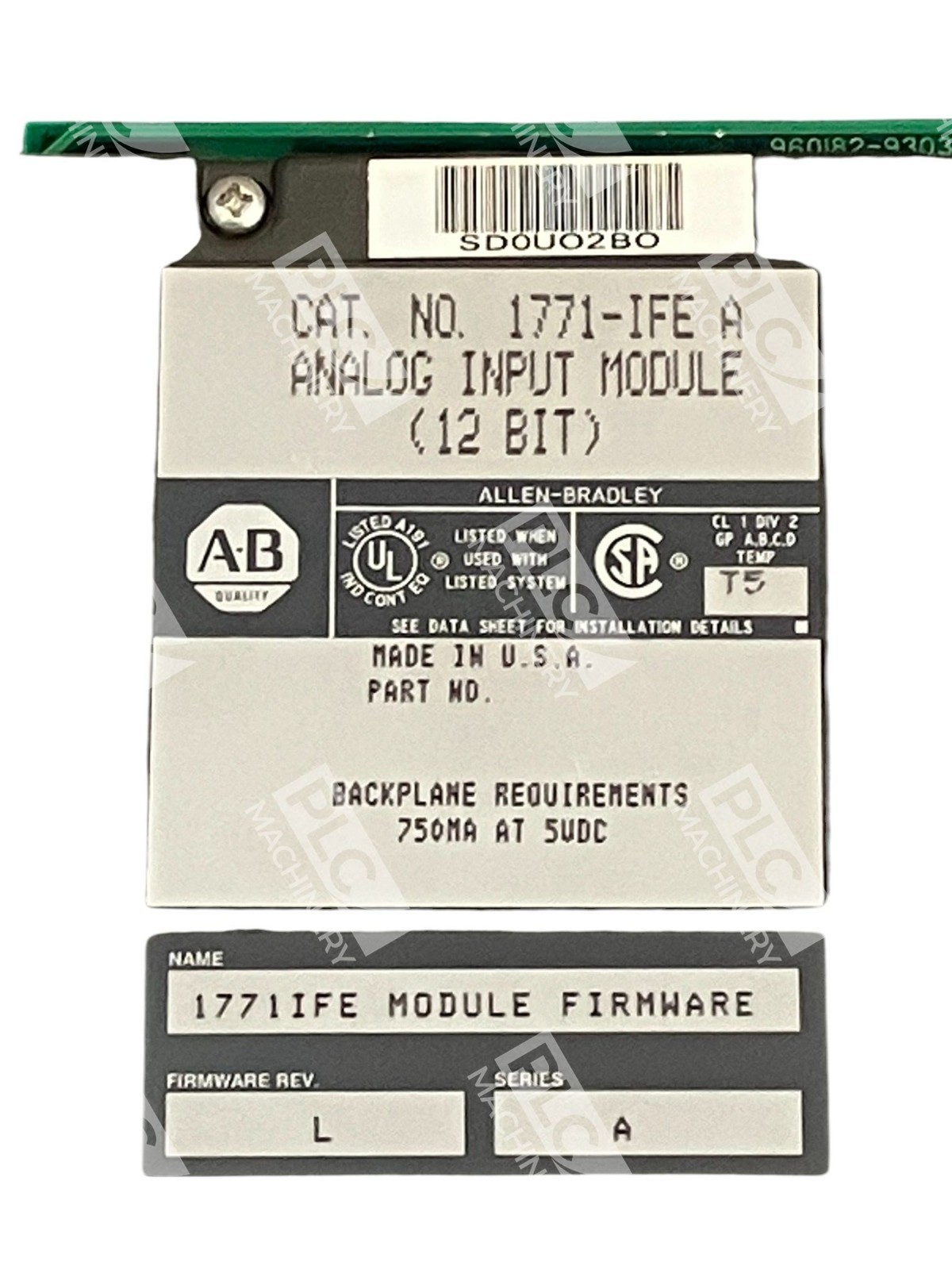

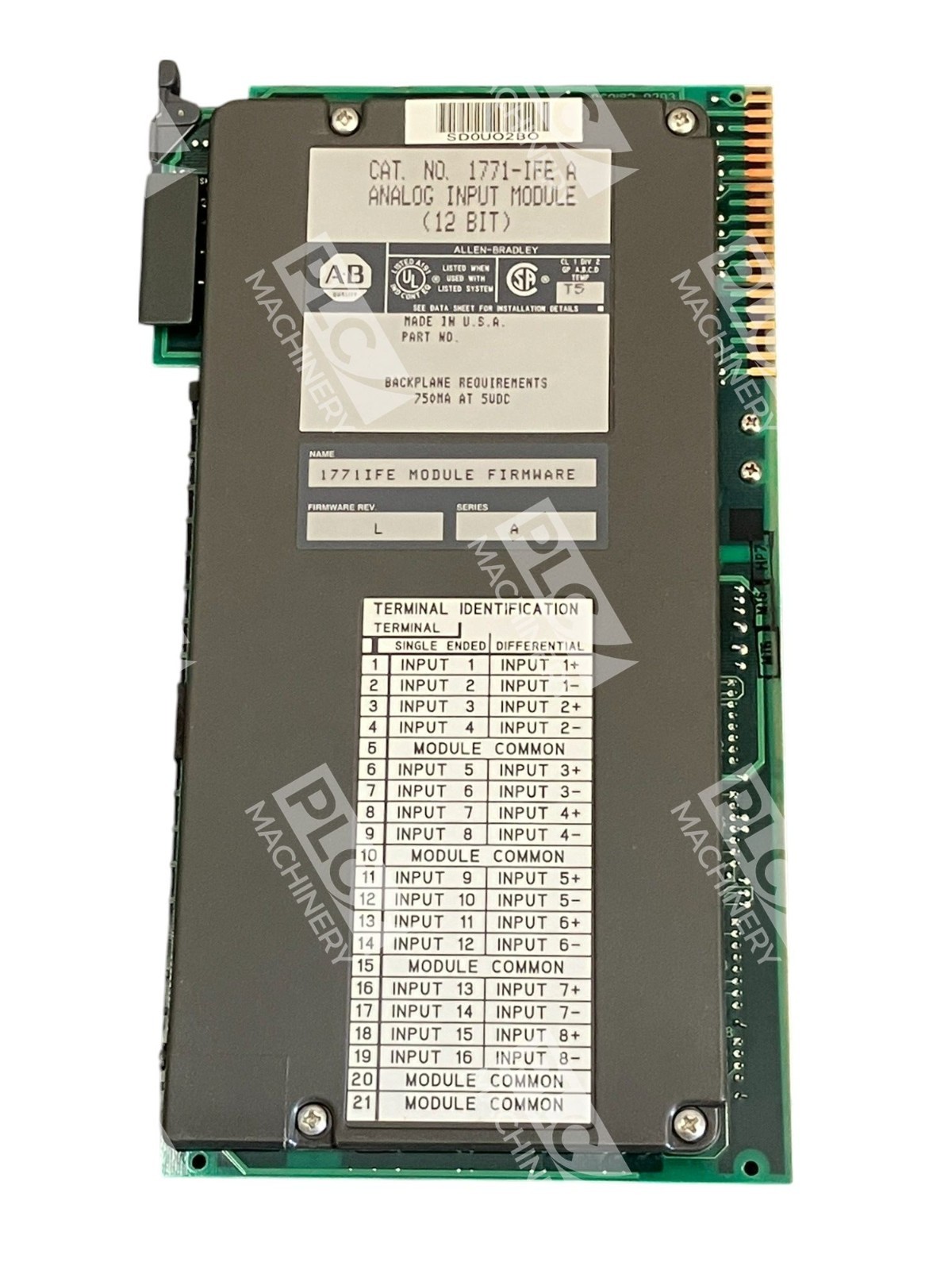

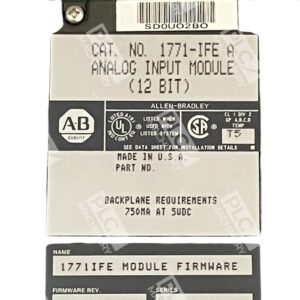

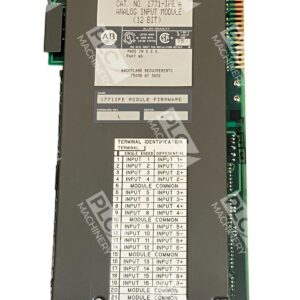

Allen Bradley AB Analog 12 Bit Input Module 1771-IFE A

The Allen-Bradley 1771-IFE Analog Input Module is a versatile component designed for the PLC-5 system, facilitating the integration of analog signals into digital control environments.

Key Features

• Input Channels: Supports up to 16 single-ended or 8 differential inputs, accommodating various sensor configurations.
• Signal Compatibility: Accepts multiple voltage and current ranges, including:
  • Voltage: +1 to +5V DC, 0 to +5V DC, -5 to +5V DC, -10 to +10V DC, 0 to +10V DC
  • Current: +4 to +20mA, 0 to +20mA, -20 to +20mA
• Resolution: Provides a 12-bit binary resolution, ensuring precise analog-to-digital conversion.
• Accuracy: Maintains an accuracy of 0.1% of full-scale range at 25°C, delivering reliable measurements.
• Data Formats: Offers selectable data formats, including Natural Binary and BCD scaling to ±9999, enhancing flexibility in data representation.

Technical Specifications

• Update Time: Channel update times are 18 ms for 8 channels and 36 ms for 16 channels, optimizing data acquisition efficiency.
• Power Requirements: Draws 750 mA at +5V DC from the I/O chassis backplane, eliminating the need for an external power supply.
• Isolation Voltage: Meets or exceeds UL Standard 508 and CSA Standard C22.2 No. 142, ensuring robust electrical isolation.
• Environmental Conditions: Operates within a temperature range of 0 to 60°C (32 to 140°F) and can be stored between -40 to 85°C (-40 to 185°F).
• Dimensions: Measures 11.1 cm in height, 27.889 cm in width, and 35.789 cm in length, with a weight of 0.953 kg.

Applications

The 1771-IFE module is ideal for process measurement applications such as temperature, pressure, level, flow, pH, viscosity, and vibration. It effectively converts various process variable signals into proportional PLC data values, facilitating accurate monitoring and control.

Installation and Configuration

Designed for seamless integration into any 1771 I/O chassis, the module occupies a single slot and requires no external power supply. Configuration options include:

• Input Type Selection: Each channel can be configured for voltage or current input using internal jumpers.
• Input Range Selection: User-programmable input ranges on a per-channel basis, accommodating diverse application requirements.
• Data Formatting: Selectable data formats and scaling options to suit specific processing needs.

The module’s front panel features a green RUN indicator and a red FAULT indicator. Upon power-up, a self-check occurs; if no faults are detected, the red indicator turns off, and the green indicator flashes until successful communication with the processor is established.

For detailed installation instructions and configuration guidelines, refer to the 1771-IFE User Manual.
