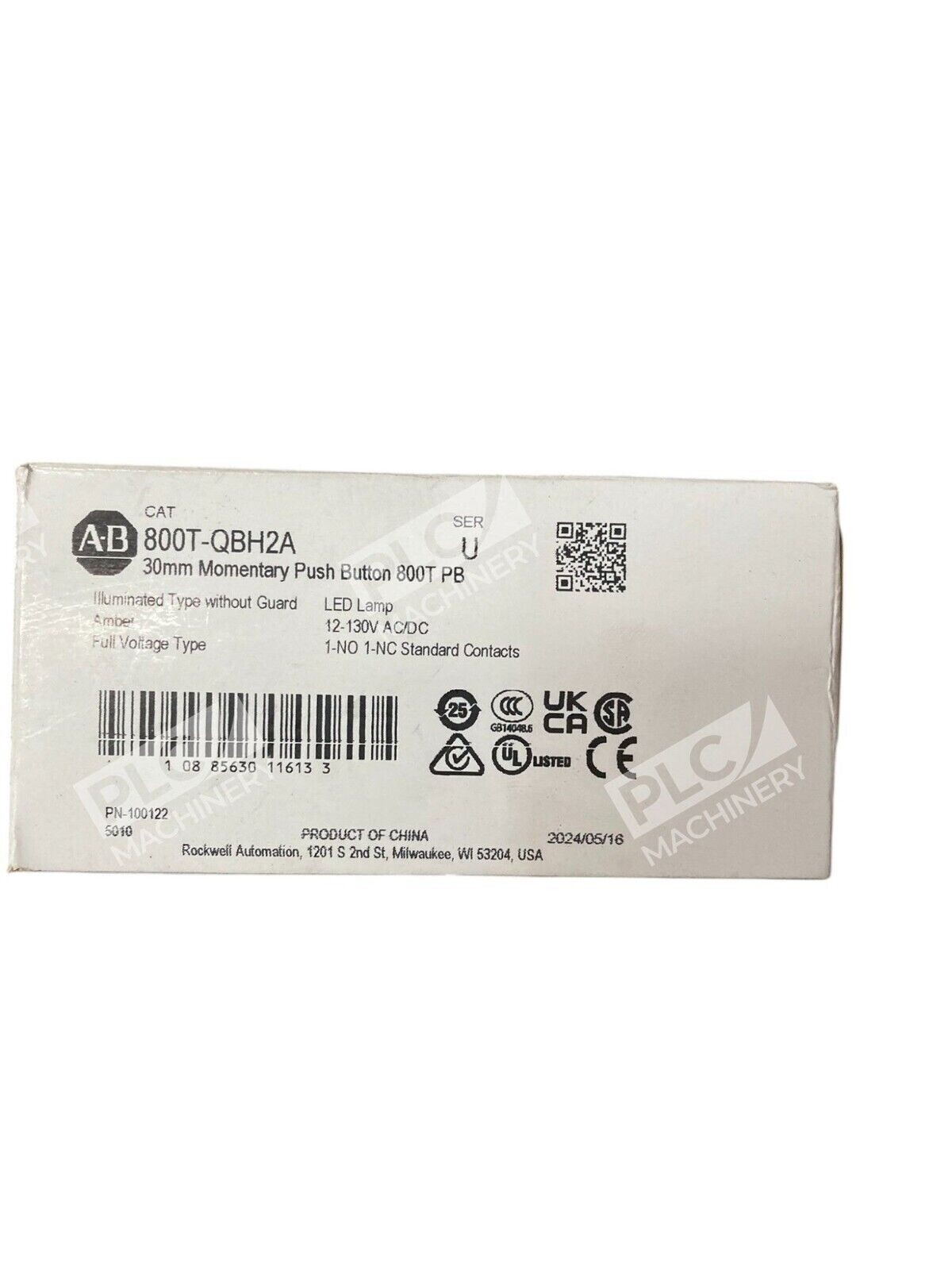

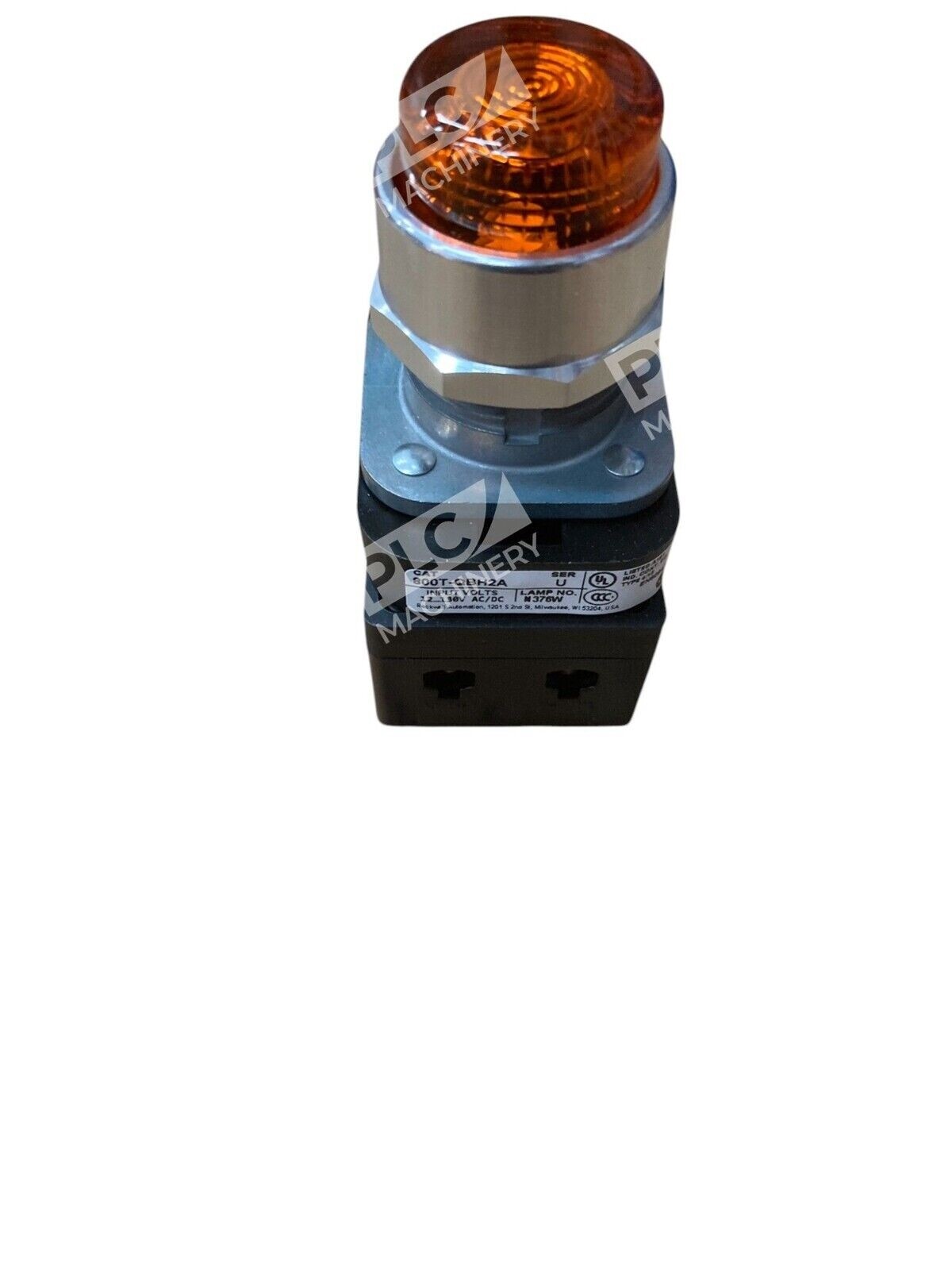

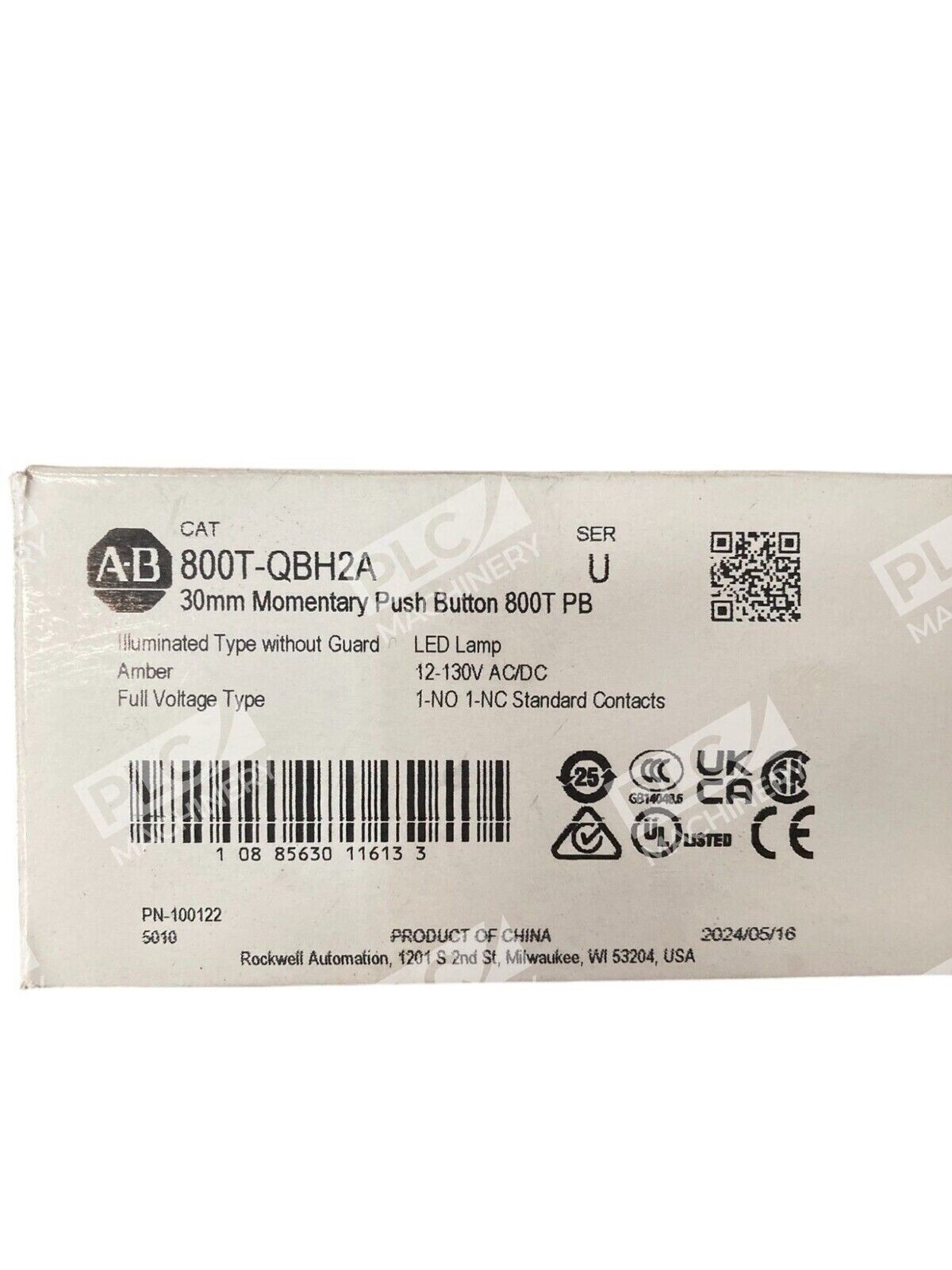

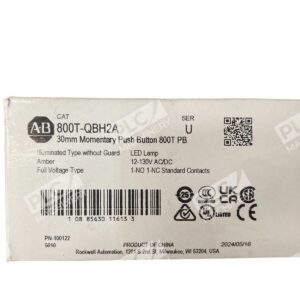

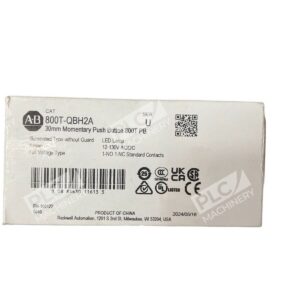

The Allen-Bradley 800T-QBH2A is a 30mm momentary push button designed for industrial control applications. This factory-assembled unit features an extended head without a guard and is illuminated by an amber LED, providing clear visual indication during operation.
Key Features
- Illumination: Equipped with an amber LED suitable for 12-130V AC/DC full voltage applications.
- Contact Configuration: Includes one normally open (N.O.) and one normally closed (N.C.) standard contact block.
- Construction: Built with a durable metal operator construction, ensuring longevity in demanding environments.
- Design: Features an extended head without a guard, facilitating easy operation.
- Electrical Ratings: Supports a thermal current rating of 10 A and operates at a maximum voltage of 600V AC/DC.
- Environmental Ratings: Compatible with NEMA Type 1, 4, 12, and 13 enclosures, offering protection against various environmental conditions.
- Certifications: Holds certifications including ABS, CCC, CE, CSA, EAC, GOST, and UL, ensuring compliance with international standards.
Technical Specifications
- Operator Cap/Button Shape: Round
- Operator Cap/Button Material: Plastic
- Hole Diameter: 30.5 mm
- Type of Electric Connection: Screw connection
- Contact Block Electrical Design Life: 1,000,000 cycles at maximum load
- Operator Mechanical Design Life: Minimum of 250,000 cycles
- Operating Temperature Range: -25°C to 40°C
- Storage Temperature Range: -40°C to 85°C
- Shock Resistance: 25 G (contact fragility) / 100 G (no damage)
- Vibration Resistance: 10 G maximum
The 800T-QBH2A push button is engineered to deliver reliable performance in industrial settings, combining robust construction with user-friendly design. Its illuminated amber LED ensures clear status indication, while the momentary contact mechanism provides precise control. This push button is an ideal choice for applications requiring dependable operation and compliance with stringent industry standards.
