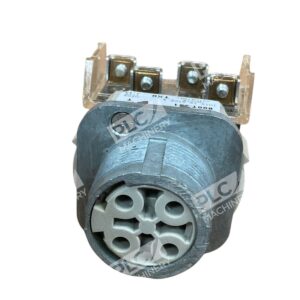

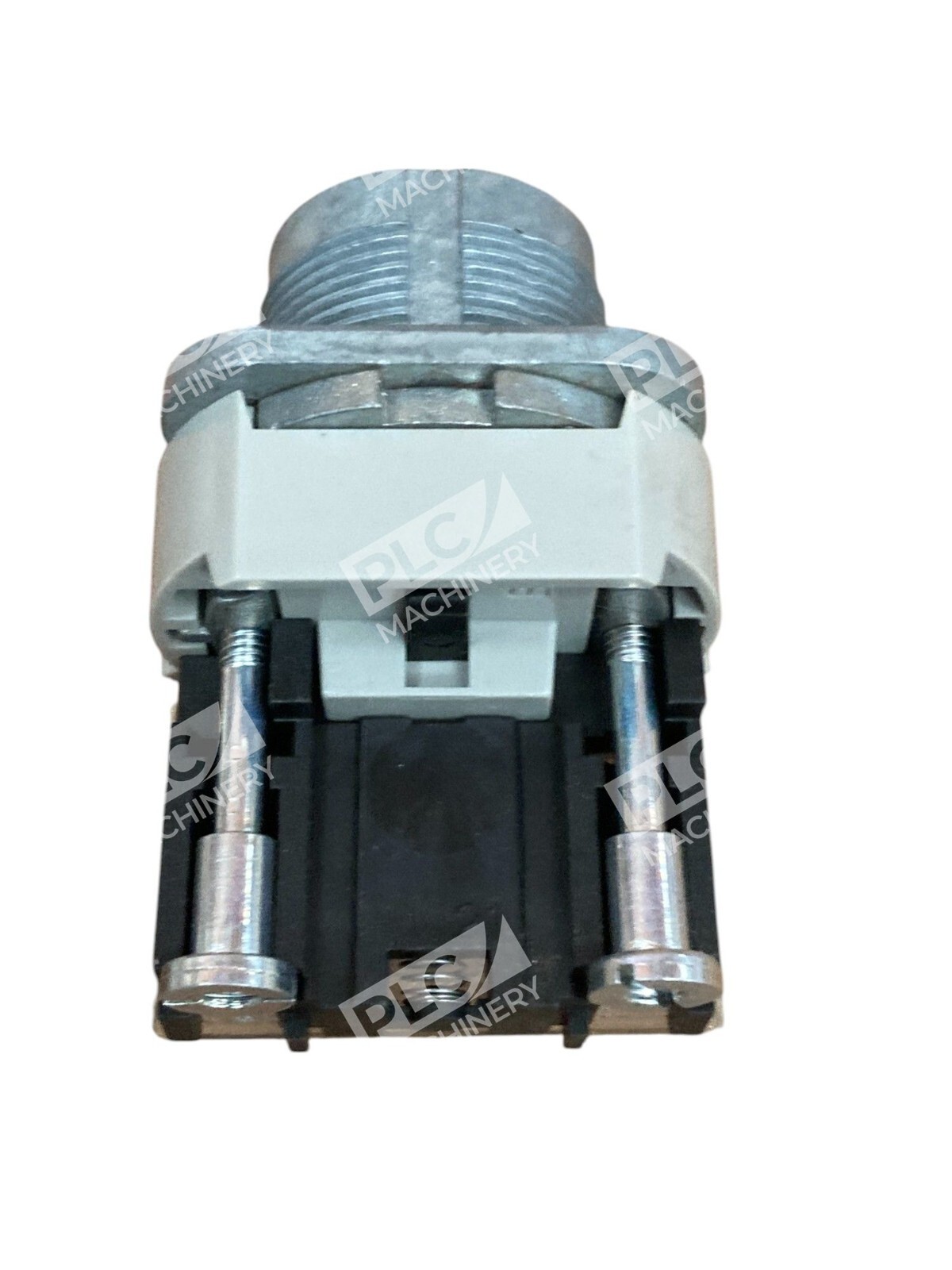

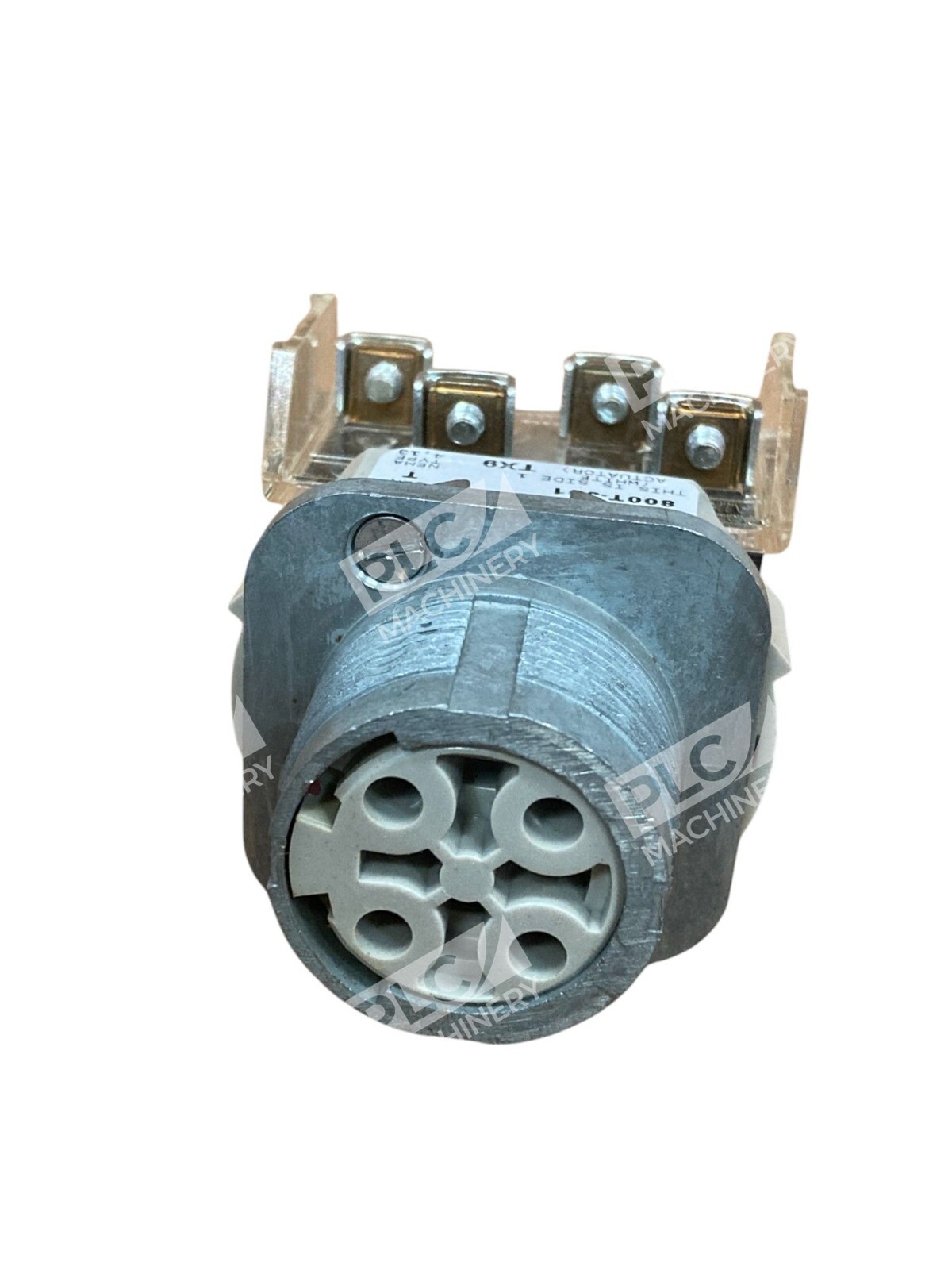

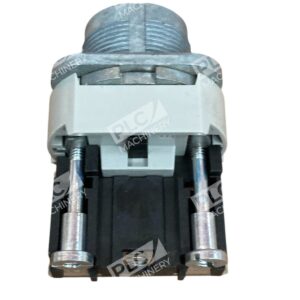

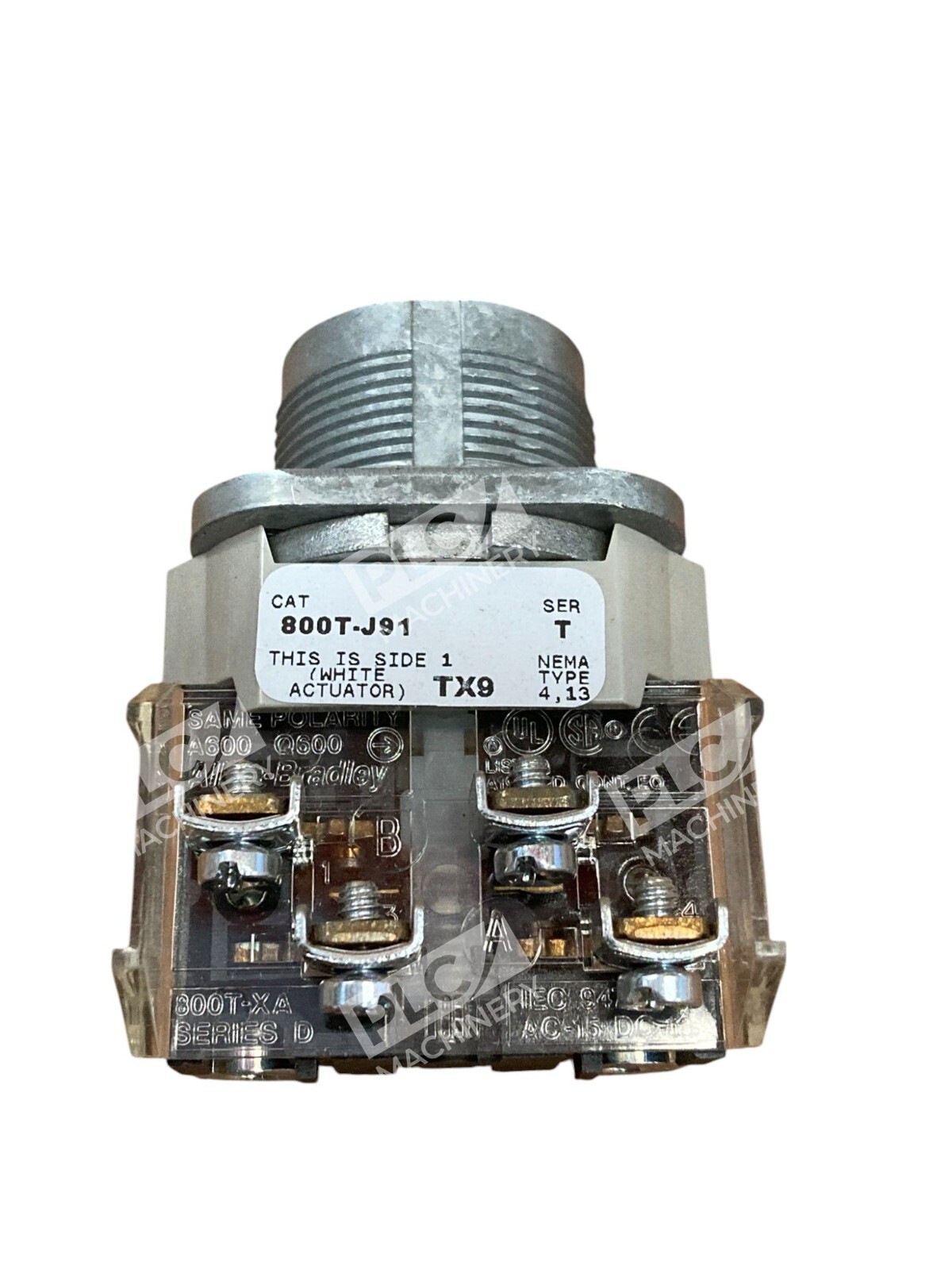

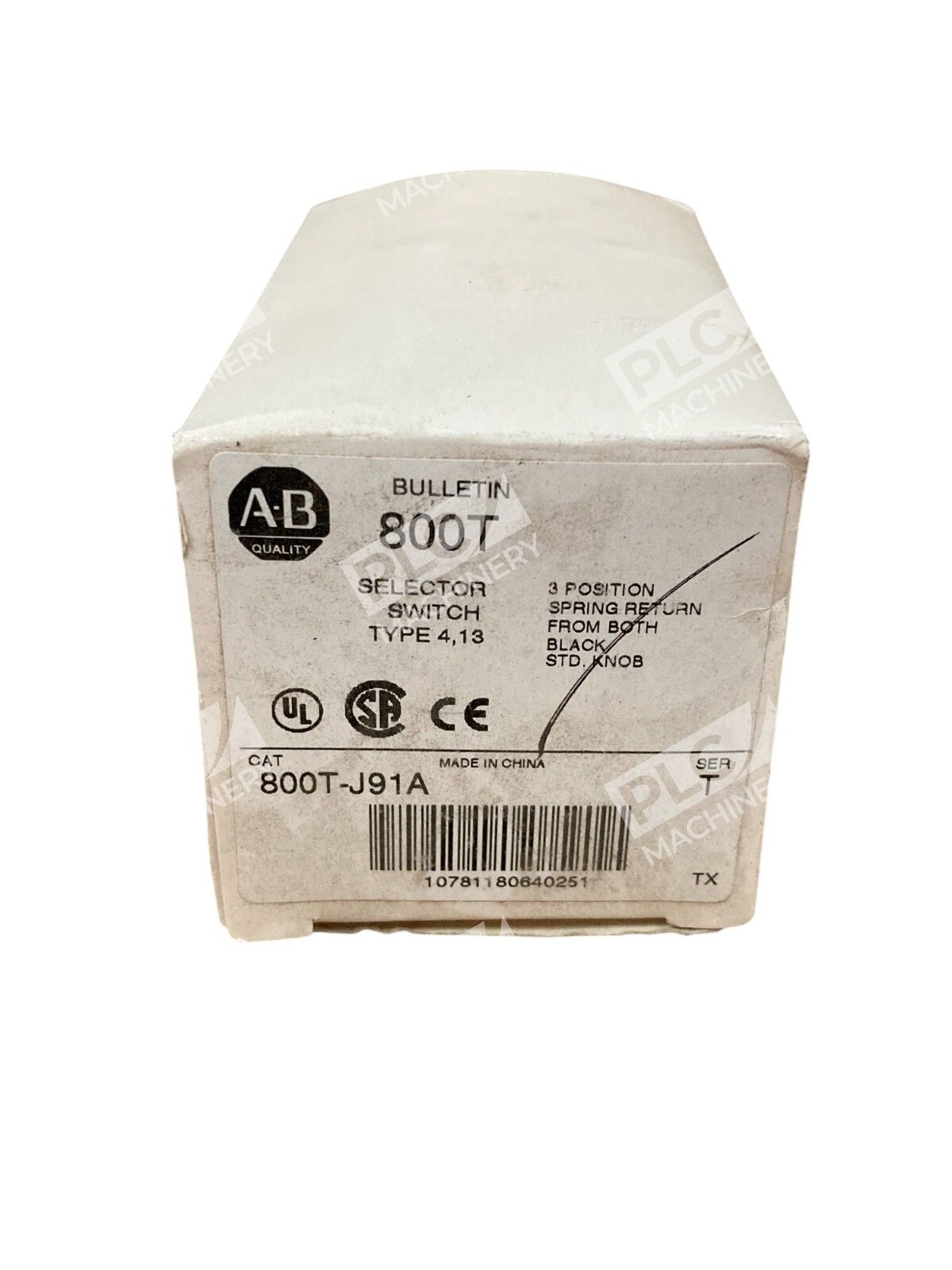

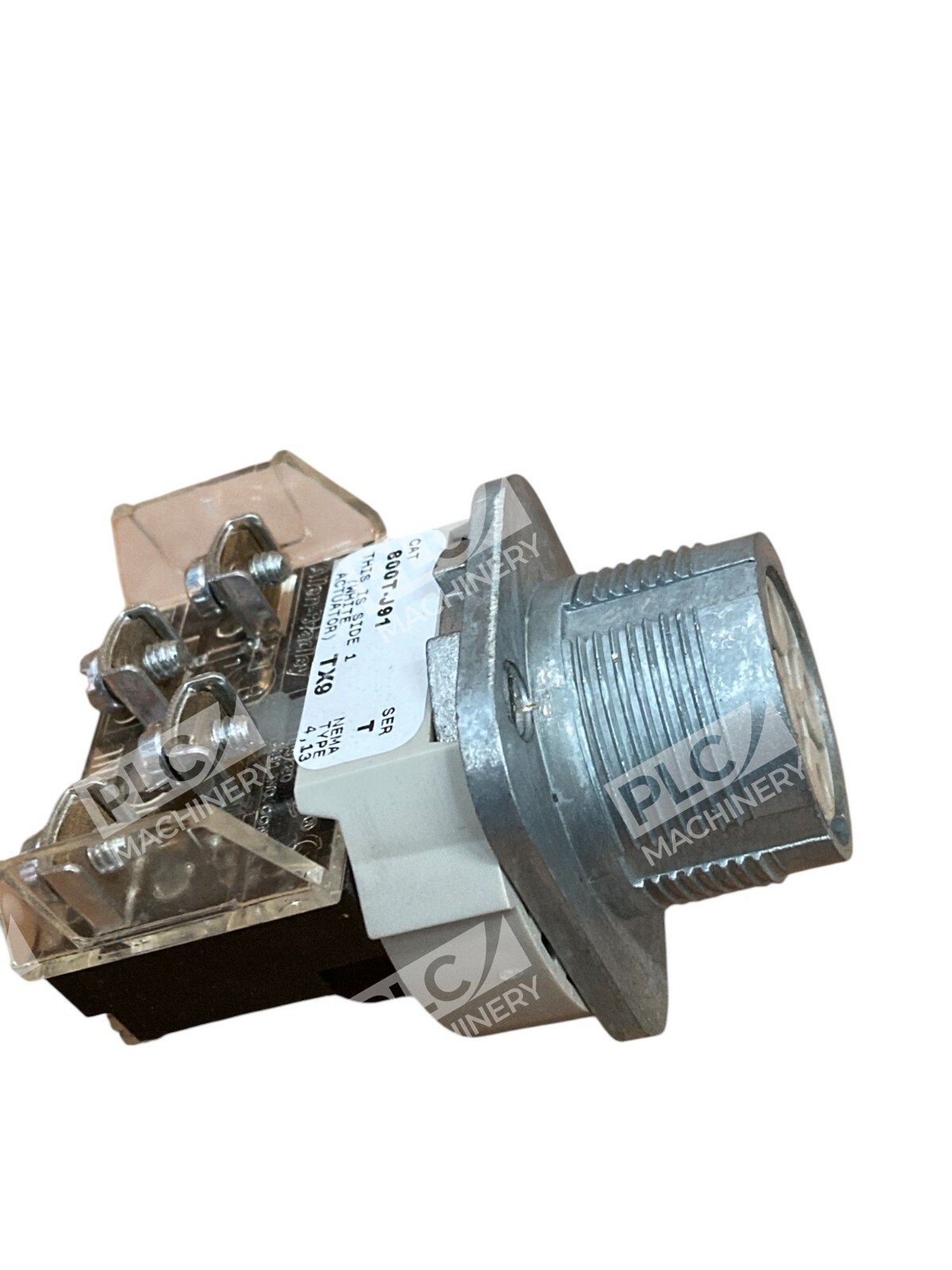

Allen Bradley AB 3 Position Spring Return Black Selector Switch 800T-J91A /T

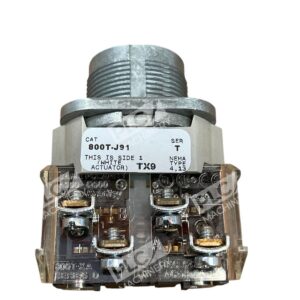

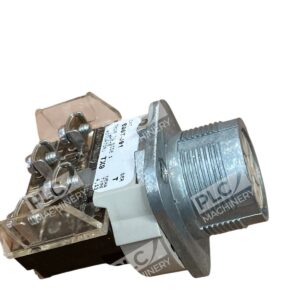

Allen-Bradley 800T-J91A 3-Position Spring Return Black Selector Switch

The Allen-Bradley 800T-J91A is a robust 30mm selector switch designed for industrial applications requiring reliable control and durability. This non-illuminated switch features a standard black knob with a white insert, providing clear visual indication of switch positions.

Key Features

• Three-Position Operation: Offers three distinct positions with spring return functionality from both left and right, ensuring precise control and automatic return to the center position.
• Durable Construction: Built with a metal operator and a plastic cap, the switch is designed to withstand demanding industrial environments.
• Long Operational Life: Engineered for a mechanical design life of at least 1,000,000 cycles, ensuring longevity and consistent performance.
• Versatile Compatibility: Suitable for mounting in 30.5 mm diameter holes and compatible with NEMA Type 1, 4, 12, and 13 enclosures, offering flexibility in various installation scenarios.
• Electrical Ratings: Supports a maximum operational voltage of 600V AC/DC, with a thermal current rating of 10A. The contact block is rated for A600 (AC-15) and Q600 (DC-13) utilization categories.
• Environmental Resilience: Operates effectively in temperatures ranging from -25°C to 50% humidity, making it suitable for diverse environmental conditions.
• Certifications: Meets multiple international standards, including ABS, CCC, CE, CSA, EAC, GOST, and UL certifications, ensuring compliance with global safety and performance requirements.

Applications

The 800T-J91A selector switch is ideal for use in control panels, machinery, and other industrial equipment where reliable manual control is essential. Its spring return feature is particularly useful in applications requiring momentary contact and automatic return to a default position.

Specifications

• Product Type: 30mm Selector Switch
• Number of Positions: 3
• Operator Type: Standard Knob
• Operator Function: Spring Return from Left and Right
• Contact Configuration: 1 Normally Open (NO) and 1 Normally Closed (NC) standard contacts
• Enclosure Compatibility: NEMA Type 1, 4, 12, 13
• Operating Temperature: -25°C to 50% humidity
• Certifications: ABS, CCC, CE, CSA, EAC, GOST, UL

For detailed technical information and installation guidelines, refer to the product’s technical data sheet.
