Allen-Bradley 1606-XLS480E Power Supply
The Allen-Bradley 1606-XLS480E is a high-performance switched-mode power supply designed to deliver reliable and efficient power for industrial applications. With a compact design and advanced features, it ensures optimal performance in demanding environments.
Key Features
- Output Voltage: Adjustable from 24V to 28V DC
- Output Current: 20A at 24V DC
- Power Output: 480W continuous
- Power Boost: Provides 150% of rated power (30A at 24V DC) for up to 4 seconds
- Input Voltage Range: 100–240V AC or 110–300V DC
- Efficiency: Up to 94.5%, minimizing energy loss and heat generation
- Protection Features: Overload, short circuit, and overvoltage protection
- Indicators: Built-in DC OK relay contact and LED indicators for operational status
- Mounting: DIN rail compatible for easy installation

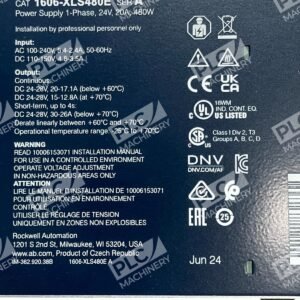

Technical Specifications
- Input Voltage: 100–240V AC, 47–63 Hz; 110–300V DC
- Rated Input Current: 4.6A at 100V AC
- Power Factor: 0.90 typical
- Hold-up Time: 31 to 51 ms
- Operating Temperature: -25°C to +70°C, with derating above 60°C
- Dimensions (H x W x D): 124 mm x 82 mm x 127 mm
- Weight: 1.2 kg
- Protection Rating: IP20
The 1606-XLS480E is engineered to meet the rigorous demands of industrial settings, offering a blend of performance, reliability, and efficiency. Its robust design and comprehensive protection features make it a suitable choice for various applications requiring stable and efficient power supply solutions.
