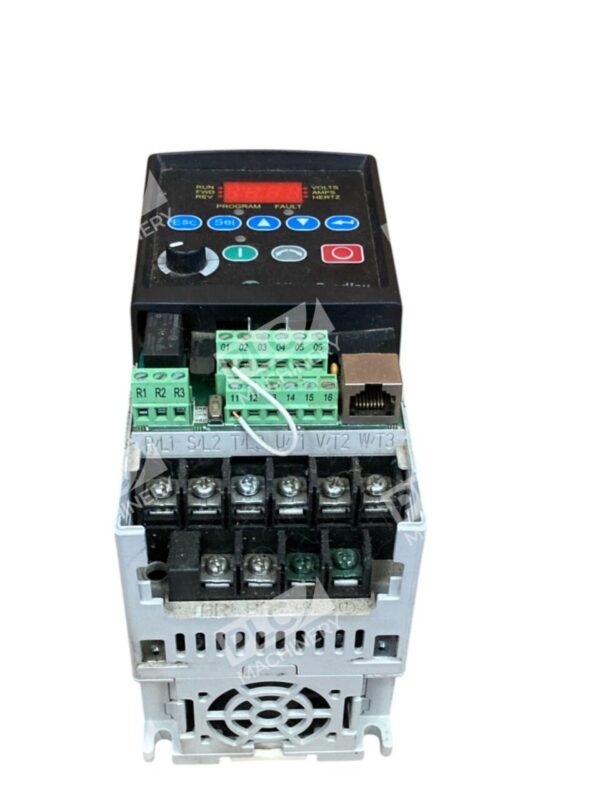

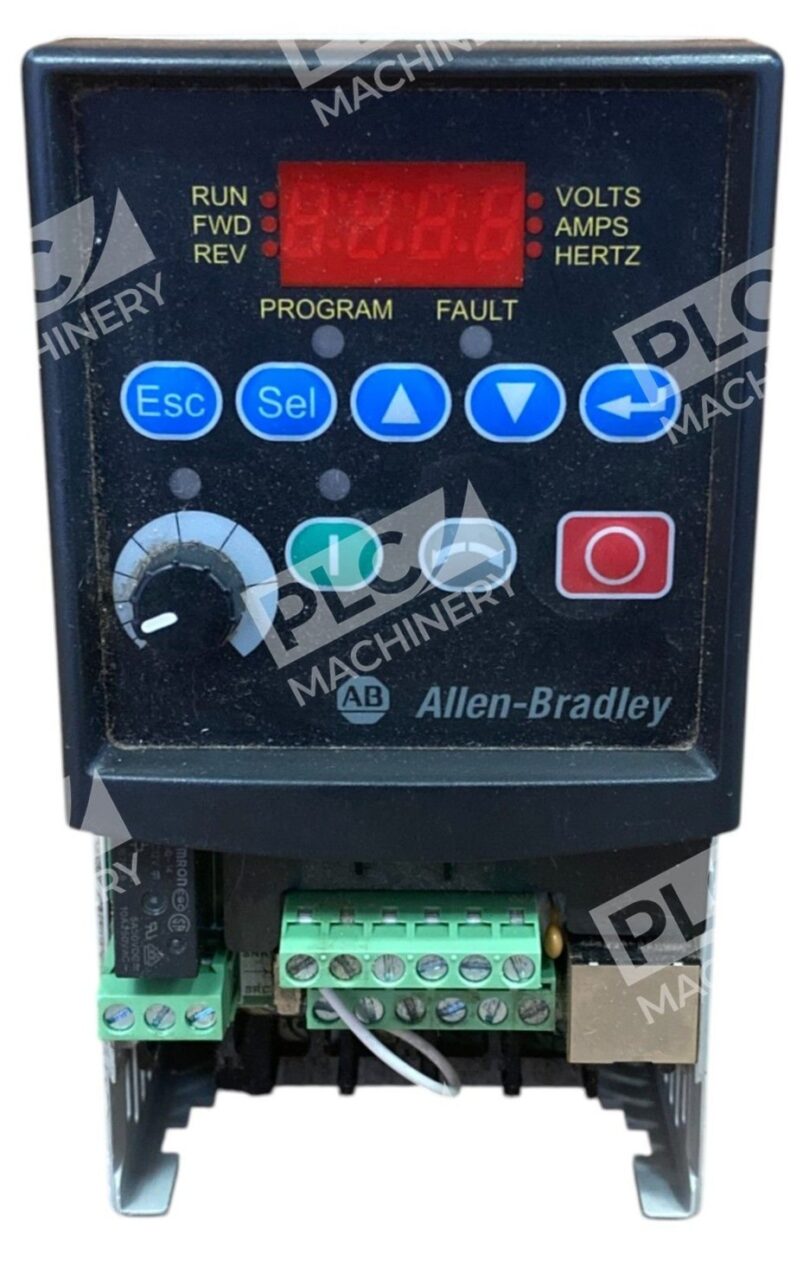

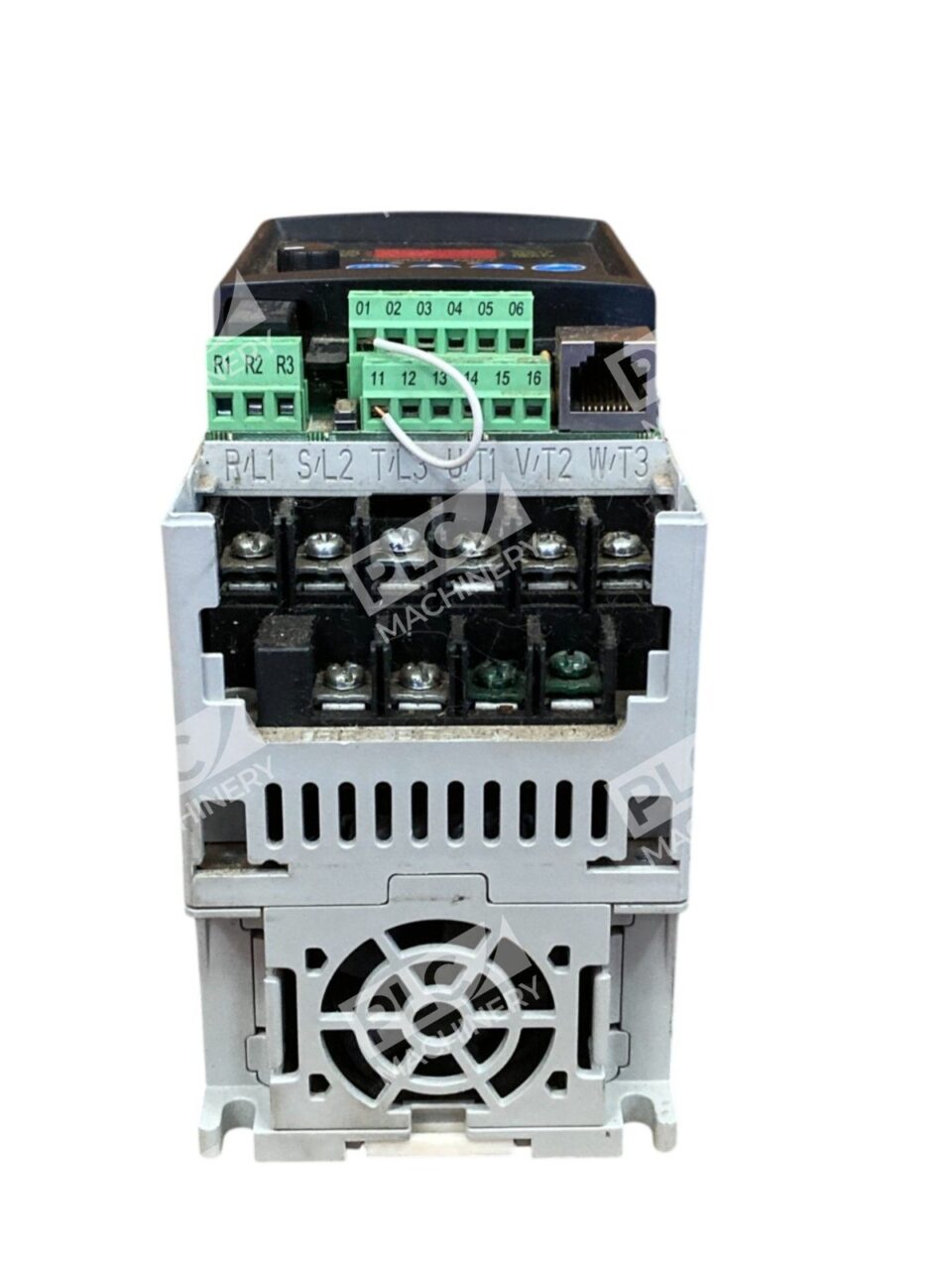

Allen-Bradley PowerFlex 4 AC Drive (22A-B2P3N104 /A)
The Allen-Bradley PowerFlex 4 AC Drive, model 22A-B2P3N104 /A, is a compact and efficient solution for variable frequency drive applications, offering precise motor control and enhanced performance.
Key Features
- Power Rating: 0.4 kW (0.5 HP)
- Input Voltage: 200–240V AC, 3-phase
- Output Current: 2.3 A
- Control Methods: Volts/Hertz (V/Hz) and Sensorless Vector Control
- Enclosure Type: IP20 / NEMA Open
- User Interface: Integral Keypad with LED Display
- Communication: Built-in RS-485 port
- Brake IGBT: Included
Performance and Control
The PowerFlex 4 AC Drive provides versatile control options, including V/Hz and Sensorless Vector Control, allowing for precise speed and torque management across various applications. Its built-in PID loop control enhances process control capabilities.
Design and Installation
Designed for ease of installation, the drive features a compact footprint suitable for panel mounting. The IP20 enclosure rating ensures protection against solid objects, making it ideal for industrial environments. The integral keypad and LED display facilitate straightforward configuration and monitoring.
Communication and Integration
Equipped with an RS-485 communication port, the drive supports seamless integration into existing control systems. Optional communication modules are available for protocols such as DeviceNet, EtherNet/IP, and Profibus, enhancing connectivity options.
Environmental Specifications
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
- Altitude: Up to 1000 meters without derating
The Allen-Bradley PowerFlex 4 AC Drive (22A-B2P3N104 /A) combines performance, flexibility, and user-friendly features, making it a reliable choice for various motor control applications.
