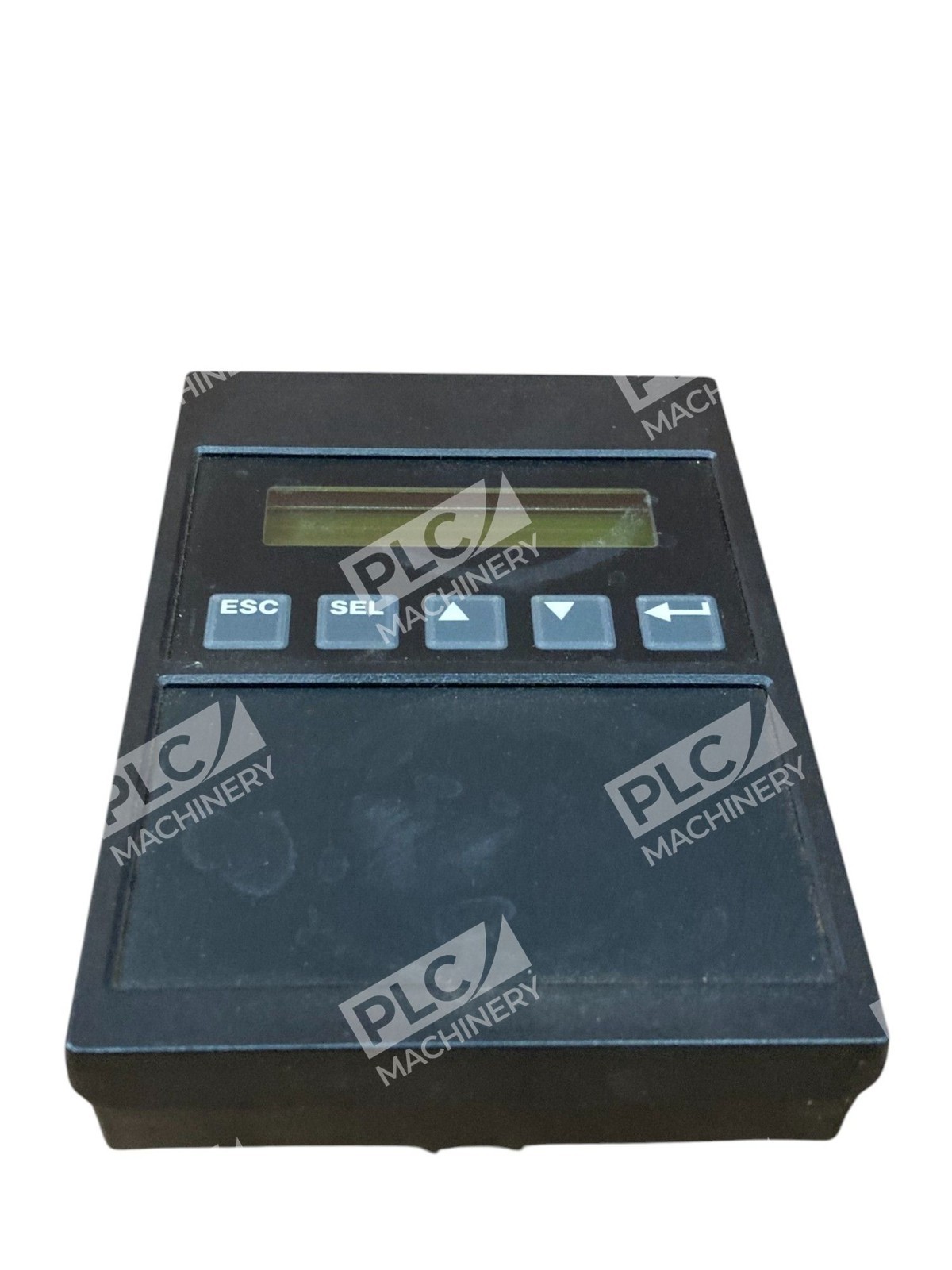

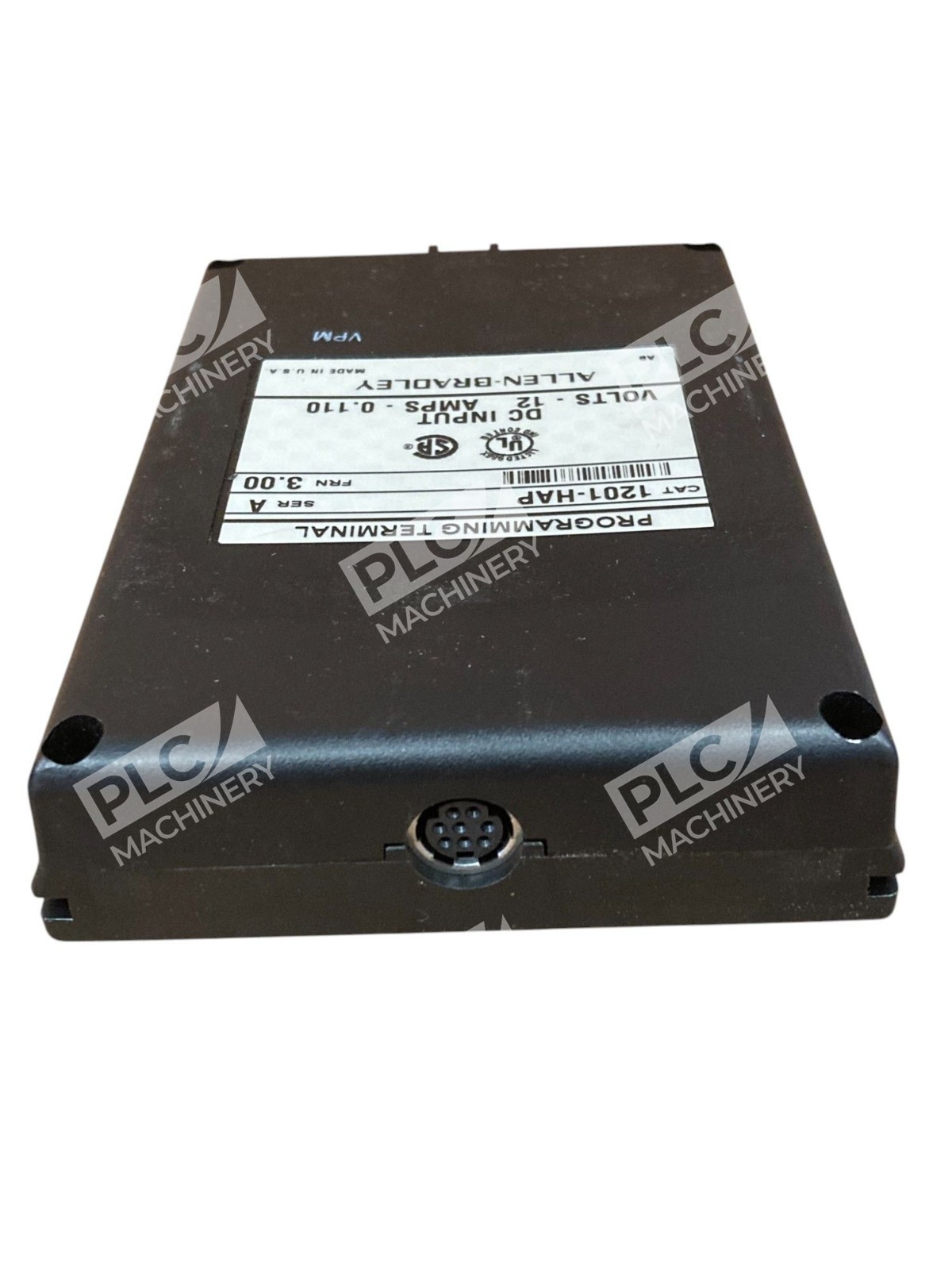

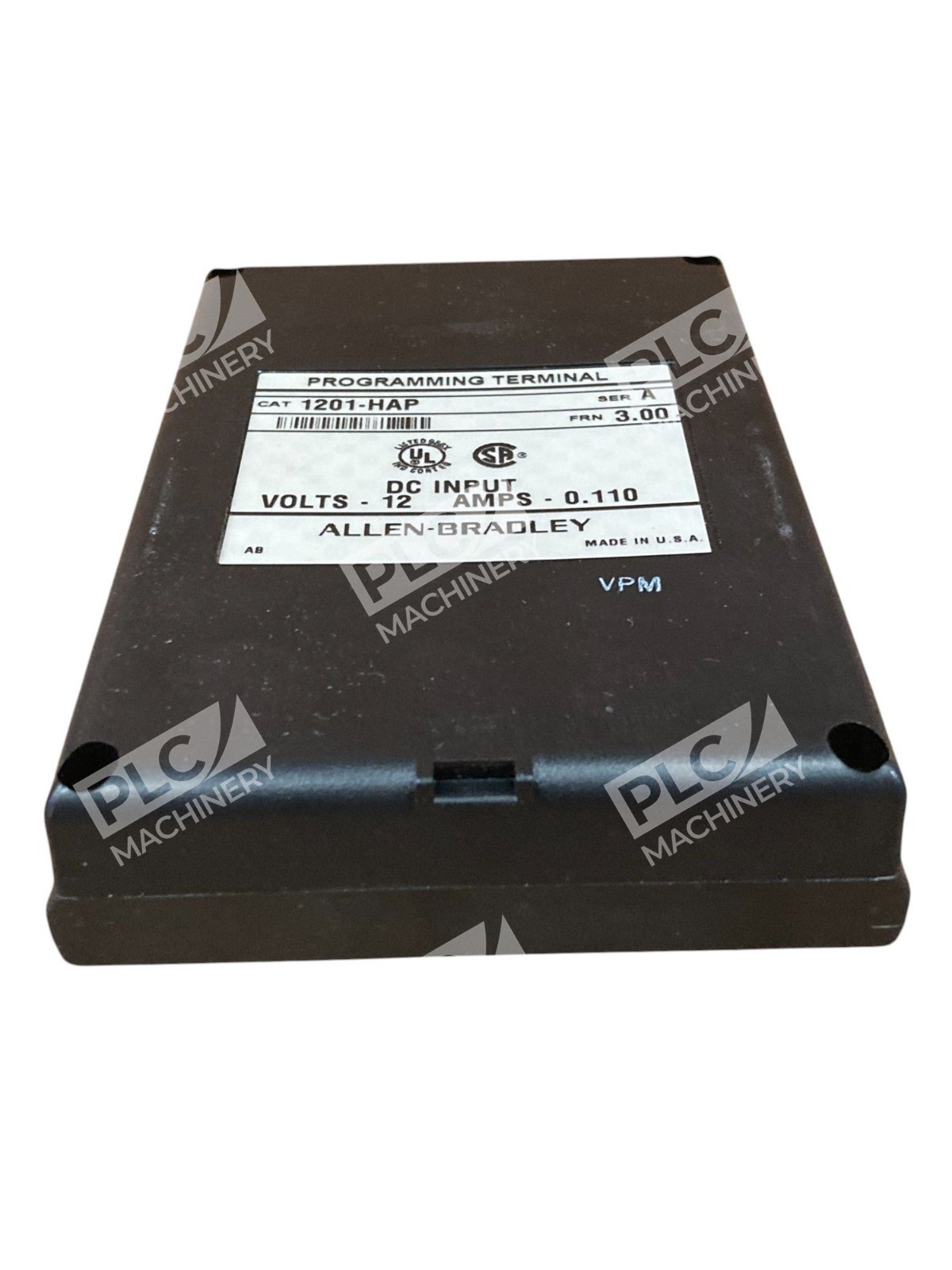

The Allen-Bradley 1201-HAP is a specialized Human Interface Module (HIM) designed exclusively for programming functions across various Allen-Bradley drive series. Housed in a NEMA Type 1 enclosure, it is intended for indoor use, ensuring protection of internal components.
Key Features
- SCANport Interface: Enhances drive functionality by allowing users to monitor existing data, input new variables, and track recent faults.
- Parameter Search Function: Enables efficient navigation and modification of drive parameters.
- Immediate Fault Display: Provides real-time fault alerts, facilitating prompt troubleshooting.
- Bit Enumeration: Assists in interpreting binary parameter details without the need for external reference tables.
- Upload/Download Capability: Allows storage of up to two complete parameter profiles, streamlining the programming of multiple drives.
Technical Specifications
- Compatibility: Compatible with 1336 Plus, 1336 Force, 1305, SMP-3, 1394, and 1557 series drives.
- Enclosure: NEMA Type 1, suitable for indoor environments.
- Operating Temperature: Up to 40°C; adequate ventilation is recommended to prevent overheating.

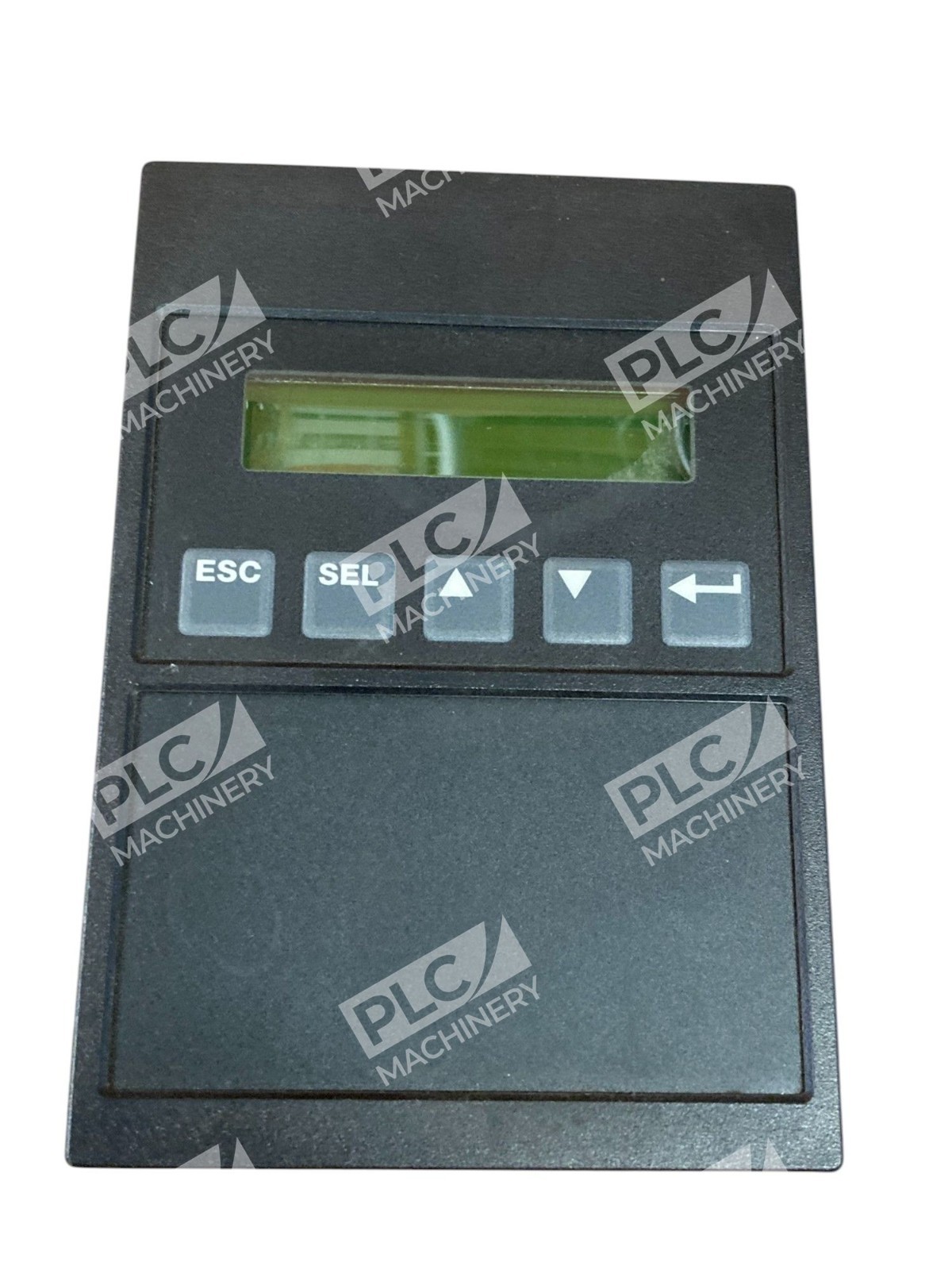

- Display: Equipped with an LCD screen for clear data visualization.

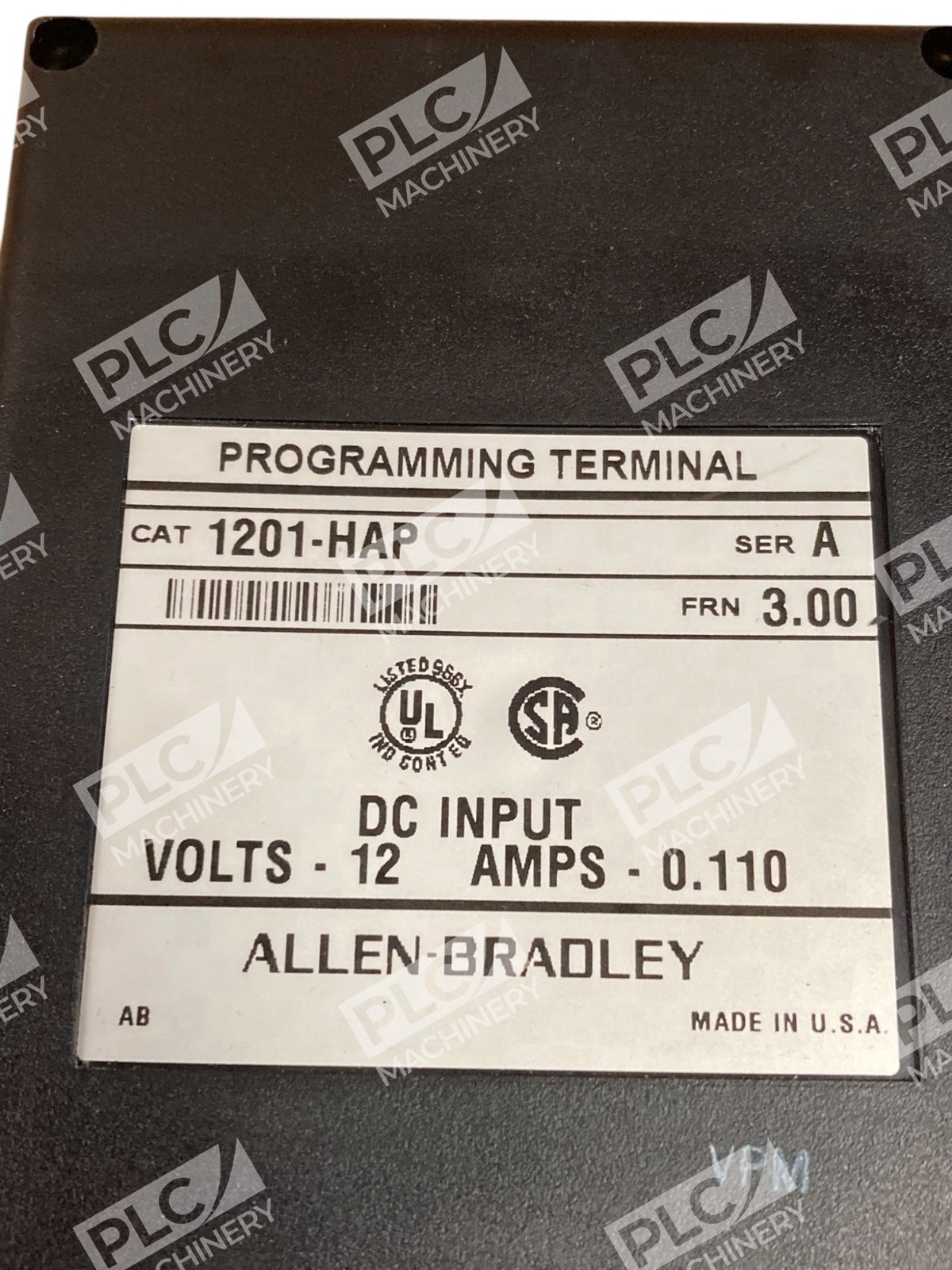

- Input Voltage: 12V DC.
- Dimensions: Approximately 58.4 x 40.6 x 45.7 cm.
- Weight: Shipping weight of 2 pounds.
The 1201-HAP module is engineered to enhance user interaction with Allen-Bradley drives, offering a suite of features that streamline programming and monitoring tasks. Its design focuses on user efficiency and system reliability, making it a valuable tool for managing drive parameters and diagnostics.
