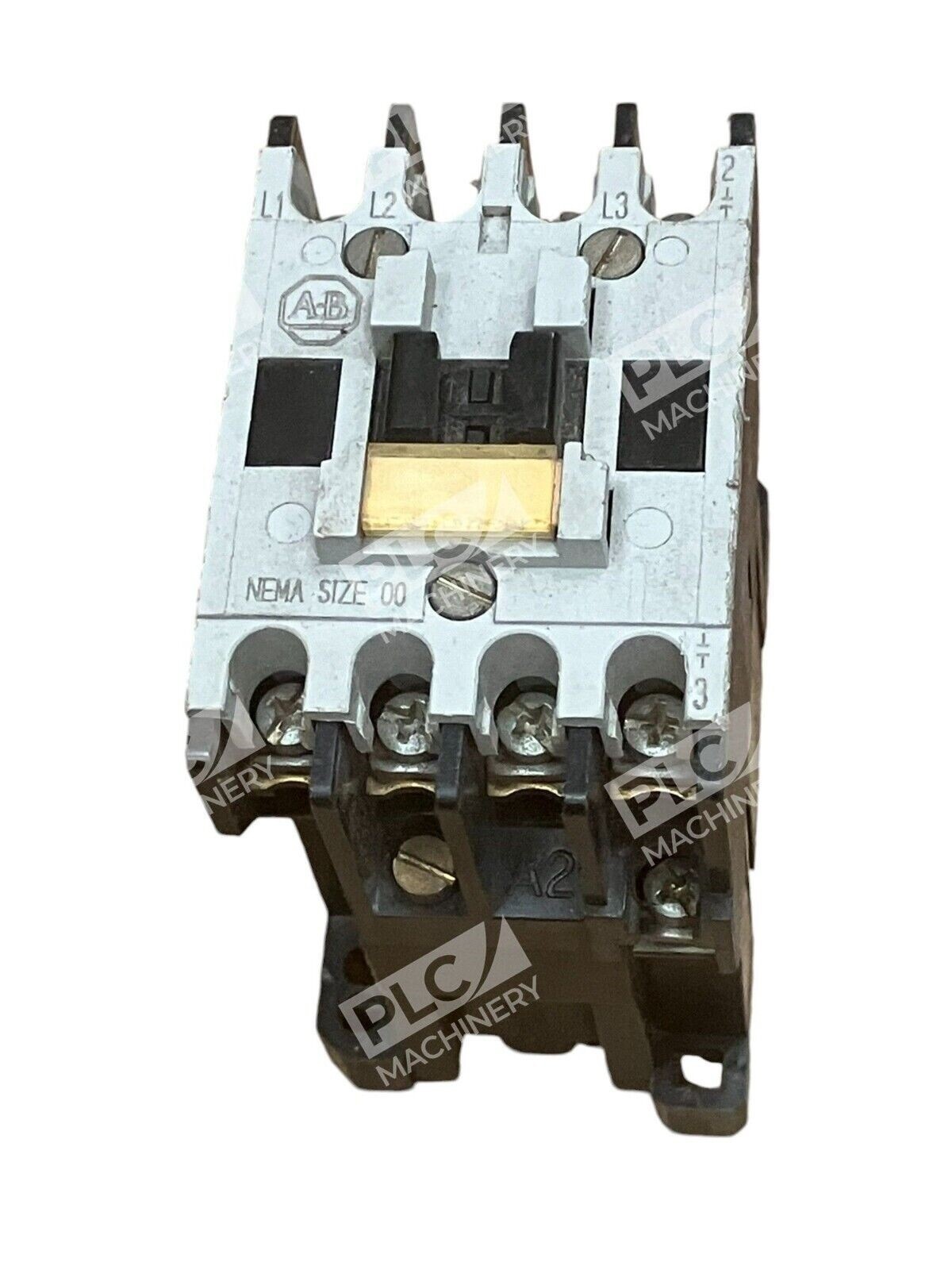

The Allen-Bradley 509-TOH is a NEMA Size 00 non-reversing starter designed for reliable motor control in industrial applications.
Key Features
- Voltage and Current Ratings: Supports up to 600V AC with a continuous current rating of 9A.
- Control Voltage: Operates with a 208V 60Hz coil.
- Overload Protection: Equipped with a eutectic alloy overload relay for enhanced motor protection.
- Construction: Open-type design with corrosion-resistant metal parts, suitable for horizontal mounting.
- Environmental Ratings: Functions effectively at altitudes up to 10,000 feet and within a temperature range of -13°F to +149°F (-25°C to +65°C).
Technical Specifications
- Service Limit Current Rating: 11A

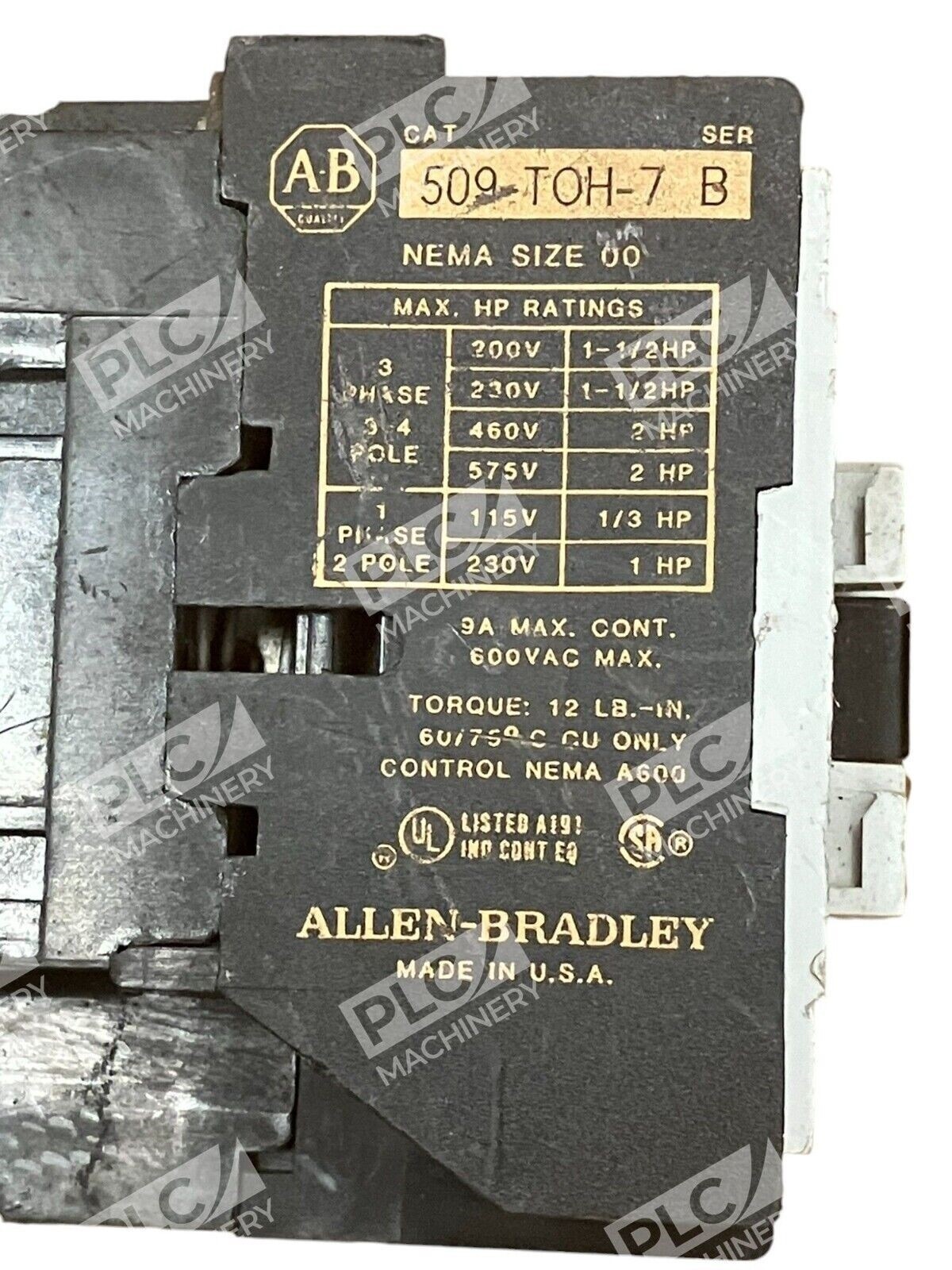

- Maximum Horsepower Rating: 1.5 HP at 200V 3-phase
- Mechanical Life: 10 million operations
- Wire Size for Power Terminals: 16 to 10 AWG
- Required Torque on Power Terminal Wire Clamps: 9 in-lb
The 509-TOH starter is engineered to provide dependable performance and protection for your motor control needs.
