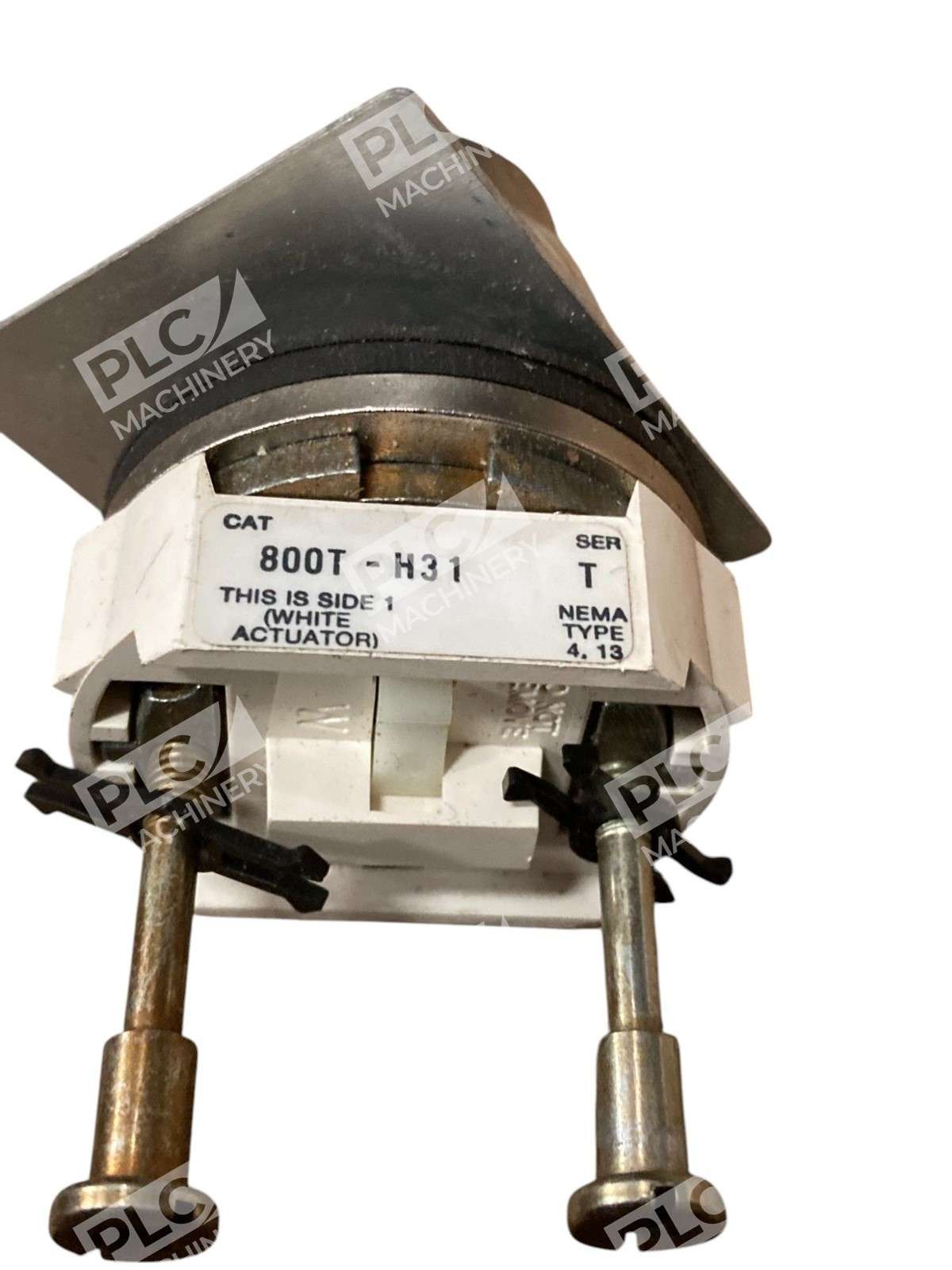

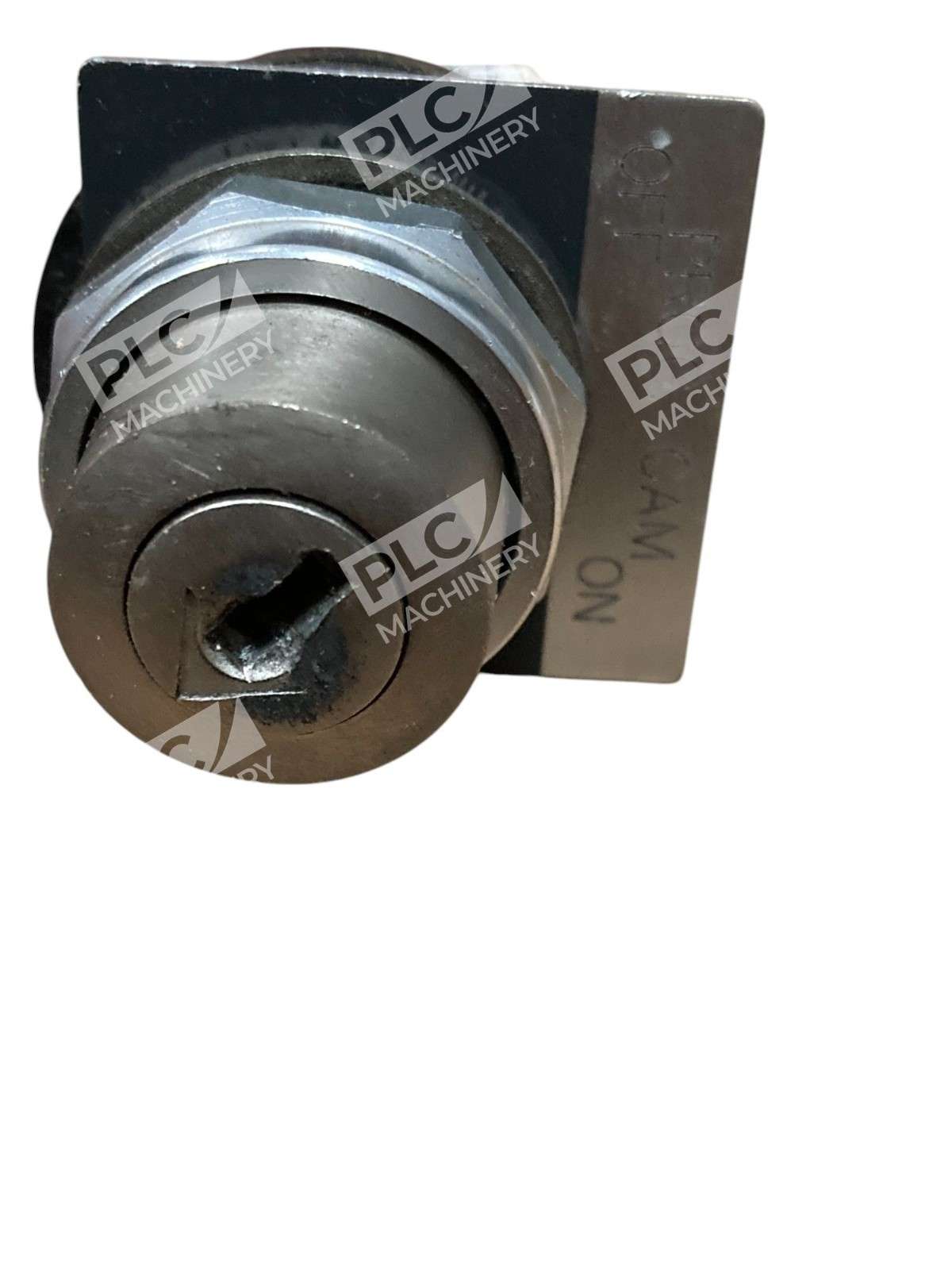

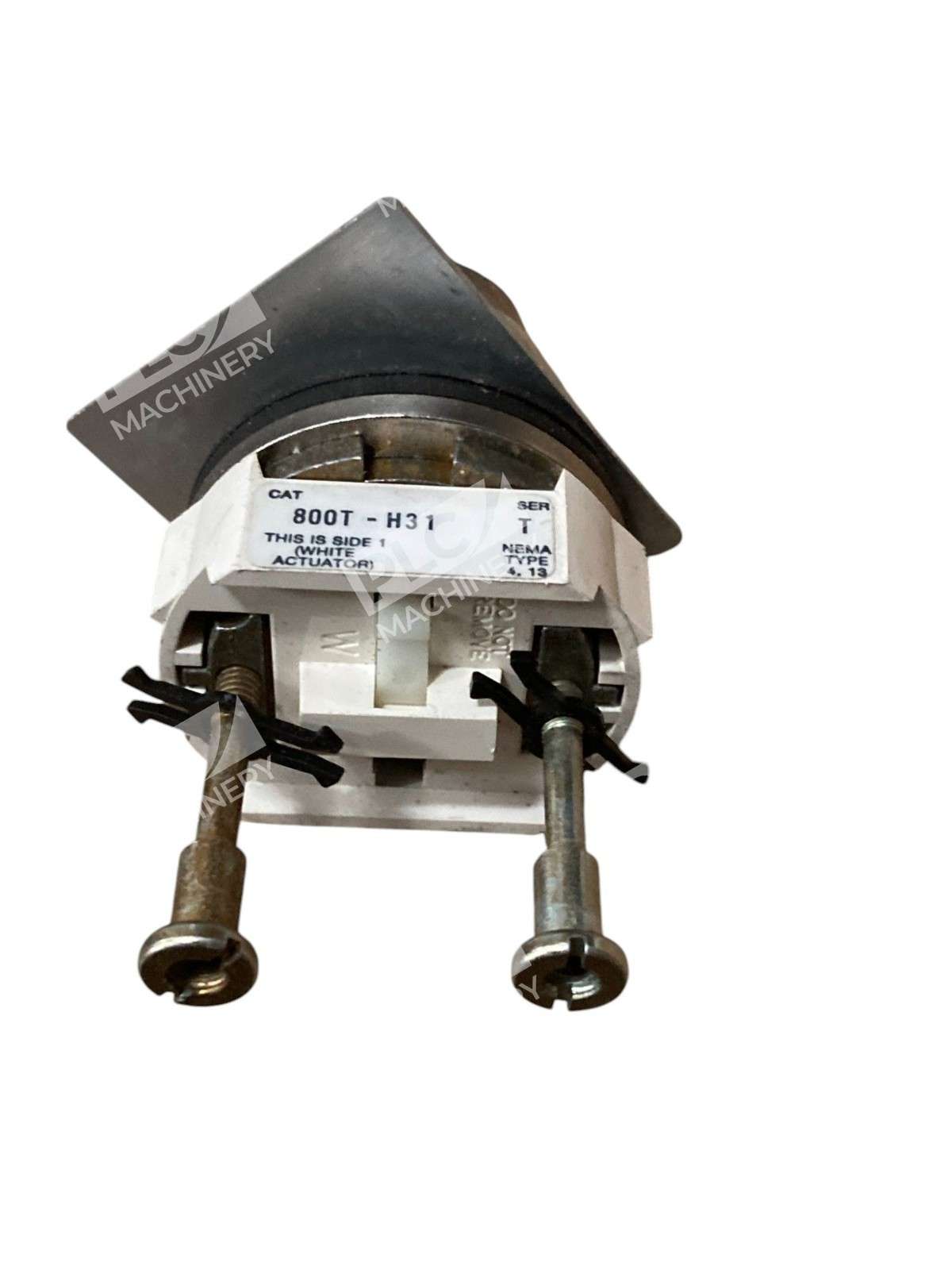

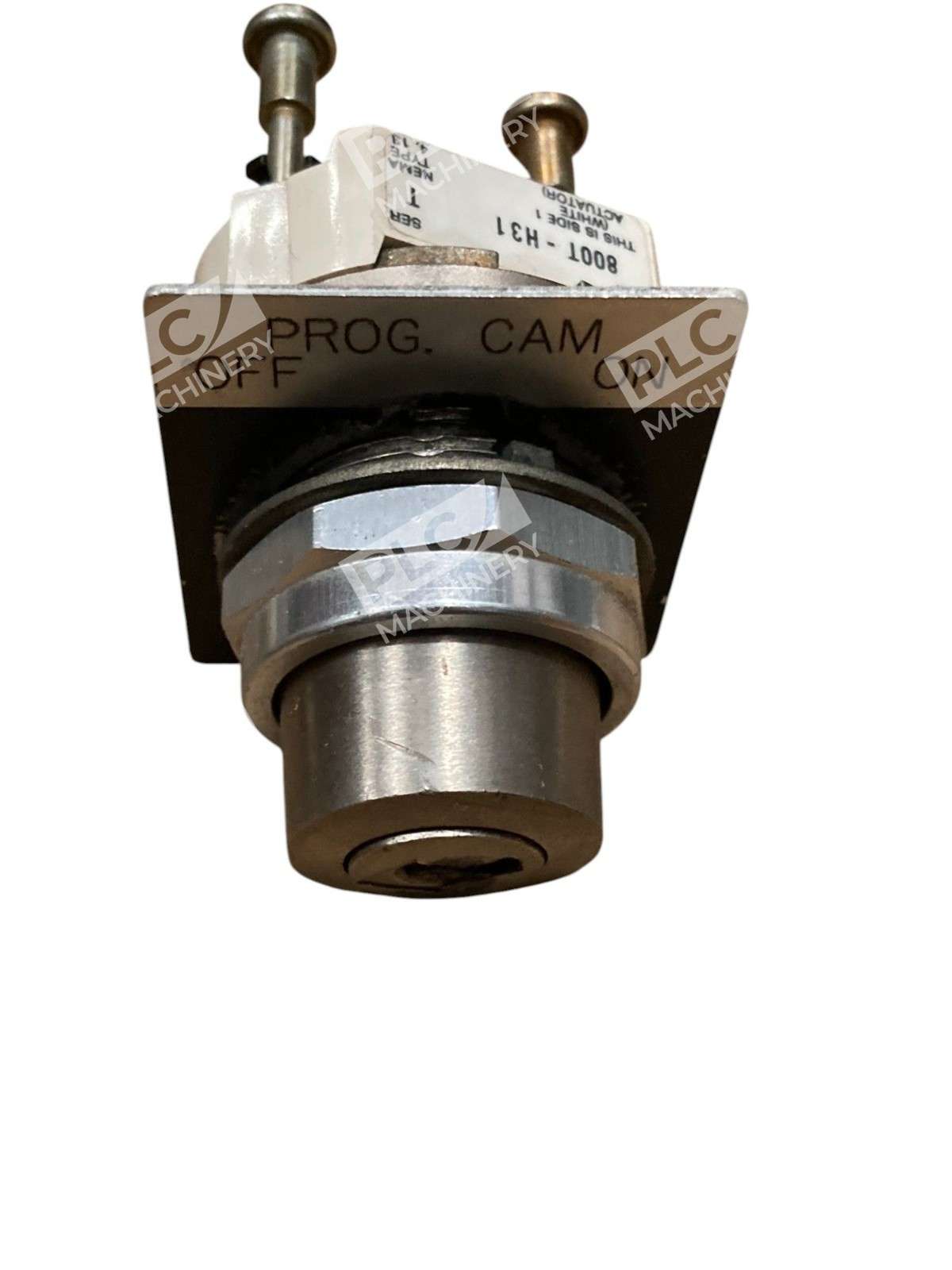

Allen Bradley 800T-H31 2-Position Selector Switch

The Allen-Bradley 800T-H31 is a robust 30.5 mm, 2-position selector switch designed for industrial applications requiring secure and reliable control.

Key Features

• Operator Type: Cylinder lock selector switch
• Positions: 2-position maintained operation
• Key Removal Position: Left position
• Key Type: Standard D018 key
• Mounting Size: 30.5 mm panel mount
• Enclosure Rating: NEMA Type 4/13, providing protection against dust, oil, and water

Technical Specifications

• Mechanical Life: Minimum of 200,000 operations
• Operating Temperature Range: -25°C to +65°C
• Contact Blocks: Not included; compatible with 800T series contact blocks
• Certifications: CE, CSA, UL, and others

Applications

Ideal for machine control panels, process control systems, and equipment requiring secure access control.

Additional Information

The 800T-H31 features a maintained operation, meaning it stays in the selected position until manually changed. The key can be removed when the switch is in the left position, allowing for controlled access. This selector switch is part of Allen-Bradley’s 800T series, known for its durability and reliability in harsh industrial environments.
