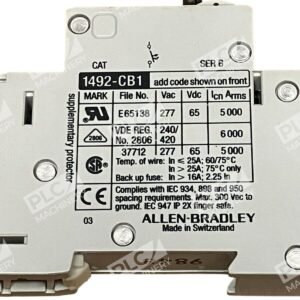

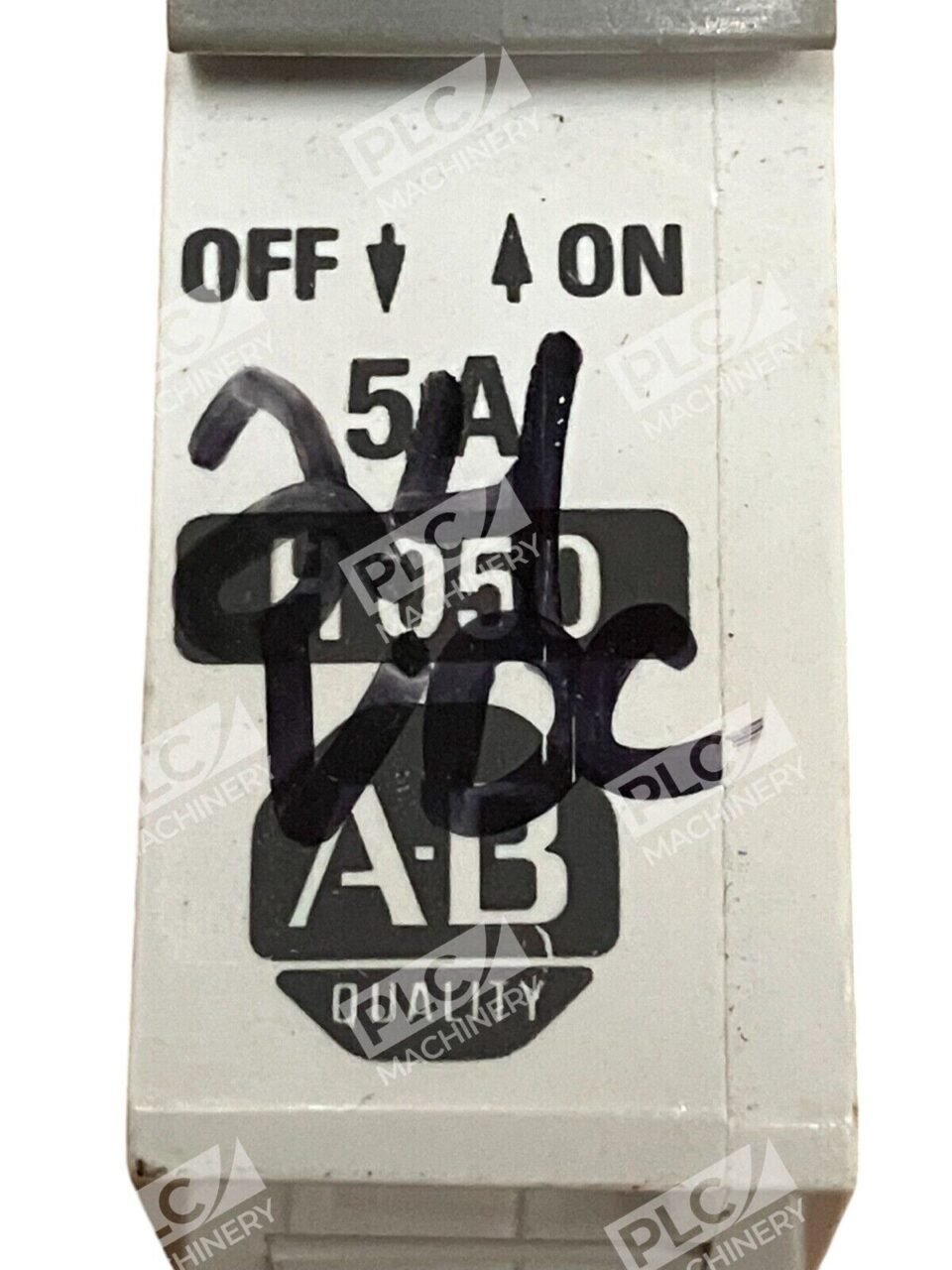

Allen Bradley 5A 1 Pole Circuit Breaker 1492-CB1H050 /B

Allen-Bradley 5A 1-Pole Circuit Breaker 1492-CB1H050 /B

The Allen-Bradley 1492-CB1H050 /B is a 5-ampere, single-pole circuit breaker designed to provide reliable protection for electrical circuits in industrial and commercial applications. This device combines the functionality of a manual motor controller and a circuit breaker, ensuring both operational control and safety.

Key Features

• Current Rating: 5 Amperes
• Voltage Rating: Suitable for 480Y/277V AC three-phase or 65V DC operations
• Tripping Characteristics: H-Trip, designed for highly inductive loads with a magnetic trip range of 12 to 20 times the rated current
• Mounting: DIN rail mountable for easy installation in control panels and electrical enclosures
• Design: Compact and energy-limiting, enhancing downstream component protection
• Housing Material: Constructed with melamine-phenolic material, offering high dielectric strength of 1960 Volts AC
• Operating Temperature Range: -40 to 140 degrees Fahrenheit
• Wire Compatibility: Accommodates wire sizes from 16 AWG to 4 AWG

Applications

The 1492-CB1H050 /B is ideal for protecting various electrical components, including:

• Transformers
• Power supplies
• Test equipment
• Medical devices
• Relay and contactor coils
• Computers
• Solenoids
• Control instrumentation

Its energy-limiting design ensures enhanced protection for downstream components, making it a reliable choice for safeguarding sensitive equipment.

Dimensions

• Width: 0.7 inches
• Height: 3.63 inches
• Depth: 2.72 inches

These compact dimensions make the 1492-CB1H050 /B suitable for installations where space is limited without compromising performance.

For detailed technical specifications and installation guidelines, please refer to the product documentation provided by the manufacturer.
