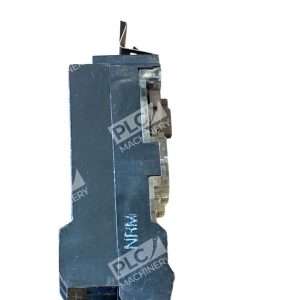

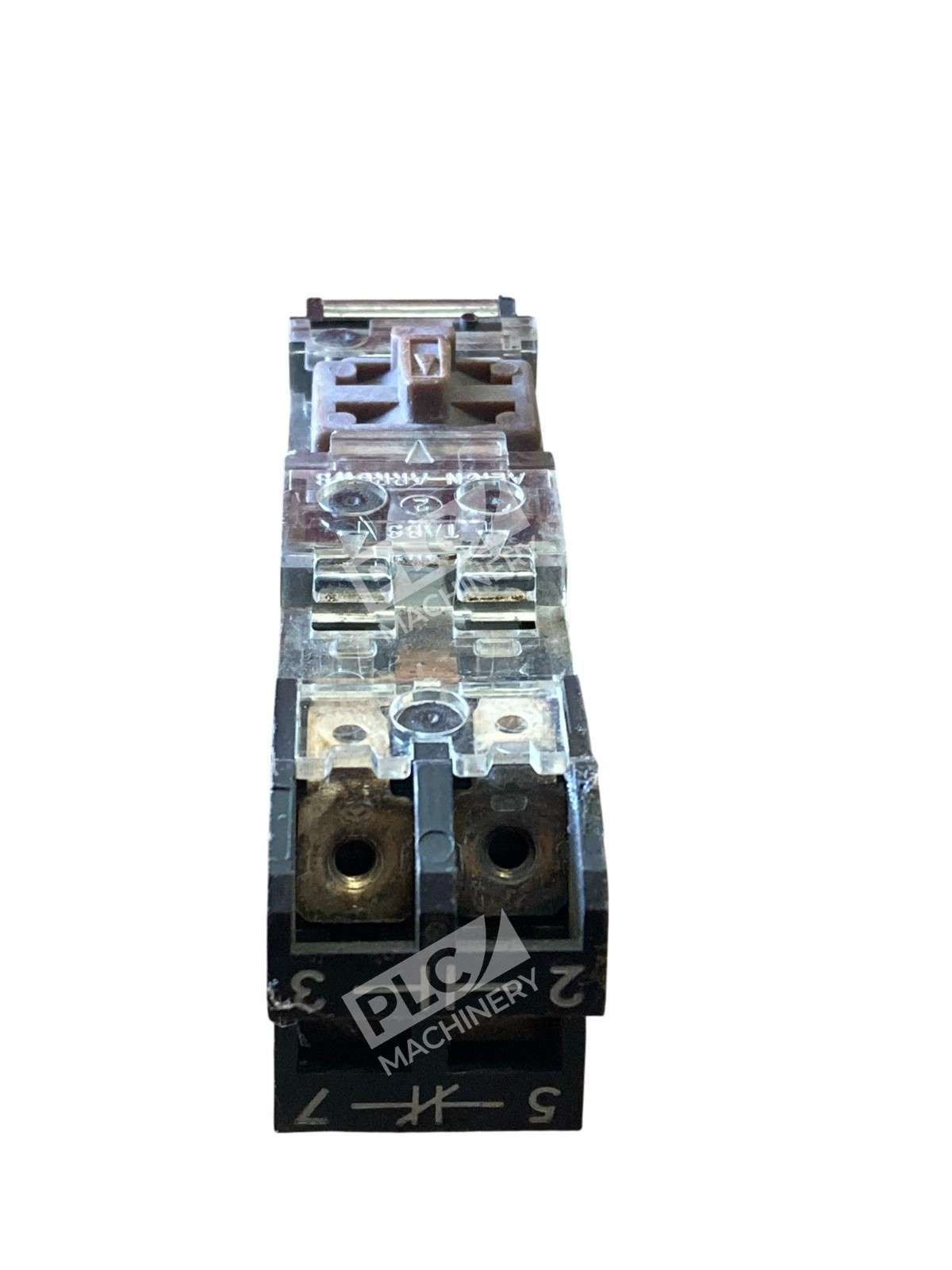

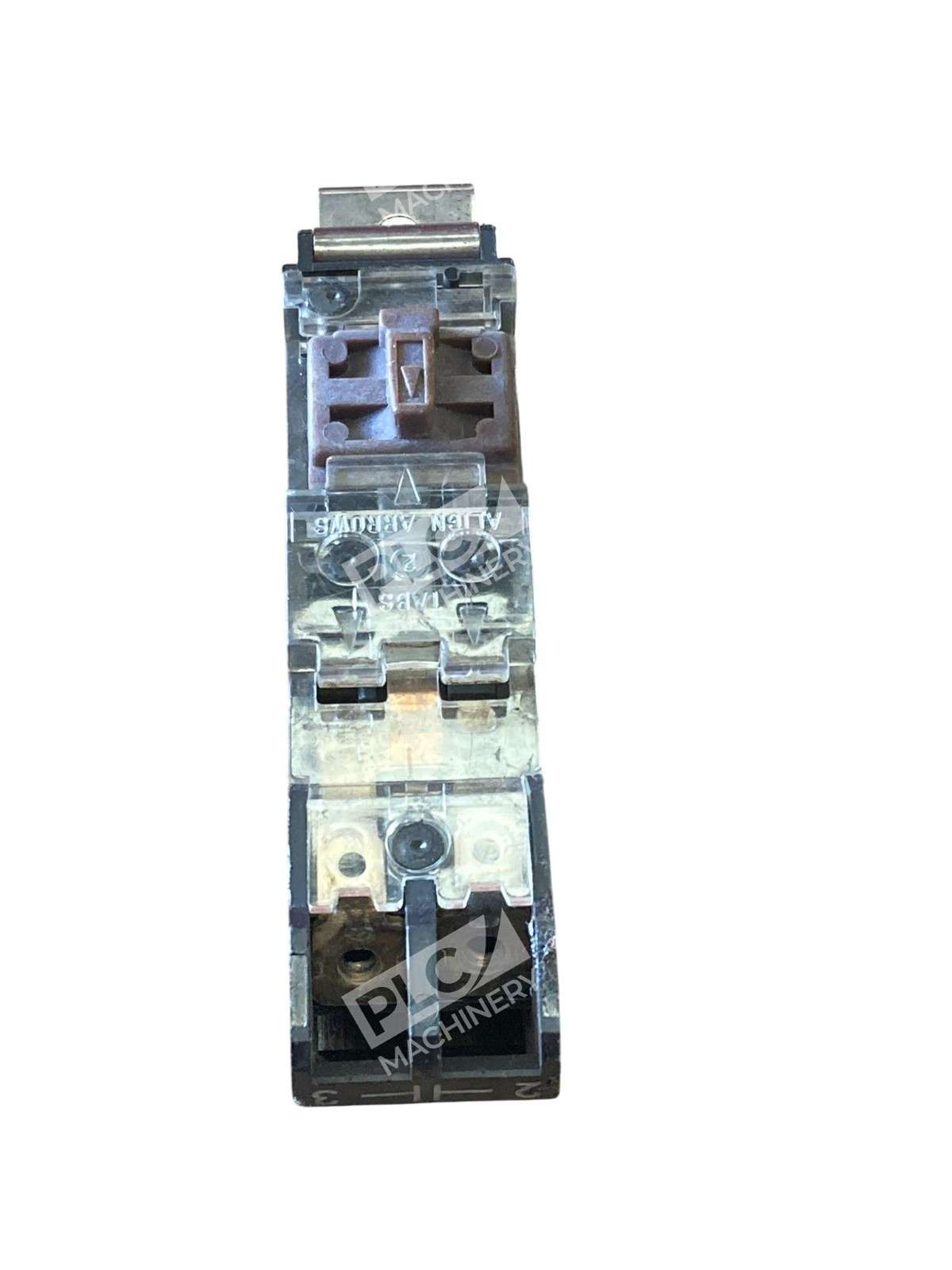

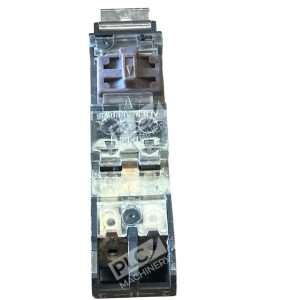

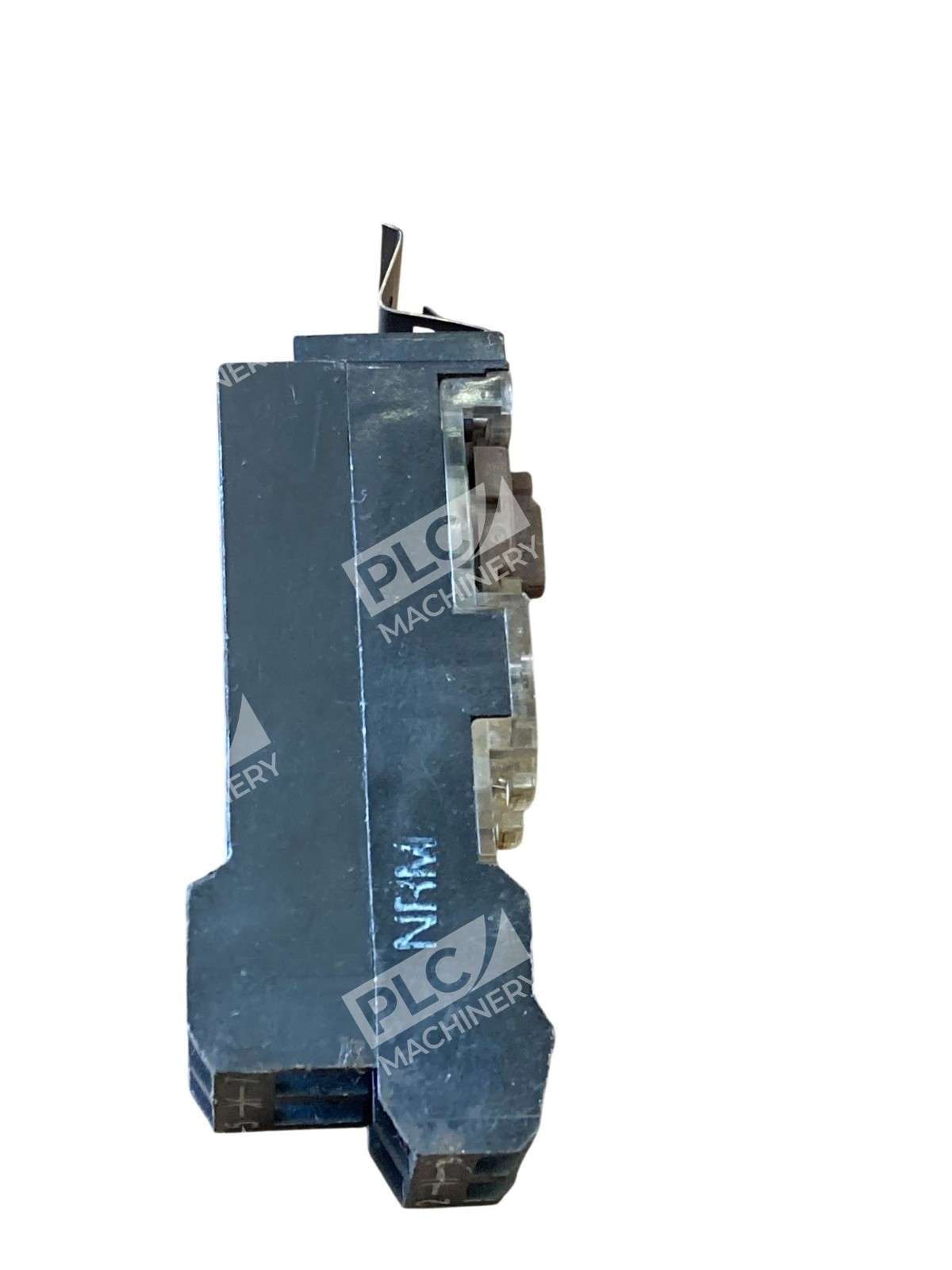

The Allen-Bradley 595-AB Series B Auxiliary Contact is a versatile component designed to enhance the functionality of NEMA Size 0 through 5 contactors and starters.
Key Features

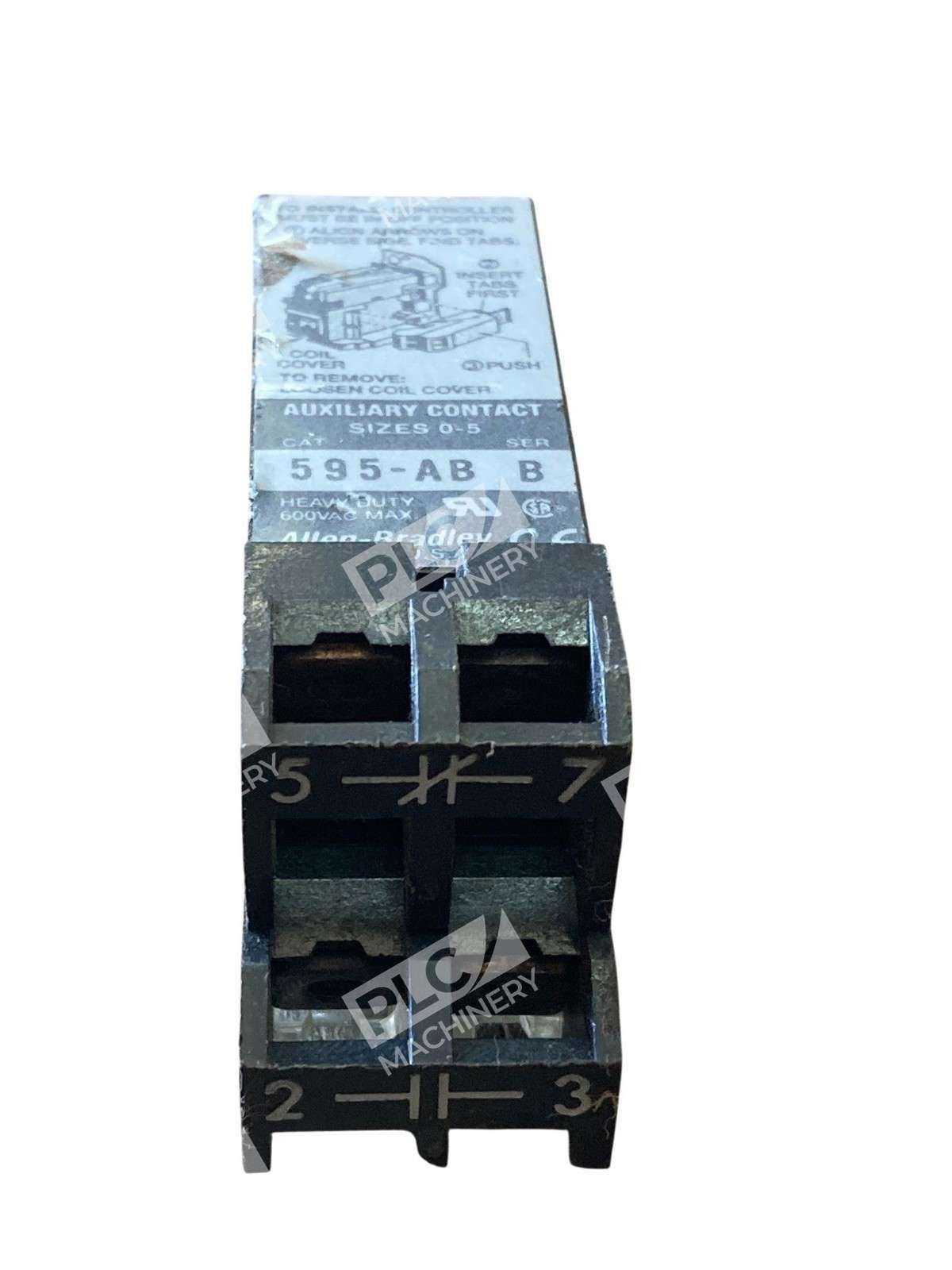

- Contact Configuration: Equipped with one normally open (N.O.) and one normally closed (N.C.) contact, providing flexibility for various control applications.
- Electrical Ratings: Rated for up to 10 amperes and 600 volts, ensuring reliable performance in demanding industrial environments.
- Compatibility: Specifically designed for seamless integration with Allen-Bradley 500 Line contactors and starters, sizes 0 through 5.
- Mounting: Features a user-friendly design that allows for tool-free installation beneath the coil cover at designated positions (P1, P2, P3, or P4), facilitating quick and secure attachment.
Applications
The 595-AB auxiliary contact is ideal for applications requiring additional control circuits, such as signaling, interlocking, or feedback mechanisms. Its dual-contact configuration allows for simultaneous normally open and normally closed operations, enhancing control system versatility.
Installation

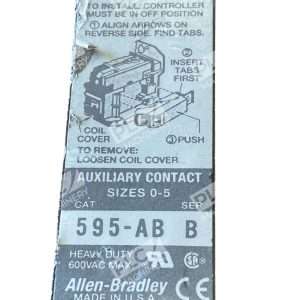

Installing the 595-AB auxiliary contact is straightforward. Align the molded tabs with the designated positions on the coil cover, hook the tabs under the cover, and apply a pivotal force until the block snaps securely into place. This design ensures a secure fit without the need for additional tools or hardware.
Specifications
- Model Number: 595-AB Series B
- Contact Configuration: 1 N.O. – 1 N.C.
- Voltage Rating: 600V
- Current Rating: 10A
- Compatibility: NEMA Size 0-5 Contactors and Starters
- Mounting Positions: P1, P2, P3, P4
Incorporating the Allen-Bradley 595-AB Series B Auxiliary Contact into your control system enhances operational flexibility and reliability, making it a valuable addition to industrial automation setups.
